Specificatii Tehnice
Terminal type
Double funtion clamp / pin and fork busbar
Accesorii optionale
AM900099--;BSB90121--;BSB90122--
Capacitate nominala de rupere Im
3000 A
Standard produs
EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016;EN 61009-2-1:1994 + A11:1998;IEC 61009-1;IEC 61009-2-1
Masa neta
0,42 kg/m
Insulation voltage
500 V
Rated frequency
50/ 60 Hz
Temperatura maxima a mediului ambiant
60 °C
Rezistenta la scurtcircuit
6 kA
PROMO CODE CH
6885-0064-73
Tensiune dielectrica de test la frecventa industriala
2000 V
Categorie produs
A (sensibil la curent alternativ si pulsatoriu)
Max. permissible back-up fuse against short circuit
63 A gG
Descriere de baza

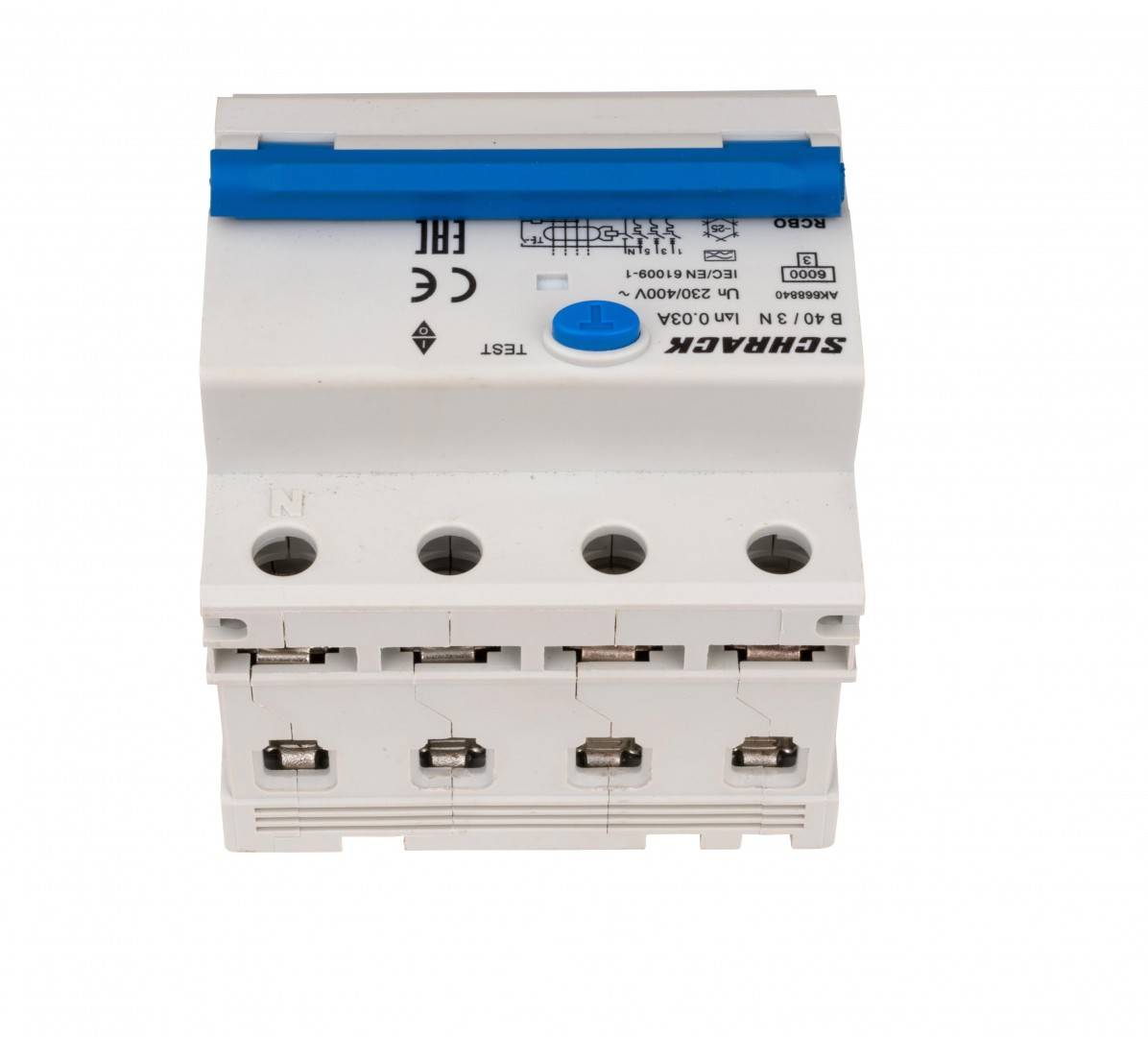

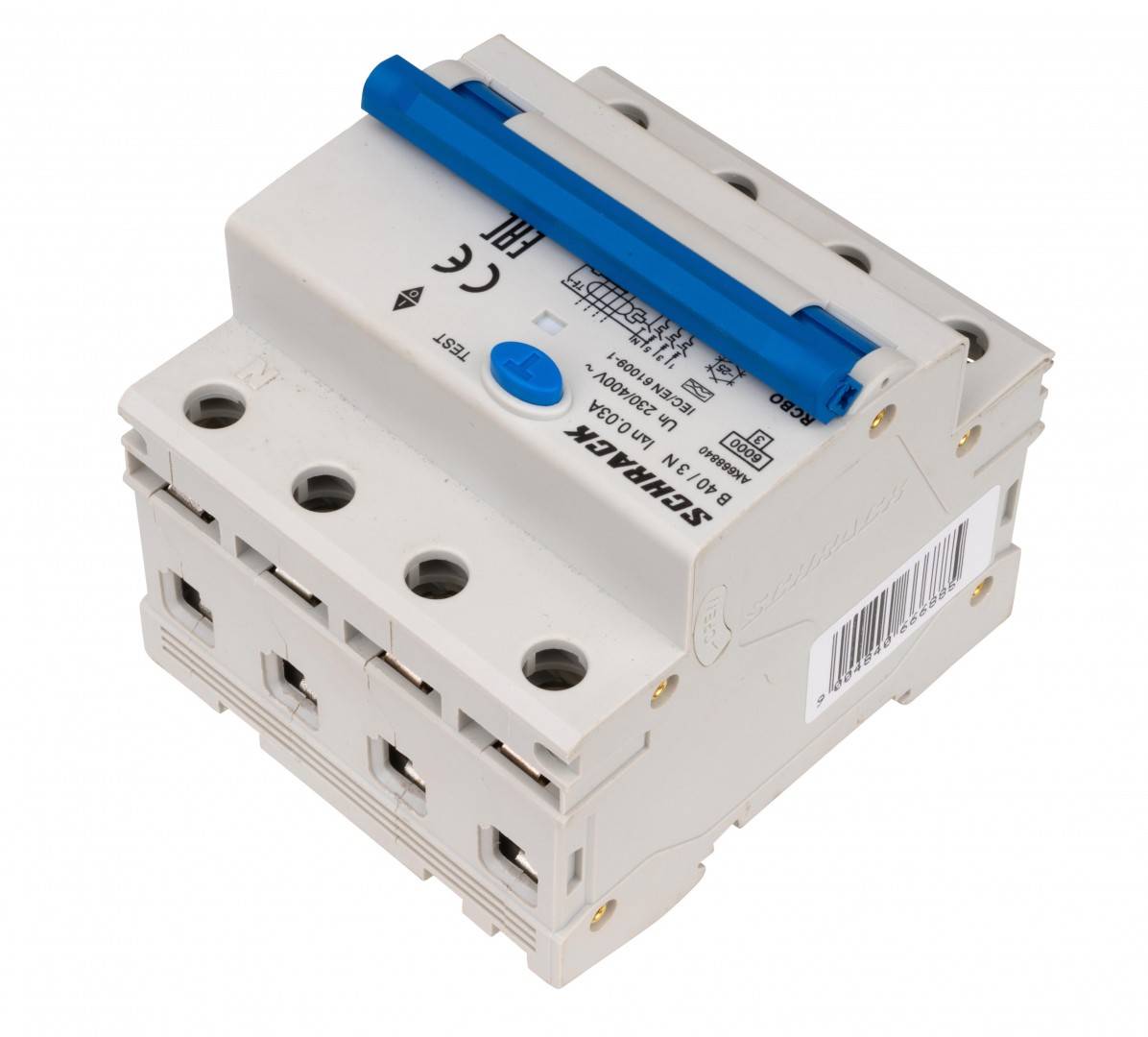

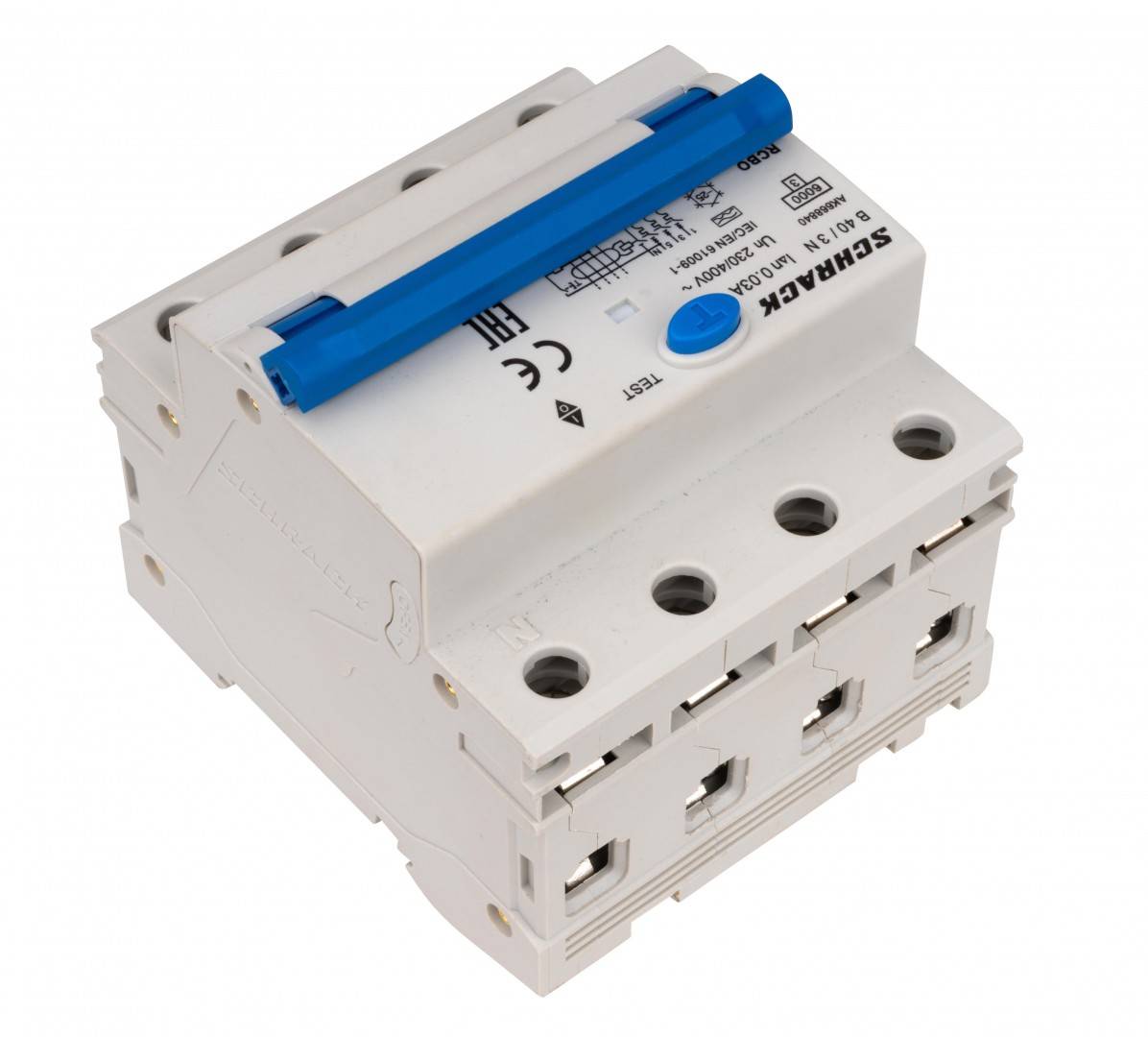

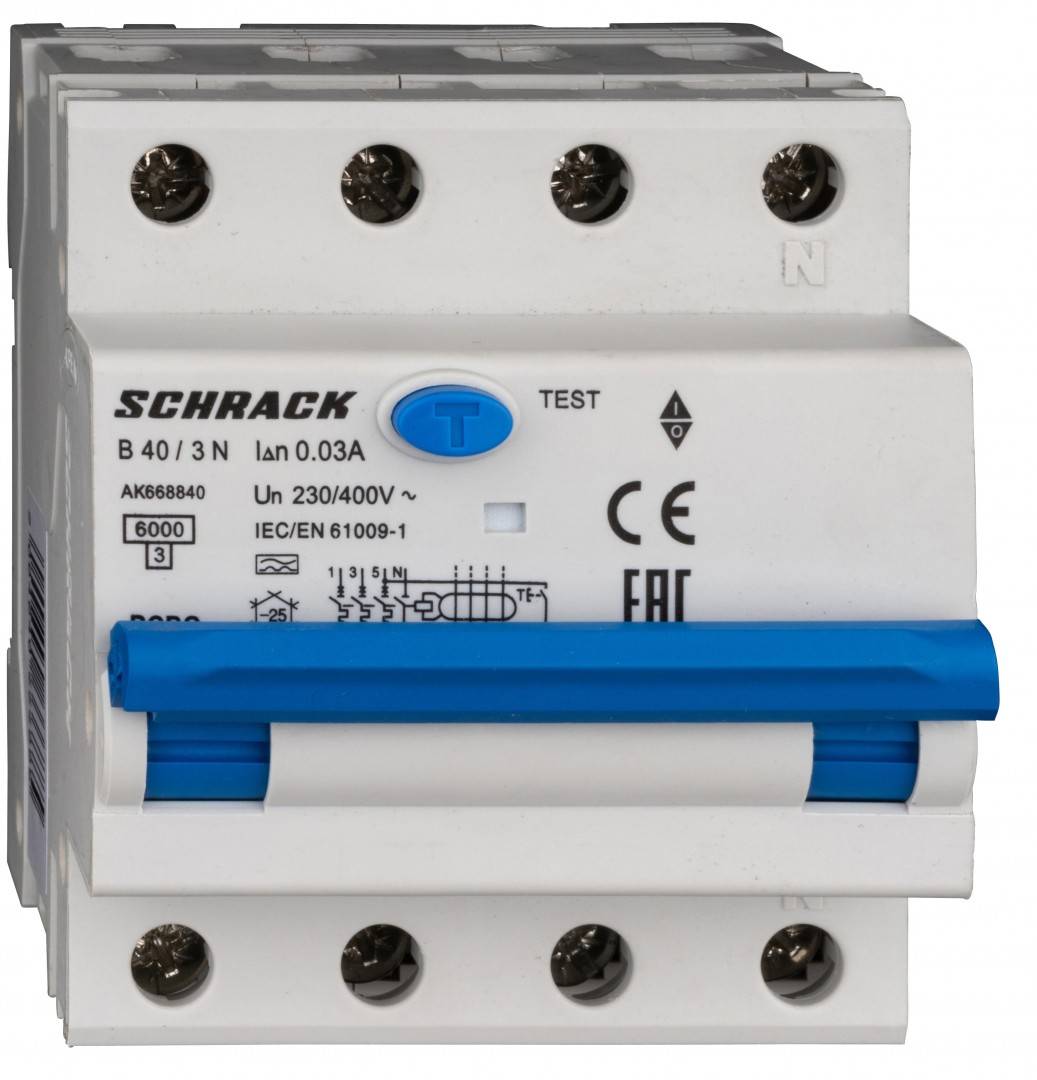

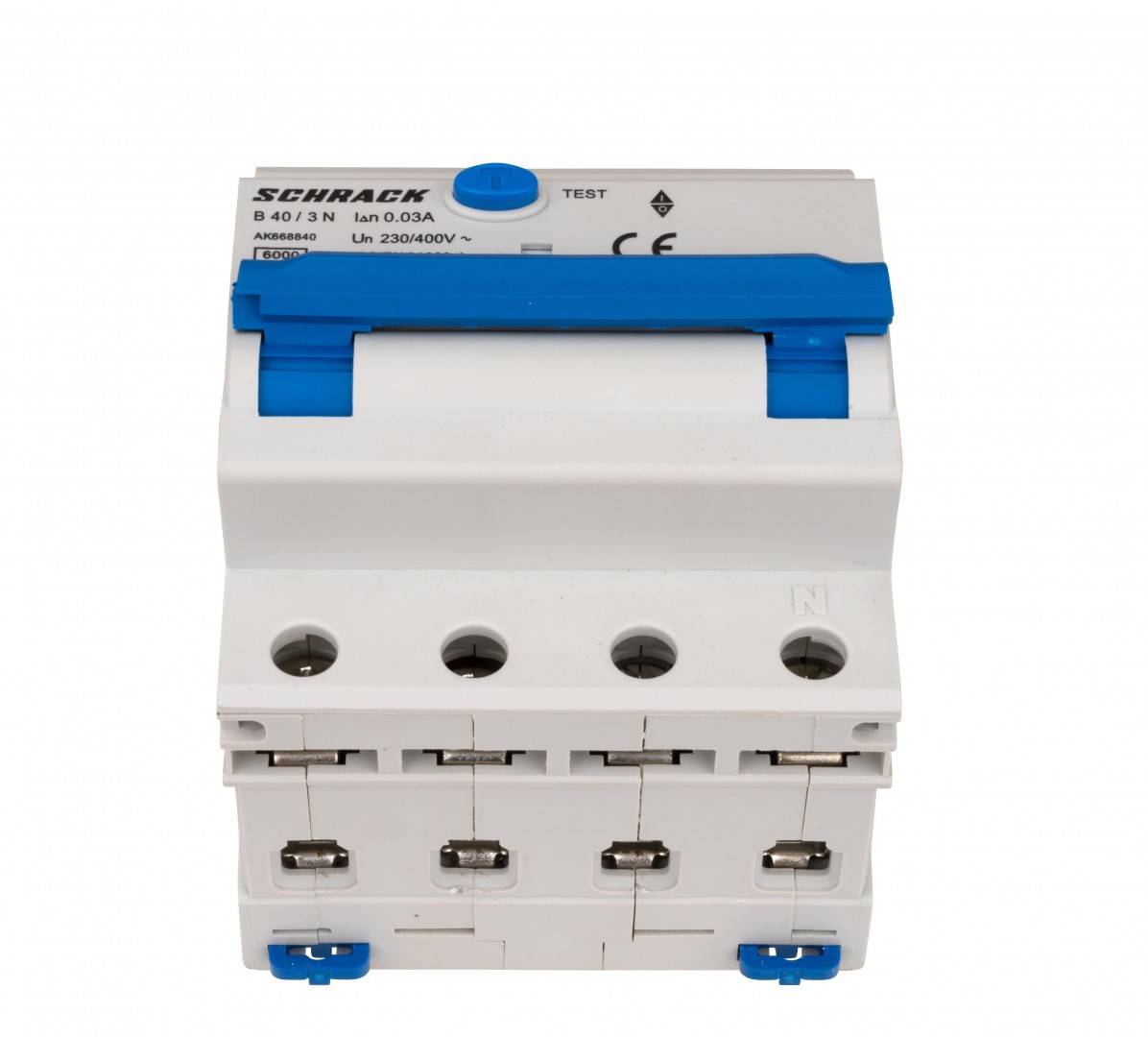

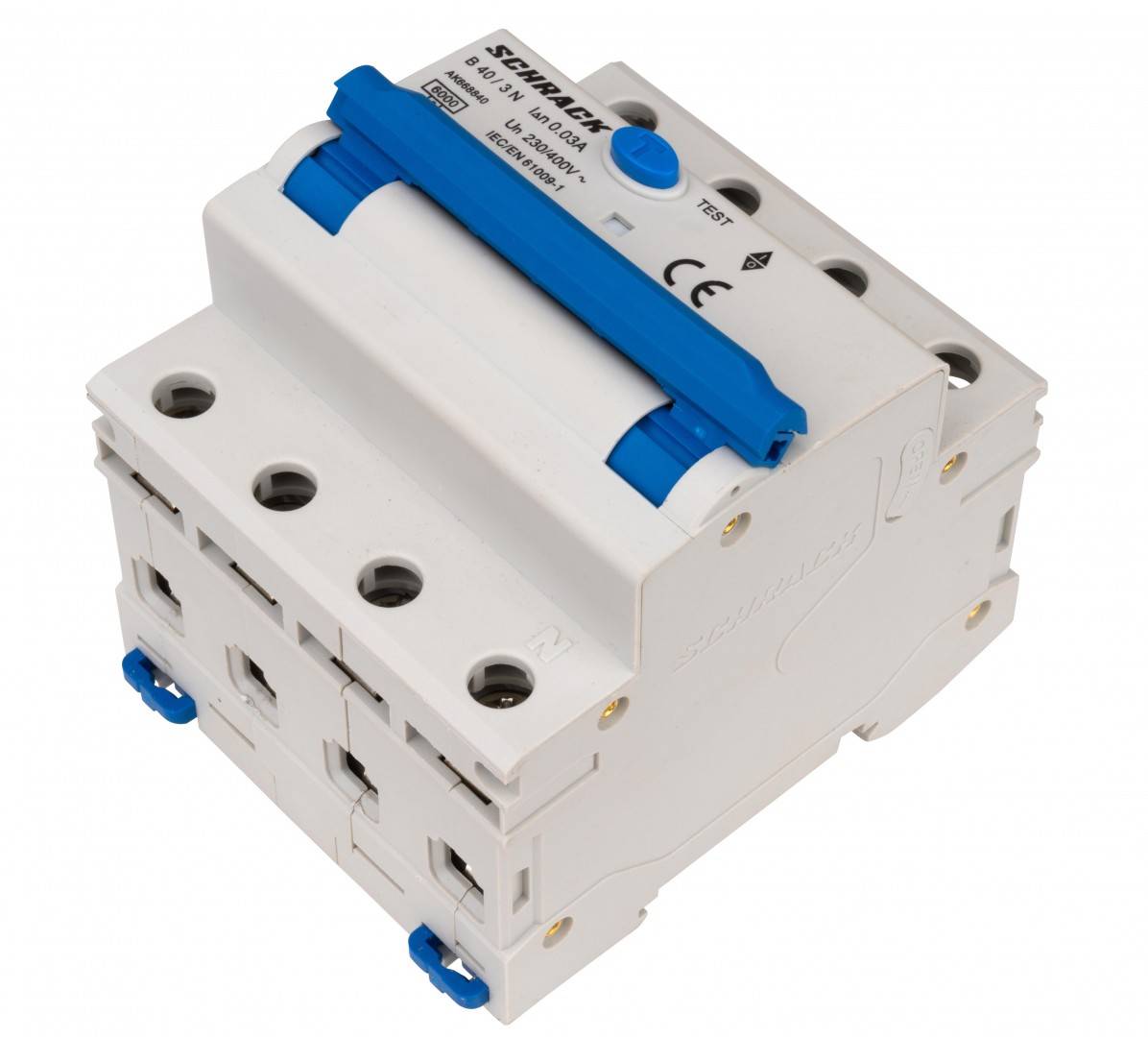

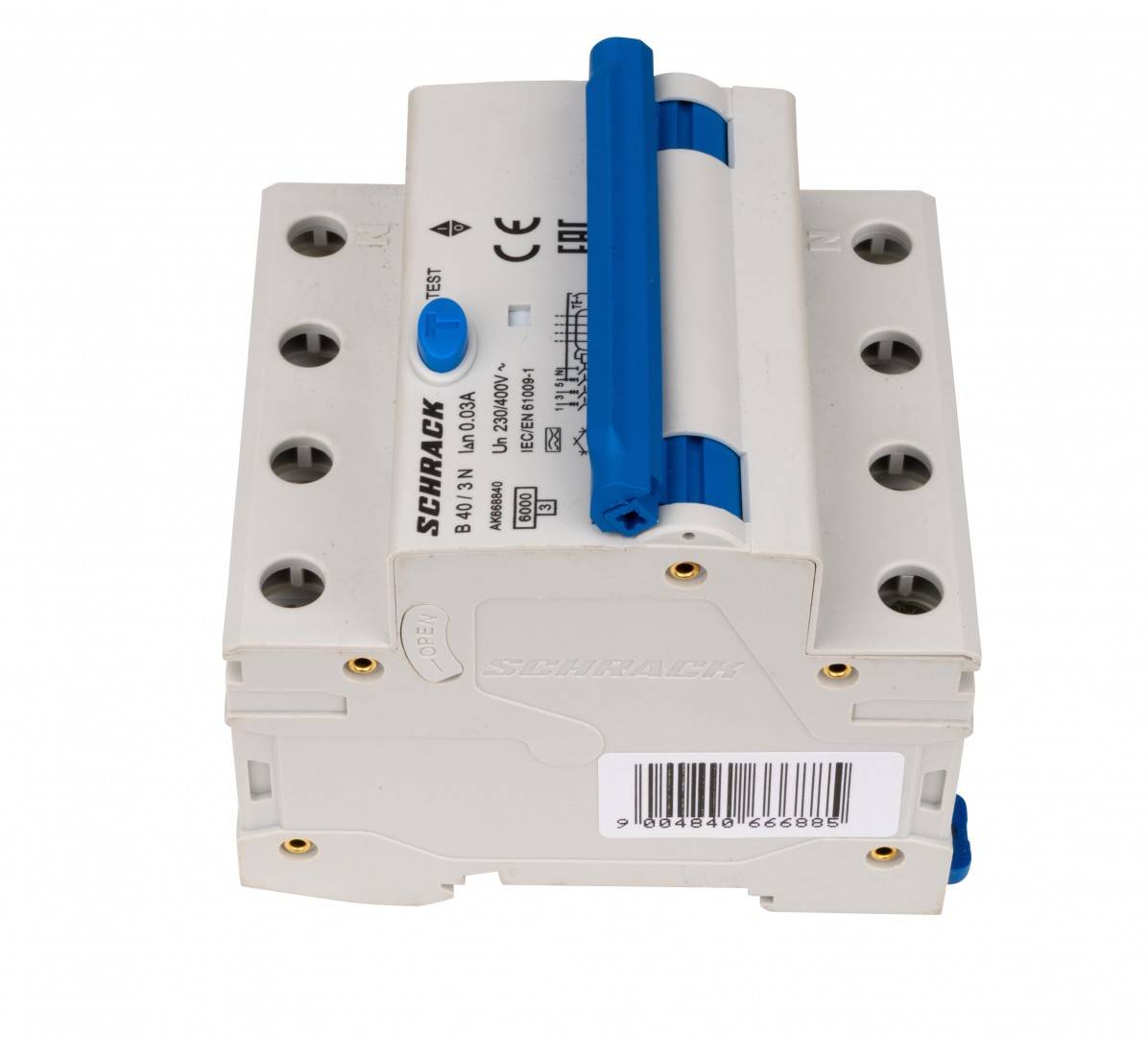

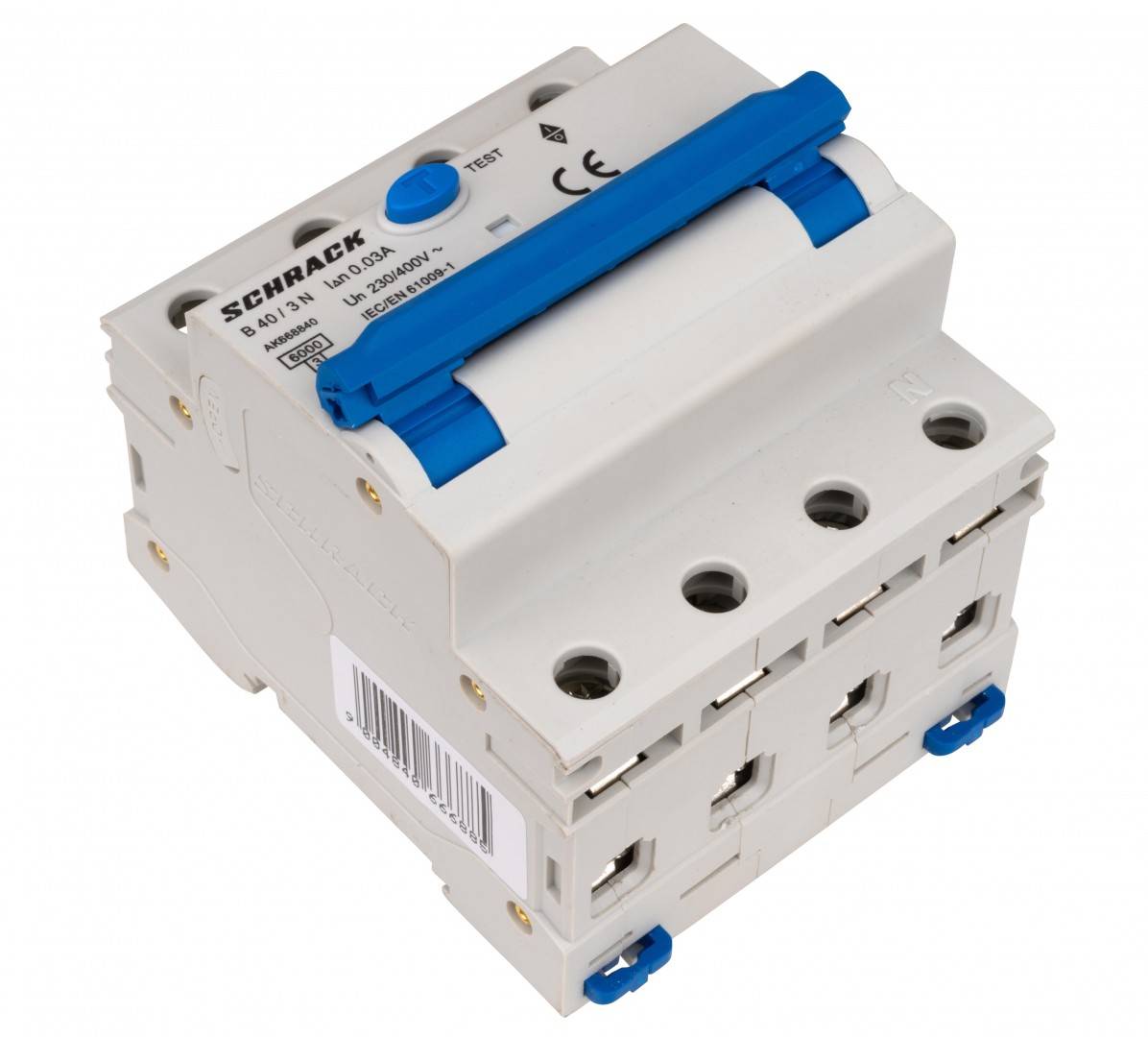

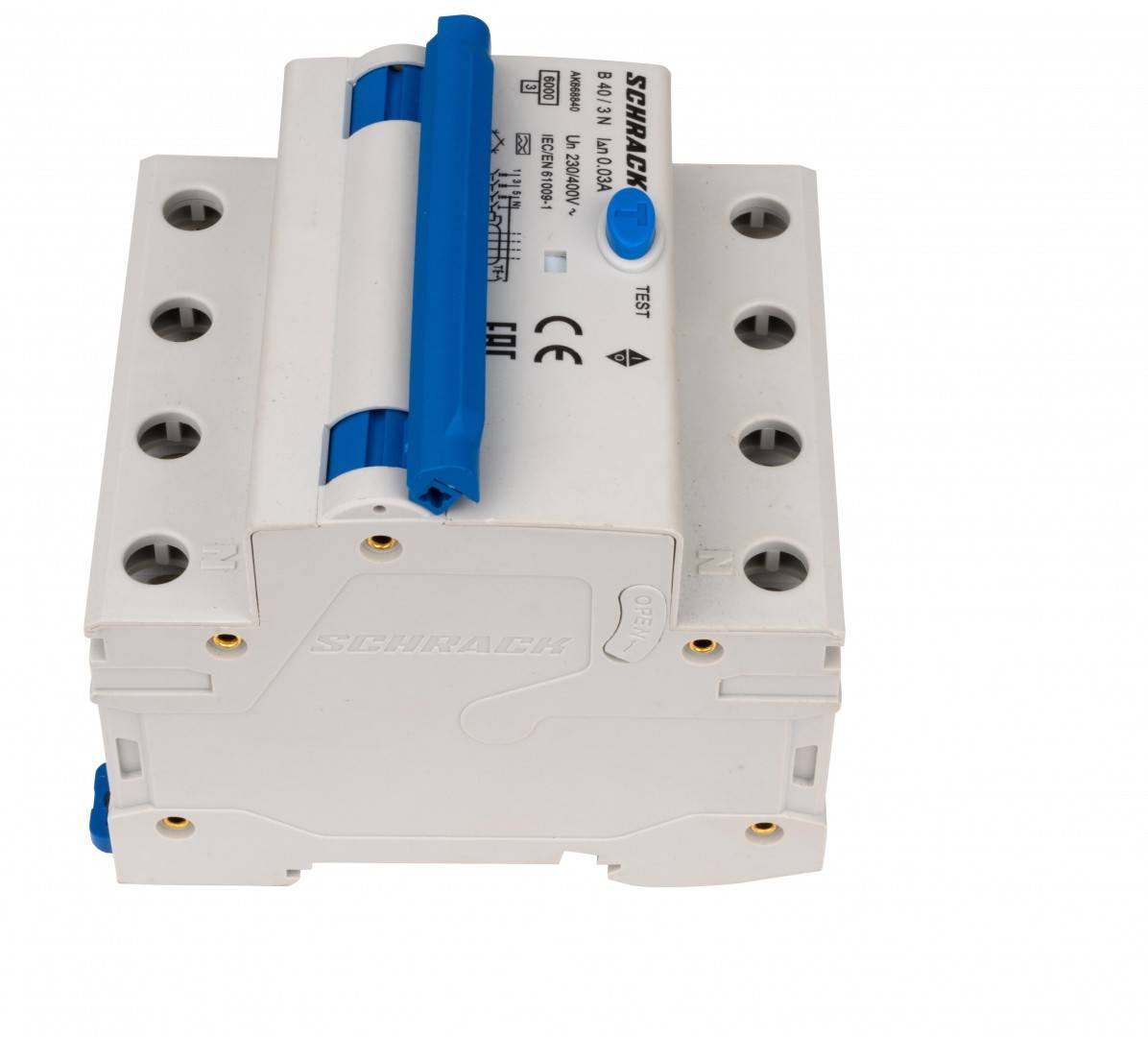

Intreruptor automat modular combinat
COD PROMO
6885-0030-92
Caracteristica declansare
B
Timp de declansare instantaneu
≤0,1s
grad de protectie
IP20
Grad de poluare
2
LxIxA mm
71x85x77
Terminal cross section
1-25 mm²
Tensiune nominala
230/400 V AC
PREG
1380
Temperatura ambianta pentru montaj deschis
-25°C bis +60 °C
Simbol CAD
F
Descriere electrica CAD
${kennlinie}/${nennstrom}/${pole}/${nennfehlerstrom}/A
Clamp size for busbar
10 mm²
Unitate de ambalare
1 m.
PU
45
Serie
AMPARO
Capacitate de rupere nominala
6 kA
Cuplu
2 Nm
Reference temperature
30 °C
Rated sensitivity IΔn
30 mA
Fabricant
Schrack
COD COMANDA
AK668840
HxBxT mm
85x71x77
Standard
EN 61009-1;IEC 61009-1
Conexiune
ambele parti
Durata de viata electrica
2000 Operations
disipare
24,02 W
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Energy limiting class
3
Alimentare
prin 2 parti
Curent nominal
40 A
Poli
3+N
Cuplu maxim
2 Nm
Tip
fara temporizare
PROMO CODE GER
6885-0043-58
Contact setting display
Yes
Material conductor
Copper
Durata de viata mecanica
10000 Operations
Curent nominal
40 A
Stabilitate la impuls de tensiune Uimp
4kV
Conductor masiv
1-25 mm²
| Lungime | 77 mm |
| Latime | 71 mm |
| Inaltime | 85 mm |
| Greutate | 0.42 kg |
