Specificatii Tehnice
Terminal type
Double funtion clamp / pin and fork busbar
Accesorii optionale
AM900099--;BSB90121--;BSB90122--
Standard produs
EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016;EN 61009-2-1:1994 + A11:1998;IEC 61009-1;IEC 61009-2-1
Capacitate nominala de rupere Im
3000 A
Masa neta
0,42 kg/m
Rated frequency
50/ 60 Hz
Insulation voltage
500 V
Temperatura maxima a mediului ambiant
60 °C
Rezistenta la scurtcircuit
6 kA
Tensiune dielectrica de test la frecventa industriala
2000 V
Categorie produs
A (sensibil la curent alternativ si pulsatoriu)
Max. permissible back-up fuse against short circuit
63 A gG
Descriere de baza

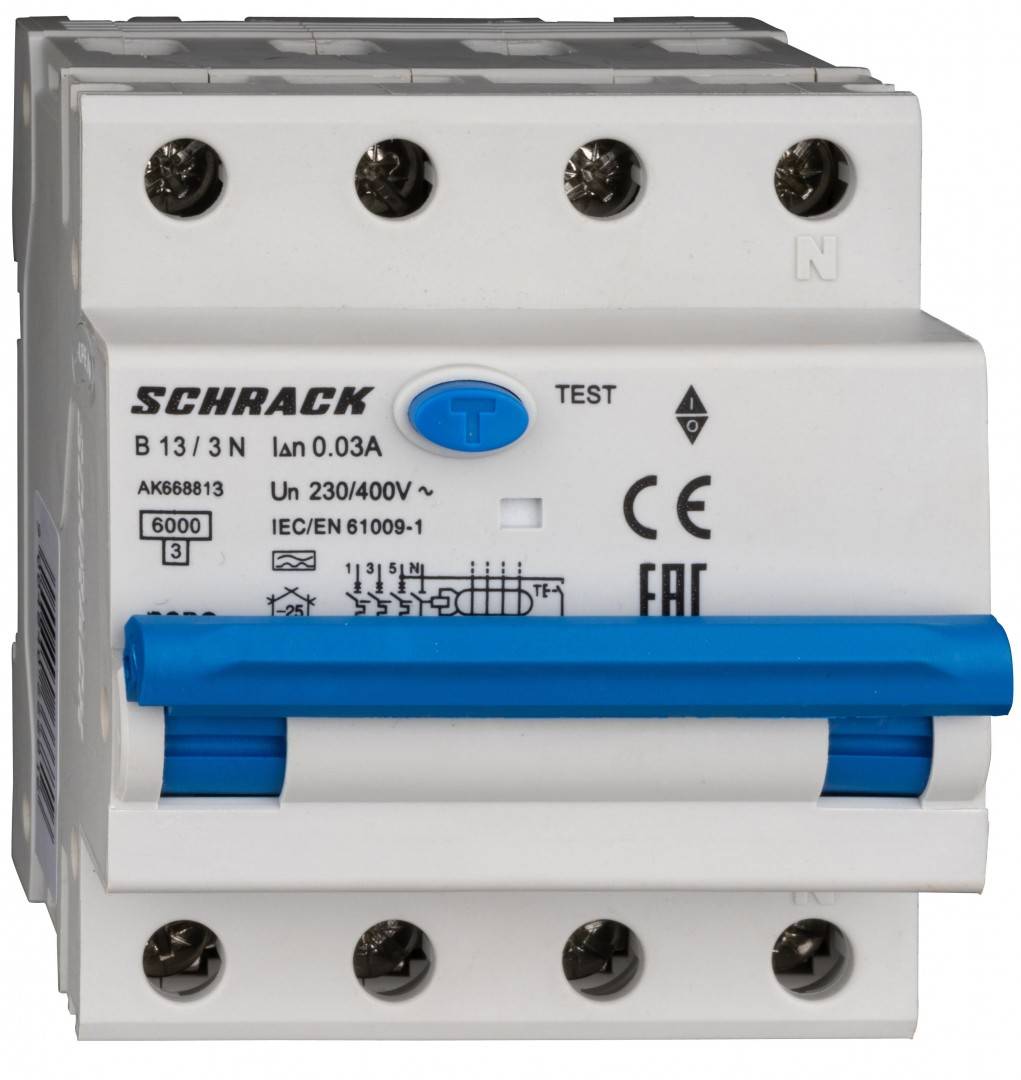

Intreruptor automat modular combinat
Caracteristica declansare
B
Timp de declansare instantaneu
≤0,1s
Grad de poluare
2
grad de protectie
IP20
LxIxA mm
71x85x77
Terminal cross section
1-25 mm²
Tensiune nominala
230/400 V AC
PREG
1380
Temperatura ambianta pentru montaj deschis
-25°C bis +60 °C
Simbol CAD
F
Clamp size for busbar
10 mm²
Unitate de ambalare
1 m.
PU
45
Serie
AMPARO
Capacitate de rupere nominala
6 kA
Curent nominal
13 A
Cuplu
2 Nm
Descriere electrica CAD
B/13A/3+N//A
Standard
EN 61009
Reference temperature
30 °C
COD COMANDA
AK668813
Rated sensitivity IΔn
30 mA
Fabricant
Schrack
HxBxT mm
85x71x77
Conexiune
ambele parti
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Energy limiting class
3
Alimentare
prin 2 parti
Poli
3+N
Cuplu maxim
2 Nm
Tip
fara temporizare
Contact setting display
Yes
Material conductor
Copper
Curent nominal
13 A
Durata de viata mecanica
10000 Operations
Conductor masiv
25 mm²
disipare
6,14 W
Stabilitate la impuls de tensiune Uimp
4kV
| Lungime | 77 mm |
| Latime | 71 mm |
| Inaltime | 85 mm |
| Greutate | 0.42 kg |
