Specificatii Tehnice
LxBxH mm
97x70x95
Curent nominal
125 A
Montaj
front mount
Frecventa
50/60 Hz
Culoare
rosu-galben
Impuls de curent de scurtcircuit admisibil Icw
1000
COD COMANDA
INSE231B
Masa neta
0,36 kg/m
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Capacitate de comutare
AC-23A - 400V - 37kW;AC-23A - 690V - 30kW;AC-3 - 400V - 30kW;AC-3 - 690V - 22kW
Tinere la impuls de tensiune [Uimp]
6000 V
Sectiune conexiune, multifilar
4-35 mm²
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK023--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK002-- can be used as normal. For further details, see Auxiliary contact and N contact overview.
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
grad de protectie
IP65 (front), IP10 (output terminals), IP20 (supply terminals with terminal cover and Cable cross-section bigger than 16mm²)
Accesorii optionale
INSHK002--; INSNK023--
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
Tip conexiune
UL/CSA - AWG 12-1
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3

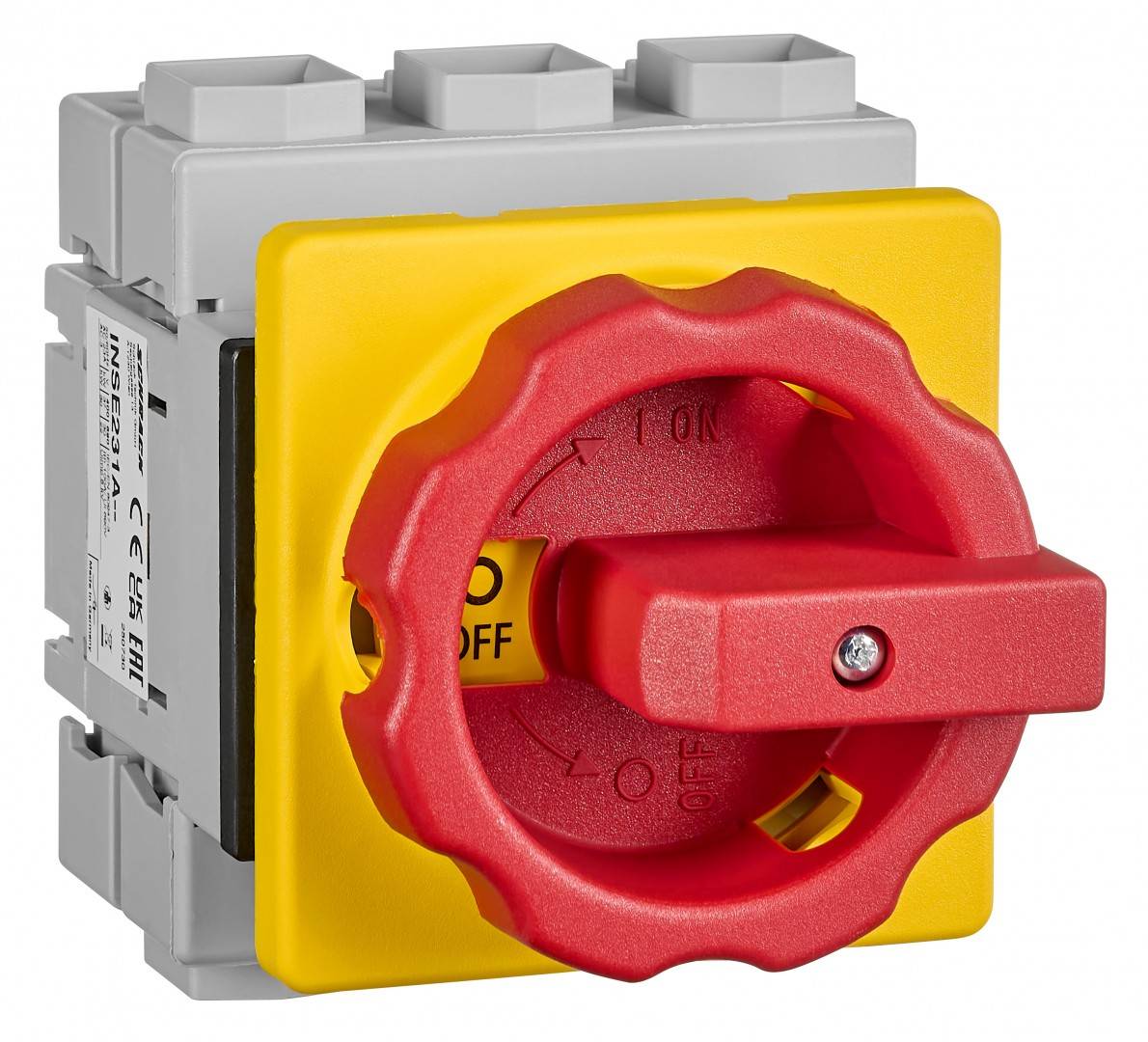

Versiune
intreruptor de emergenta
In conformitate cu UL 508 / CSA
##
Sectiune conexiune, fir flexibil cu pin
4-50 mm²
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
Cuplu de strangere
2,50 Nm
Thermal rated continuous current
125 A
Contacte auxiliare
Maximum 2x INSHK002-- permitted. 1x INSHK002-- can be snapped on to the left of the main contact and 1x INSHK002-- to the right of the main contact. Maximum configuration 2x NO contact / 2x NC contact. Switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right of the main contact.
Sectiune conexiune, monofilar
4-50 mm²
Temperatura de functionare
-25°C to +55°C
Active Power
3x240VAC - 30Hp;3x480VAC - 60Hp;3x600VAC - 75Hp
disipare
12,00 W
PREG
2200
Conexiune
##
Fuzibil max. protectie la scurtcircuit
125
Power loss per pole
12 W
Curent operational
AC-21A - 690V - 125A;AC-23A - 400V - 70A;AC-23A - 690V - 34A;AC-3 - 400V - 53A;AC-3 - 690V - 25.5A
Curent termic conventional Ith
125 A
| Lungime | 97 mm |
| Latime | 70 mm |
| Inaltime | 95 mm |
| Greutate | 0.36 kg |
