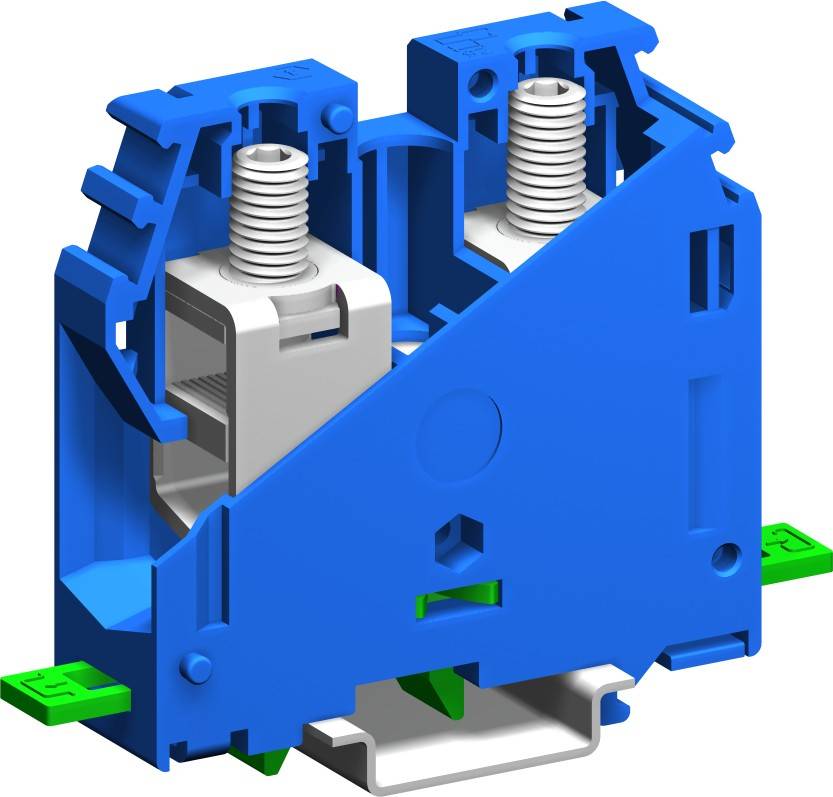

Feed-through Terminal 70mm², Type GPA.70, blue
Cod produs: IK101370--
Marca: SCHRACK TECHNIK
Pret cu TVA: 50.02 Lei / buc.
|
|
|
|
Comanda instant - Feed-through Terminal 70mm², Type GPA.70, blue
|
Feed-through Terminal 70mm², Type GPA.70, blue
|
|
Specificatii Tehnice Sistem cleme cu surub PREG 1660 Conductor masiv pana la 95mm² mm² Max. cross section, flexible wire with ferrule 95 mm² LxBxH mm 70x21x91 COD COMANDA IK101370 Masa neta 0,11 kg/m Unitate de ambalare 1 m. Conductor multifilar pana la 95mm² mm² Sectiune minima, conductor solid 1 mm² Descriere de baza Clema Sectiune minima, conductor flexibil 10 mm² Versiune clema trecere Sectiune 70 mm² Descriere electrica CAD 70mm² PU 25 Sectiune maxima, conductor flexibil 95 mm² Simbol CAD X Culoare Albastru | Lungime | 70 mm | | Latime | 20.5 mm | | Inaltime | 91 mm | | Greutate | 0.11 kg |
|
|
|
|
|
