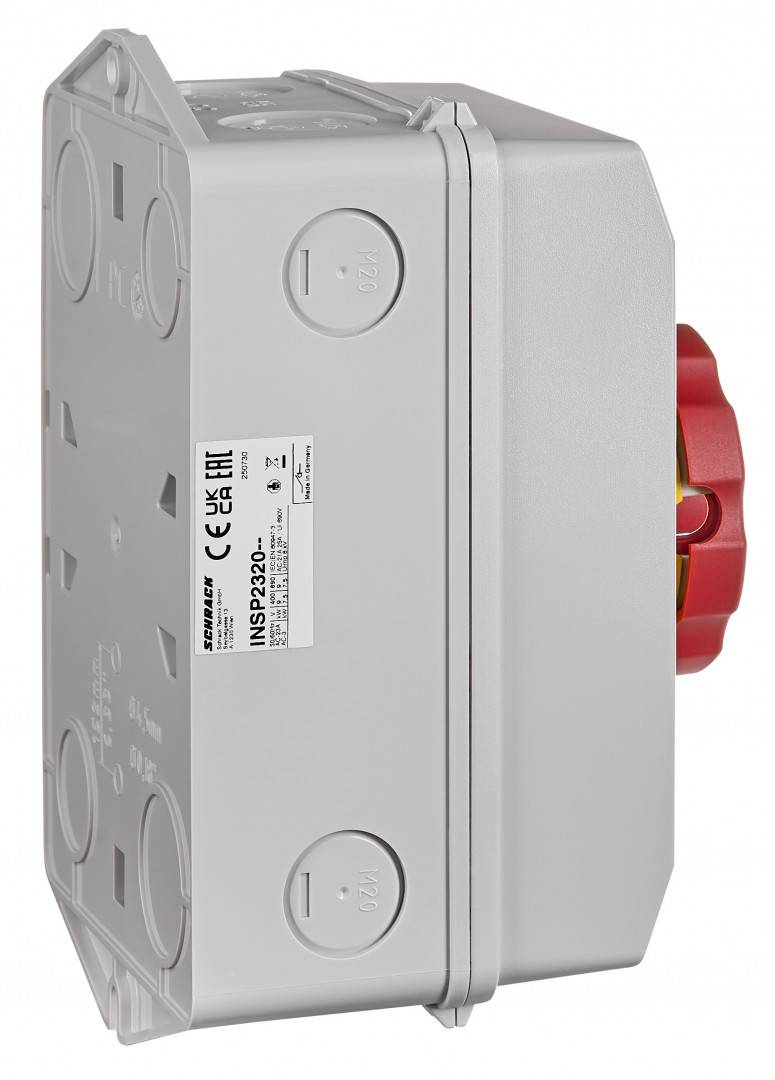

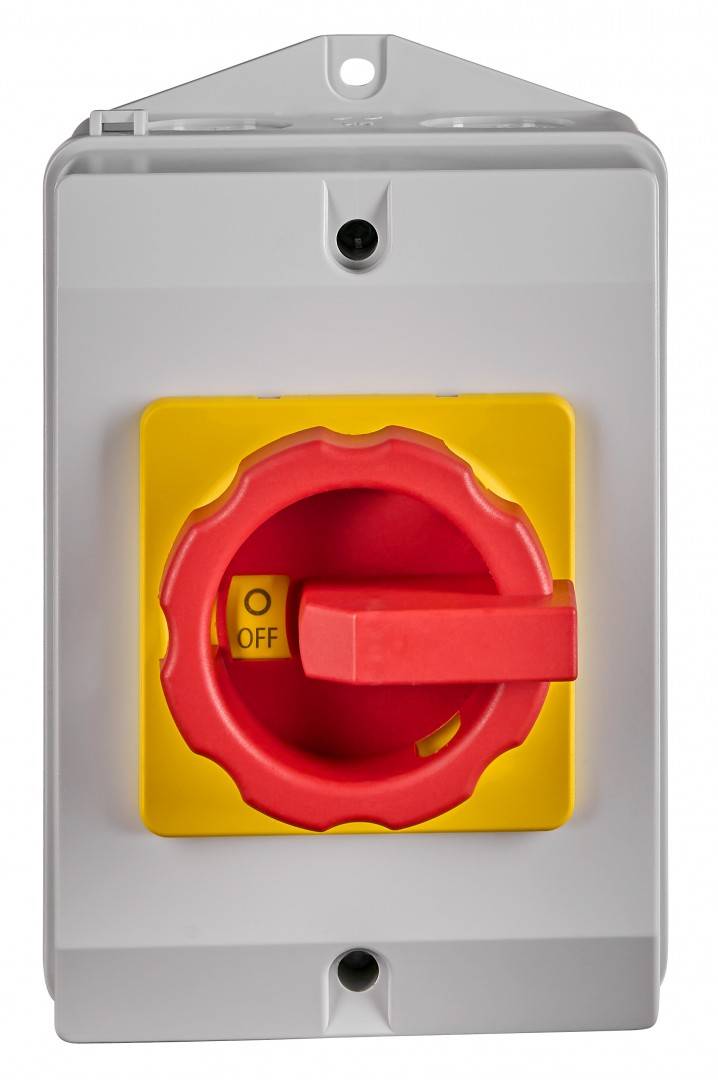

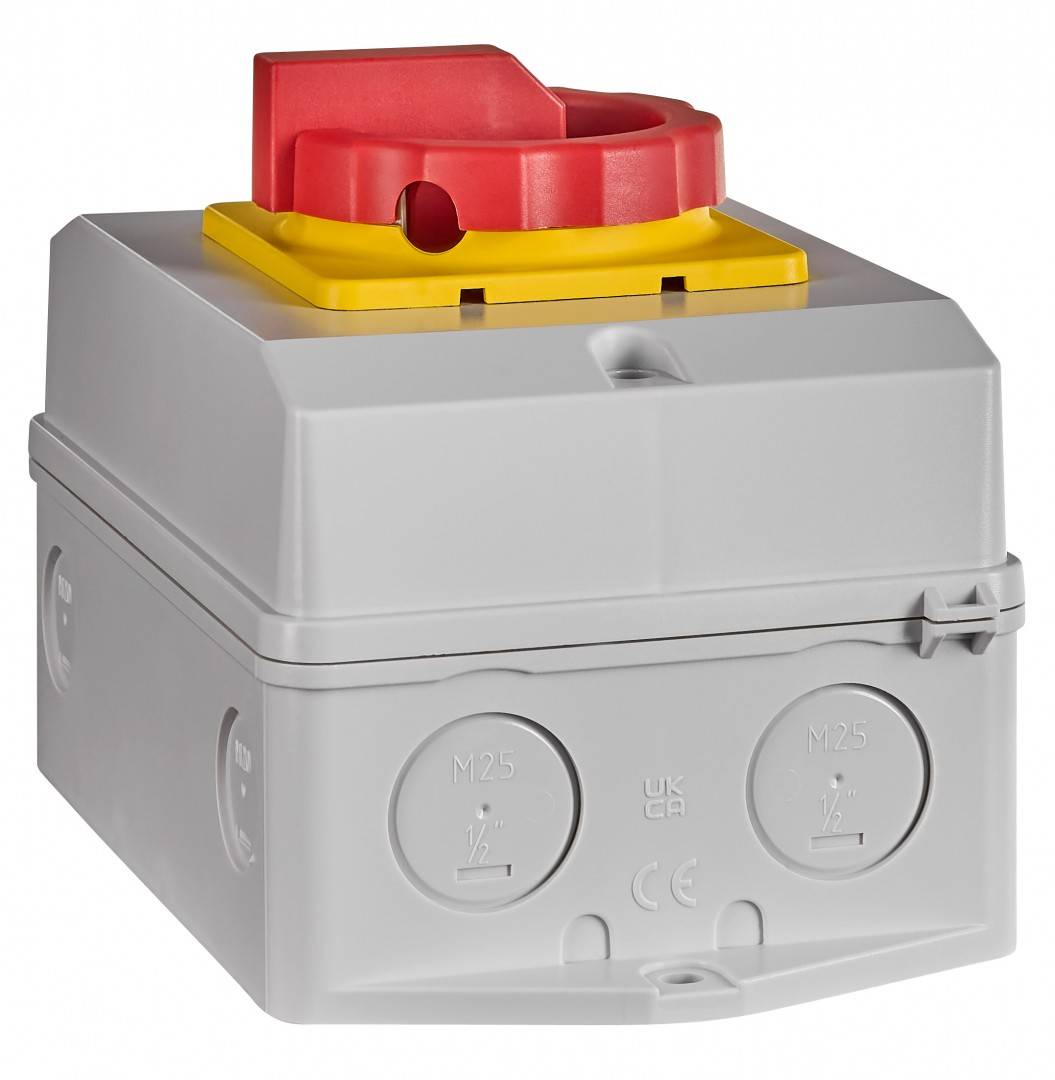

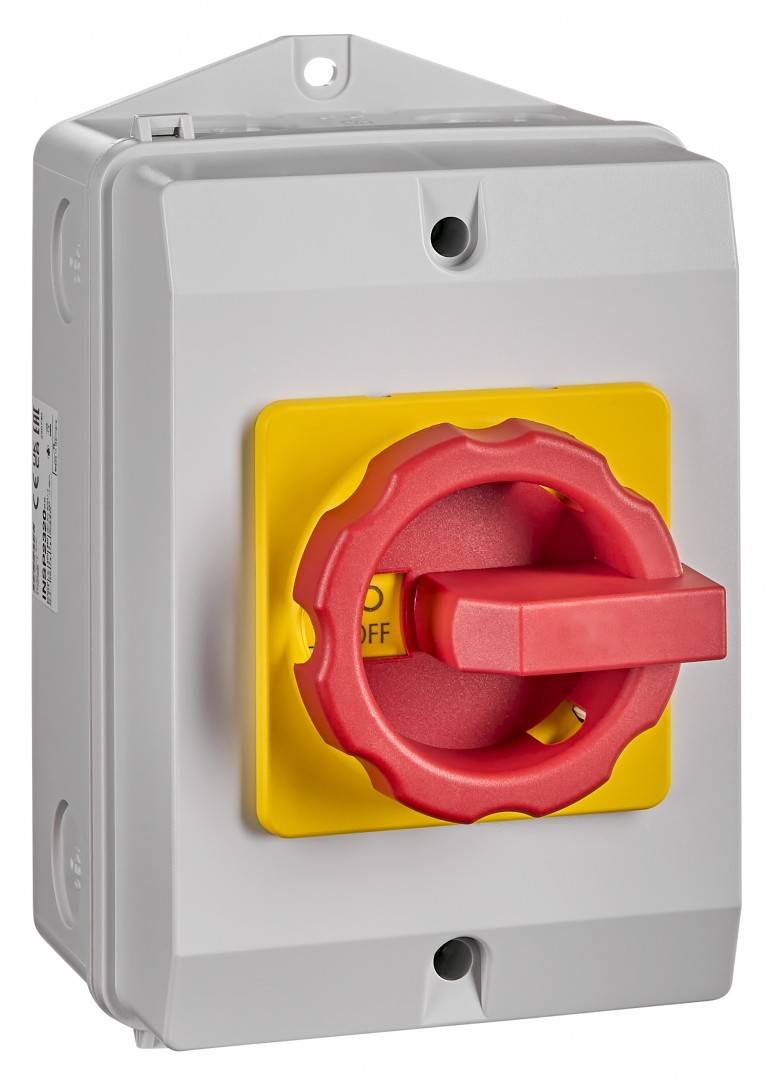

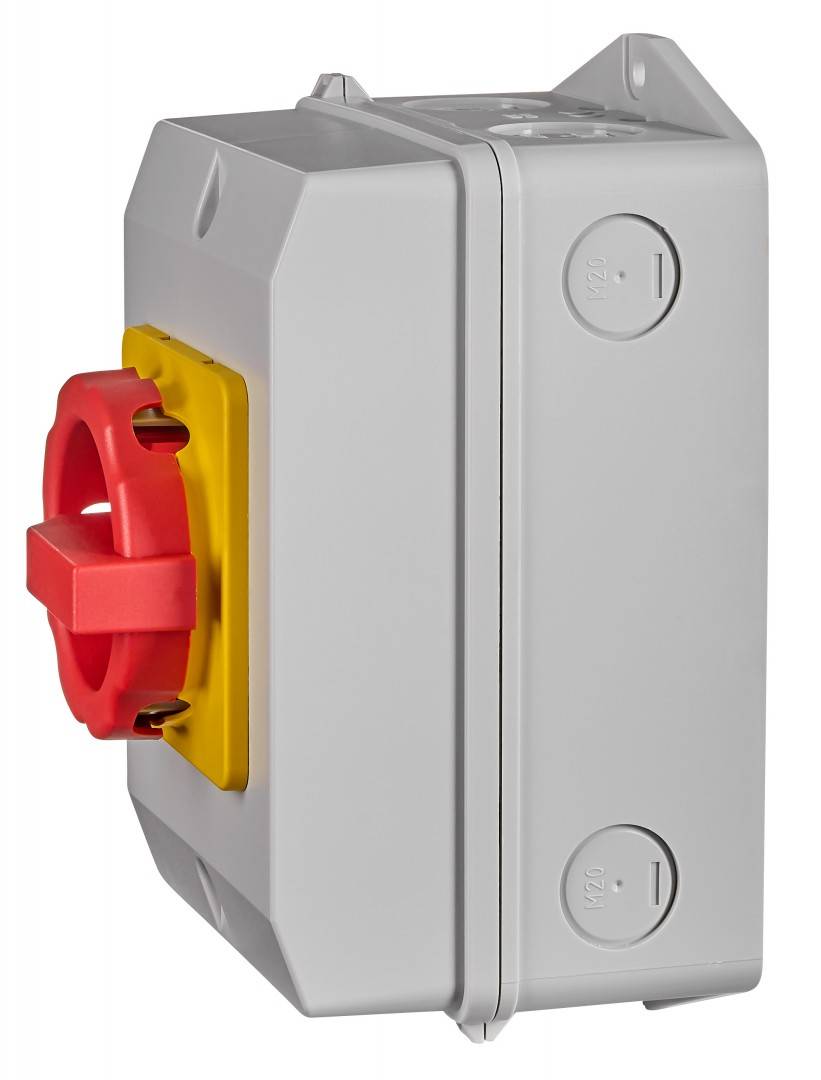

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Culoare
rosu-galben
disipare
0,80 W
Sectiune conexiune, monofilar
2,5-16 mm²
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent operational
AC-21A - 690V - 20A;AC-22A - 690V - 20A;AC-23A - 230V - 11A;AC-23A - 400V - 16A;AC-23A - 690V - 9A;AC-3 - 230V - 11A;AC-3 - 400V - 7A;AC-3 - 690V - 7A
Capacitate de comutare
AC-23A - 230V - 3kW;AC-23A - 400V - 7.5kW;AC-23A - 690V - 7.5kW;AC-3 - 230V - 3kW;AC-3 - 400V - 5.5kW;AC-3 - 690V - 5.5kW
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Thermal rated continuous current
20 A
Tinere la impuls de tensiune [Uimp]
6000 V
Versiune
Repair Switch Emergency off
Tip conexiune
UL/CSA - AWG 14-6
Power loss per pole
0,40 W
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
COD COMANDA
INSP2320
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Curent termic conventional Ith
20 A
Tensiune de alimentare AC
600 V
PU
10
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Active Power
3x120VAC - 1Hp;3x240VAC - 3Hp;3x480VAC - 7.5Hp;3x600VAC - 10Hp;1x120VAC - 0.5Hp;1x240VAC - 1.5Hp
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
In conformitate cu UL 508 / CSA
##

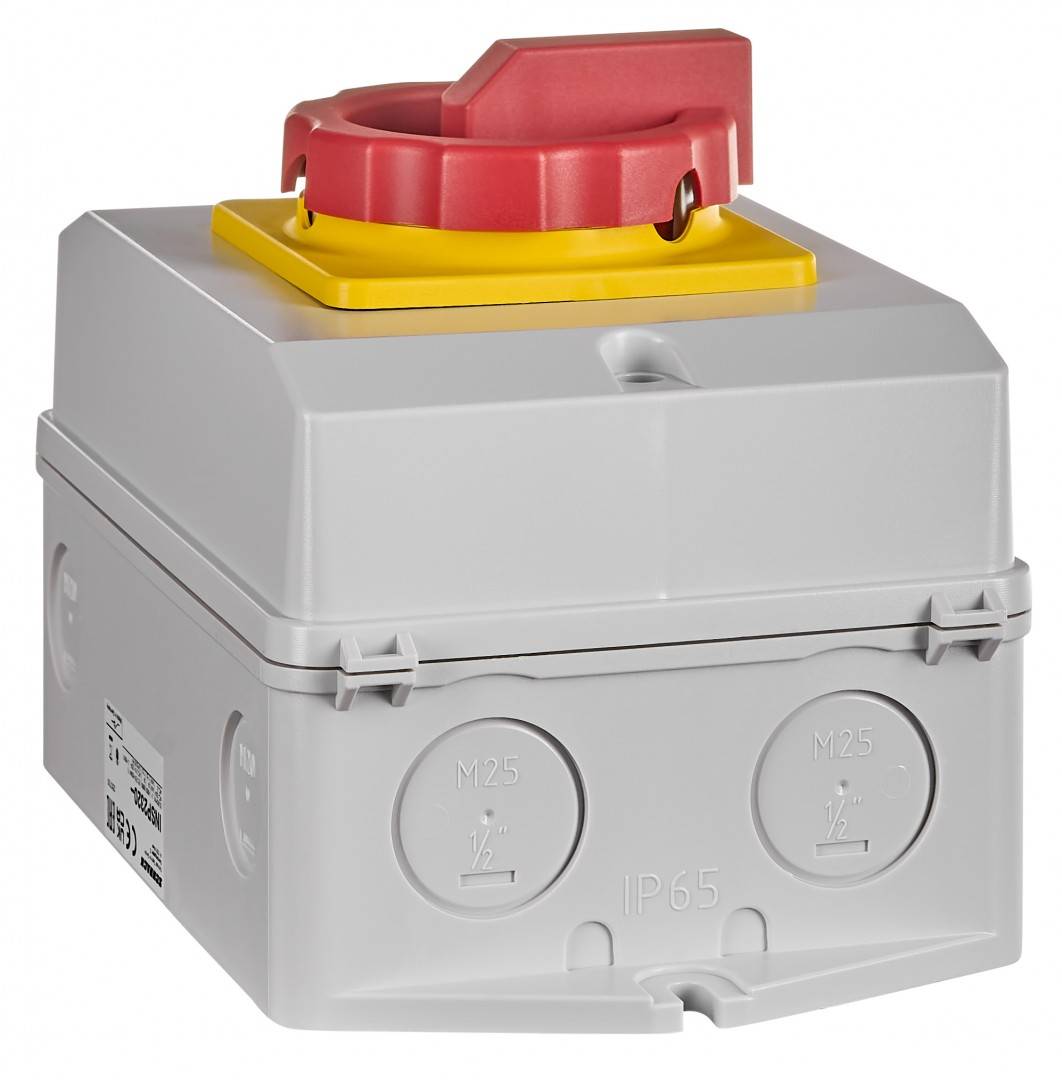

grad de protectie
IP65 (housing), IP20 (terminals)

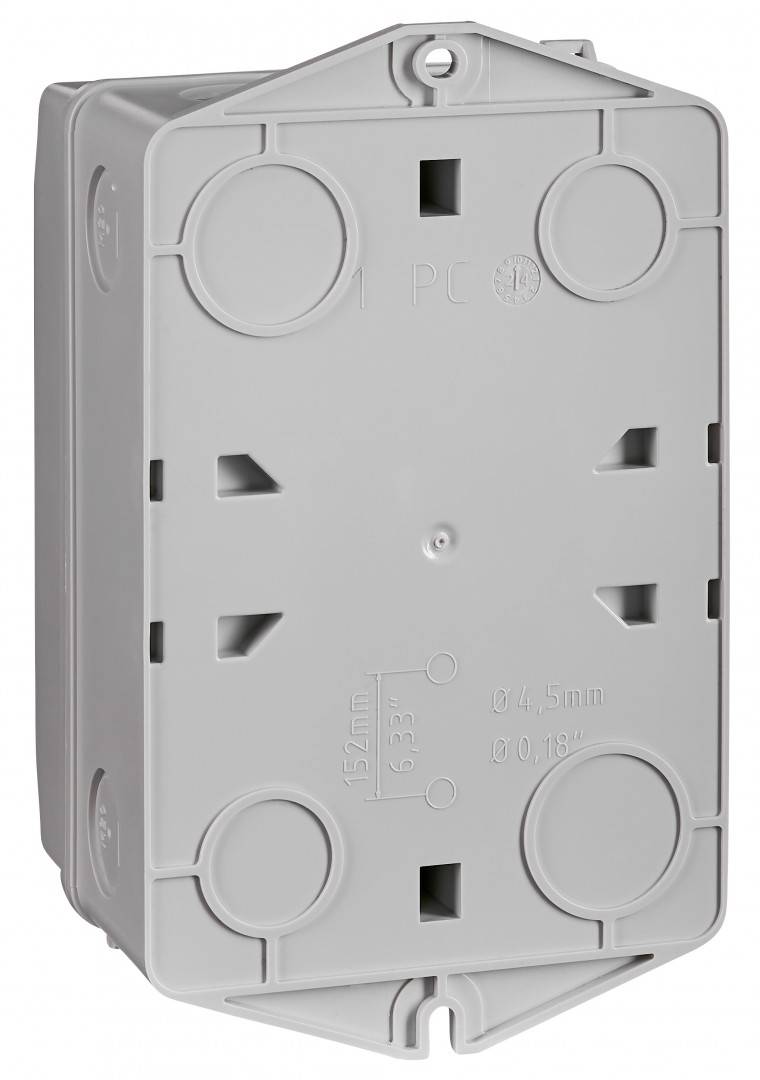

Montaj
Montaj aparent
Masa neta
0,40 kg/m
Accesorii optionale
INSHK001--; INSNK010--
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
LxBxH mm
115x100x140
Temperatura minima a mediului ambiant
-25 °C
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Temperatura de functionare
-25°C to +55°C

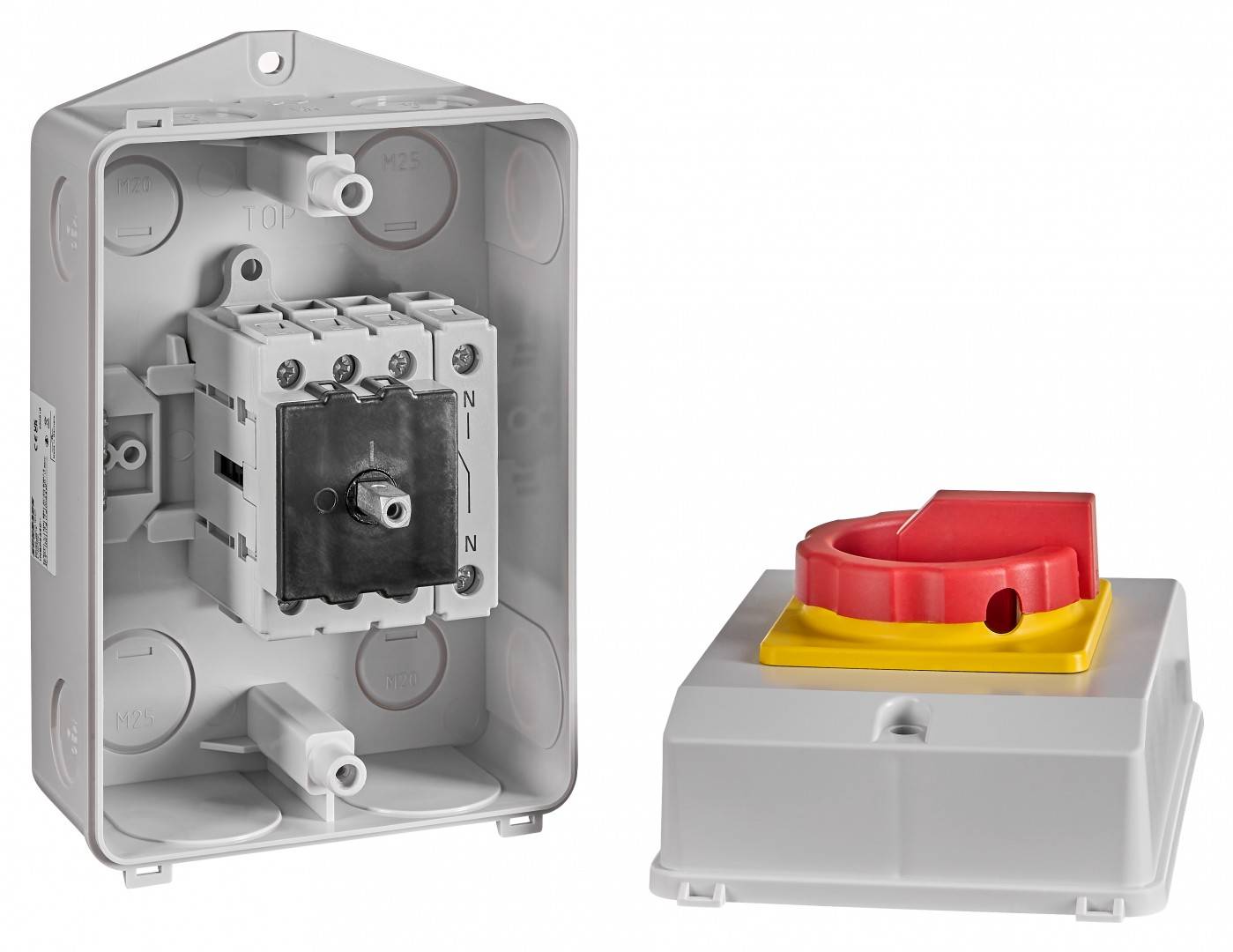

Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK010--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK001-- can be used as normal. For further details, see Auxiliary contact and N contact overview
PREG
2200
Conexiune
##
Curent nominal
20 A
| Lungime | 115 mm |
| Latime | 100 mm |
| Inaltime | 140 mm |
| Greutate | 0.4 kg |
