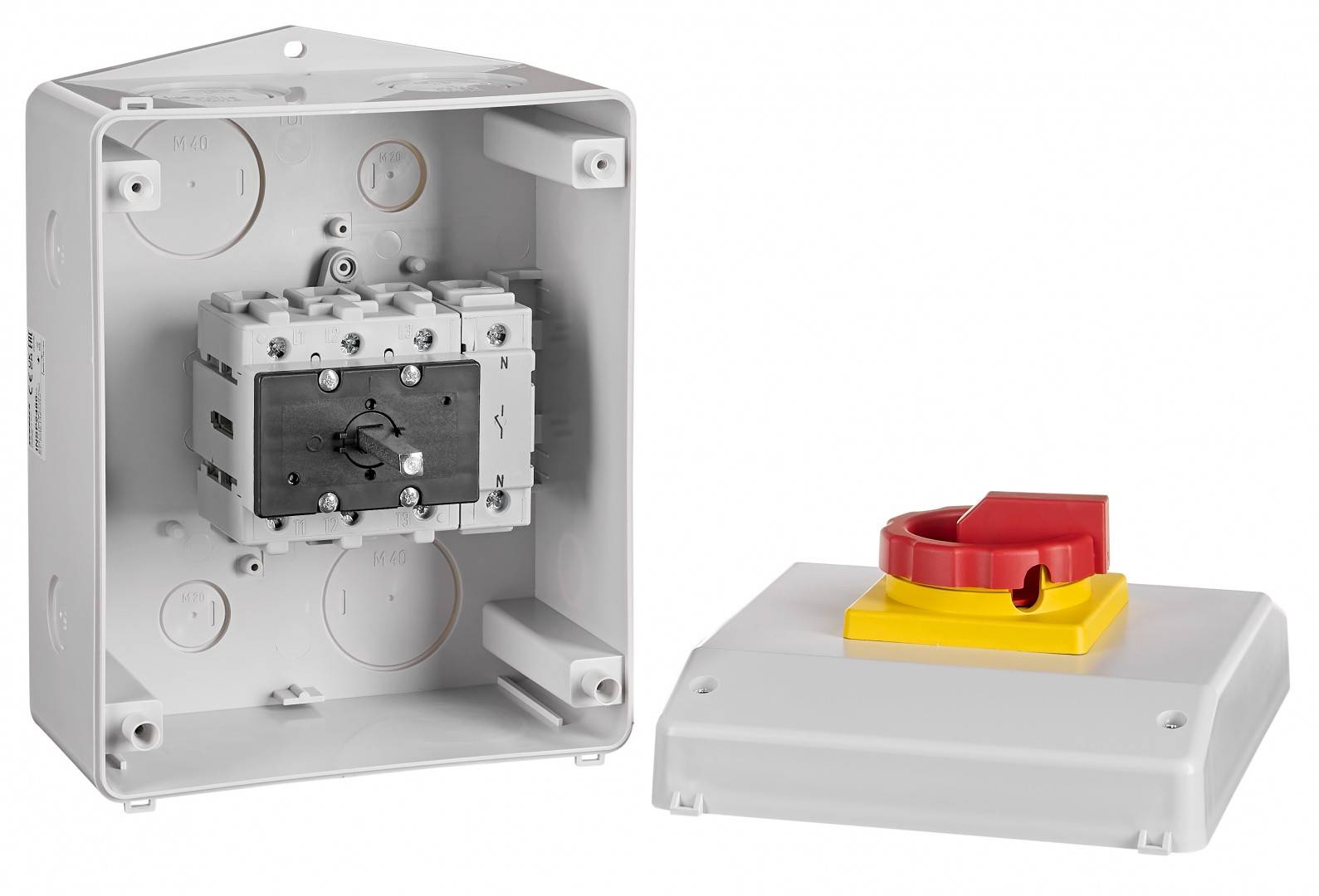

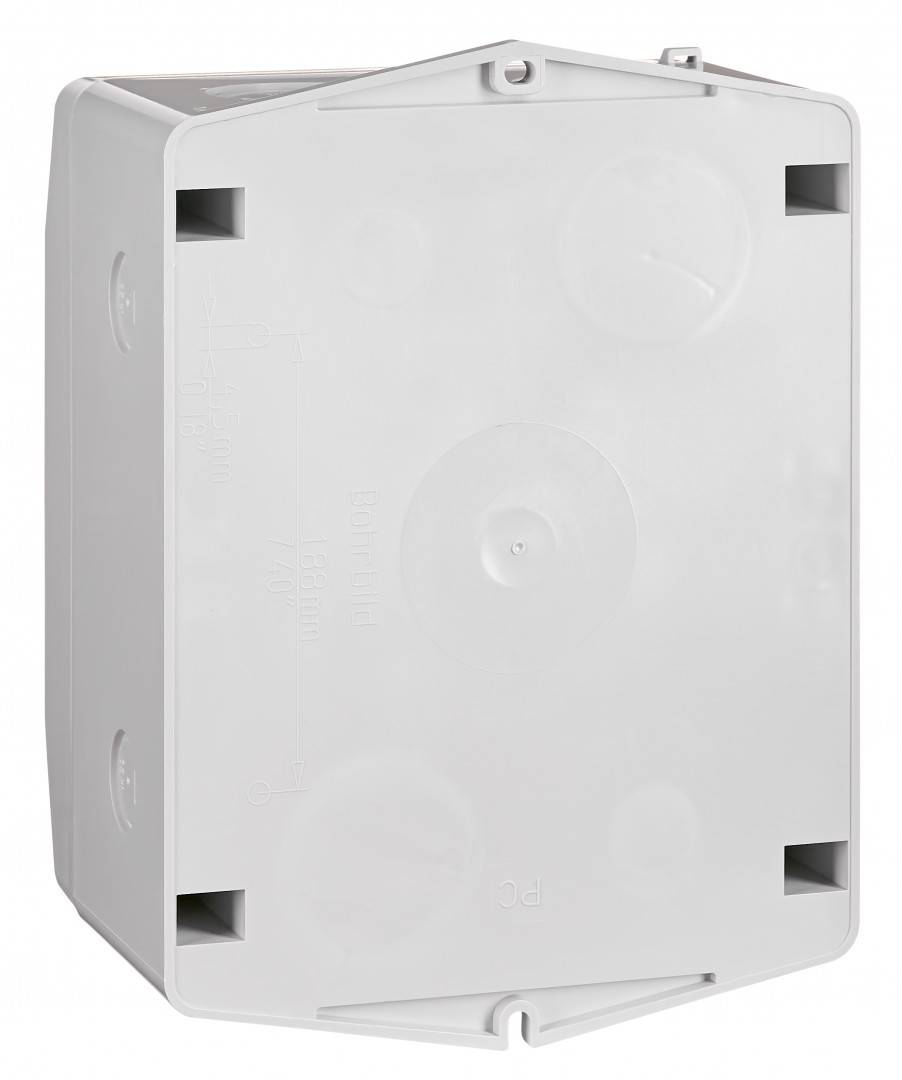

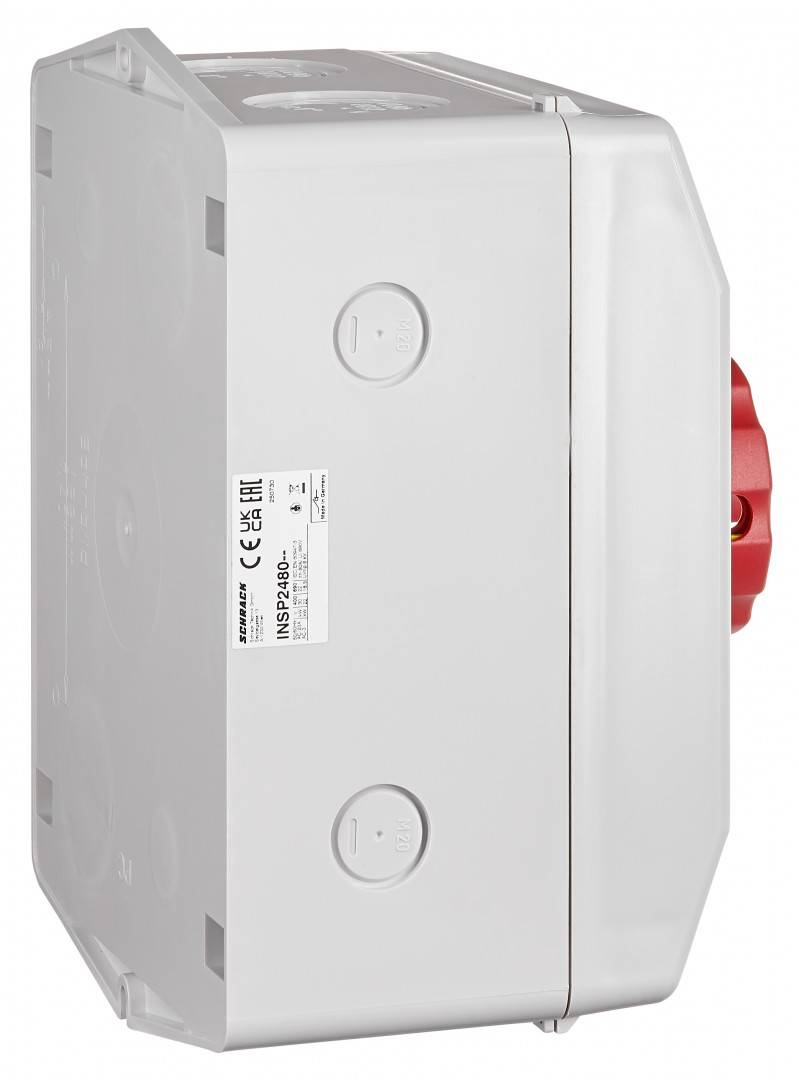

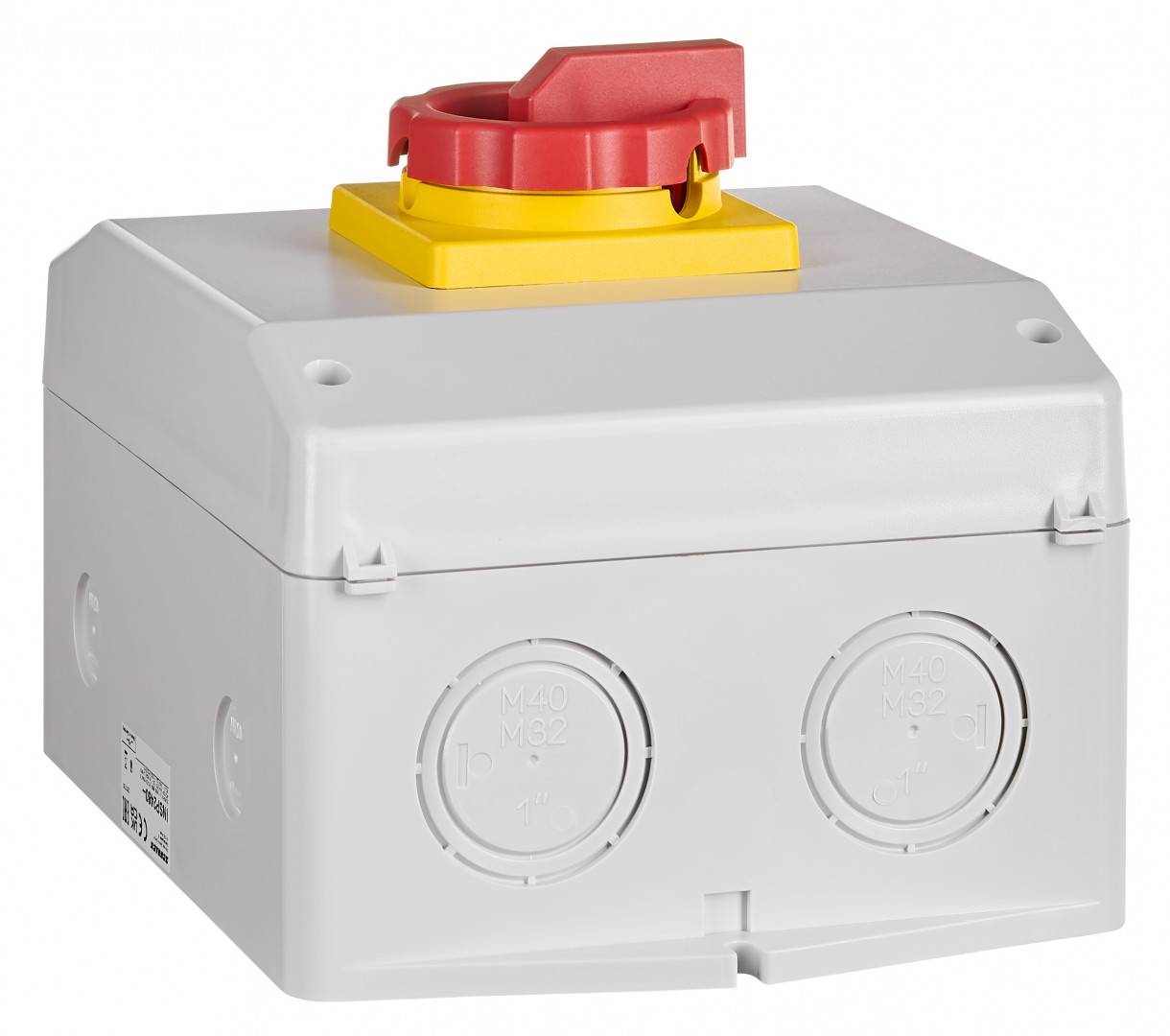

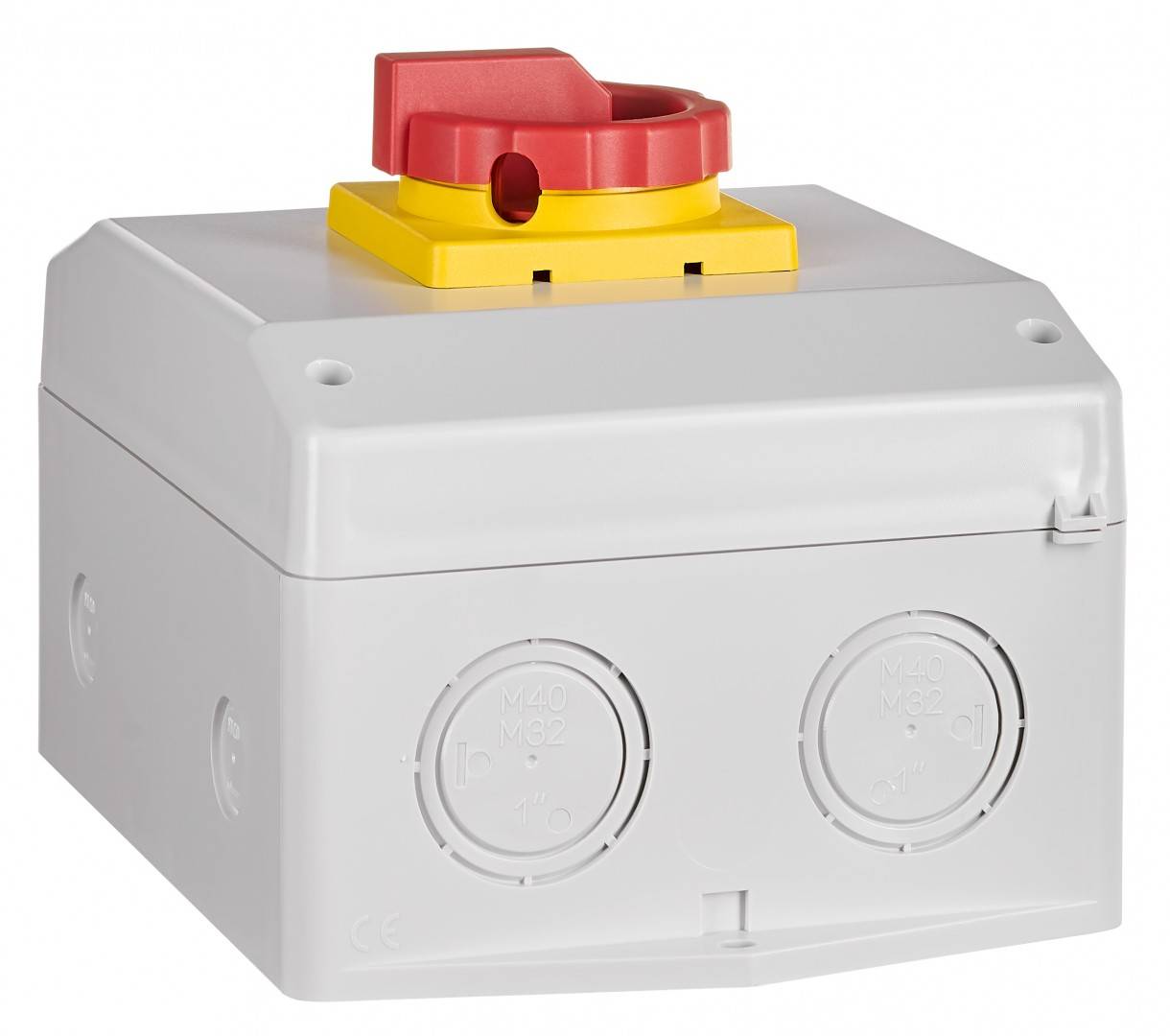

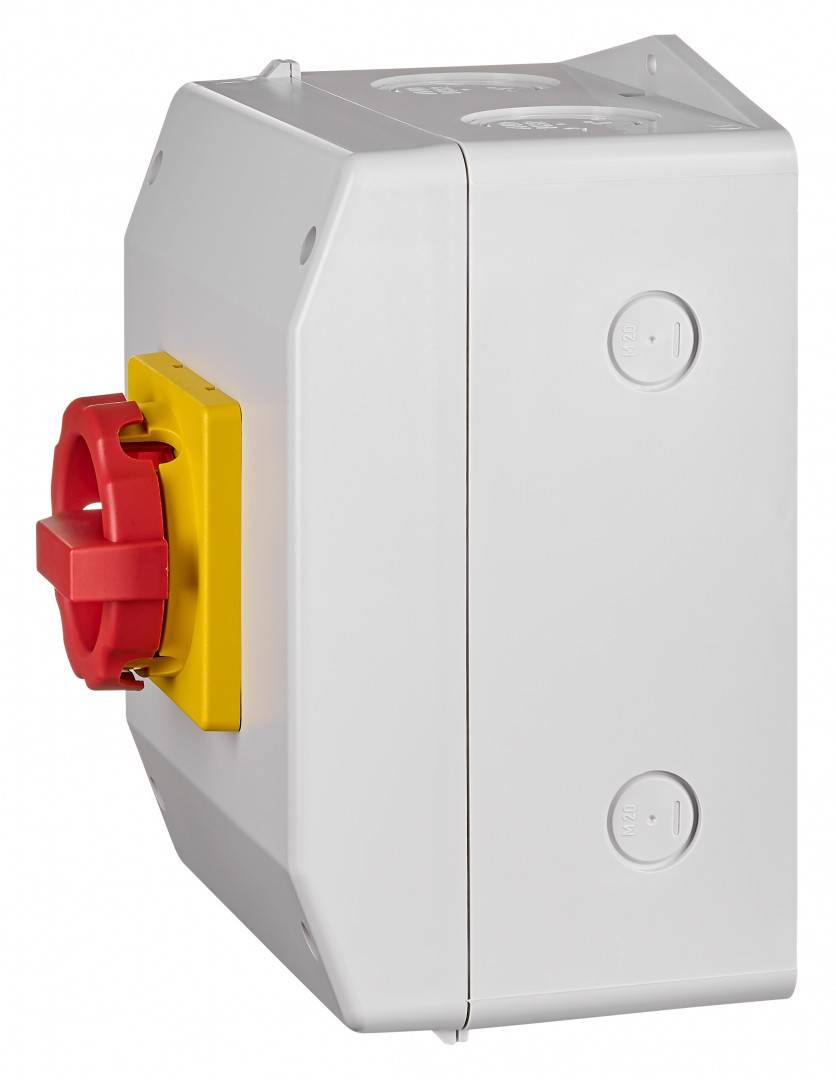

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-35 mm²
Masa neta
0,78 kg/m
Curent nominal
80 A
Frecventa
50/60 Hz
Active Power
3x240VAC - 15Hp;3x480VAC - 40Hp;3x600VAC - 50Hp;1x120VAC - 10Hp
Culoare
rosu-galben
Impuls de curent de scurtcircuit admisibil Icw
1000
grad de protectie
IP65 (housing), IP10 (terminals)
Poli
4
Curent termic conventional Ith
80 A
Thermal rated continuous current
80 A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
LxBxH mm
138x146x176
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Versiune

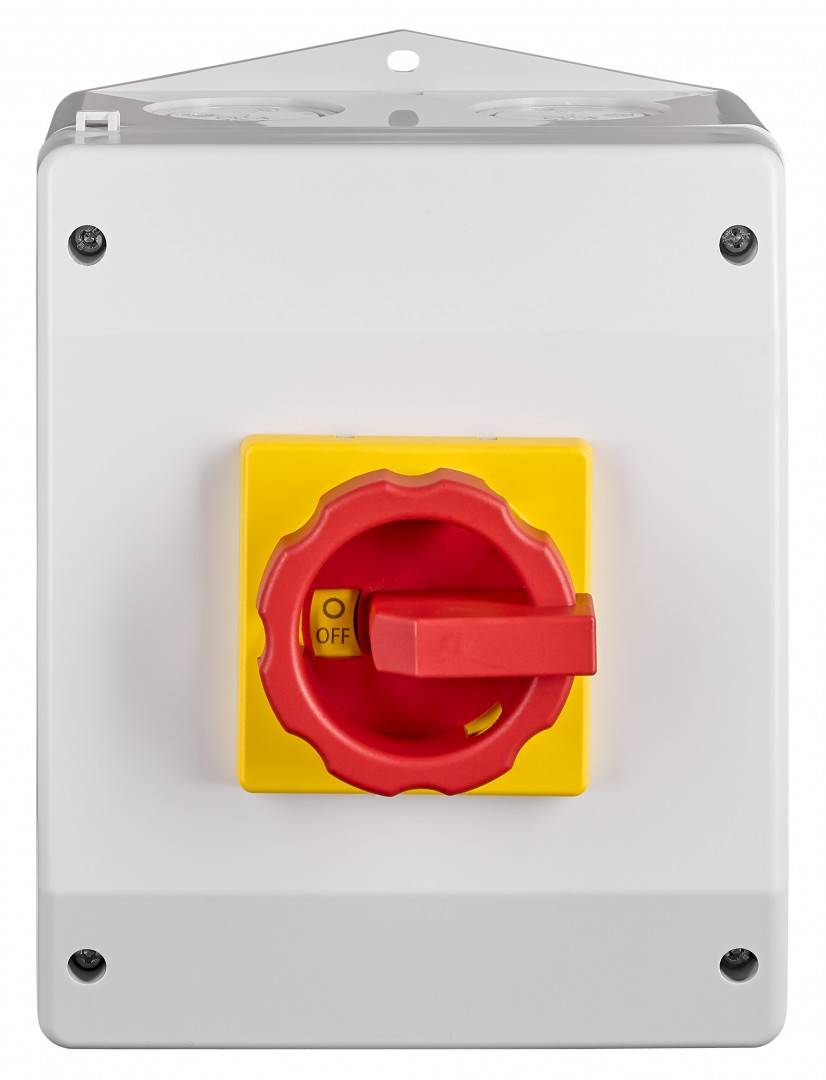

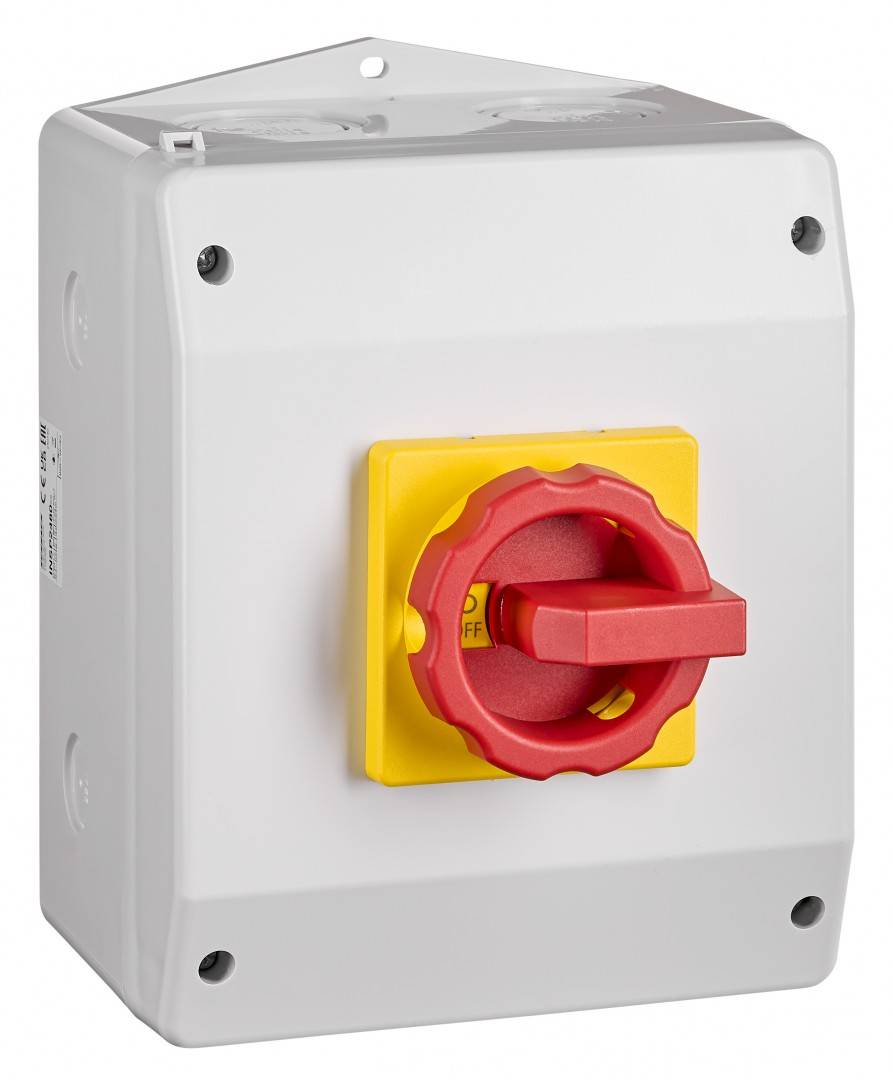

Repair Switch Emergency off
Tip conexiune
UL/CSA - AWG 14-6
Capacitate de comutare
AC-23A - 230V - 15kW;AC-23A - 400V - 30kW;AC-23A - 690V - 22kW;AC-3 - 230V - 15kW;AC-3 - 400V - 22kW;AC-3 - 690V - 18.5kW
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
disipare
5,50 W
Sectiune conexiune, monofilar
2,5-35 mm²
Curent operational
AC-21A - 690V - 80A;AC-23A - 400V - 43A;AC-23A - 690V - 22A;AC-3 - 400V - 43A;AC-3 - 690V - 22A
In conformitate cu UL 508 / CSA
##
Montaj
Montaj aparent
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
Fuzibil max. protectie la scurtcircuit
80
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
PU
5
Power loss per pole
5,50 W
COD COMANDA
INSP2480
PREG
2200
Conexiune
##
| Lungime | 138 mm |
| Latime | 146 mm |
| Inaltime | 176 mm |
| Greutate | 0.78 kg |
