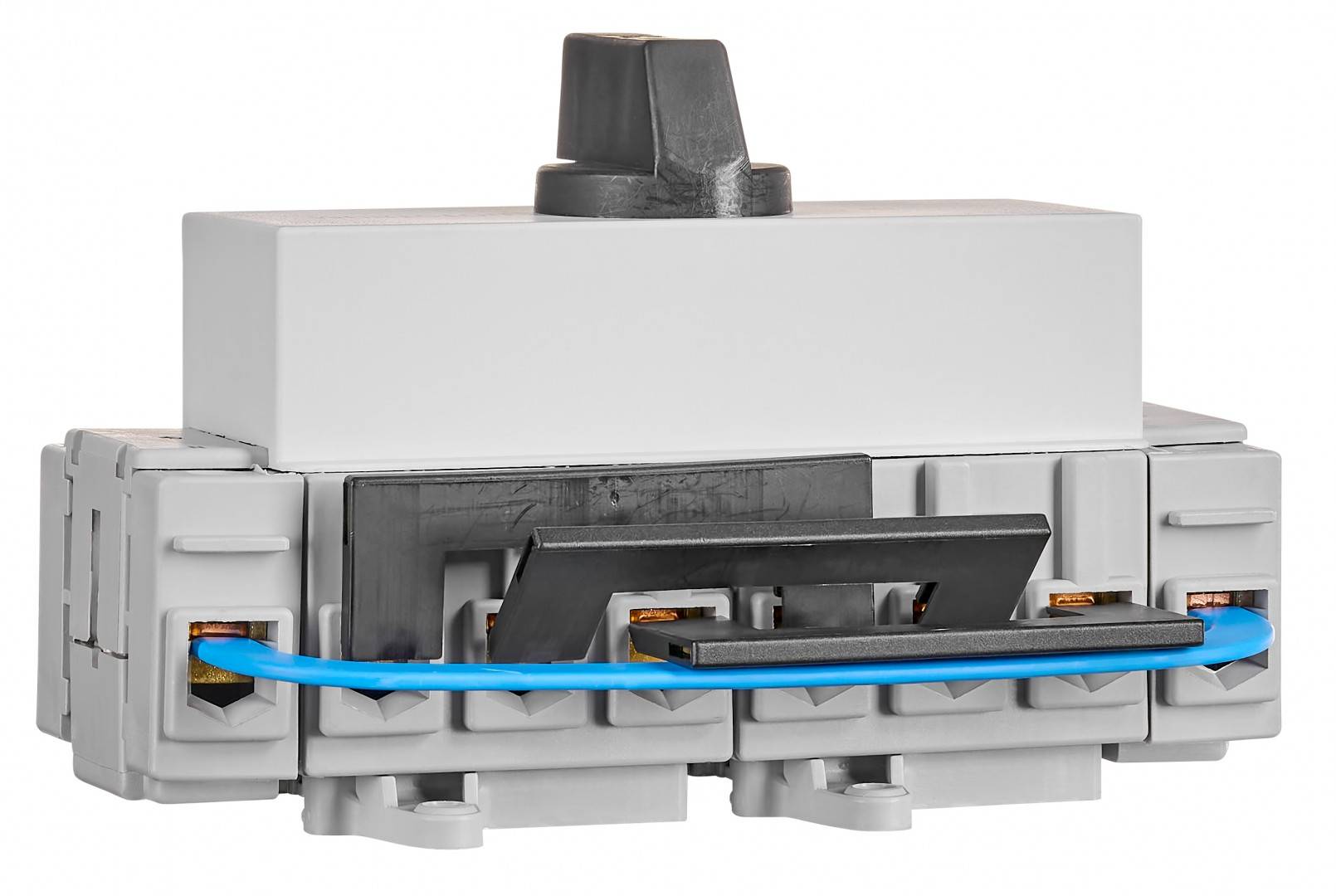

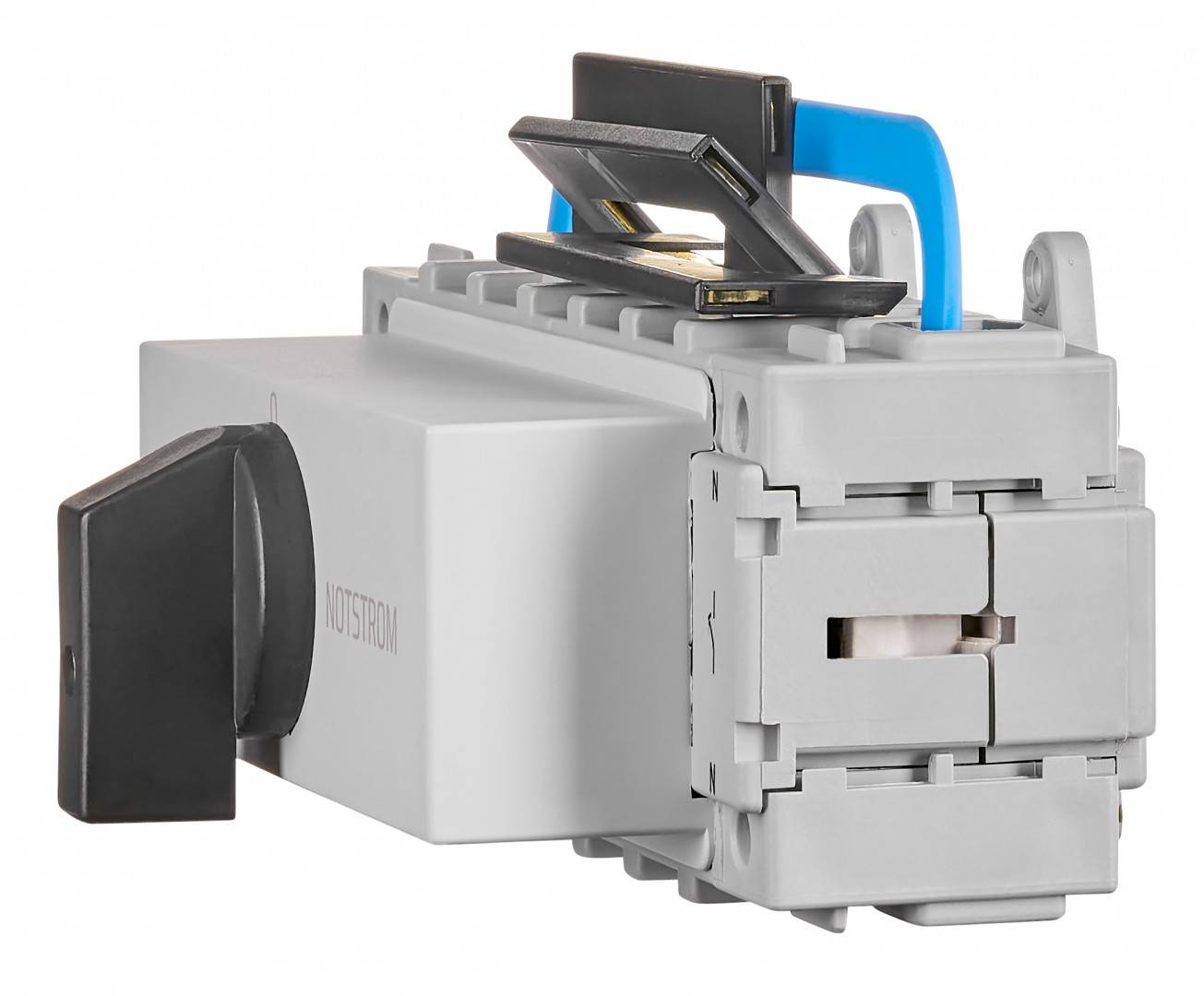

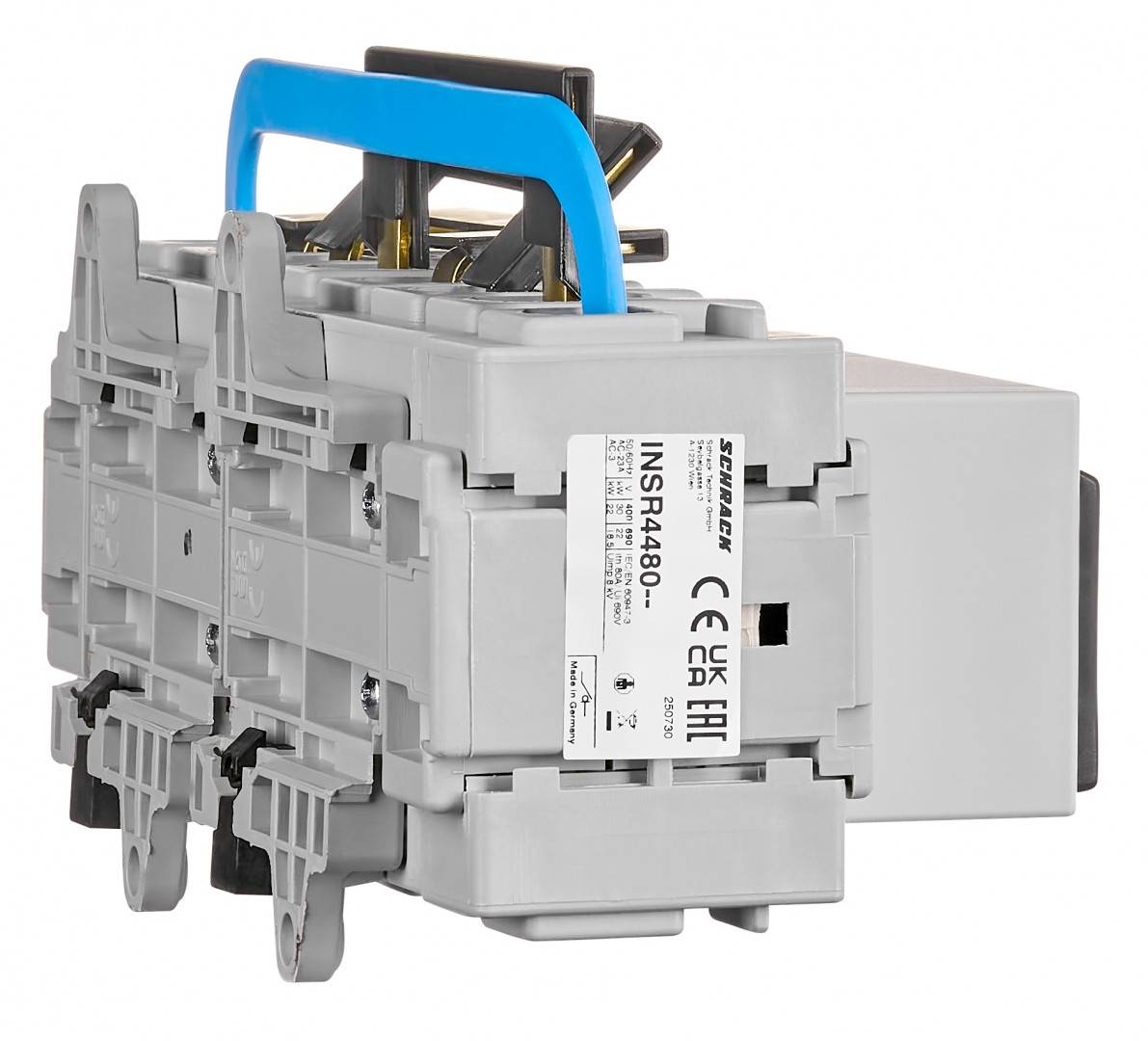

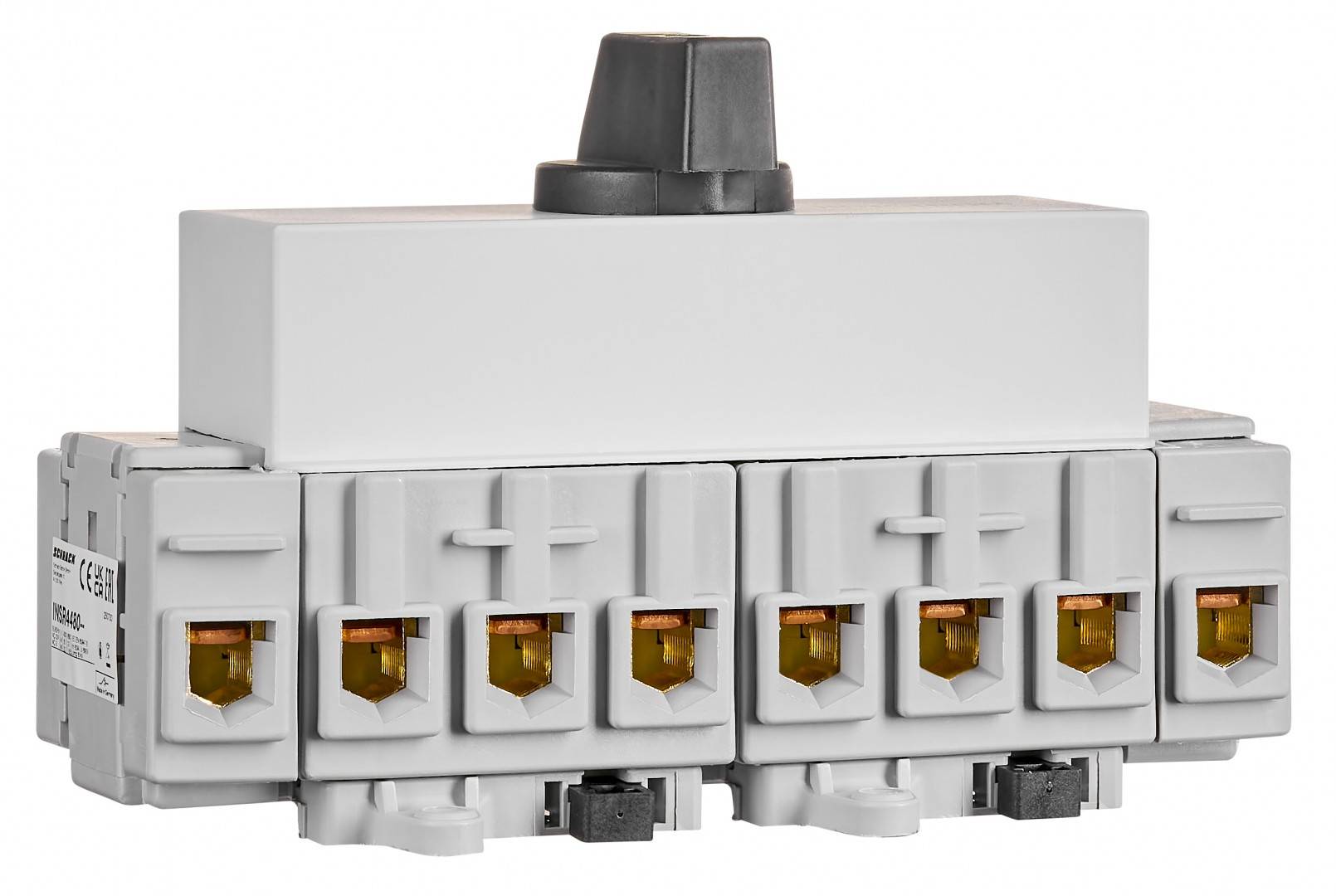

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-35 mm²
Masa neta
0,78 kg/m
Curent nominal
80 A
Frecventa
50/60 Hz
Active Power
3x240VAC - 15Hp;3x480VAC - 40Hp;3x600VAC - 50Hp;1x120VAC - 10Hp
Impuls de curent de scurtcircuit admisibil Icw
1000
Versiune
comutator de sursa
Poli
4
Curent termic conventional Ith
80 A
Thermal rated continuous current
80 A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Contacte auxiliare

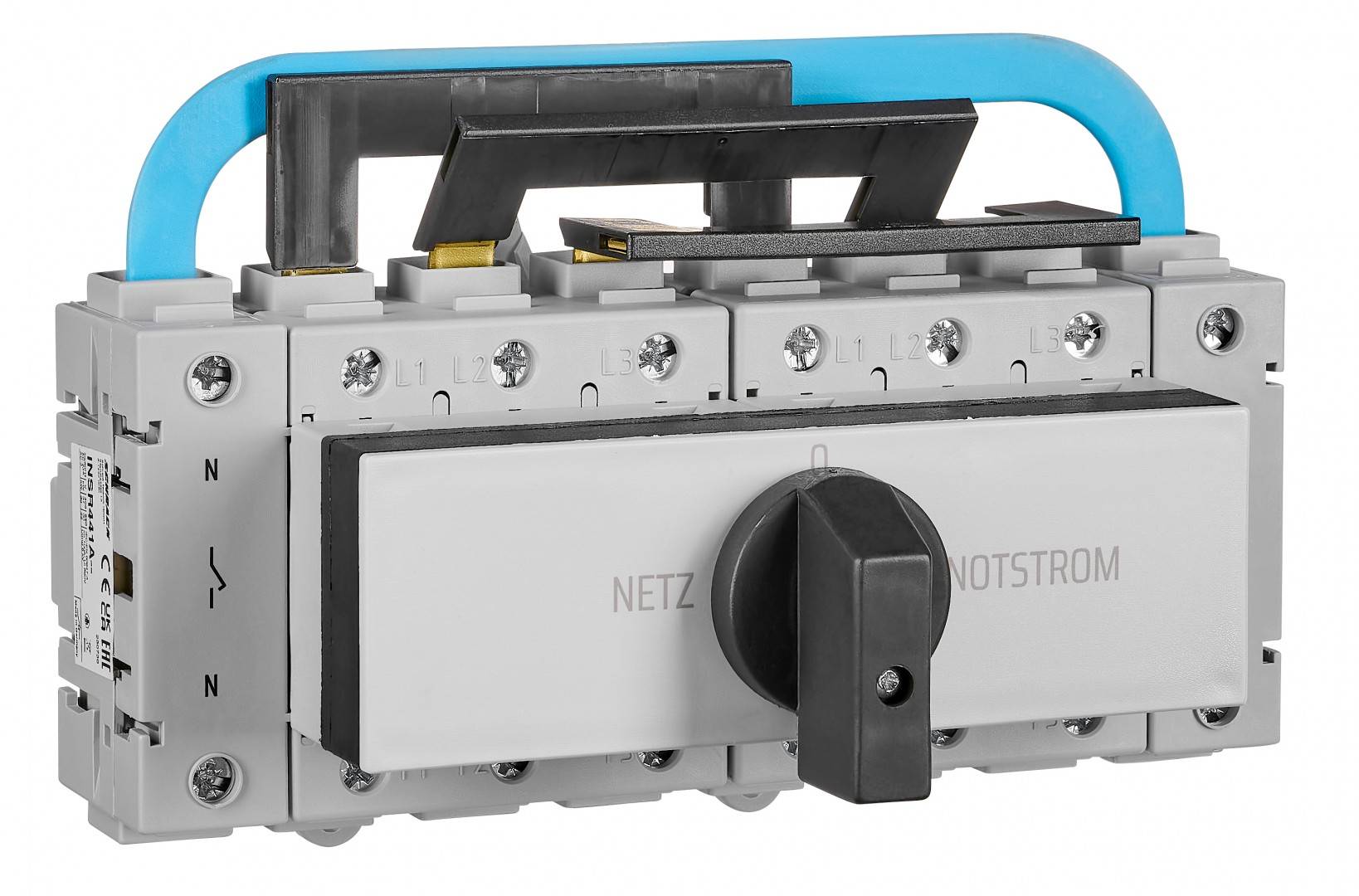

Maximum 2x INSHK001-- permitted. 1x can be snapped onto the left side of the main contact and 1x onto the right side of the main contact. Maximum configuration 2x NO / 2x NC (1x NO / 1x NC per switching position). ATTENTION! Switching behavior is not the same! In the “NETZ” switching position, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch. In the “NOTSTROM” switching position, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch.
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

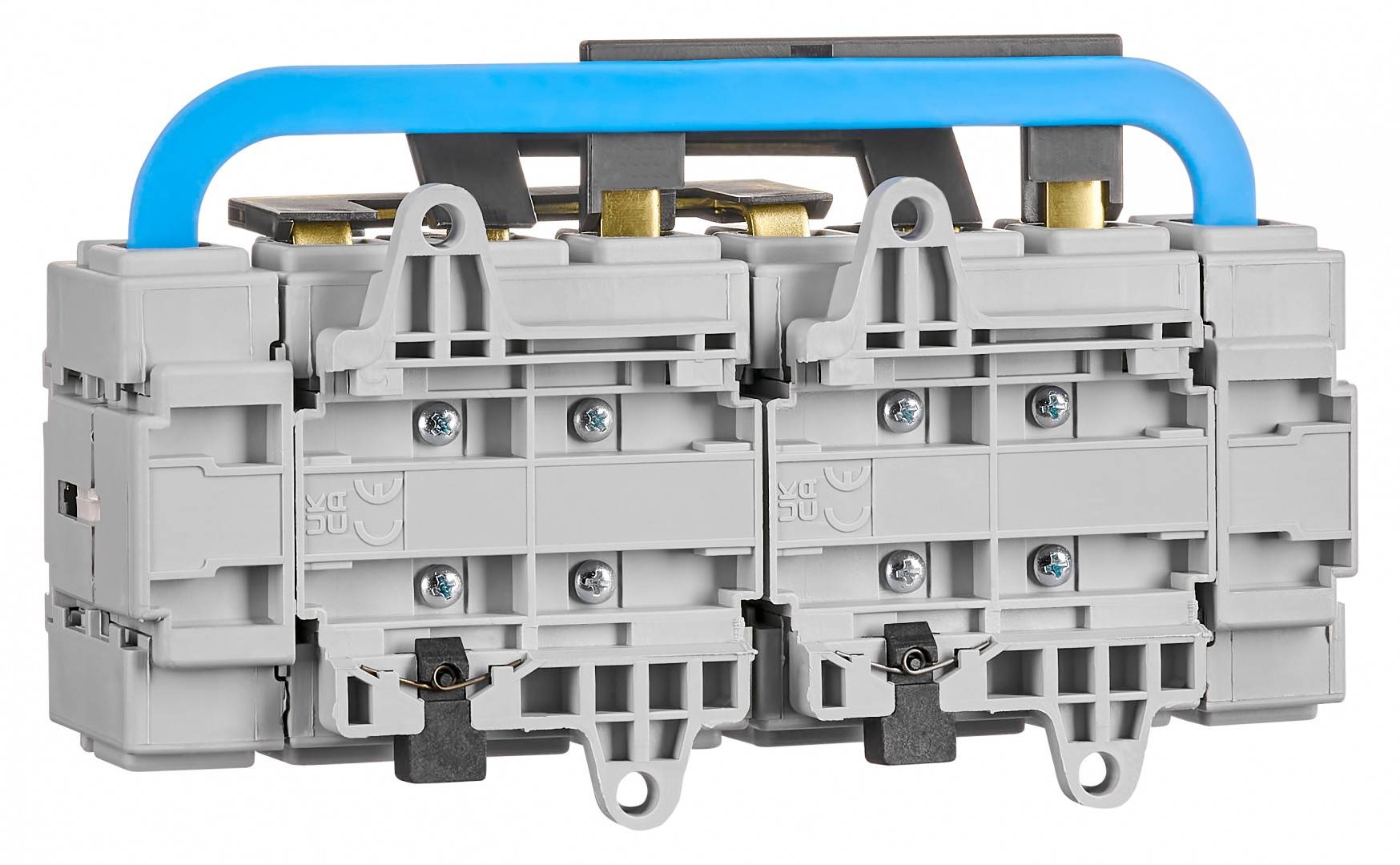

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
grad de protectie
IP40 (front), IP00 (terminals)
Tensiune de alimentare AC
600 V
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
disipare
5,50 W
Sectiune conexiune, monofilar
2,5-35 mm²
Curent operational
AC-21A - 690V - 80A;AC-23A - 400V - 43A;AC-23A - 690V - 22A;AC-3 - 400V - 43A;AC-3 - 690V - 22A
In conformitate cu UL 508 / CSA
##
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Cuplu de strangere
2,50 Nm
Fuzibil max. protectie la scurtcircuit
80
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
Capacitate de comutare
AC-23A - 400V - 30kW;AC-23A - 690V - 22kW;AC-3 - 400V - 22kW;AC-3 - 690V - 18.5kW
PU
5
Power loss per pole
5,50 W
COD COMANDA
INSR4480
PREG
2200
Conexiune
##
LxBxH mm
100x124x45
| Lungime | 100 mm |
| Latime | 124 mm |
| Inaltime | 45 mm |
| Greutate | 0.78 kg |
