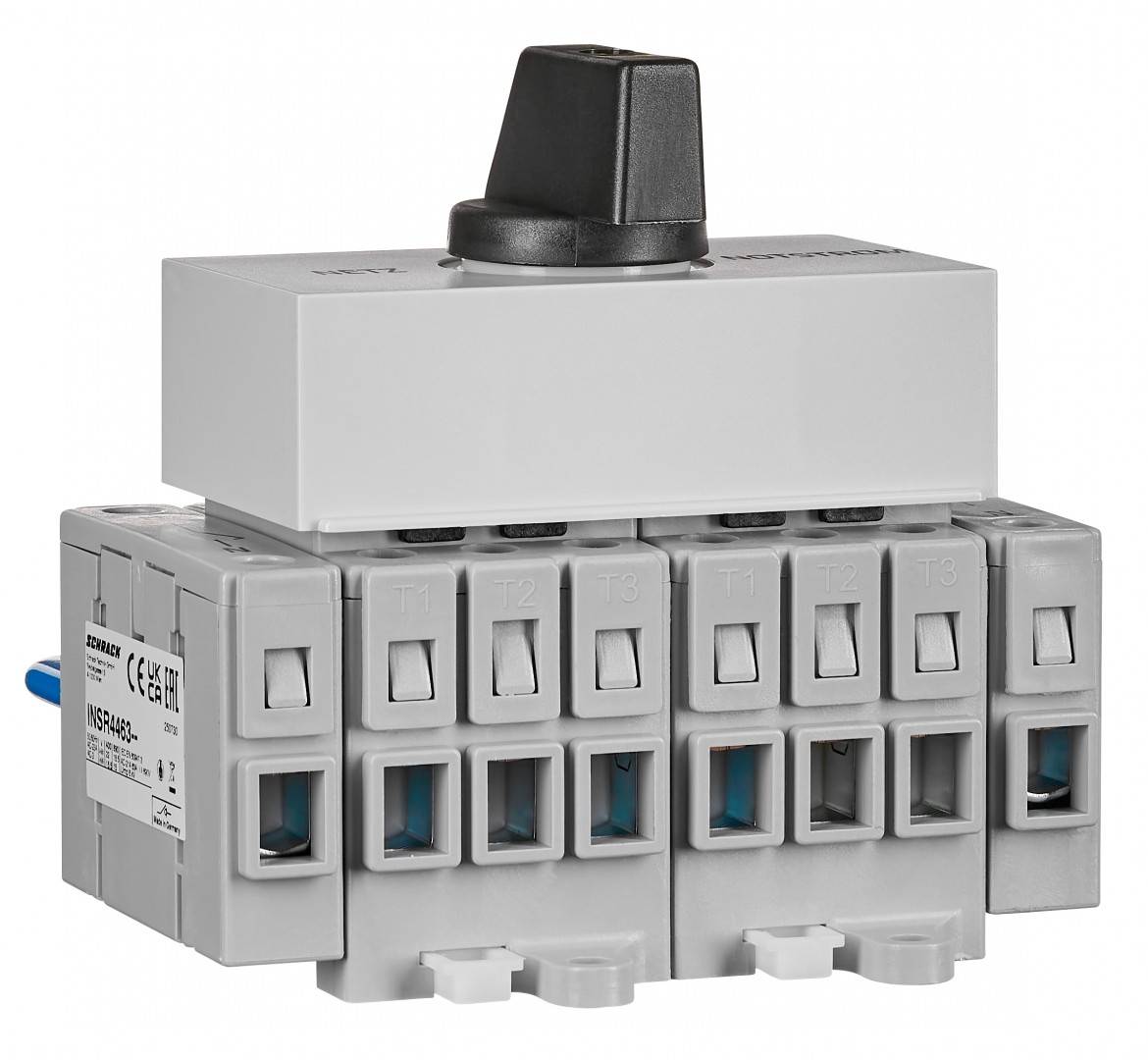

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Curent operational
AC-21A - 690V - 63A;AC-22A - 690V - 63A;AC-23A - 230V - 38A;AC-23A - 400V - 41A;AC-23A - 690V - 21A;AC-3 - 230V - 38A;AC-3 - 400V - 36A;AC-3 - 690V - 17A
Frecventa
50/60 Hz
Impuls de curent de scurtcircuit admisibil Icw
1000
Versiune
comutator de sursa
Curent nominal
63 A
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
LxBxH mm
89x78x45
Contacte auxiliare

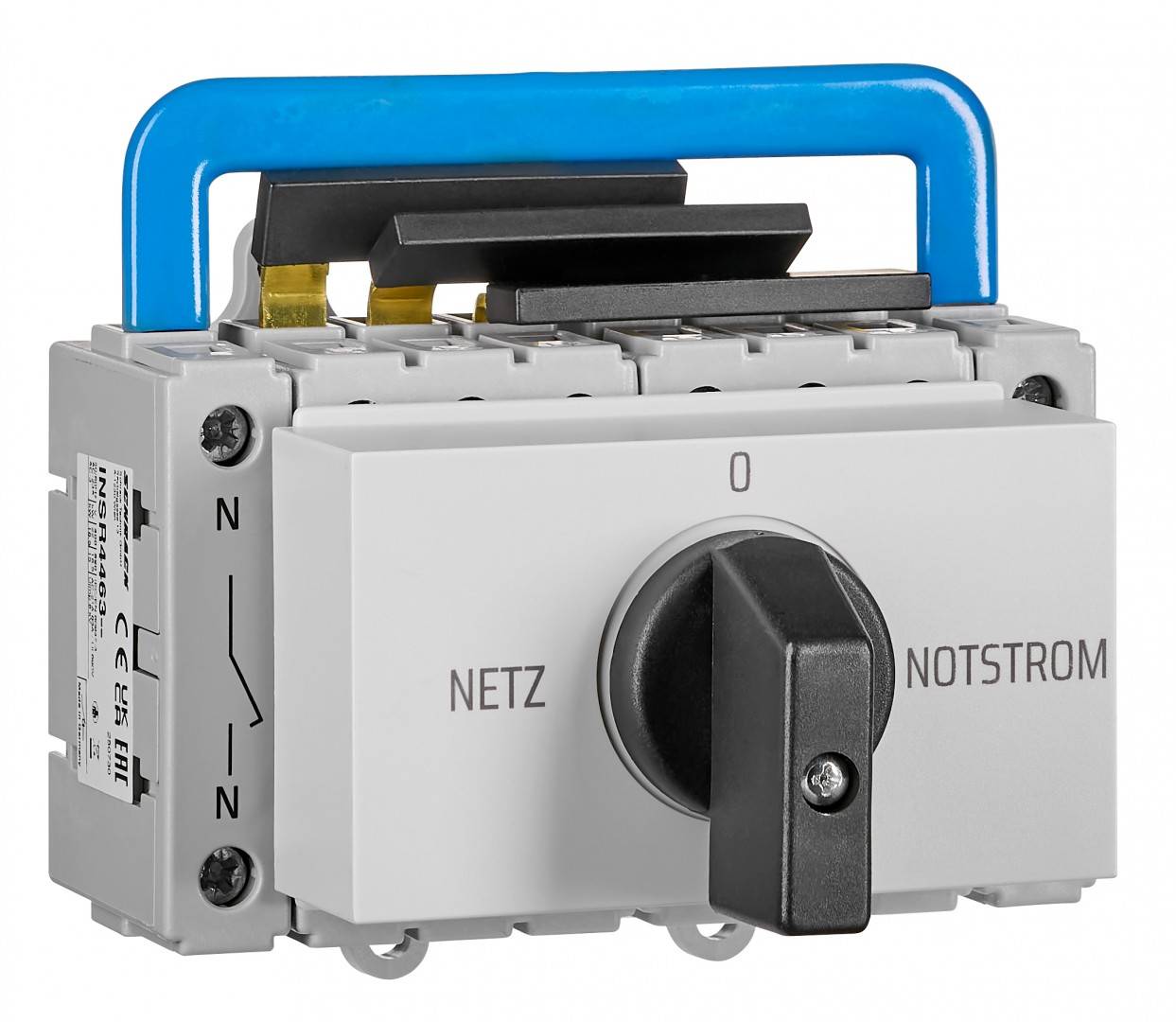

Maximum 2x INSHK001-- permitted. 1x can be snapped onto the left side of the main contact and 1x onto the right side of the main contact. Maximum configuration 2x NO / 2x NC (1x NO / 1x NC per switching position). ATTENTION! Switching behavior is not the same! In the “NETZ” switching position, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch. In the “NOTSTROM” switching position, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch.
disipare
3,60 W
Power loss per pole
3,60 W
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6

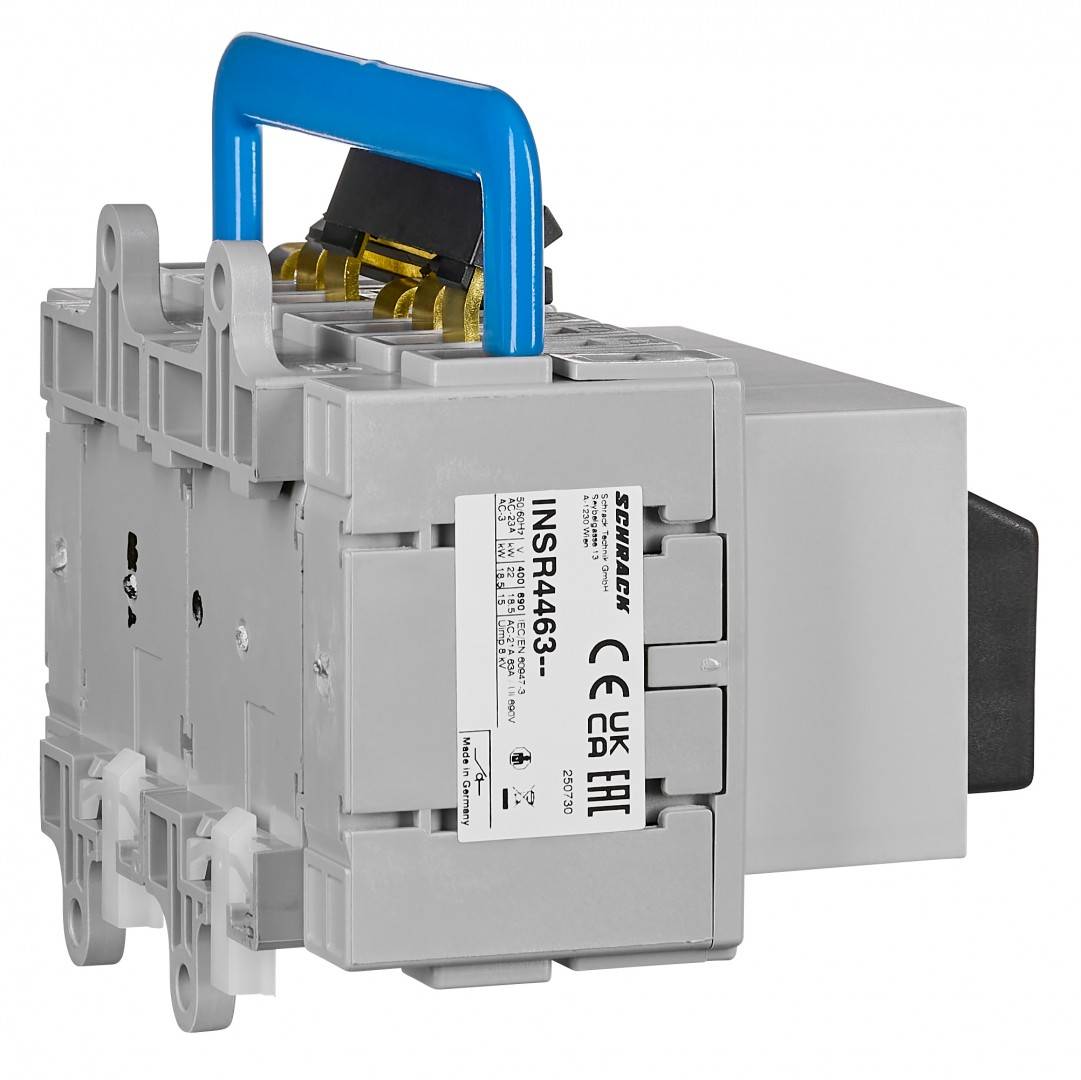

COD COMANDA
INSR4463
Capacitate de comutare
AC-23A - 230V - 11kW;AC-23A - 400V - 22kW;AC-23A - 690V - 18.5kW;AC-3 - 230V - 11kW;AC-3 - 400V - 18.5kW;AC-3 - 690V - 15kW
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

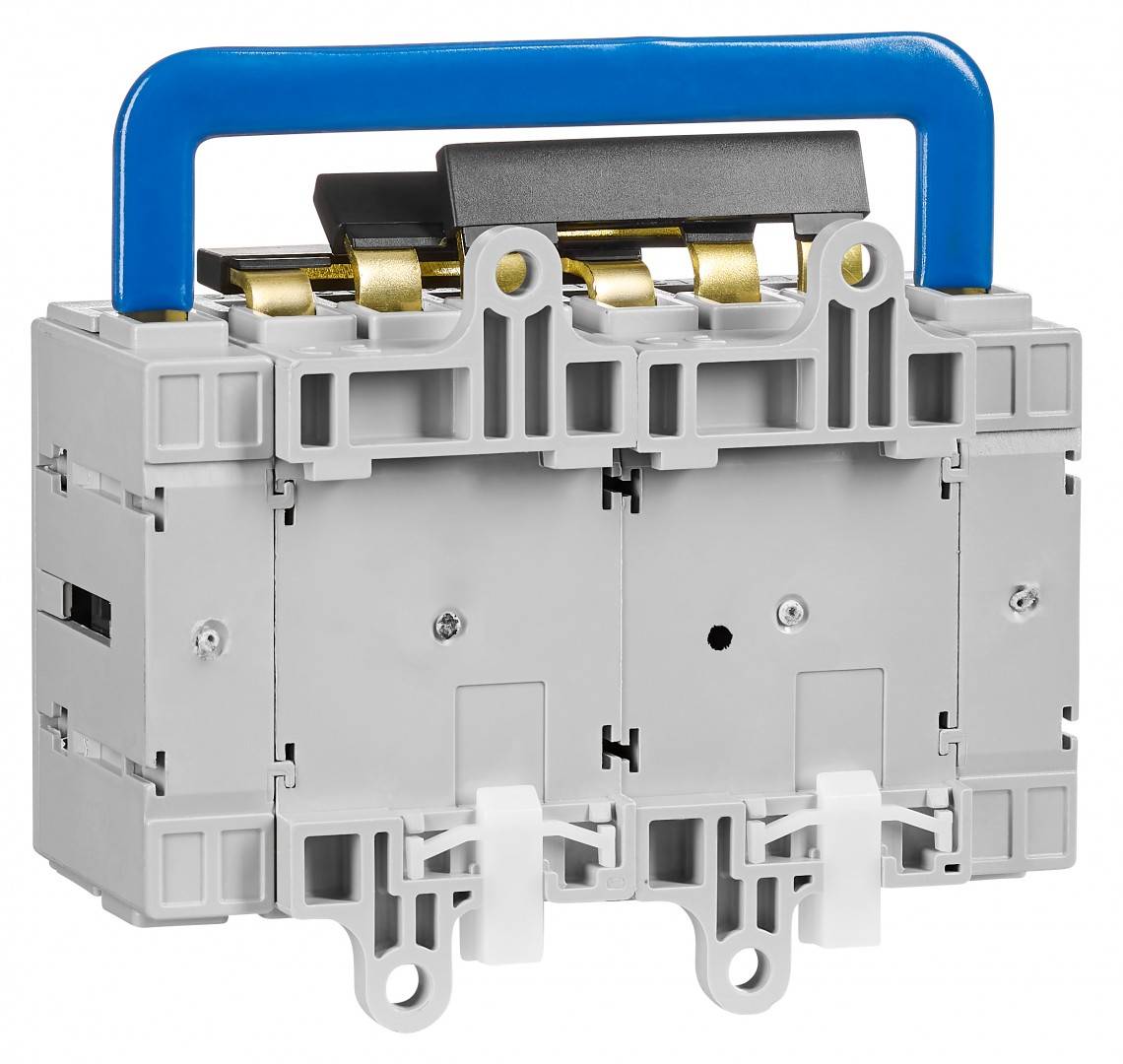

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Masa neta
0,39 kg/m
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
grad de protectie
IP40 (front), IP00 (terminals)
Tensiune de alimentare AC
600 V
PU
10
Active Power
3x120VAC - 5Hp;3x240VAC - 15Hp;3x480VAC - 25Hp;3x600VAC - 30Hp;1x120VAC - 3Hp;1x240VAC - 10Hp
Thermal rated continuous current
63 A
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Fuzibil max. protectie la scurtcircuit
63
In conformitate cu UL 508 / CSA
##
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Curent termic conventional Ith
63 A
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm

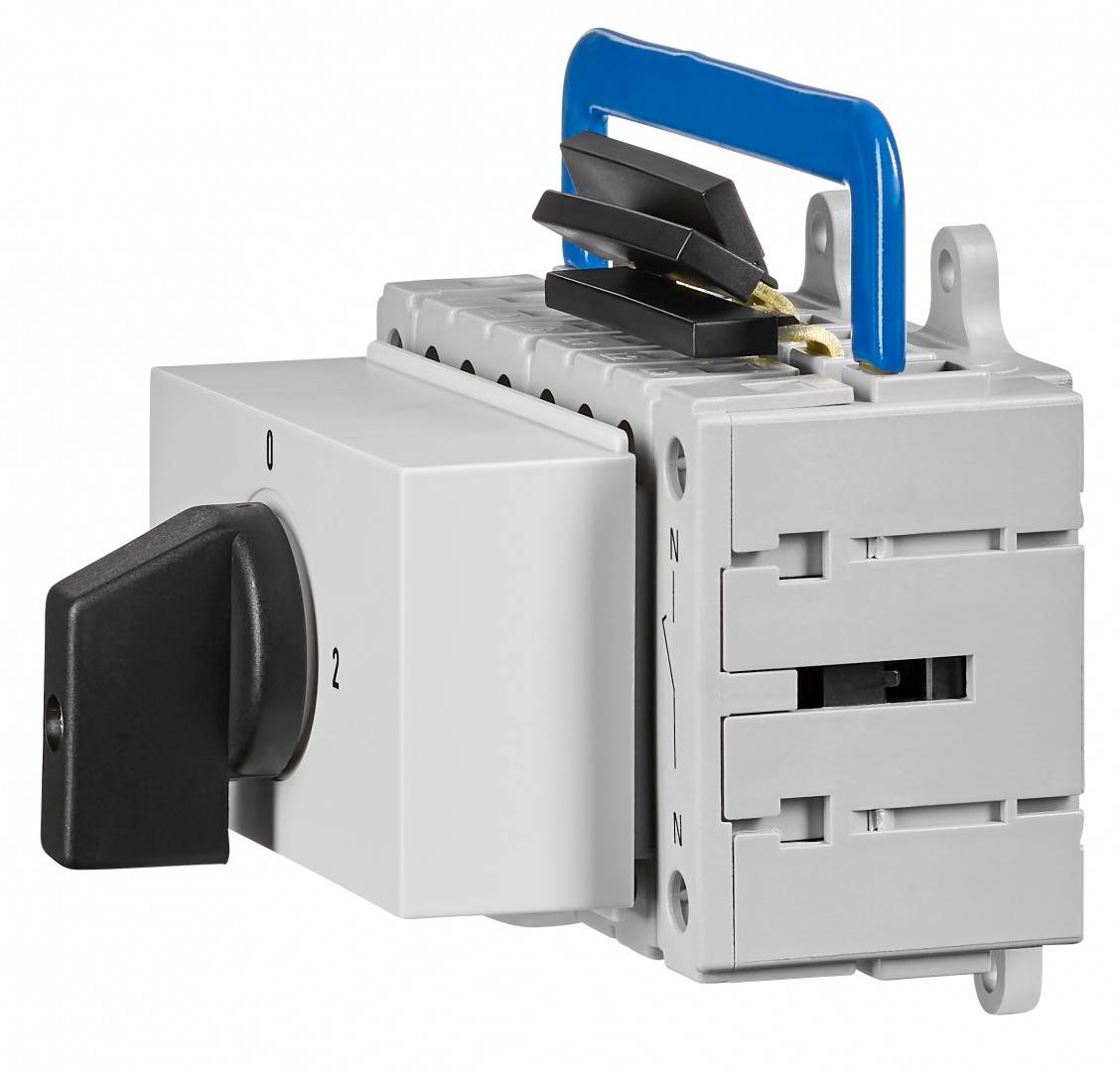

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
PREG
2200

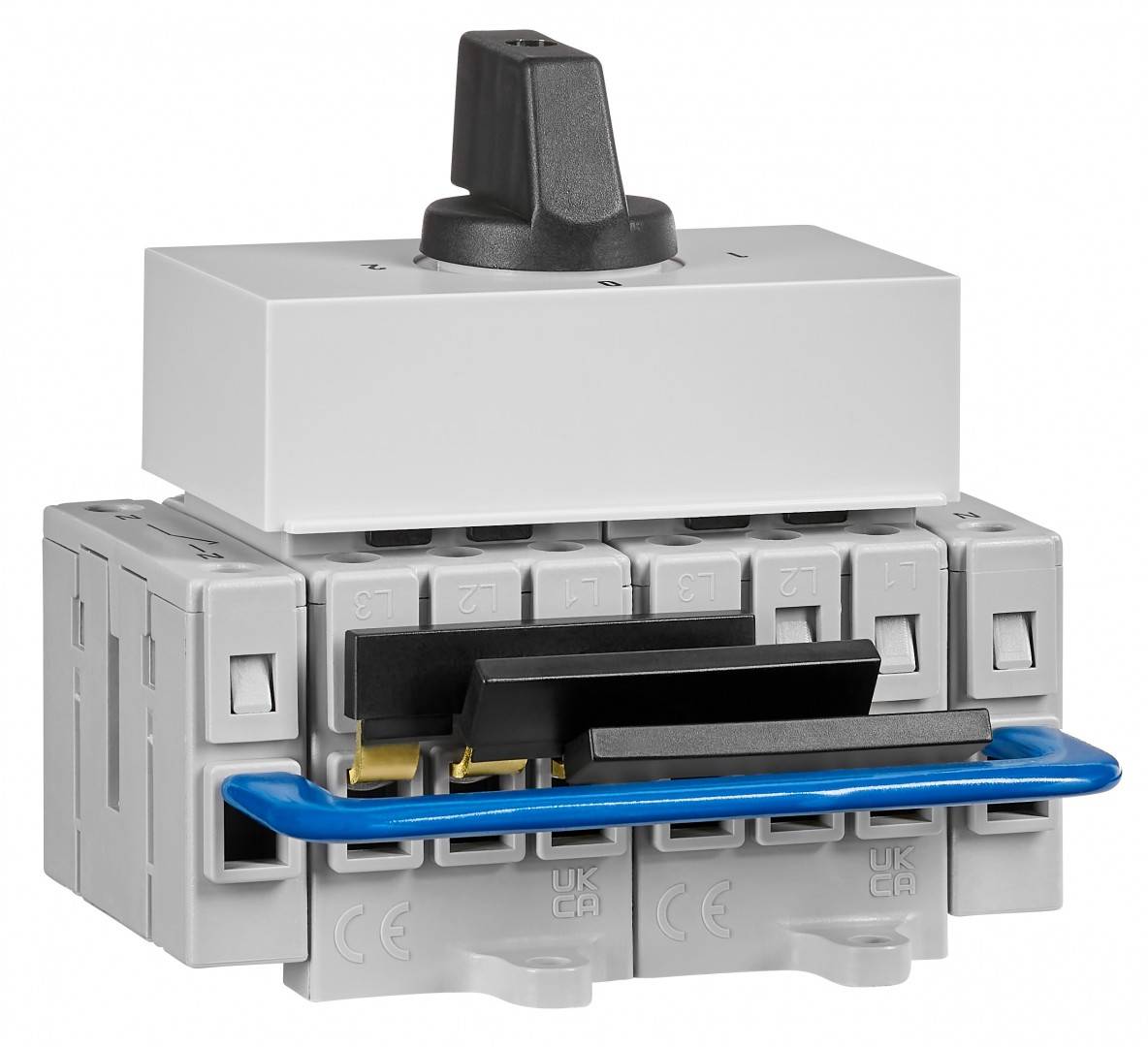

Conexiune
##
| Lungime | 89.4 mm |
| Latime | 78.4 mm |
| Inaltime | 45 mm |
| Greutate | 0.39 kg |
