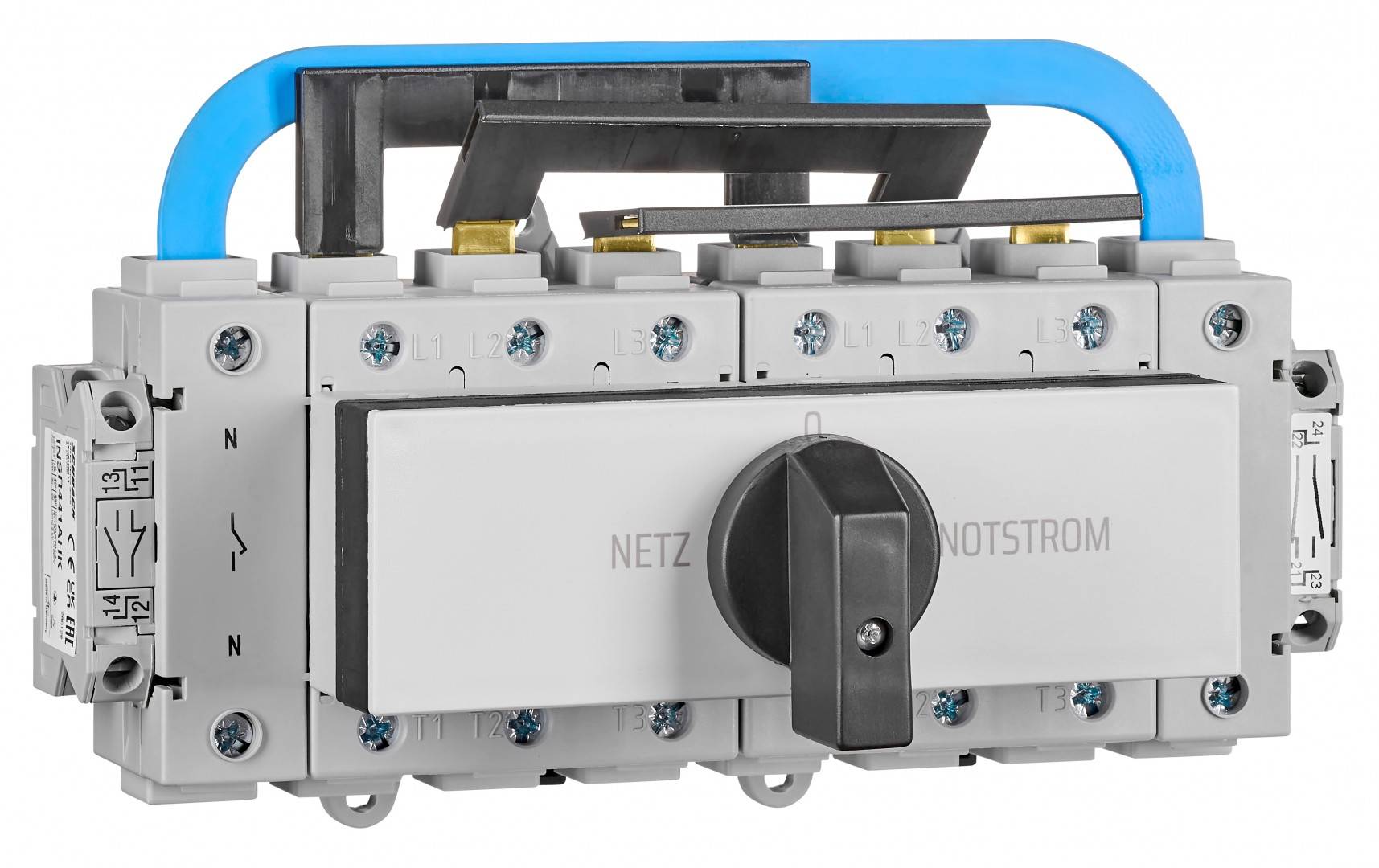

Specificatii Tehnice
Frecventa
50/60 Hz
Curent nominal
100 A
Impuls de curent de scurtcircuit admisibil Icw
1000
Versiune
comutator de sursa
Power loss per pole
7,50 W
Poli
4
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Capacitate de comutare
AC-23A - 400V - 37kW;AC-23A - 690V - 30kW;AC-3 - 400V - 30kW;AC-3 - 690V - 22kW

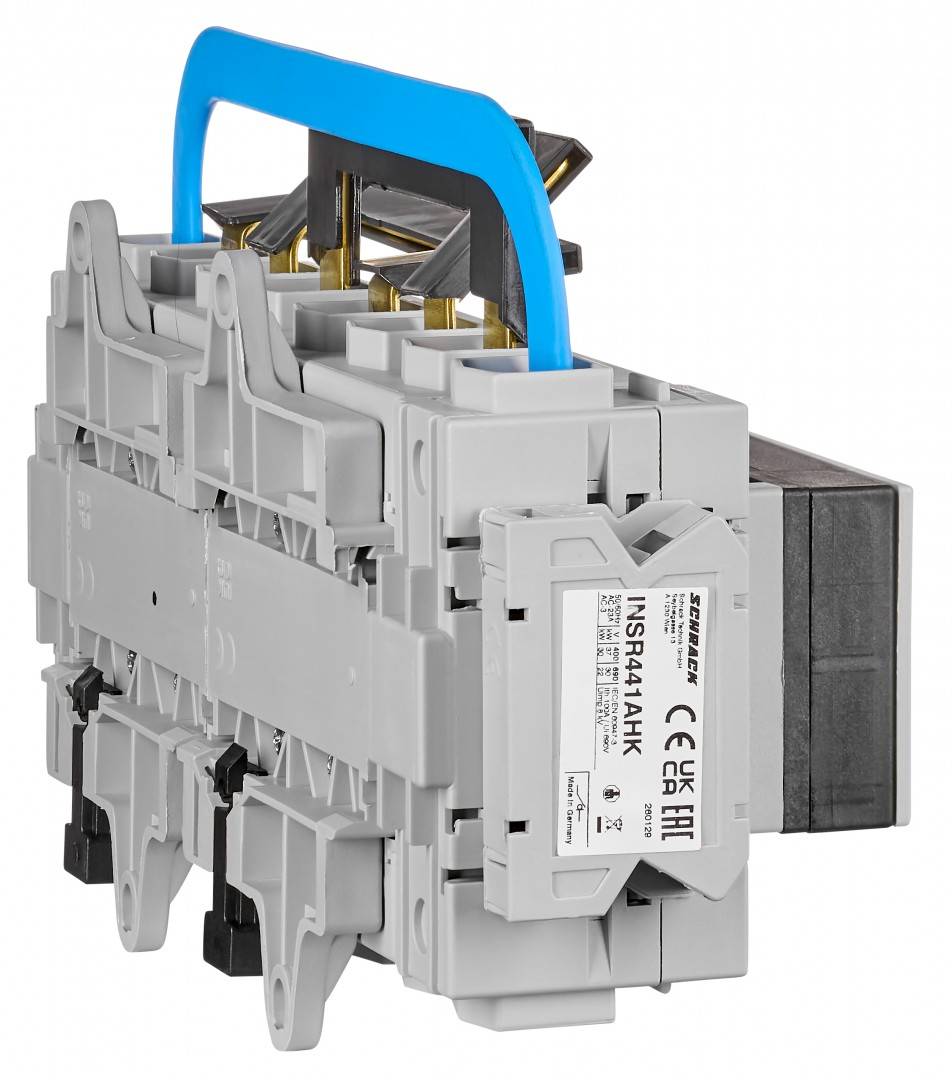

COD COMANDA
INSR441AHK
Tinere la impuls de tensiune [Uimp]
6000 V
LxBxH mm
121x207x105
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

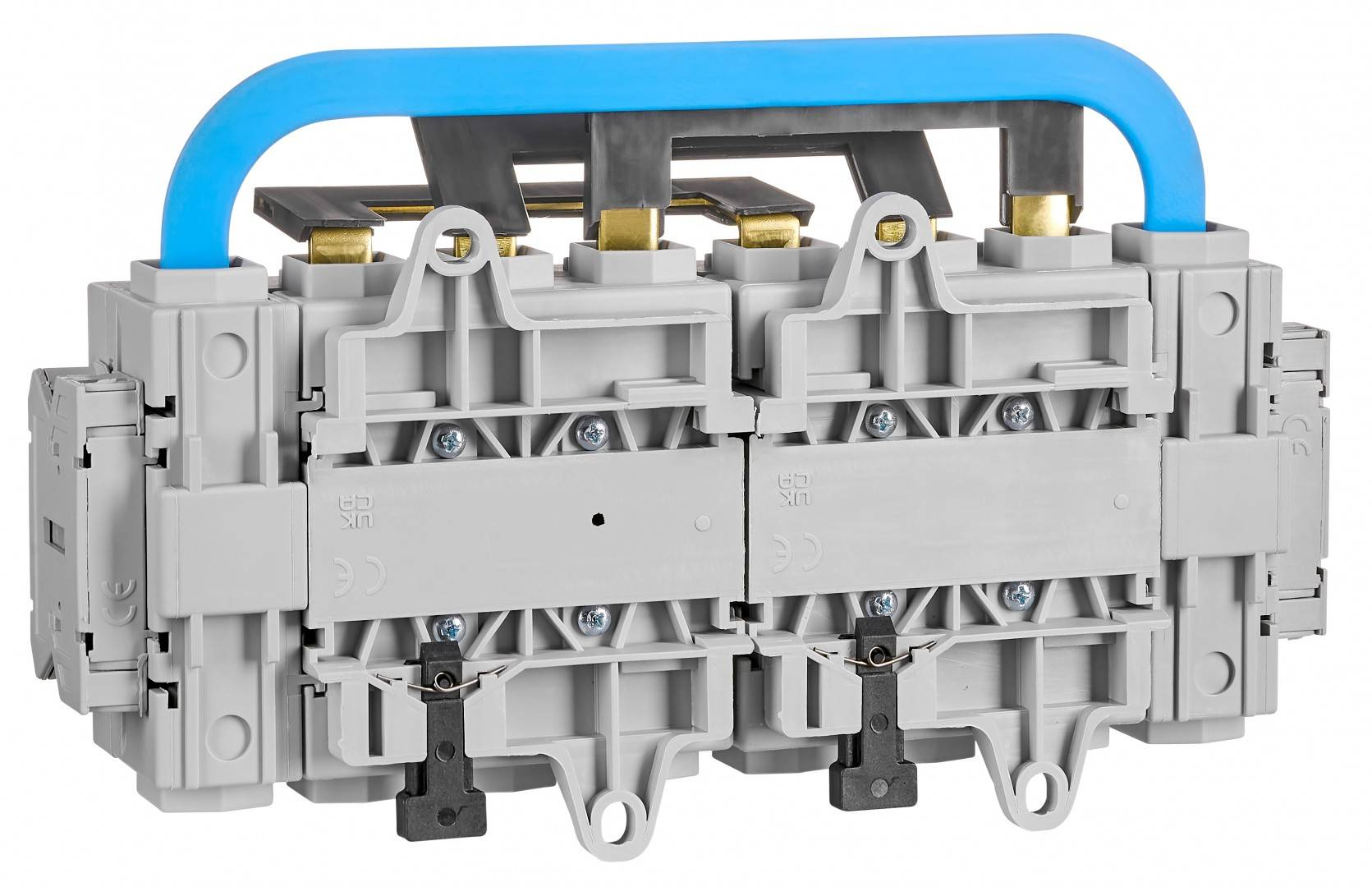

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
grad de protectie
IP40 (front), IP00 (terminals)
Sectiune conexiune, multifilar
4-50 mm²
Tensiune de alimentare AC
600 V
Tip conexiune
UL/CSA - AWG 12-1

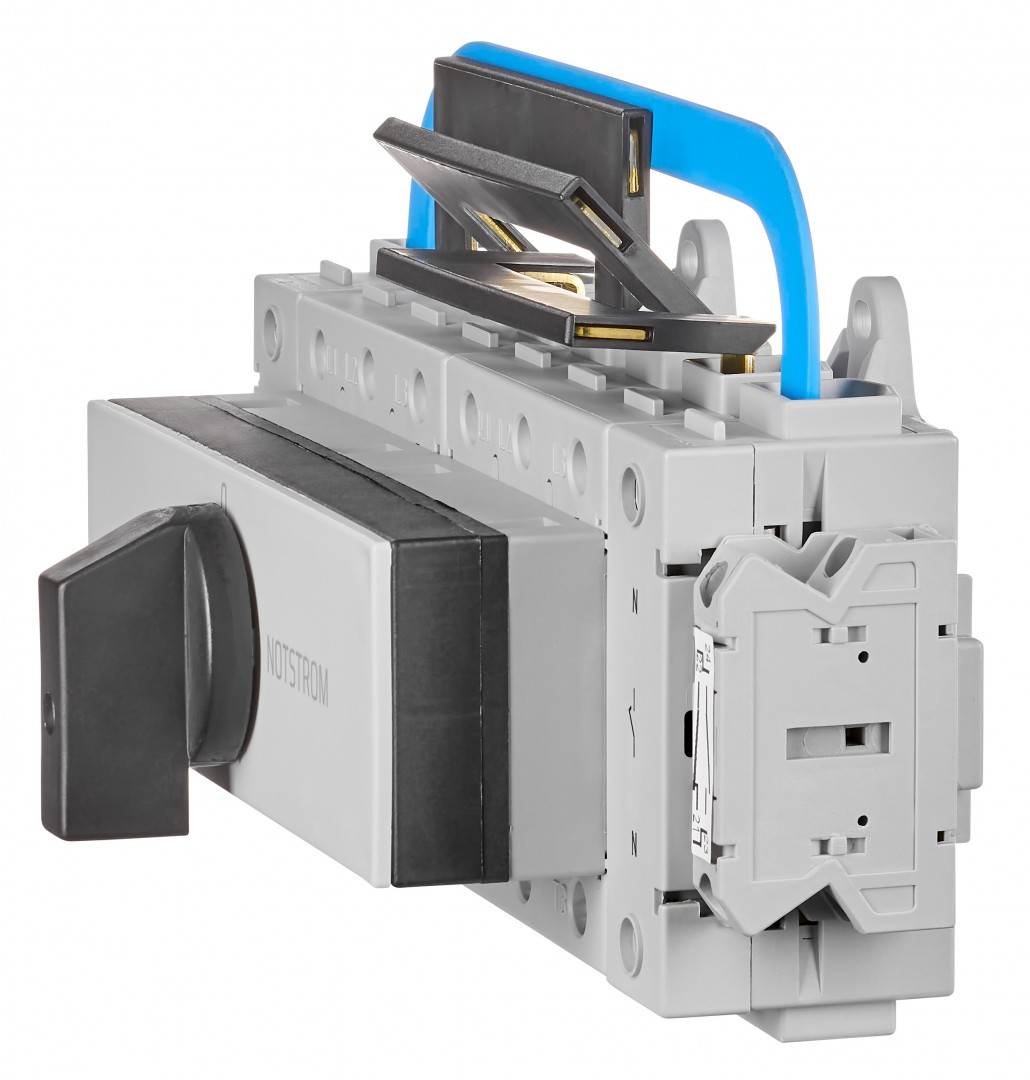

Contacte auxiliare
Includes manufacturer-installed auxiliary contacts. 1NO + 1NC for left and right switch positions, no retrofitting of additional auxiliary contacts possible!
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
In conformitate cu UL 508 / CSA
##
disipare
7,50 W
Blocabil
Nu
Curent termic conventional Ith
100 A
Masa neta
1,04 kg/m
Temperatura minima a mediului ambiant
-25 °C
Cuplu de strangere
3 Nm
Sectiune conexiune, monofilar
4-50 mm²

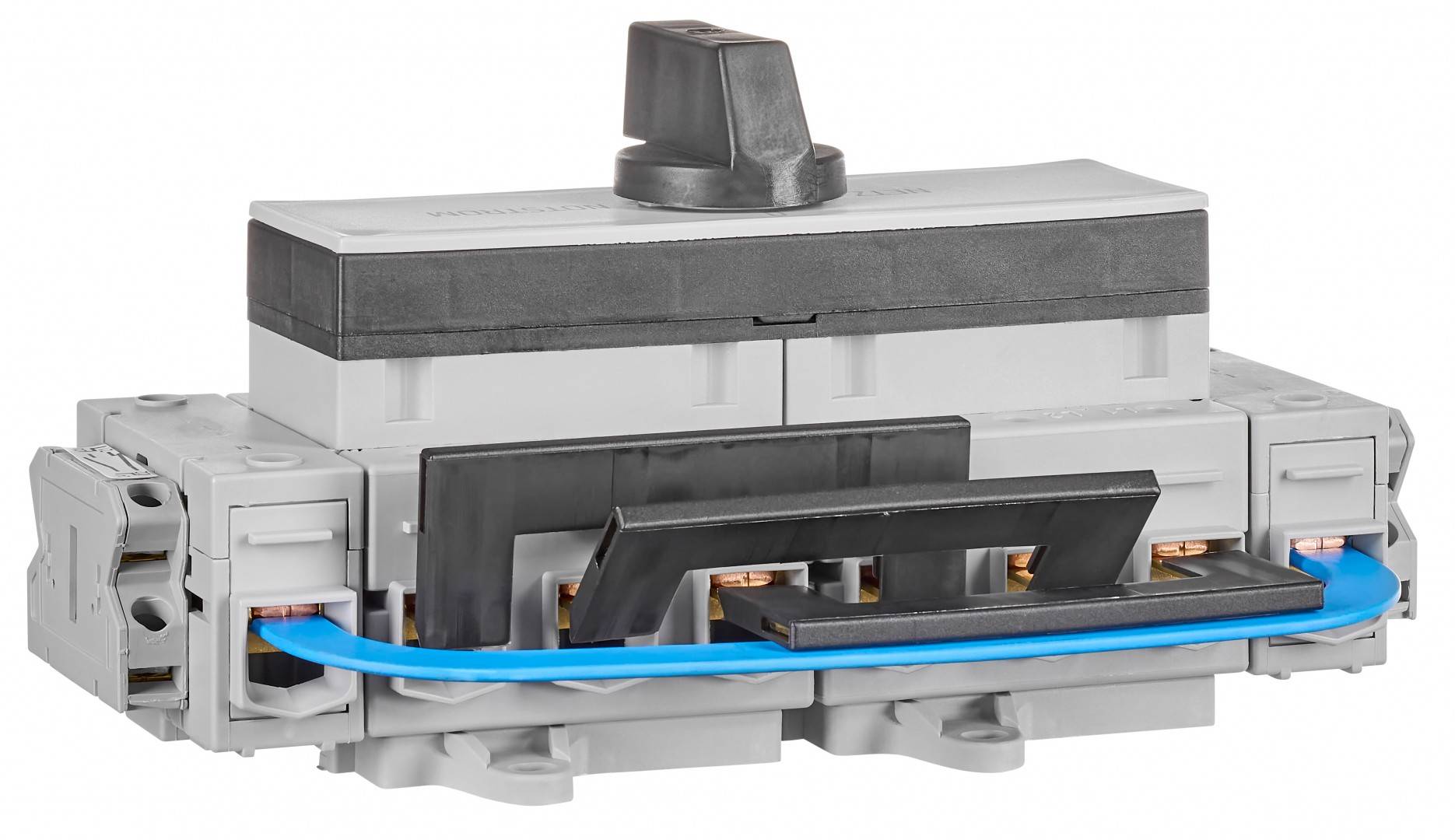

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
Active Power
3x240VAC - 30Hp;3x480VAC - 60Hp;3x600VAC - 75Hp
Thermal rated continuous current
100 A
PREG
2200

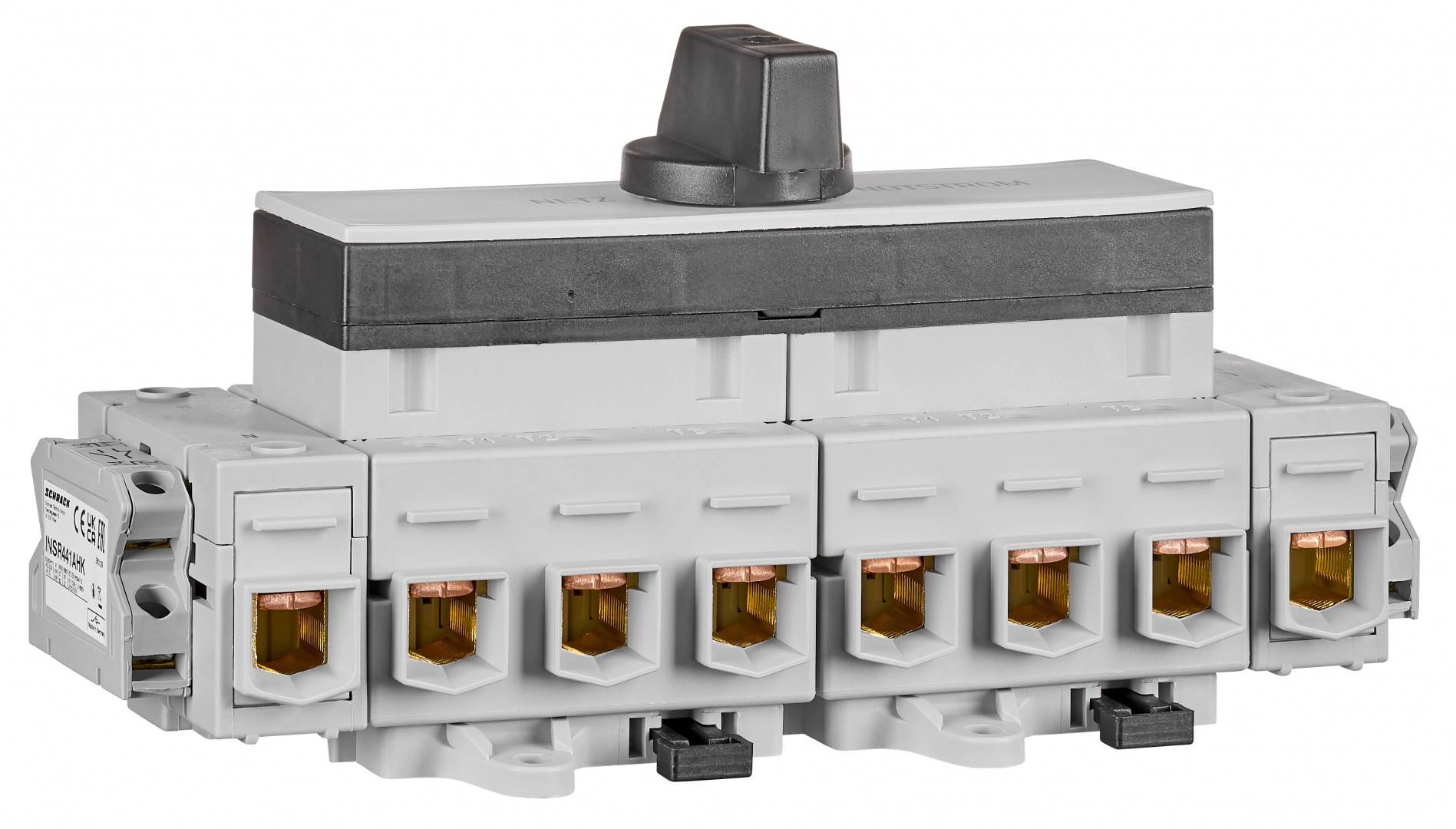

Conexiune
##
Fuzibil max. protectie la scurtcircuit
125
Sectiune conexiune, fir flexibil cu pin
4-35 mm²
Curent operational
AC-21A - 690V - 100A;AC-23A - 400V - 70A;AC-23A - 690V - 34A;AC-3 - 400V - 53A;AC-3 - 690V - 25.5A
| Lungime | 121 mm |
| Latime | 207 mm |
| Inaltime | 105 mm |
| Greutate | 1.04 kg |
