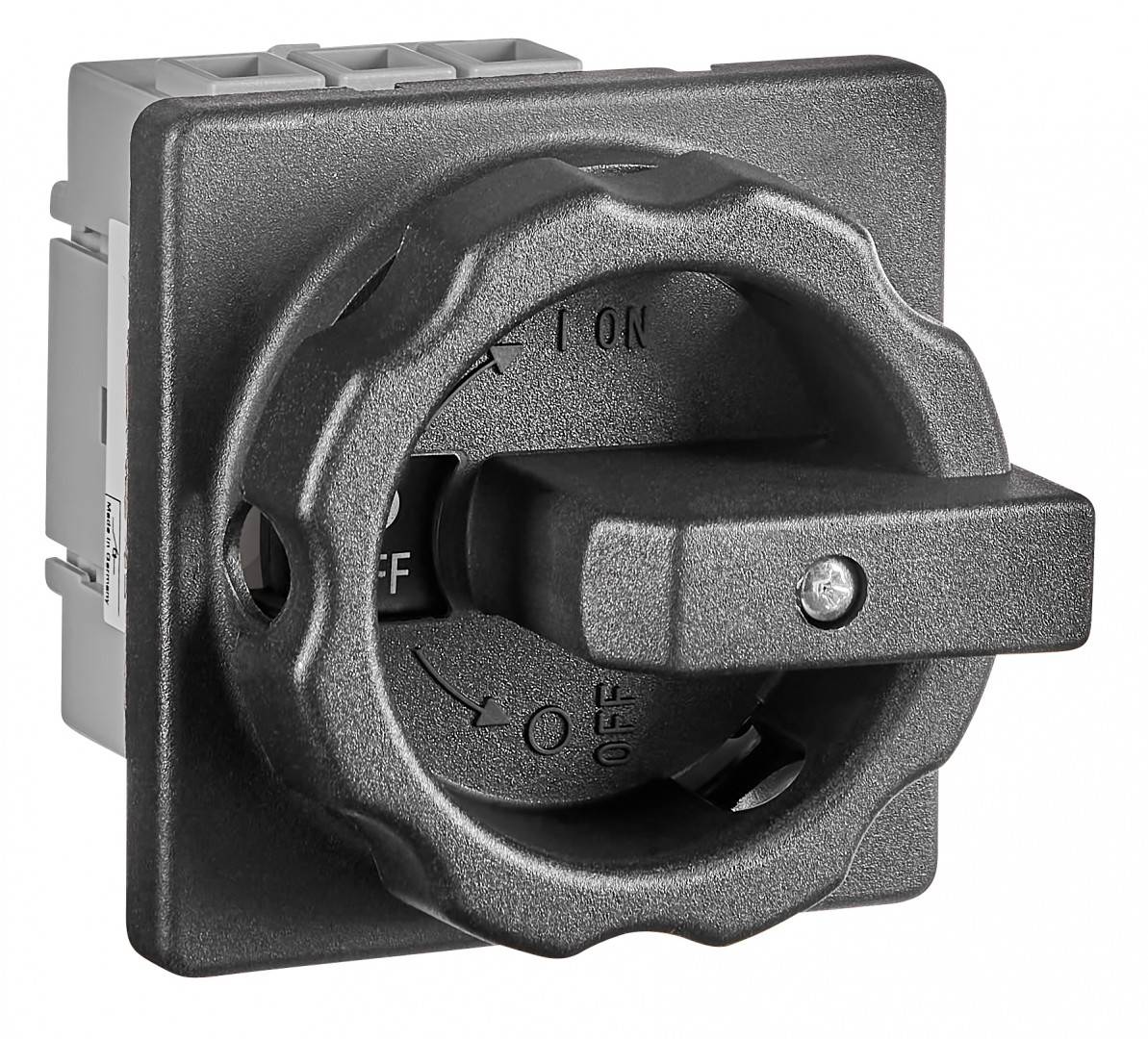

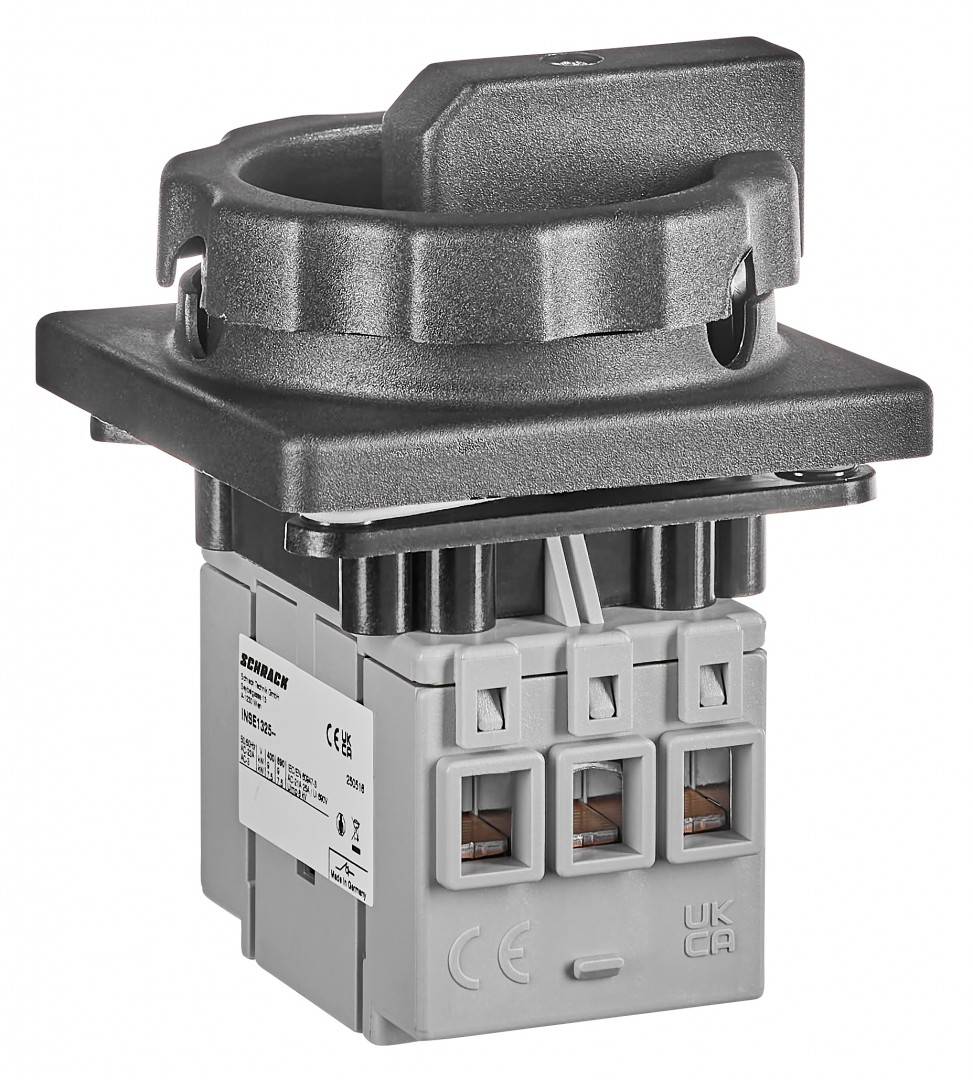

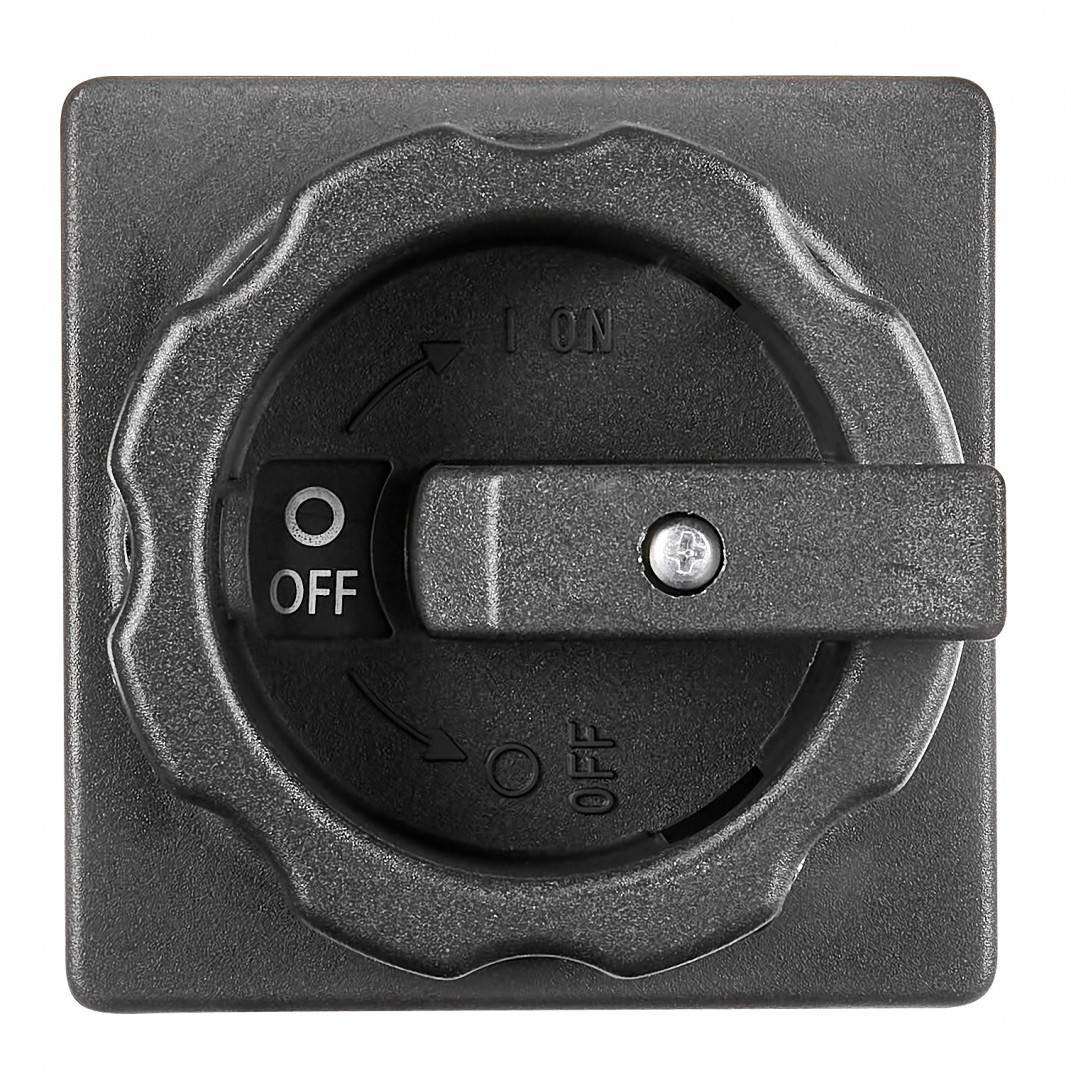

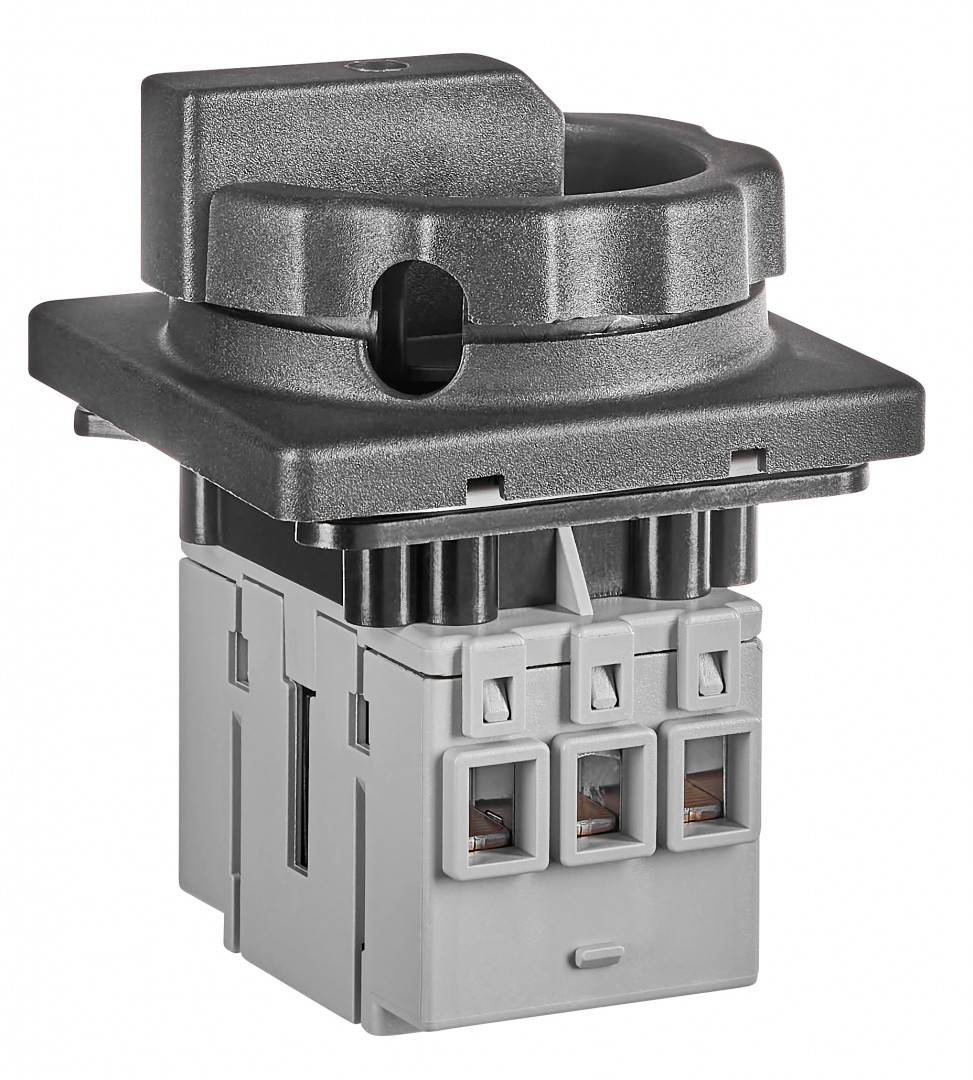

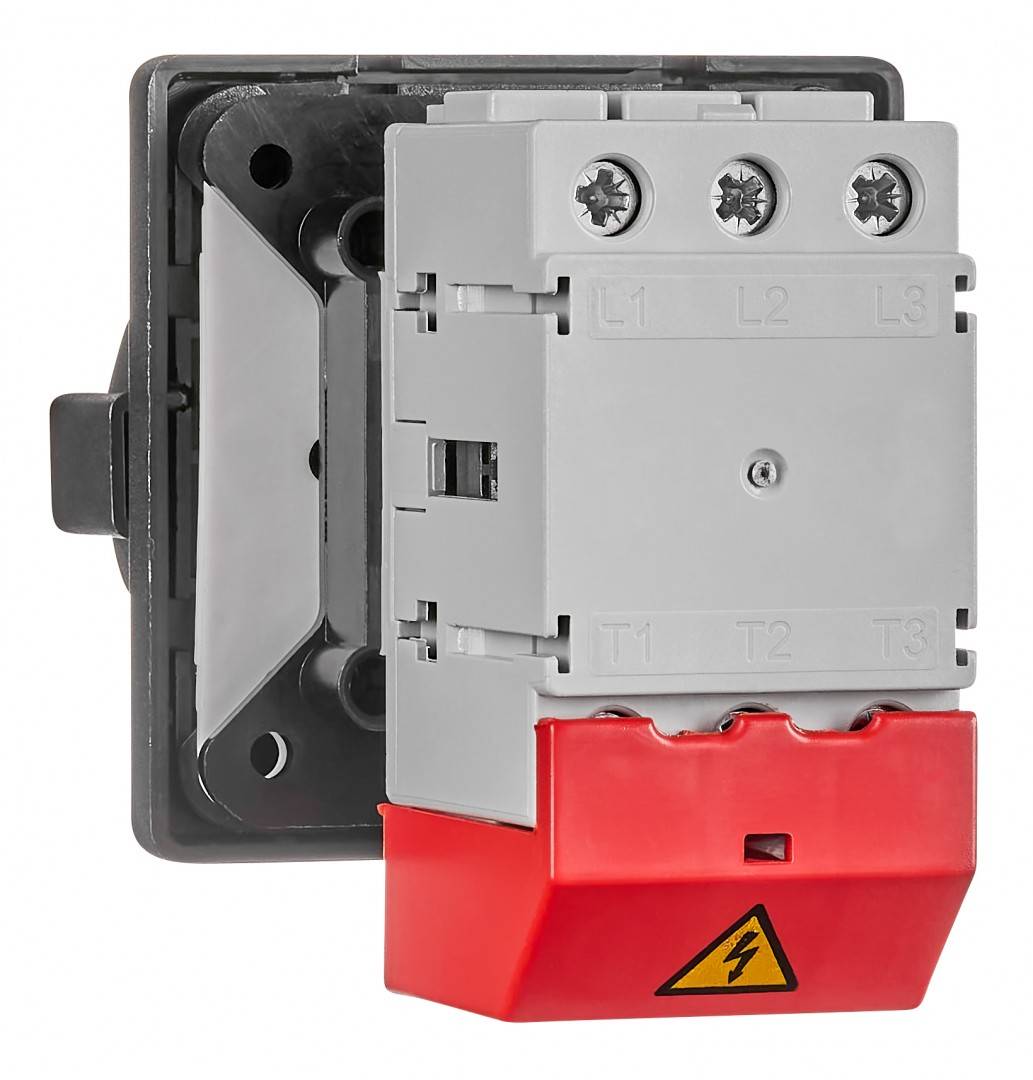

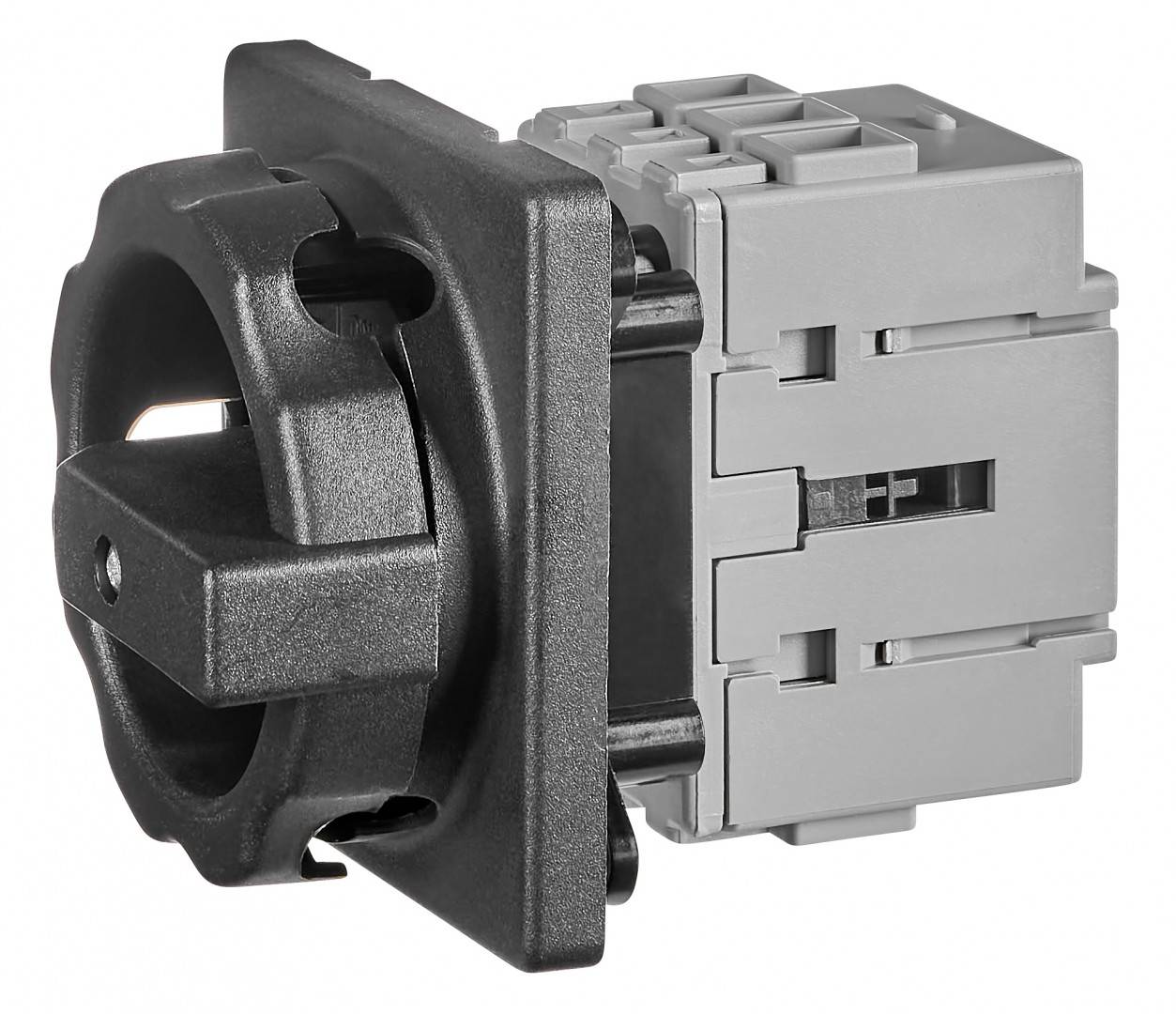

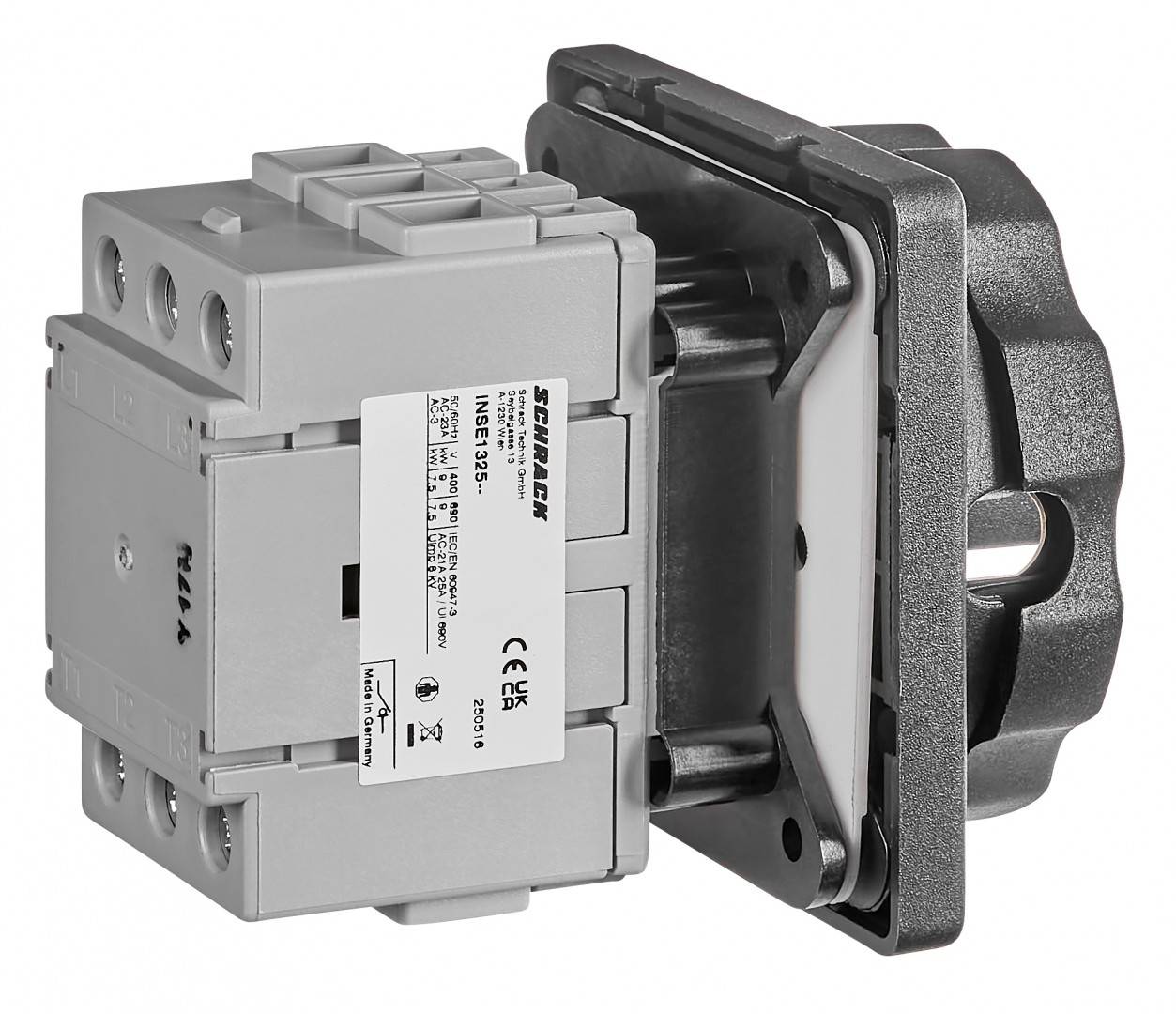

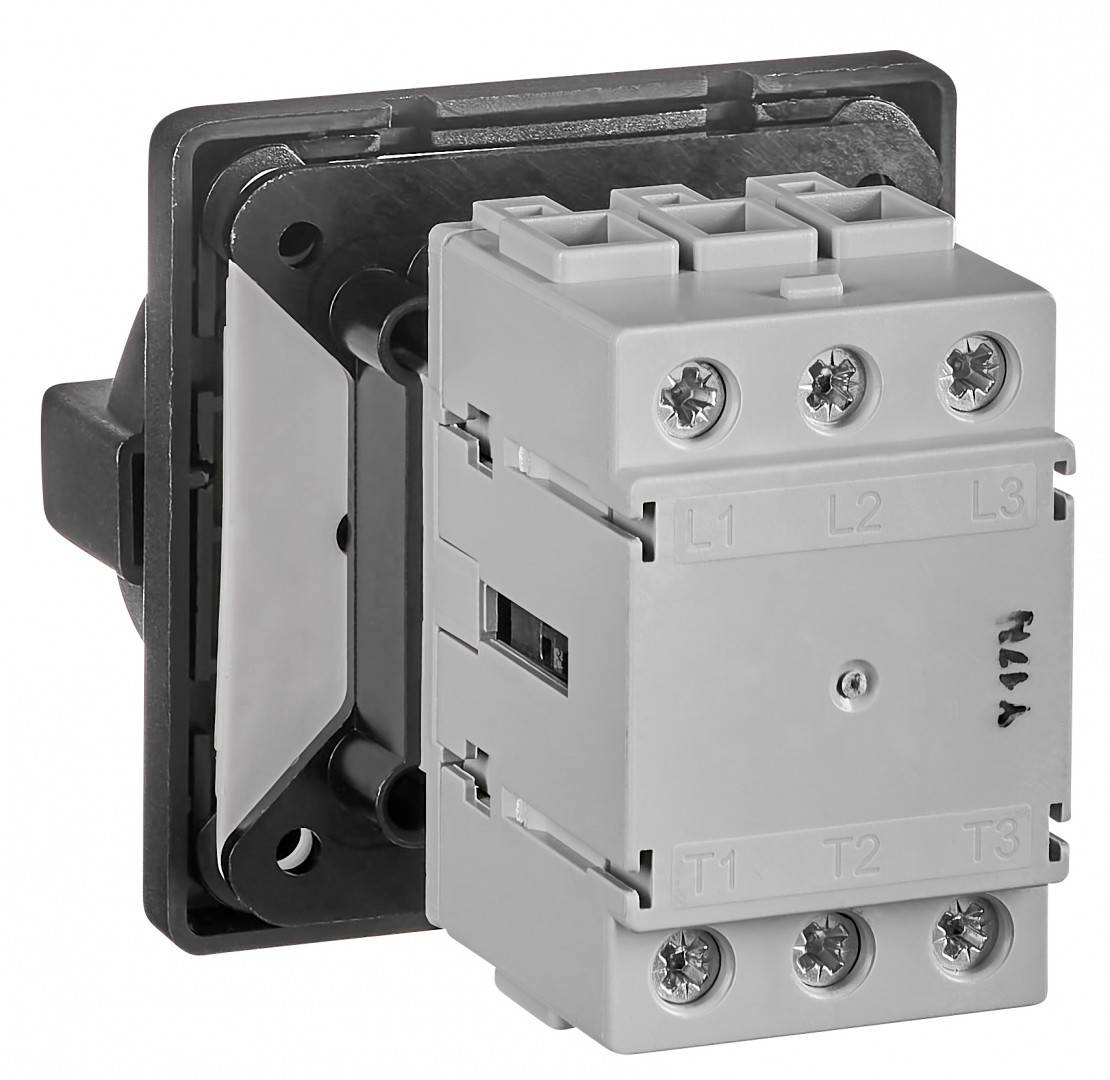

Specificatii Tehnice
Accesorii optionale
INSHK002--; INSNK020--
Sectiune conexiune, multifilar
2,5-16 mm²
Masa neta
0,17 kg/m
Montaj
front mount
Frecventa
50/60 Hz
Curent operational
AC-21A - 690V - 25A;AC-22A - 690V - 25A;AC-23A - 230V - 11A;AC-23A - 400V - 19A;AC-23A - 690V - 11A;AC-3 - 230V - 15A;AC-3 - 400V - 16A;AC-3 - 690V - 9.5A
Curent termic conventional Ith
25 A
Sectiune conexiune, monofilar
2,5-16 mm²
Versiune
comutator principal
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
disipare
0,90 W
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Power loss per pole
0,90 W
COD COMANDA
INSE1325
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
grad de protectie
IP65 (front), IP20 (terminals)
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
In conformitate cu UL 508 / CSA
##
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
LxBxH mm
88x66x66
Capacitate de comutare
AC-23A - 230V - 4kW;AC-23A - 400V - 9kW;AC-23A - 690V - 9kW;AC-3 - 230V - 4kW;AC-3 - 400V - 7.5kW;AC-3 - 690V - 7.5kW
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Thermal rated continuous current
25 A
Contacte auxiliare
Maximum 2x INSHK002-- permitted. 1x INSHK002-- can be snapped on to the left of the main contact and 1x INSHK002-- to the right of the main contact. Maximum configuration 2x NO contact / 2x NC contact. Switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right of the main contact.
Cuplu de strangere
3 Nm
Temperatura de functionare
-25°C to +55°C
Curent nominal
25 A
PREG
2200
Conexiune
##
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK020--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK002-- can be used as normal. For further details, see Auxiliary contact and N contact overview
Active Power
3x120VAC - 3Hp;3x240VAC - 7.5Hp;3x480VAC - 10Hp;3x600VAC - 15Hp;1x120VAC - 2Hp;1x240VAC - 3Hp
| Lungime | 88 mm |
| Latime | 66.4 mm |
| Inaltime | 66.4 mm |
| Greutate | 0.17 kg |
