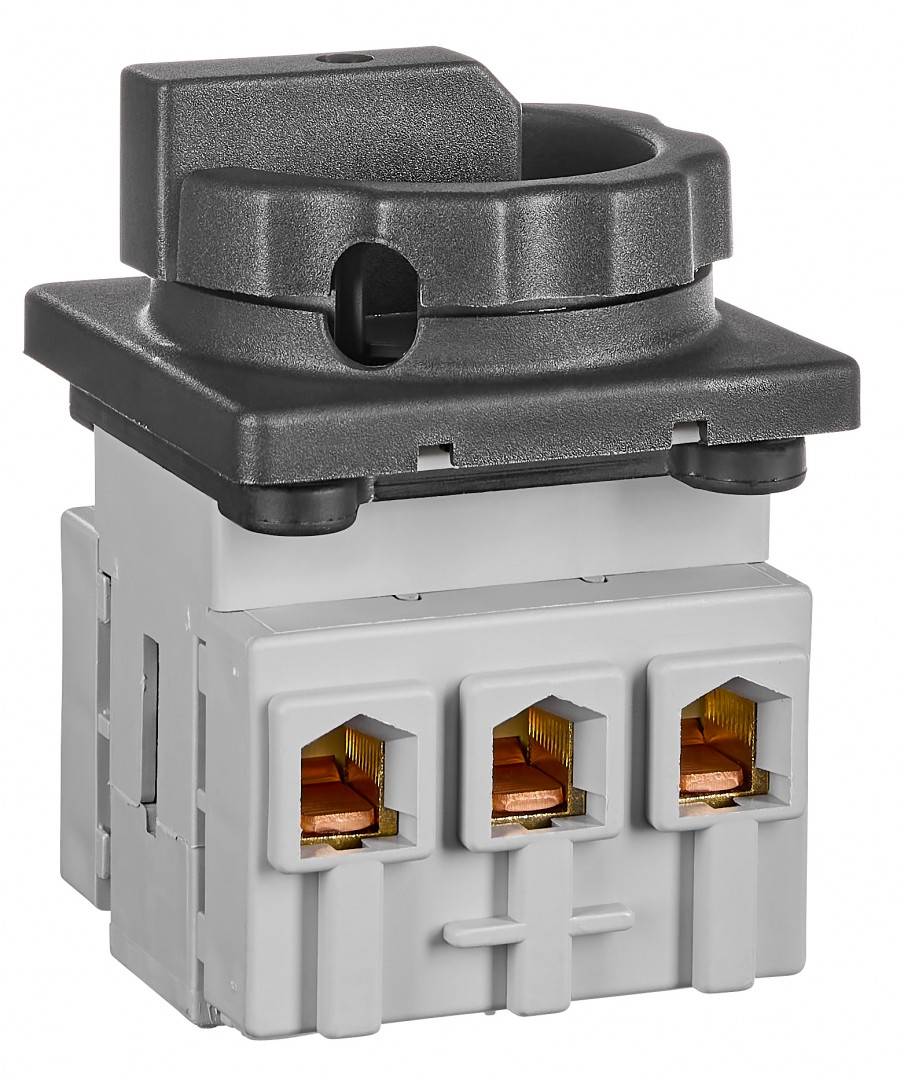

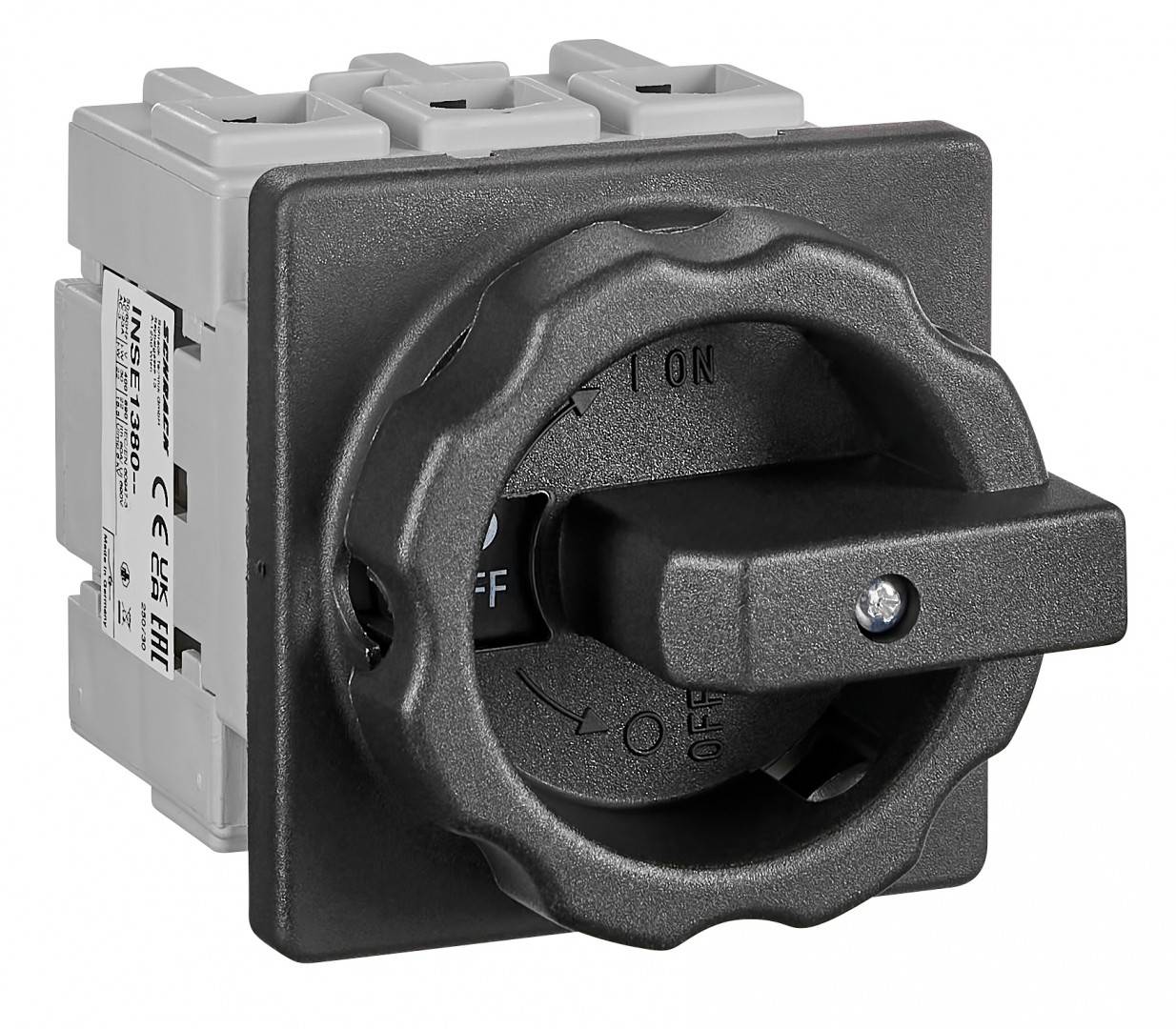

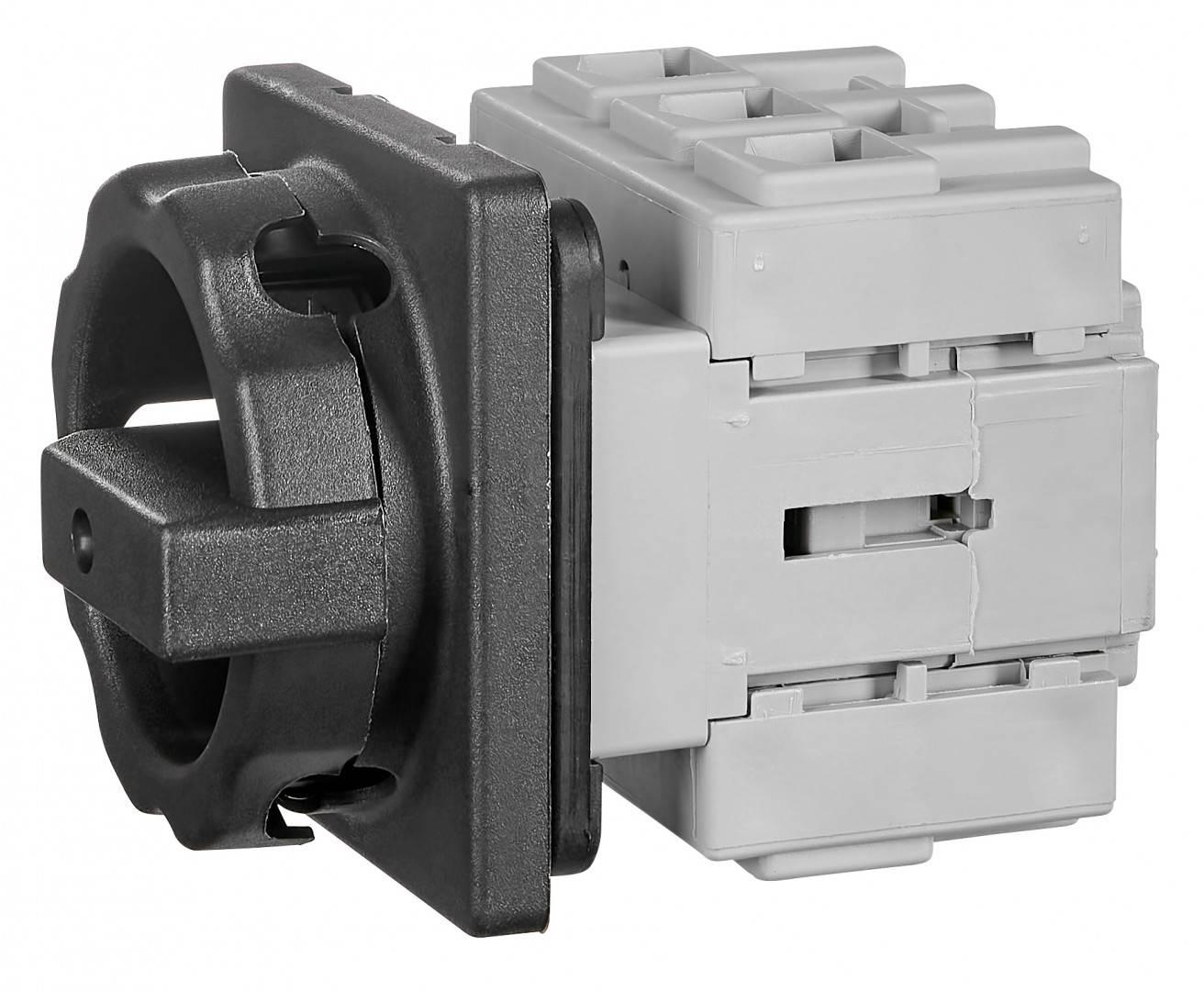

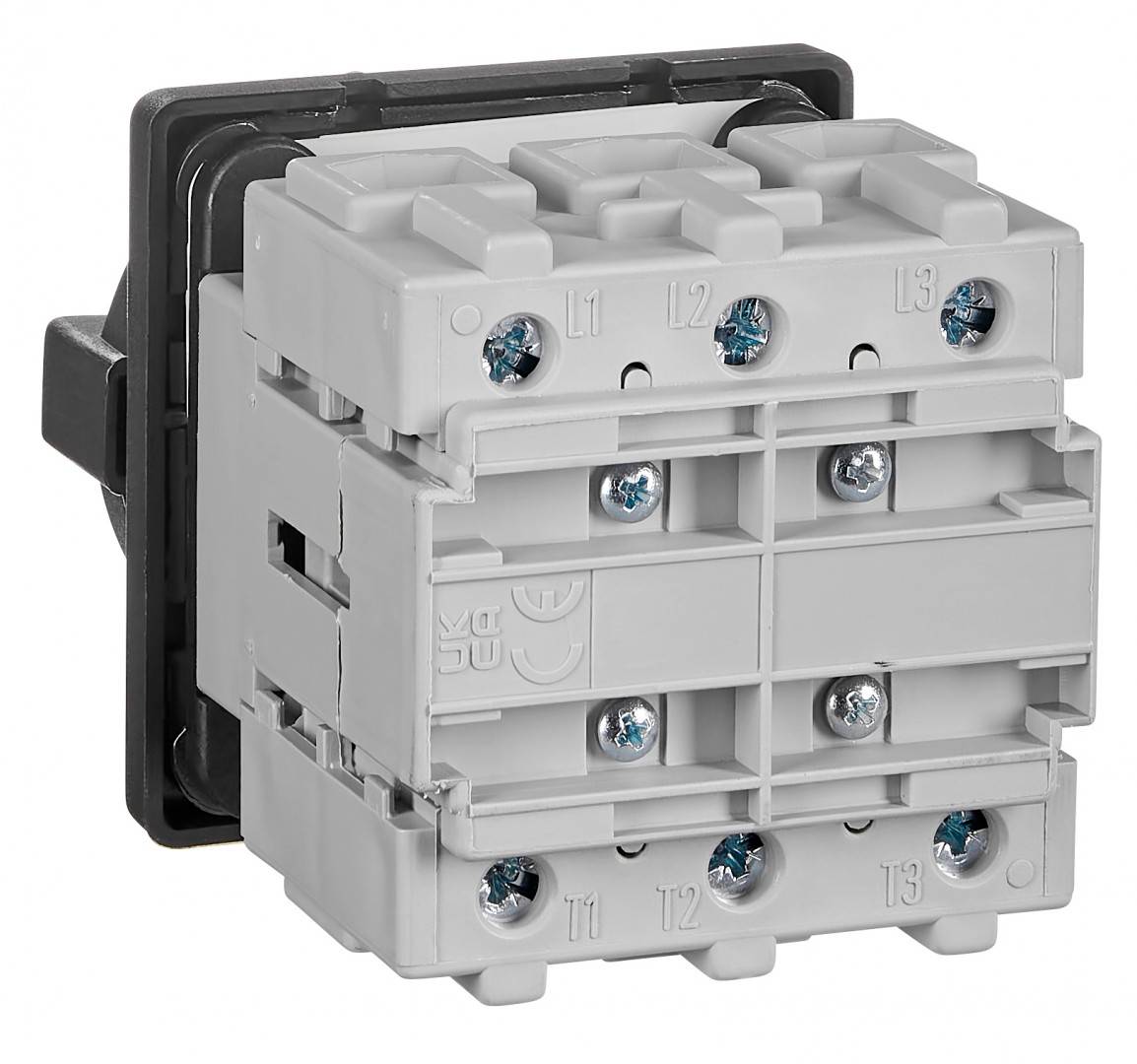

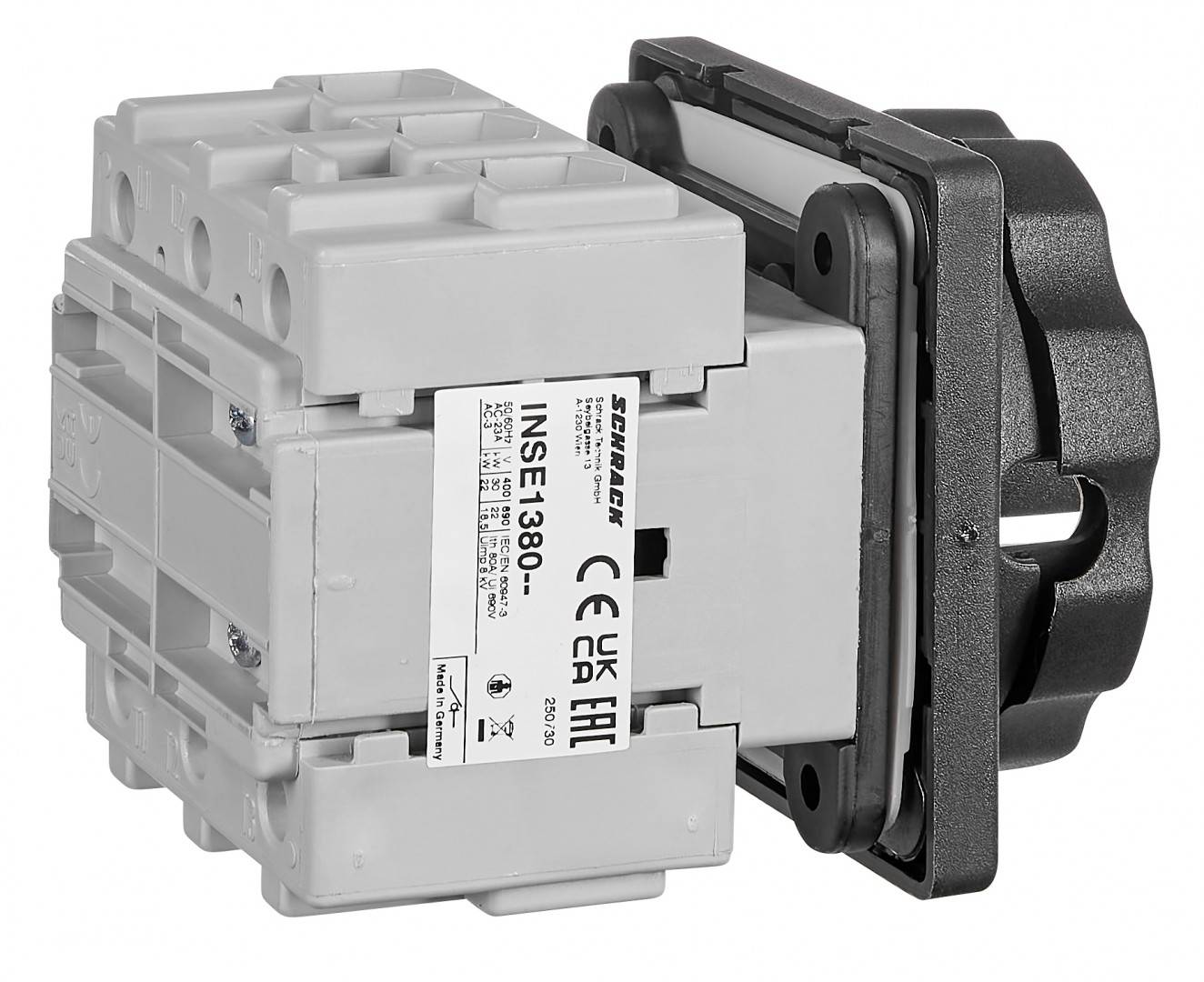

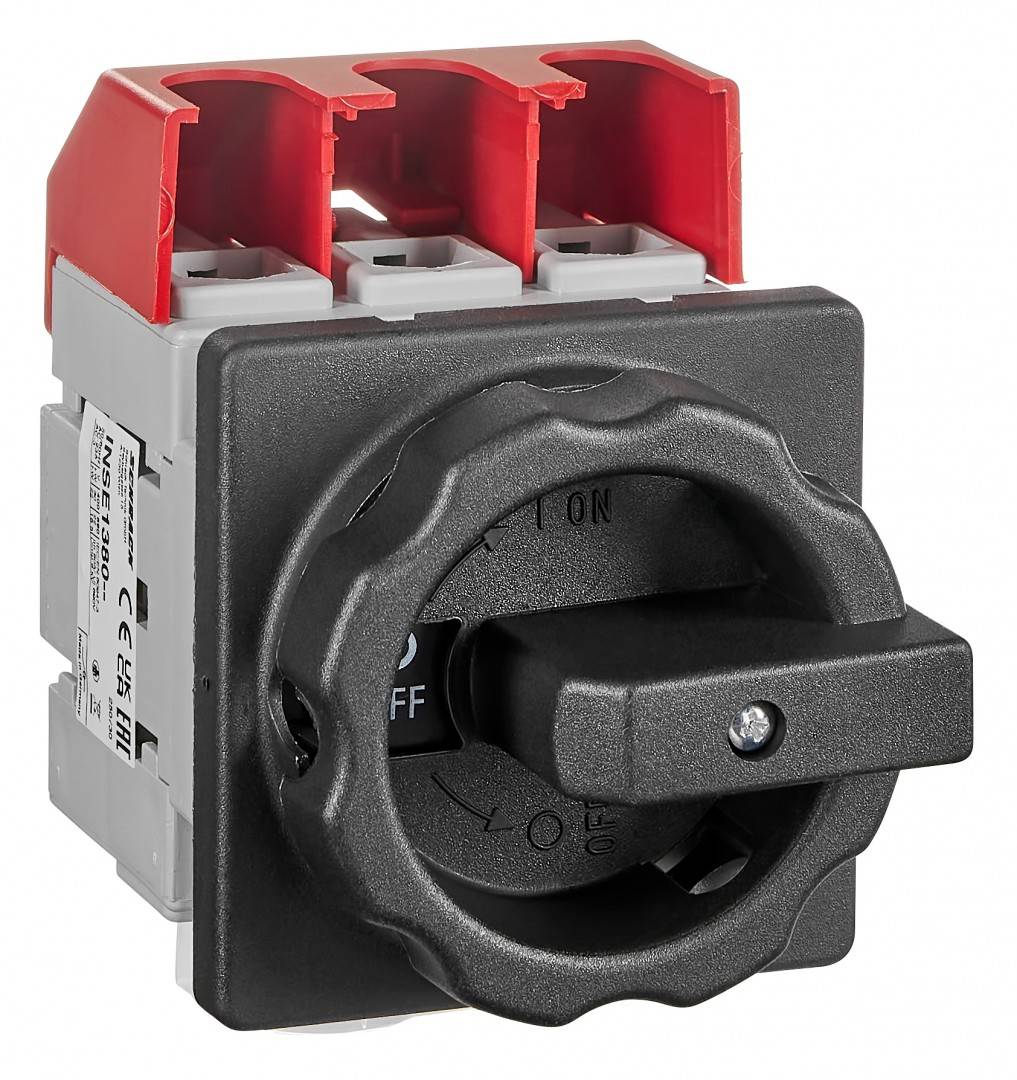

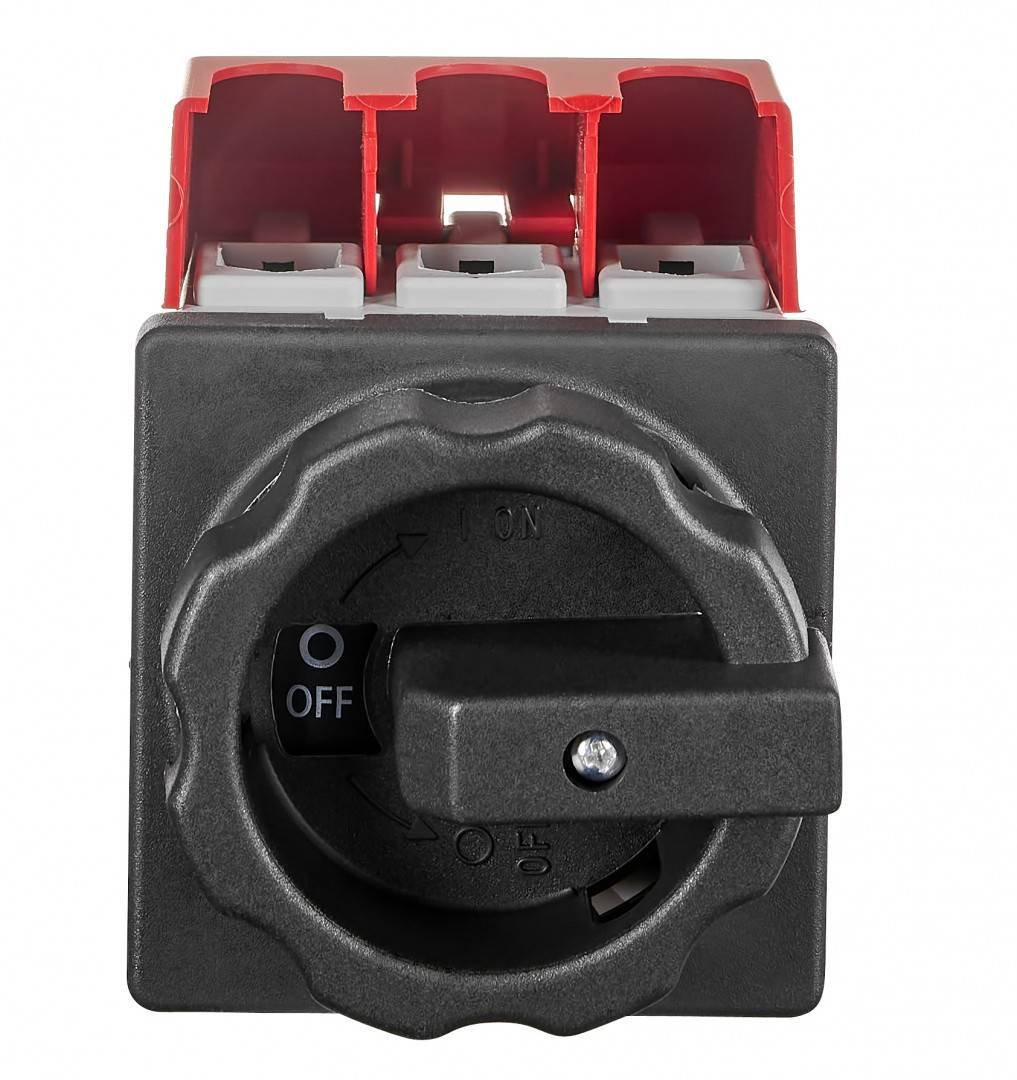

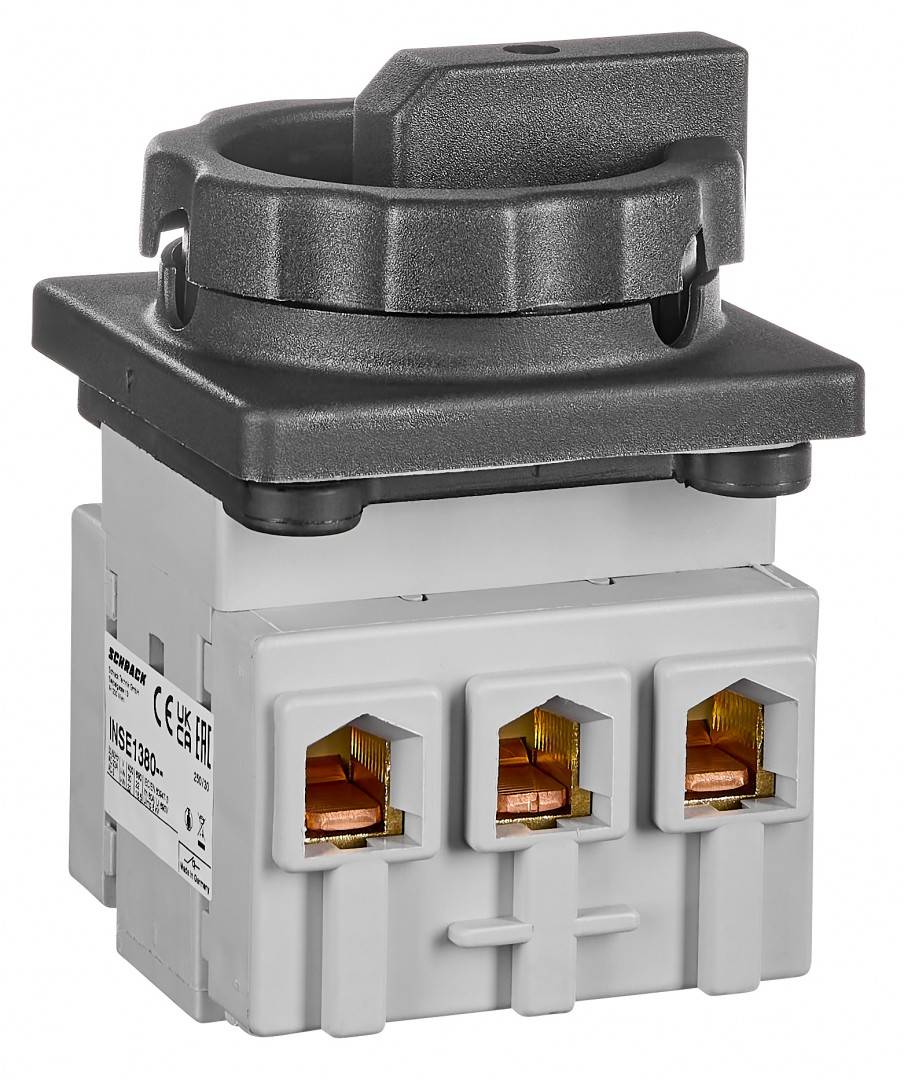

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-35 mm²
Montaj
front mount
Curent nominal
80 A
Frecventa
50/60 Hz
Active Power
3x240VAC - 15Hp;3x480VAC - 40Hp;3x600VAC - 50Hp;1x120VAC - 10Hp
Impuls de curent de scurtcircuit admisibil Icw
1000
COD COMANDA
INSE1380
Versiune
comutator principal
Curent termic conventional Ith
80 A
LxBxH mm
93x66x66
Thermal rated continuous current
80 A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK022--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK002-- can be used as normal. For further details, see Auxiliary contact and N contact overview
Standard
IEC 60947, EN 60947, VDE 0660
Accesorii optionale
INSHK002--; INSNK022--
Tinere la impuls de tensiune [Uimp]
6000 V
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
grad de protectie
IP65 (front), IP10 (output terminals), IP20 (supply terminals with terminal cover and Cable cross-section bigger than 6mm²)
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
disipare
5,50 W
Sectiune conexiune, monofilar
2,5-35 mm²
Curent operational
AC-21A - 690V - 80A;AC-23A - 400V - 43A;AC-23A - 690V - 22A;AC-3 - 400V - 43A;AC-3 - 690V - 22A
In conformitate cu UL 508 / CSA
##
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
Masa neta
0,29 kg/m
Cuplu de strangere
2,50 Nm
Fuzibil max. protectie la scurtcircuit
80
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Contacte auxiliare
Maximum 2x INSHK002-- permitted. 1x INSHK002-- can be snapped on to the left of the main contact and 1x INSHK002-- to the right of the main contact. Maximum configuration 2x NO contact / 2x NC contact. Switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right of the main contact.
Temperatura de functionare
-25°C to +55°C
Capacitate de comutare
AC-23A - 400V - 30kW;AC-23A - 690V - 22kW;AC-3 - 400V - 22kW;AC-3 - 690V - 18.5kW
PU
5
Power loss per pole
5,50 W
PREG
2200
Conexiune
##
| Lungime | 92.5 mm |
| Latime | 66.4 mm |
| Inaltime | 66.4 mm |
| Greutate | 0.29 kg |
