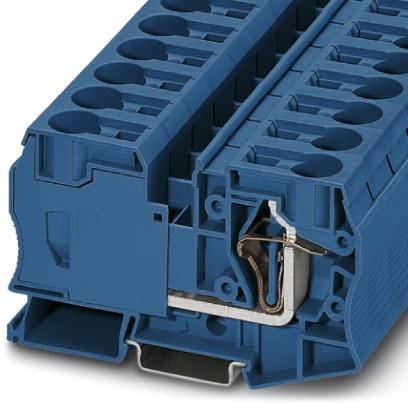

Clema sir trecere ST 35 BU
Cod produs: IP3036181-
Marca: SCHRACK TECHNIK
Pret cu TVA: 151.99 Lei / buc.
|
|
|
|
Comanda instant - Clema sir trecere ST 35 BU
|
Clema sir trecere ST 35 BU
|
|
Specificatii Tehnice COD COMANDA IP3036181 Sistem spring-cage-terminal Sectiune maxima, conductor solid 35 mm² PREG 1670 Temperatura maxima a mediului ambiant 120 °C Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP0827461-;IP0827464-;IP3005963-;IP0201744-;IP0201676-;IP3029994-;IP1206612- Sectiune minima, conductor flexibil 2,50 mm² HxBxT mm 100x16x59 Sectiune maxima, conductor flexibil 35 mm² Serie ST PU 10 Descriere de baza Clema Versiune clema trecere Descriere electrica CAD ${querschnitt} Masa neta 0,09 kg/m Sectiune minima, conductor solid 2,50 mm² LxIxA mm 16x100x59 Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Max. cross section, flexible wire with ferrule 35 mm² disipare 4,06 W Simbol CAD X Sectiune 35 mm² Unitate de ambalare 10 m. Min. cross section, flexible wire with ferrule 2,50 mm² Culoare Albastru | Lungime | 59 mm | | Latime | 16 mm | | Inaltime | 100 mm | | Greutate | 0.09 kg |
|
|
|
|
|
