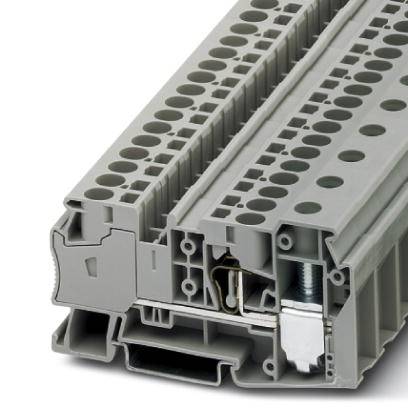

Clema sir hibrida arc/surub STU 35/ 4X10
Cod produs: IP3033126-
Marca: SCHRACK TECHNIK
Pret cu TVA: 138.98 Lei / buc.
|
|
|
|
Comanda instant - Clema sir hibrida arc/surub STU 35/ 4X10
|
Clema sir hibrida arc/surub STU 35/ 4X10
|
|
Specificatii Tehnice Sistem spring-cage-terminal Sectiune maxima, conductor flexibil 6 mm² PREG 1670 Sectiune minima, conductor solid 0,20 mm² Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP0827461-;IP0827464-;IP3030284-;IP1206612- Temperatura maxima a mediului ambiant 120 °C Unitate de ambalare 25 m. Culoare Gri COD COMANDA IP3033126 Versiune Hybrid terminal Sectiune minima, conductor flexibil 0,20 mm² LxIxA mm 16x86x47 Sectiune maxima, conductor solid 10 mm² HxBxT mm 86x16x47 Serie ST Descriere de baza Clema Masa neta 0,06 kg/m Descriere electrica CAD ${querschnitt} Sectiune 6 mm² Max. cross section, flexible wire with ferrule 6 mm² PU 25 Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Min. cross section, flexible wire with ferrule 0,25 mm² disipare 4,06 W Simbol CAD X | Lungime | 46.8 mm | | Latime | 16.2 mm | | Inaltime | 86 mm | | Greutate | 0.06 kg |
|
|
|
|
|
