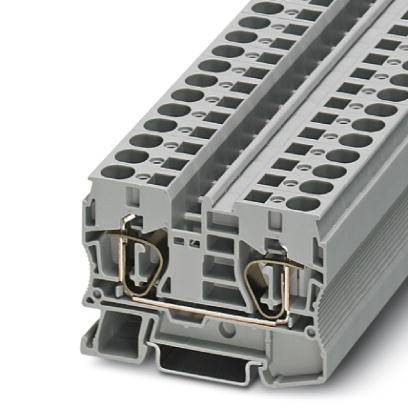

Clema sir trecere ST 10
Cod produs: IP3036110-
Marca: SCHRACK TECHNIK
Pret cu TVA: 6.58 Lei / buc.
|
|
|
|
Comanda instant - Clema sir trecere ST 10
|
Clema sir trecere ST 10
|
|
Specificatii Tehnice PU 50 Sistem spring-cage-terminal Masa neta 0,03 kg/m PREG 1670 Sectiune minima, conductor solid 0,20 mm² Temperatura maxima a mediului ambiant 120 °C Sectiune maxima, conductor solid 16 mm² Max. cross section, flexible wire with ferrule 10 mm² Sectiune 10 mm² Culoare Gri LxIxA mm 10x72x50 Sectiune minima, conductor flexibil 0,20 mm² Unitate de ambalare 1 m. Serie ST Descriere de baza Clema Versiune clema trecere Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP1053001-;IP10530141;IP10530142;IP10530143;IP10530144;IP10530145;IP10530146;IP10530147;IP10530148;IP10530149;IP1053014H;IP0809997-;IP08100091;IP08100092;IP08100093;IP08100094;IP08100095;IP08100096;IP08100097;IP08100098;IP08100099;IP0810009H;IP3036644-;IP3005947-;IP0201744-;IP0201676-;IP1206612- disipare 1,82 W Descriere electrica CAD ${querschnitt} HxBxT mm 72x10x50 Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Curent nominal 57 A COD COMANDA IP3036110 Min. cross section, flexible wire with ferrule 0,25 mm² Simbol CAD X Sectiune maxima, conductor flexibil 10 mm² Accesorii Feed-through terminal | Lungime | 50.3 mm | | Latime | 10.2 mm | | Inaltime | 71.5 mm | | Greutate | 0.03 kg |
|
|
|
|
|
