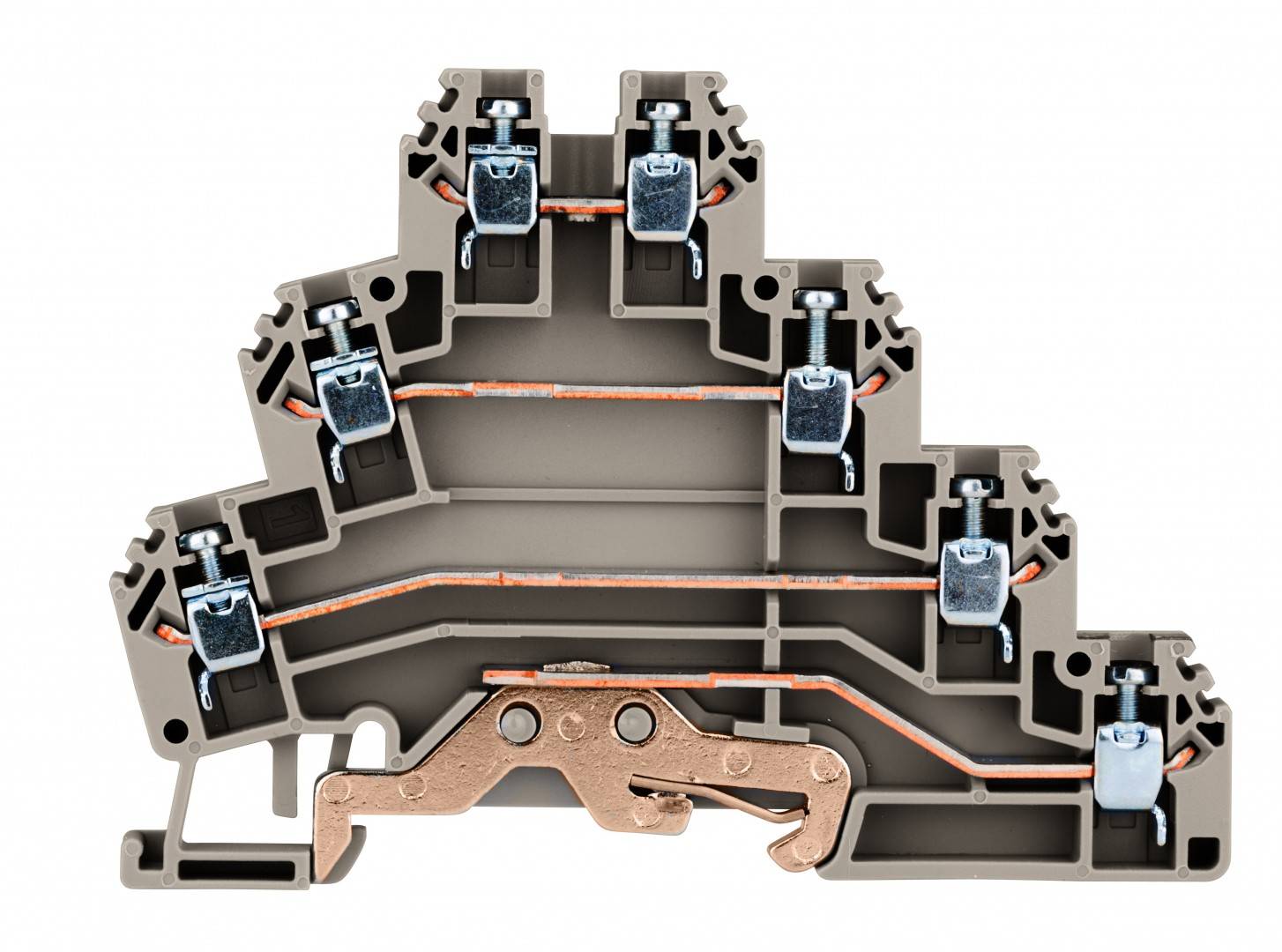

Clema etajata pt. instalatii, gri, PUK 3T, 3P+PE, 2,5mm²
Cod produs: IK680003--
Marca: SCHRACK TECHNIK
Pret cu TVA: 36.81 Lei / buc.
|
|
|
|
Comanda instant - Clema etajata pt. instalatii, gri, PUK 3T, 3P+PE, 2,5mm²
|
Clema etajata pt. instalatii, gri, PUK 3T, 3P+PE, 2,5mm²
|
|
Specificatii Tehnice Sectiune maxima, conductor solid 4 mm² Sistem cleme cu surub Masa neta 0,03 kg/m PREG 1660 disipare 1,74 W Versiune clema cu 3 etaje Accesorii optionale IK697950--;IK680203--;IK680522--;IK680529--;IK600900--;IK623000--;IK623001--;IK623002--;IK900998-- PU 20 LxIxA mm 6x87x65 Culoare Gri Sectiune minima, conductor solid 0,50 mm² Conductor multifilar sertizat cu bucsa pana la 2,5mm² mm² Sectiune minima, conductor flexibil 0,50 mm² Sectiune maxima, conductor flexibil 4 mm² COD COMANDA IK680003 PROMO CODE GER INDUSTRY 2549-00002-25 Unitate de ambalare 1 m. Descriere de baza Clema Descriere electrica CAD ${querschnitt} Sectiune 2.5 mm² Numar articol Hlief IK680003-- PROMO CODE CH 2549-0005-39 Max. cross section, flexible wire with ferrule 2,50 mm² Simbol CAD X Min. cross section, flexible wire with ferrule 0,50 mm² COD PROMO 2549-0003-14 HxBxT mm 87x6x65 | Lungime | 65 mm | | Latime | 6 mm | | Inaltime | 87 mm | | Greutate | 0.03 kg |
|
|
|
|
|
