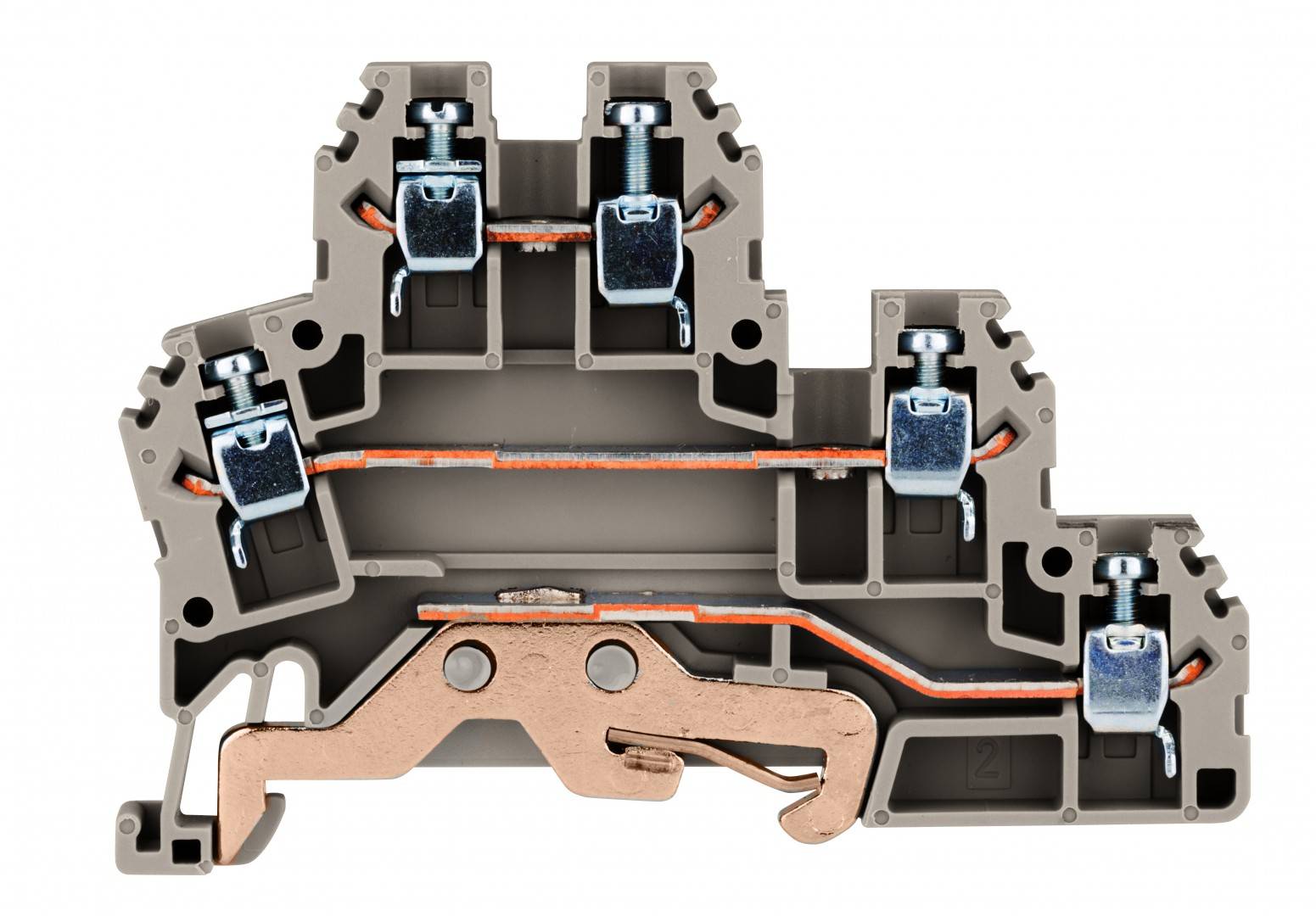

Clema etajata pt. instalatii, gri, PUK 2T, L/L/PE, 2,5mm²
Cod produs: IK680004--
Marca: SCHRACK TECHNIK
Pret cu TVA: 25.26 Lei / buc.
|
|
|
|
Comanda instant - Clema etajata pt. instalatii, gri, PUK 2T, L/L/PE, 2,5mm²
|
Clema etajata pt. instalatii, gri, PUK 2T, L/L/PE, 2,5mm²
|
|
Specificatii Tehnice Masa neta 0,02 kg/m Sectiune maxima, conductor solid 4 mm² Sistem cleme cu surub PREG 1660 HxBxT mm 72x6x51 Versiune clema cu 3 etaje PROMO CODE CH 6532-0004-74 PU 20 LxIxA mm 6x72x51 Culoare Gri Sectiune minima, conductor solid 0,50 mm² disipare 1,28 W Conductor multifilar sertizat cu bucsa pana la 2,5mm² mm² Sectiune minima, conductor flexibil 0,50 mm² Sectiune maxima, conductor flexibil 4 mm² Unitate de ambalare 1 m. Accesorii optionale IK697950--;IK680202--;IK680522--;IK680529--;IK600900--;IK623000--;IK623001--;IK623002--;IK900998-- Descriere de baza Clema PROMO CODE GER INDUSTRY 6532-00001-98 Descriere electrica CAD ${querschnitt} Sectiune 2.5 mm² COD COMANDA IK680004 Max. cross section, flexible wire with ferrule 2,50 mm² Numar articol Hlief IK680004-- Simbol CAD X Min. cross section, flexible wire with ferrule 0,50 mm² COD PROMO 6532-0002-75 | Lungime | 51 mm | | Latime | 6 mm | | Inaltime | 72 mm | | Greutate | 0.02 kg |
|
|
|
|
|
