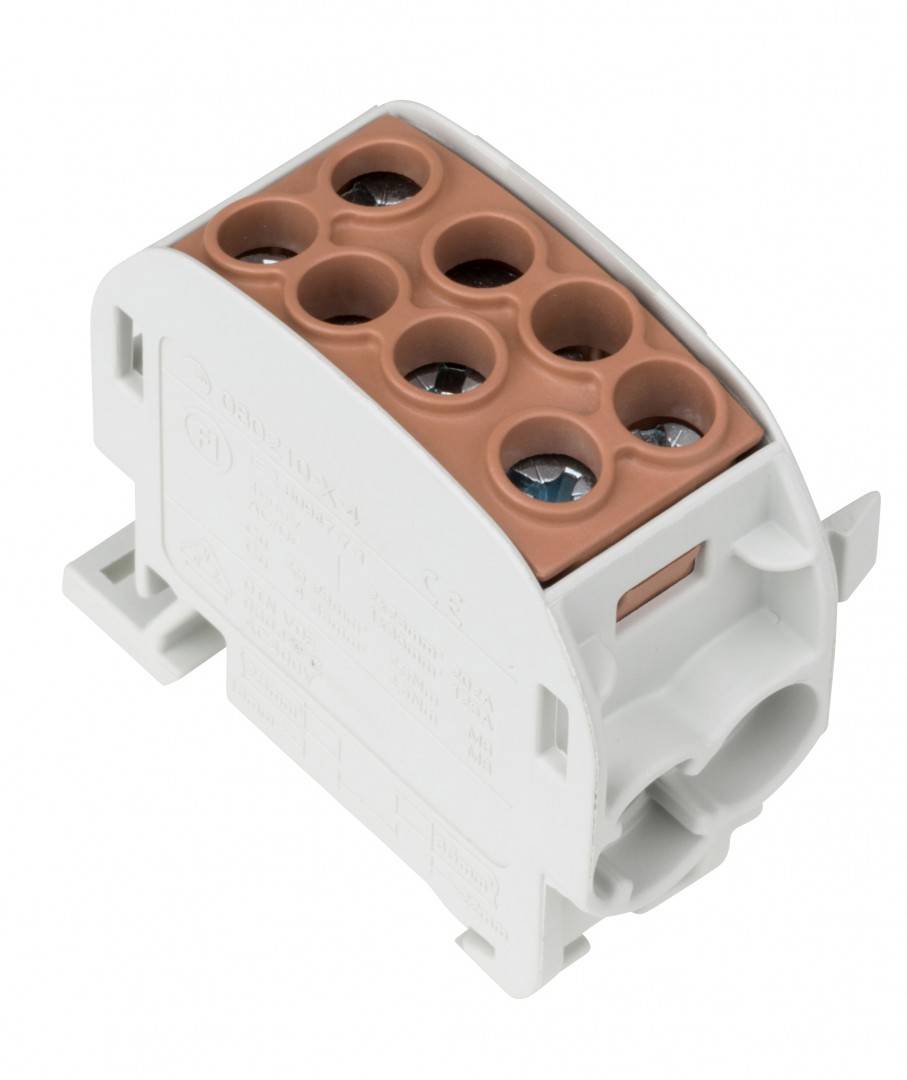

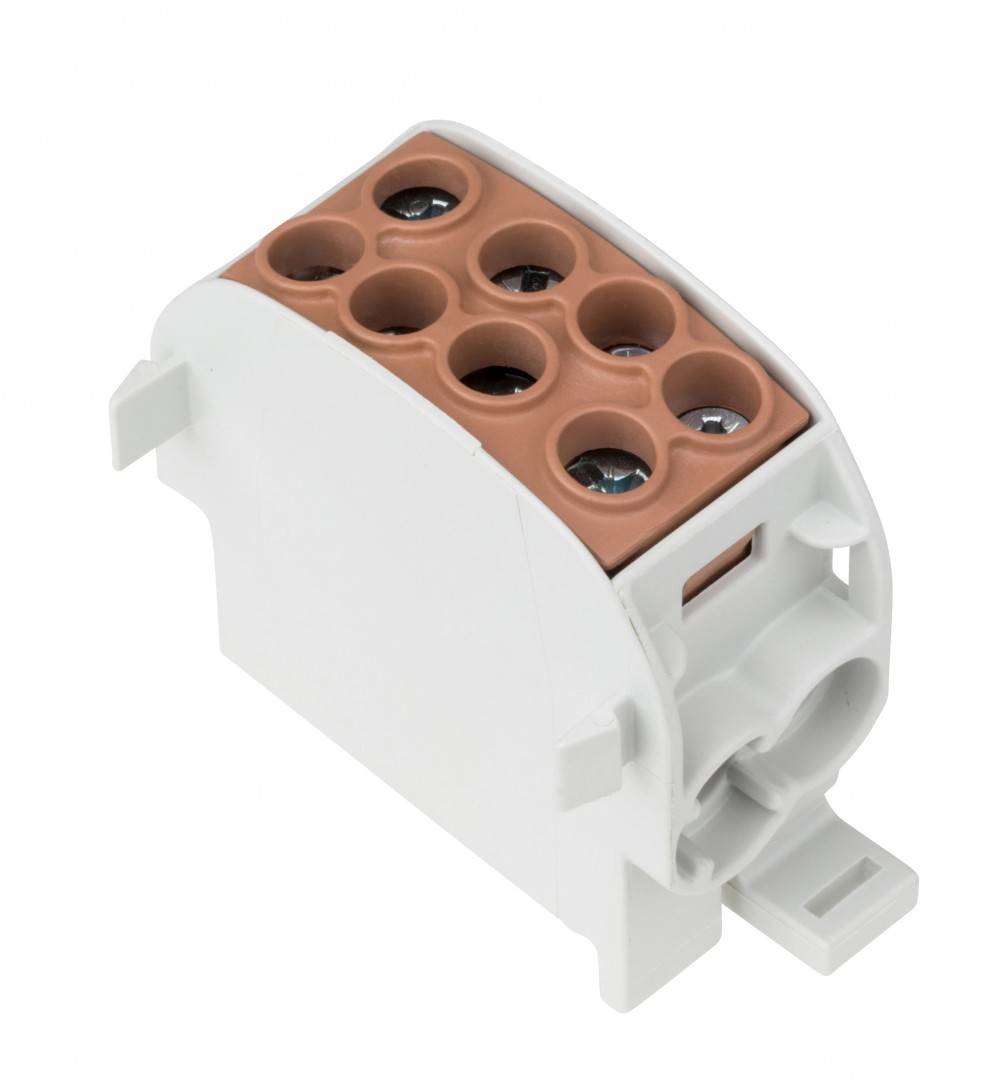

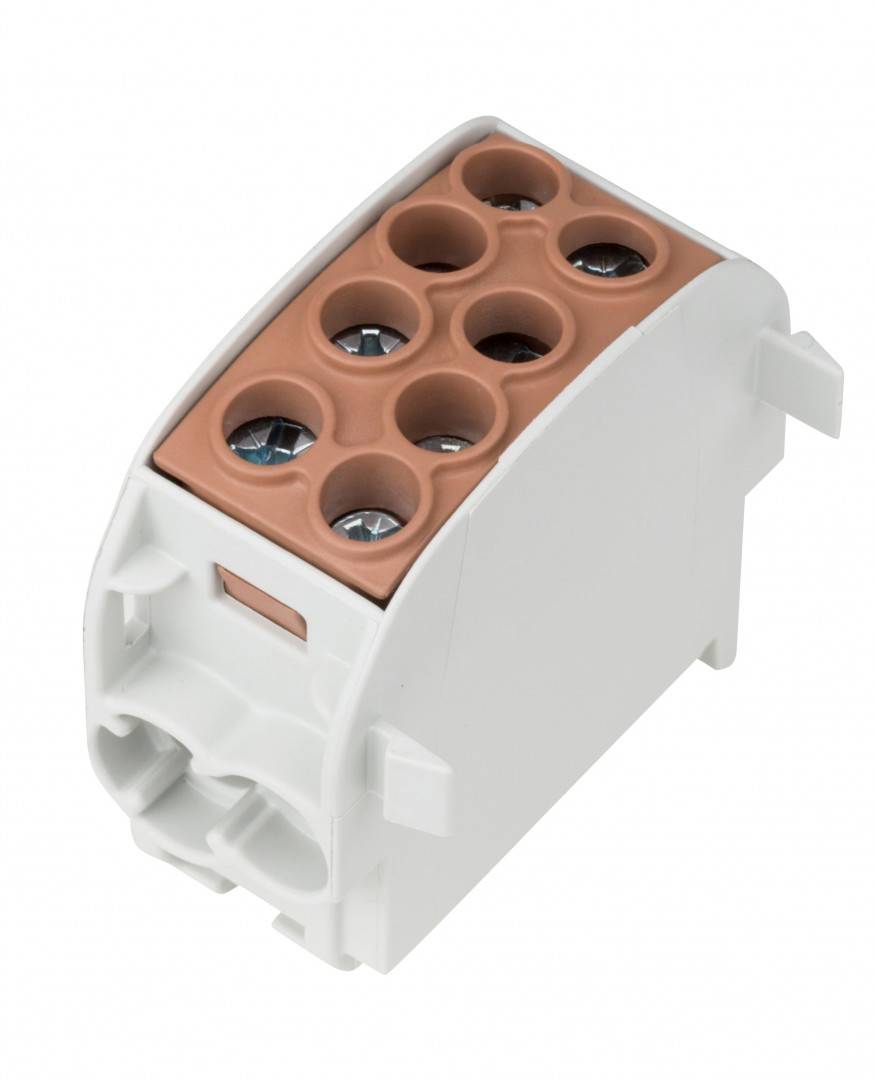

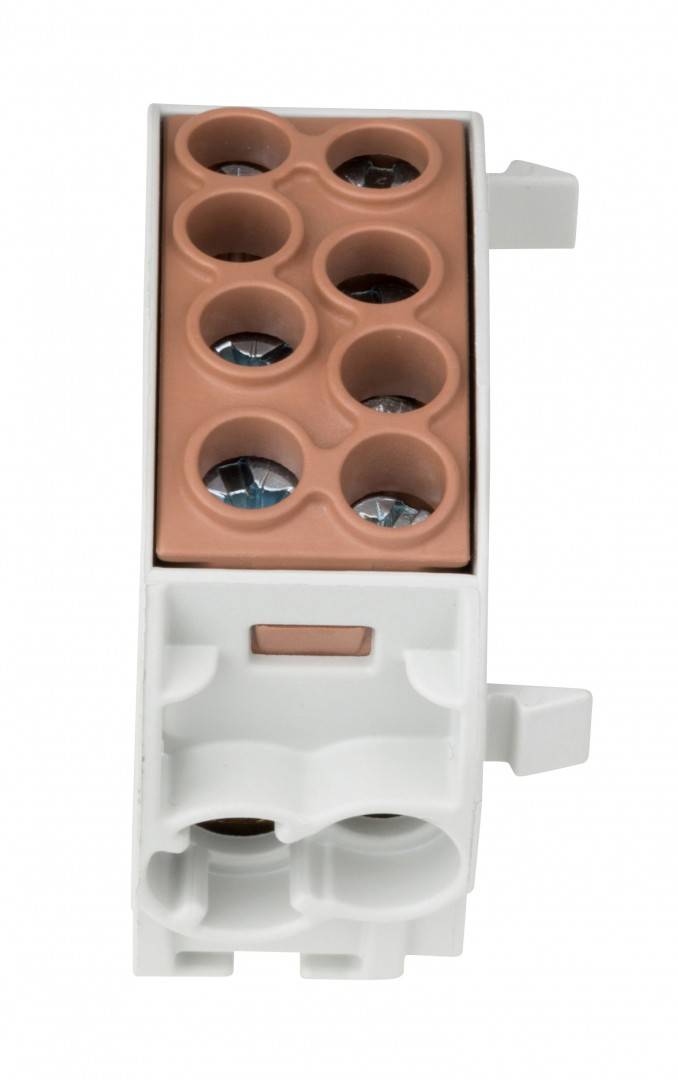

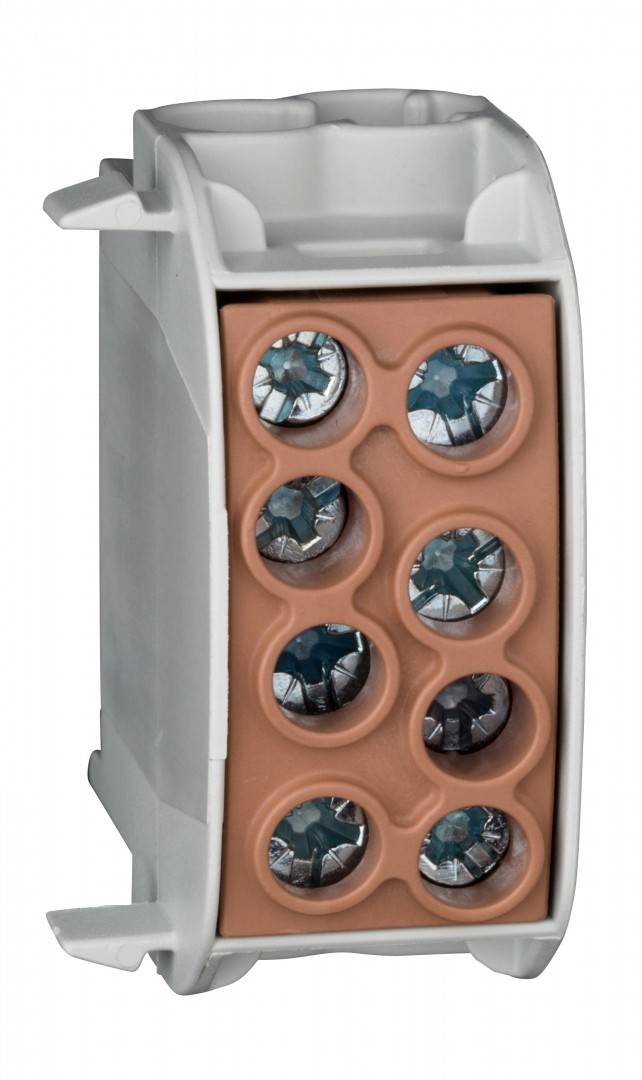

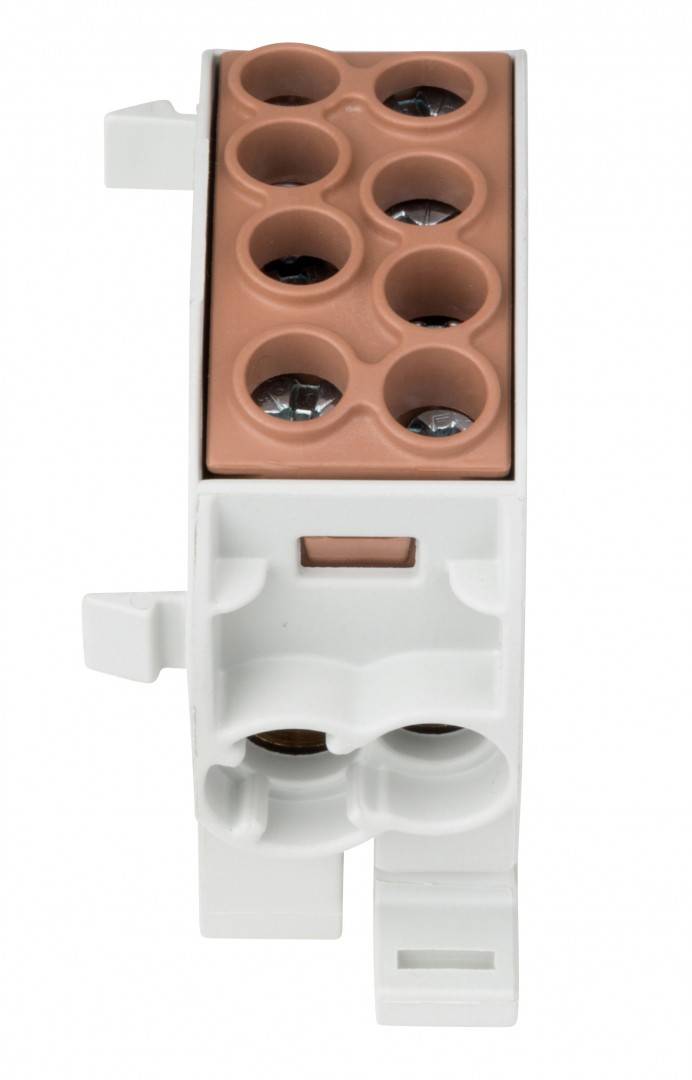

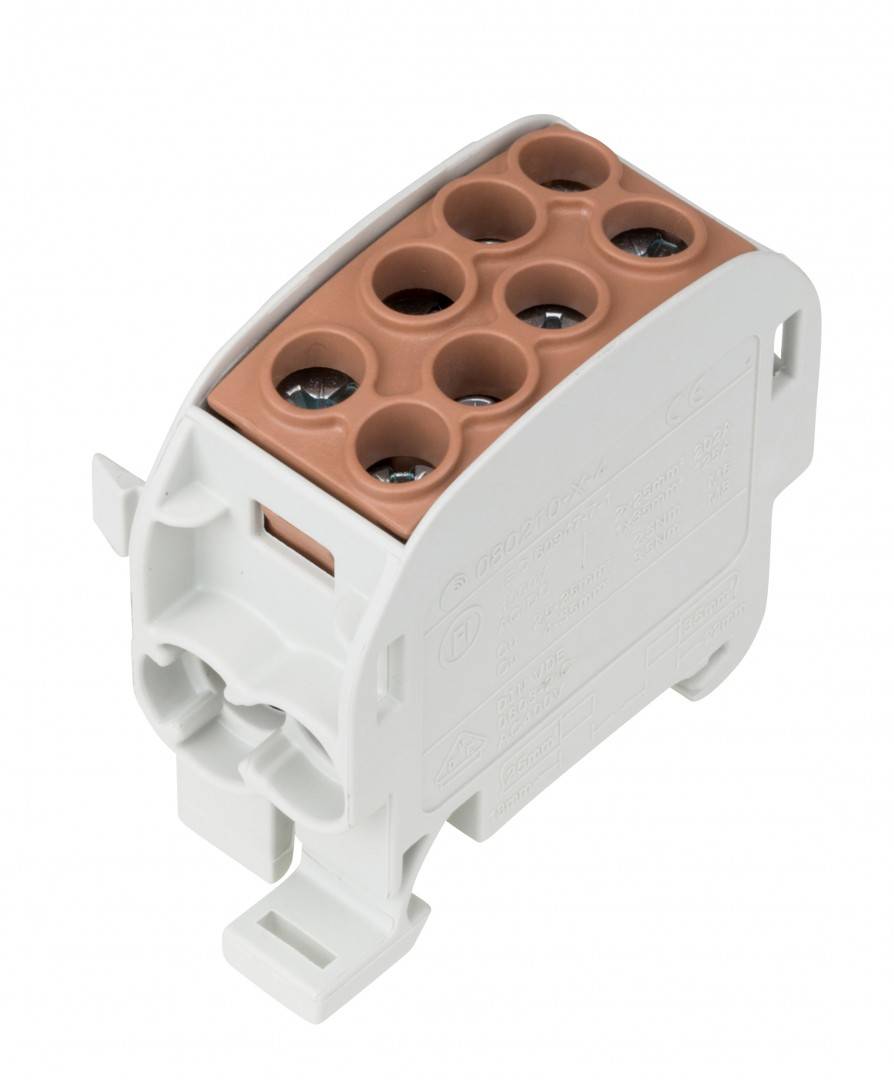

Clema derivatie, 35mm², 1p., maro
Cod produs: IK026240--
Marca: SCHRACK TECHNIK
Pret cu TVA: 24.22 Lei / buc.
|
|
|
|
|
|
Comanda instant - Clema derivatie, 35mm², 1p., maro
|
Clema derivatie, 35mm², 1p., maro
|
|
Specificatii Tehnice Cleme de derivatie 35mmp 1p. 2 deriv. Poli 1pol Descriere electrica CAD ${pole}/${zugänge} PROMO CODE CH 4539-0004-86 Temperatura maxima a mediului ambiant 70 °C Terminal element Brass (CuZn39Pb2) Cleme de derivatie 25mmp 1p. 2 deriv. Unitate de ambalare 1 m. Cablu alimentare max.35mm² Descriere de baza Clema Versiune Executive branch terminal (isolated) Fabricant Schrack PREG 1620 Temperatura minima a mediului ambiant -35 °C disipare 2,10 W Masa neta 0,07 kg/m Culoare Maro COD COMANDA IK026240 Reactia la foc Self-extinguishing COD PROMO 4539-0002-96 Material de conexiune cupru Tensiune nominala 1000VAC/VDC Standard produs IEC60947-7-1 Carcasa PA 6 (halogen-free) Current carrying capacity 202A (2x25mm²); 125A (1x35mm²) A PU 5 Simbol CAD X LxBxH mm 55x29x49 Dimensiuni 1 polig: 29mm x 49,3mm x 55,4mm mm Screws Steel, Zn thick-film passivated | Lungime | 55.4 mm | | Latime | 29 mm | | Inaltime | 49.3 mm | | Greutate | 0.07 kg |
|
|
|
|
|
