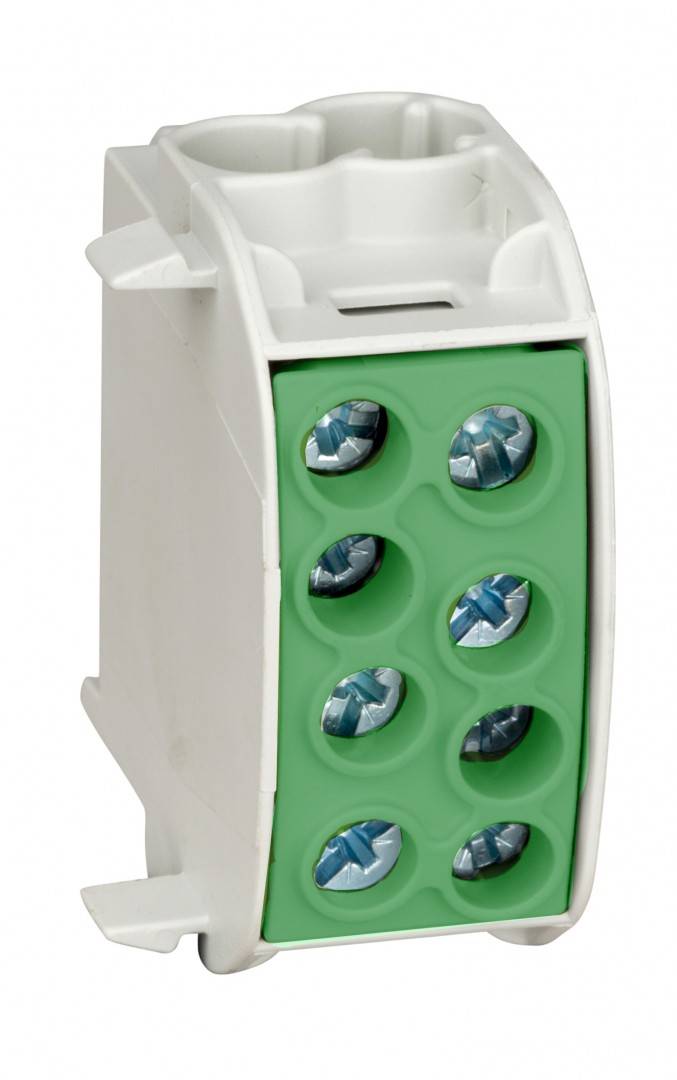

Clema derivatie, 35mm², 1p., galben/verde
Cod produs: IK026230--
Marca: SCHRACK TECHNIK
Pret cu TVA: 24.22 Lei / buc.
|
|
|
|
Comanda instant - Clema derivatie, 35mm², 1p., galben/verde
|
Clema derivatie, 35mm², 1p., galben/verde
|
|
Specificatii Tehnice LxIxA mm 29x56x49 COD COMANDA IK026230 Poli 1pol COD PROMO 2035-0002-96 Descriere electrica CAD ${pole}/${zugänge} Culoare Verde Temperatura maxima a mediului ambiant 70 °C HxBxT mm 56x29x49 Terminal element Brass (CuZn39Pb2) Cleme de derivatie 25mmp 1p. 2 deriv. PROMO CODE CH 2035-0004-86 Unitate de ambalare 1 m. Cablu alimentare max.35mm² Descriere de baza Clema Versiune Executive branch terminal (isolated) Fabricant Schrack PREG 1620 Temperatura minima a mediului ambiant -35 °C disipare 2,10 W Masa neta 0,09 kg/m Reactia la foc Self-extinguishing Material de conexiune cupru Tensiune nominala 1000VAC/VDC Standard produs IEC60947-7-1 Carcasa PA 6 (halogen-free) Current carrying capacity 202A (2x25mm²); 125A (1x35mm²) A PU 5 Simbol CAD X Dimensiuni 1 polig: 29mm x 49,3mm x 55,4mm mm Screws Steel, Zn thick-film passivated | Lungime | 49.3 mm | | Latime | 29.3 mm | | Inaltime | 55.7 mm | | Greutate | 0.09 kg |
|
|
|
|
|
