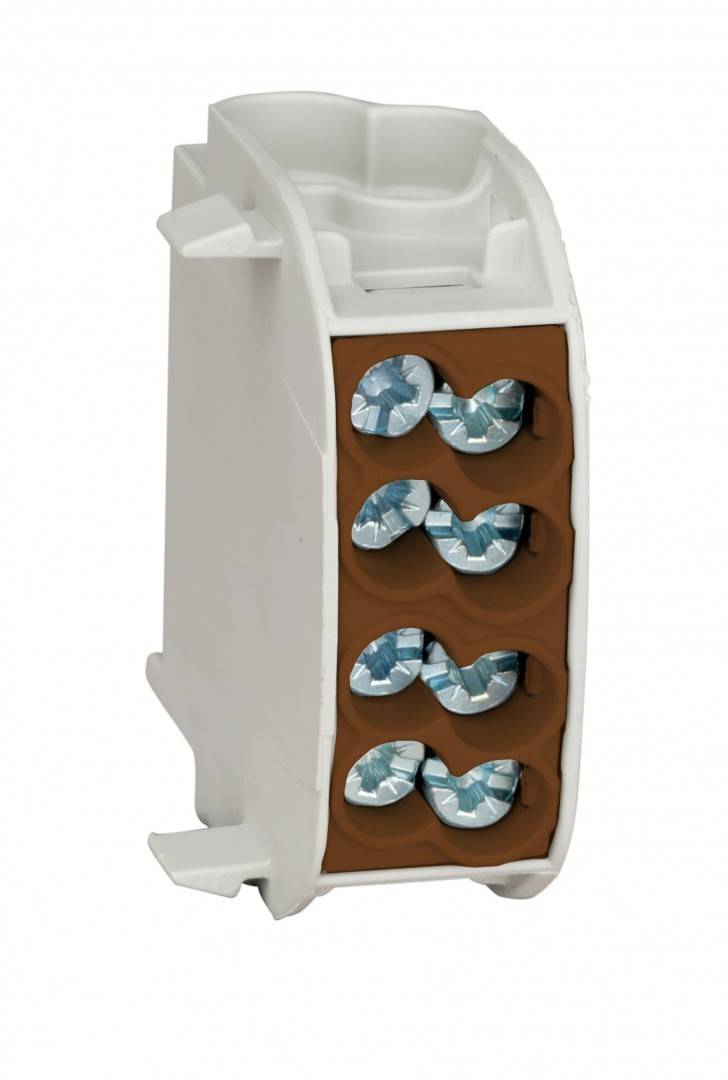

Clema derivatie, 25mm², 1p., maro
Cod produs: IK026140--
Marca: SCHRACK TECHNIK
Pret cu TVA: 14.94 Lei / buc.
|
|
|
|
Comanda instant - Clema derivatie, 25mm², 1p., maro
|
Clema derivatie, 25mm², 1p., maro
|
|
Specificatii Tehnice Poli 1pol Descriere electrica CAD ${pole}/${zugänge} Temperatura maxima a mediului ambiant 70 °C Terminal element Brass (CuZn39Pb2) Cleme de derivatie 25mmp 1p. 2 deriv. Cleme de derivatie 16mmp 1p. 2 deriv. COD COMANDA IK026140 Unitate de ambalare 1 m. Descriere de baza Clema Cablu alimentare max.25mm² Versiune Executive branch terminal (isolated) Fabricant Schrack COD PROMO 4515-0001-81 PREG 1620 LxBxH mm 56x25x49 Temperatura minima a mediului ambiant -35 °C disipare 2,10 W PROMO CODE CH 4515-0002-99 Dimensiuni 1 polig: 24,8mm x 49,3mm x 55,7mm mm Masa neta 0,07 kg/m Culoare Maro Current carrying capacity 152A(2x16mm²); 101A (1x25mm²) A Reactia la foc Self-extinguishing Material de conexiune cupru Tensiune nominala 1000VAC/VDC Standard produs IEC60947-7-1 Carcasa PA 6 (halogen-free) PU 5 Simbol CAD X Screws Steel, Zn thick-film passivated | Lungime | 55.7 mm | | Latime | 24.8 mm | | Inaltime | 49.3 mm | | Greutate | 0.07 kg |
|
|
|
|
|
