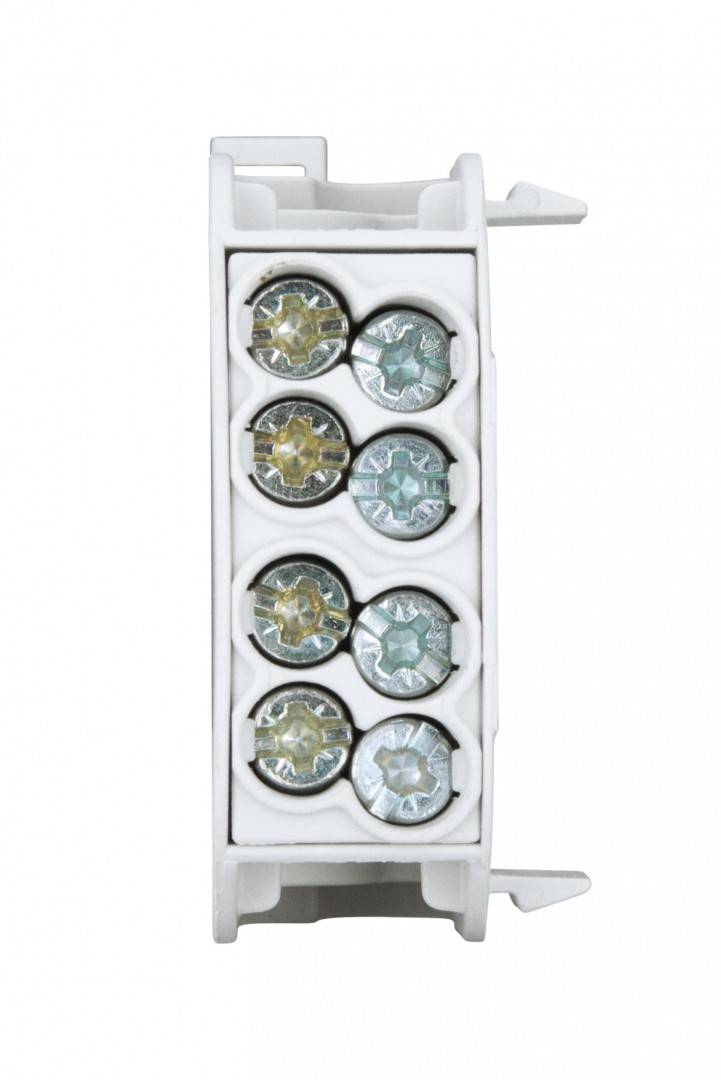

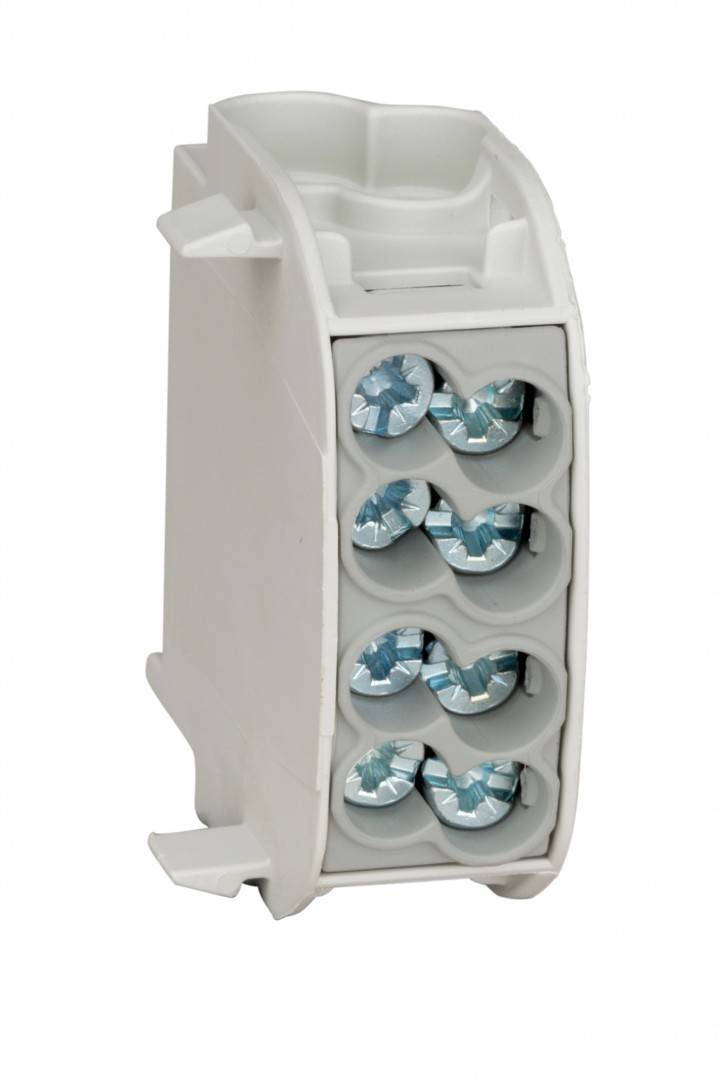

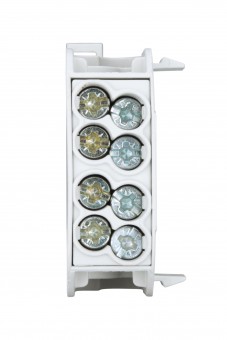

Clema derivatie, 25mm², 1p., gri
Cod produs: IK026110--
Marca: SCHRACK TECHNIK
Pret cu TVA: 14.94 Lei / buc.
|
|
|
|
|
|
Comanda instant - Clema derivatie, 25mm², 1p., gri
|
Clema derivatie, 25mm², 1p., gri
|
|
Specificatii Tehnice COD COMANDA IK026110 PROMO CODE CH 1984-0002-99 Poli 1pol LxIxA mm 25x56x49 HxBxT mm 56x25x49 COD PROMO 1984-0001-81 Descriere electrica CAD ${pole}/${zugänge} Temperatura maxima a mediului ambiant 70 °C Culoare Gri Terminal element Brass (CuZn39Pb2) Cleme de derivatie 25mmp 1p. 2 deriv. Cleme de derivatie 16mmp 1p. 2 deriv. Unitate de ambalare 1 m. DESCRIERE2 CU Hauptleitungsabzweigklemme 25mm² - 1p, isoliert, grau Descriere de baza Clema Cablu alimentare max.25mm² Versiune Executive branch terminal (isolated) Fabricant Schrack PREG 1620 Temperatura minima a mediului ambiant -35 °C disipare 2,10 W Dimensiuni 1 polig: 24,8mm x 49,3mm x 55,7mm mm Masa neta 0,07 kg/m Current carrying capacity 152A(2x16mm²); 101A (1x25mm²) A Reactia la foc Self-extinguishing Material de conexiune cupru Tensiune nominala 1000VAC/VDC Standard produs IEC60947-7-1 Carcasa PA 6 (halogen-free) PU 5 Simbol CAD X Screws Steel, Zn thick-film passivated | Lungime | 49.3 mm | | Latime | 24.9 mm | | Inaltime | 55.7 mm | | Greutate | 0.07 kg |
|
|
|
|
|
