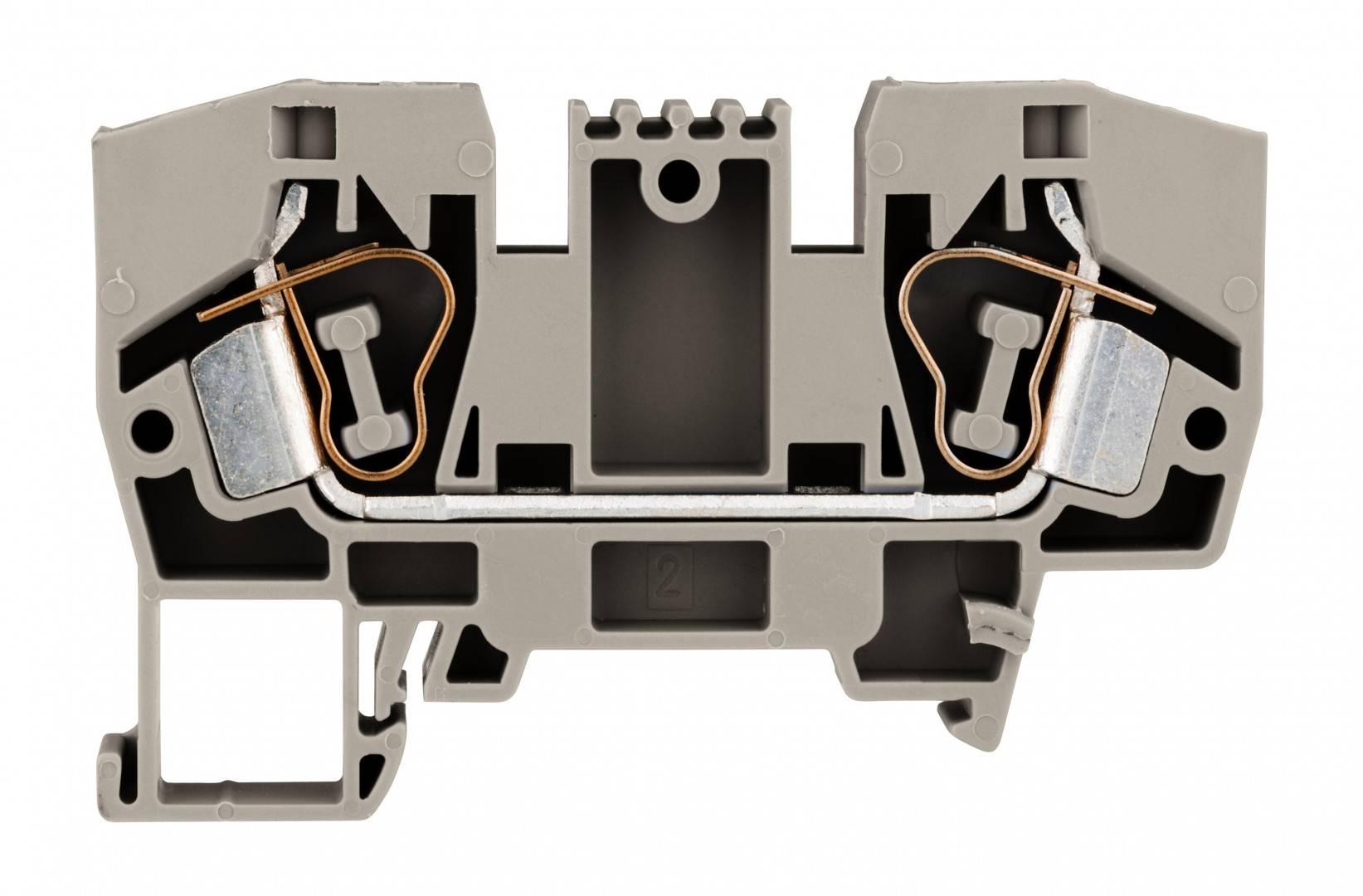

Clema de faza, conex. elastica, YBK 10, gri, 0,5-10 mm²
Cod produs: IK610010--
Marca: SCHRACK TECHNIK
Pret cu TVA: 6.59 Lei / buc.
|
|
|
|
Comanda instant - Clema de faza, conex. elastica, YBK 10, gri, 0,5-10 mm²
|
Clema de faza, conex. elastica, YBK 10, gri, 0,5-10 mm²
|
|
Specificatii Tehnice Masa neta 0,02 kg/m PU 50 LxIxA mm 10x70x42 PREG 1660 Accesorii optionale IK697970--;IK610210--;IK623000--;IK623001--;IK623002--;IK600998-- Sistem cleme sir elastice Sectiune maxima, conductor solid 16 mm² Max. cross section, flexible wire with ferrule 10 mm² Numar articol Hlief 0.0.0.3.06259 Conductor multifilar sertizat cu bucsa pana la 10mm² mm² Sectiune 10 mm² Culoare Gri Sectiune minima, conductor solid 0,50 mm² COD COMANDA IK610010 COD PROMO 5549-0000-84 Sectiune minima, conductor flexibil 0,50 mm² HxBxT mm 70x10x42 disipare 0,74 W Unitate de ambalare 1 m. PROMO CODE CH 5549-0001-56 PROMO CODE GER INDUSTRY 5549-00000-60 Descriere de baza Clema Versiune clema trecere Descriere electrica CAD ${querschnitt} Simbol CAD X Sectiune maxima, conductor flexibil 10 mm² Min. cross section, flexible wire with ferrule 0,50 mm² | Lungime | 42 mm | | Latime | 10 mm | | Inaltime | 70 mm | | Greutate | 0.02 kg |
|
|
|
|
|
