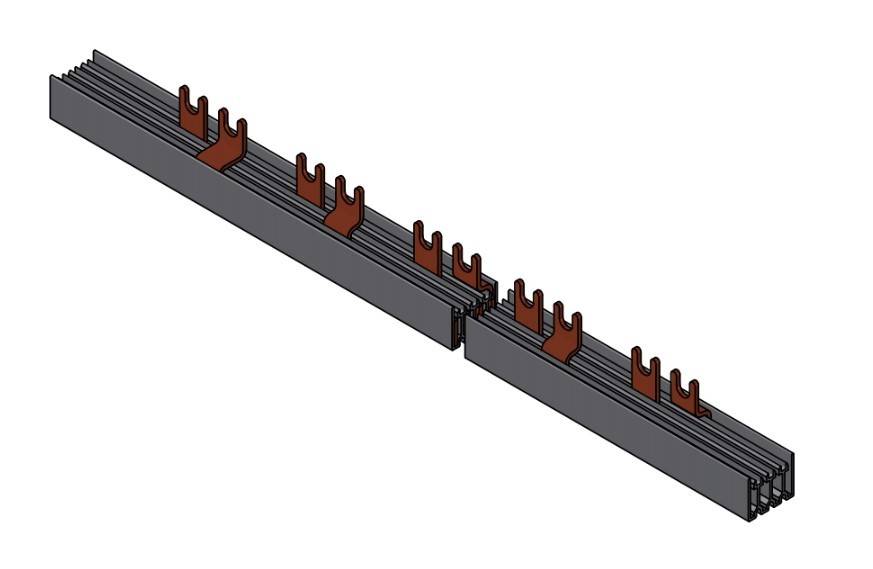

Bareta furca 4P L1-N/L2-N/L3-N 16mm? pt.AFDD, 1m
Cod produs: BSB90128--
Marca: SCHRACK TECHNIK
Pret cu TVA: 416.74 Lei / buc.
|
|
|
|
Comanda instant - Bareta furca 4P L1-N/L2-N/L3-N 16mm? pt.AFDD, 1m
|
Bareta furca 4P L1-N/L2-N/L3-N 16mm? pt.AFDD, 1m
|
|
Specificatii Tehnice Masa neta 0,71 kg/m Max. current middle 130A PREG 1300 Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 Serie BC,BM,BO and Amparo Aplicatie AFDD Accesorii optionale BSB00303--;BSA90118-- Masa cupru 1592,0000 gr. Tensiune nominala de izolatie (Ui) ≤415V V Poli 4 Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 Descriere de baza Bare grad de protectie IP20 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG disipare 21,40 W Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP COD COMANDA BSB90128 Min. air disdance ≤3,0mm Unitate de ambalare 1 m. Min. creepage distance ≤5,0mm Standard produs EN 61439-1 Max. current beginning 80A Fabricant Schrack Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 Accesorii necesare BSA00118-- Versiune cu furca PU 7 Descriere electrica CAD 4/16mm² Sectiune 16 mm² LxTxH mm 1016x20x31 Curent nominal de scurtcircuit conditionat ≤50kA | Lungime | 20 mm | | Inaltime | 31 mm | | Greutate | 0.71 kg |
|
|
|
|
|
