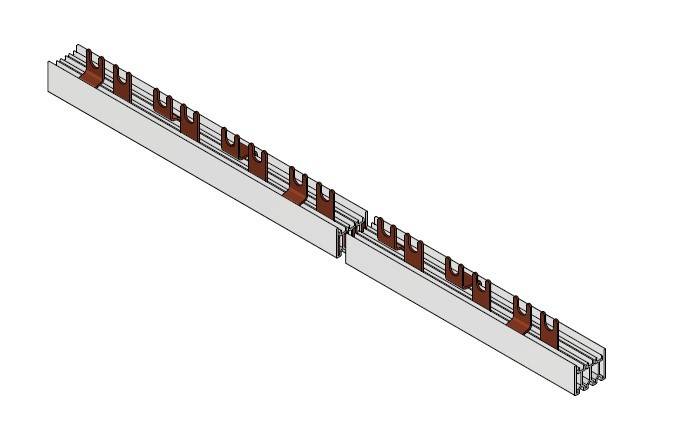

Bareta furca 4P 1N/AUX,2N/AUX,3N/AUX 10mmp, 17.8mm, 1m
Cod produs: BSB00126--
Marca: SCHRACK TECHNIK
Pret cu TVA: 270.69 Lei / buc.
|
|
|
|
Comanda instant - Bareta furca 4P 1N/AUX,2N/AUX,3N/AUX 10mmp, 17.8mm, 1m
|
Bareta furca 4P 1N/AUX,2N/AUX,3N/AUX 10mmp, 17.8mm, 1m
|
|
Specificatii Tehnice Accesorii necesare BSA90118-- Max. current middle 100A Accesorii bara furca pt.sigurante automate Min. air disdance ≥3,0mm PREG 1300 Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 LxTxH mm 1016x23x29 Serie BC,BM,BO and Amparo Aplicatie siguranta automata, siguranta diferentiala, siguranta protecte linii (pas polar 17.8mm) Poli 4 Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 grad de protectie IP20 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Sectiune 10 mm² Masa cupru 731,0000 gr. Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP Unitate de ambalare 1 m. Max. current beginning 65A Standard produs EN 61439-1 Fabricant Schrack Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 Min. creepage distance ≥5,0mm COD COMANDA BSB00126 Versiune cu furca Masa neta 0,57 kg/m Accesorii optionale BSB00303-- PU 7 Curent nominal de scurtcircuit conditionat ≤50kA | Lungime | 23 mm | | Inaltime | 29 mm | | Greutate | 0.57 kg |
|
|
|
|
|
