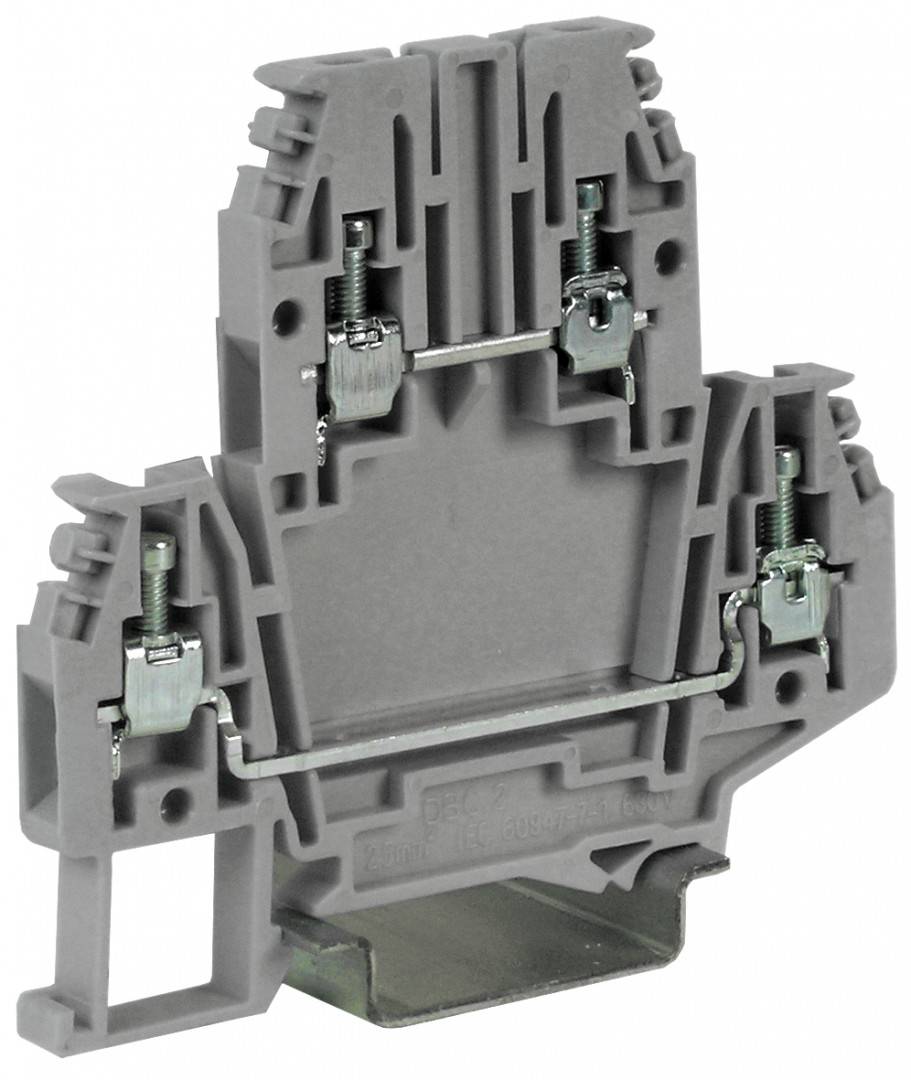

Two level terminal, 2.5mm², Type DBC.2, grey
Cod produs: IK100022--
Marca: SCHRACK TECHNIK
Pret cu TVA: 7.79 Lei / buc.
|
|
|
|
Comanda instant - Two level terminal, 2.5mm², Type DBC.2, grey
|
Two level terminal, 2.5mm², Type DBC.2, grey
|
|
Specificatii Tehnice Masa neta 0,02 kg/m Sectiune maxima, conductor solid 4 mm² Sistem cleme cu surub PREG 1660 Sectiune minima, conductor solid 0,2 mm² LxBxH mm 66x5x70 Culoare Gri Conductor multifilar sertizat cu bucsa pana la 2,5mm² mm² Conductor masiv pana la 4mm² mm² Sectiune maxima, conductor flexibil 4 mm² Unitate de ambalare 1 m. Descriere de baza Clema PU 120 Sectiune minima, conductor flexibil 0,2 mm² Conductor multifilar pana la 4mm² mm² Sectiune 2.5 mm² Max. cross section, flexible wire with ferrule 2,50 mm² COD COMANDA IK100022 Descriere electrica CAD 2,5mm² Simbol CAD X Versiune clema dublu etajata | Lungime | 66 mm | | Latime | 5 mm | | Inaltime | 70 mm | | Greutate | 0.02 kg |
|
|
|
|
|
