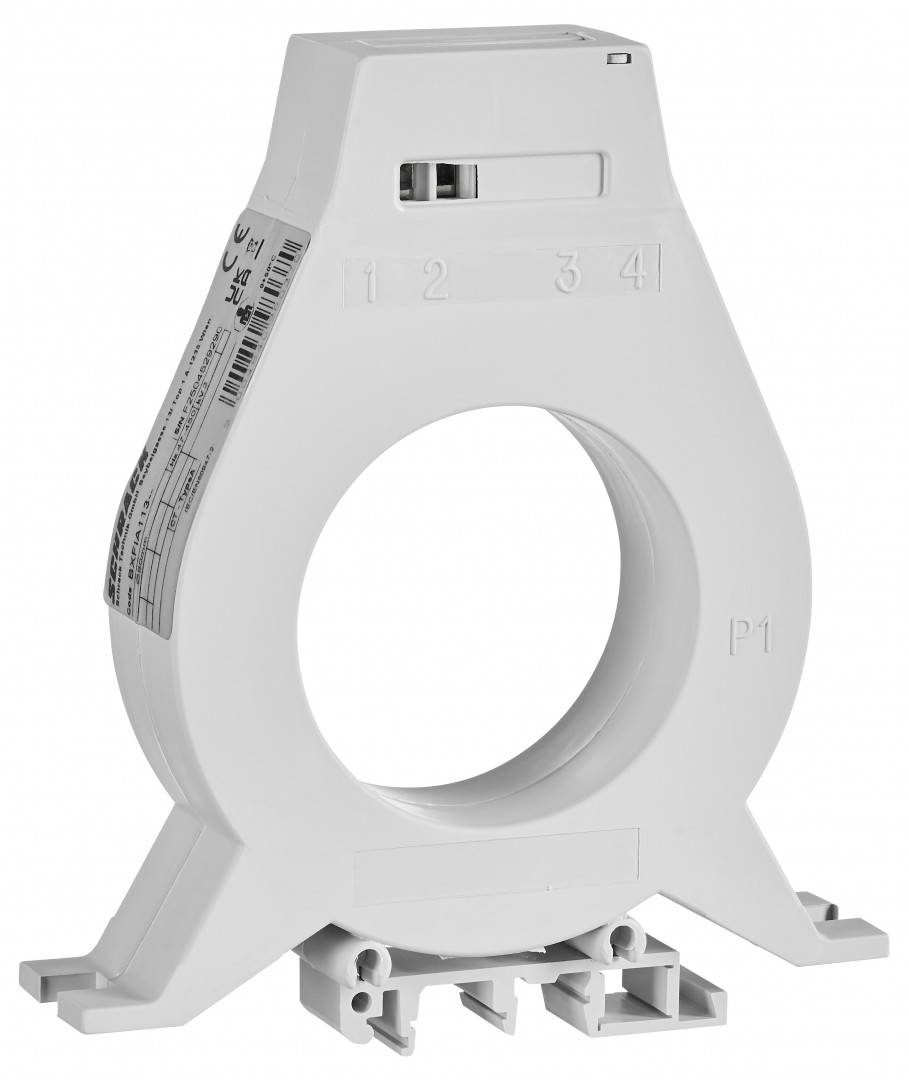

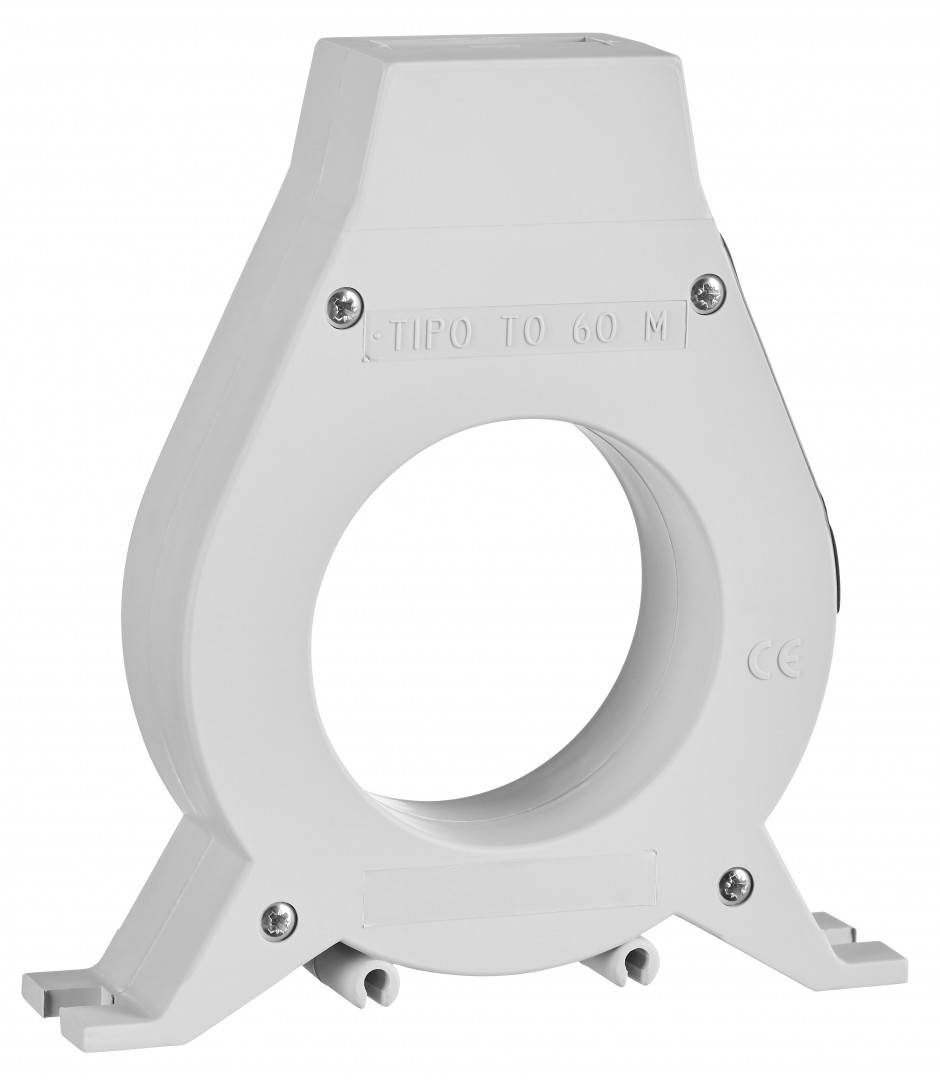

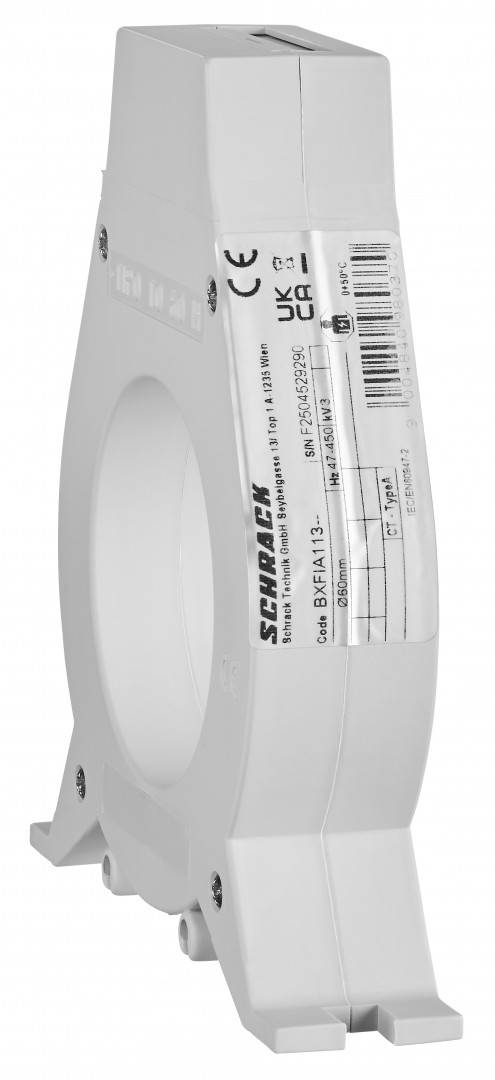

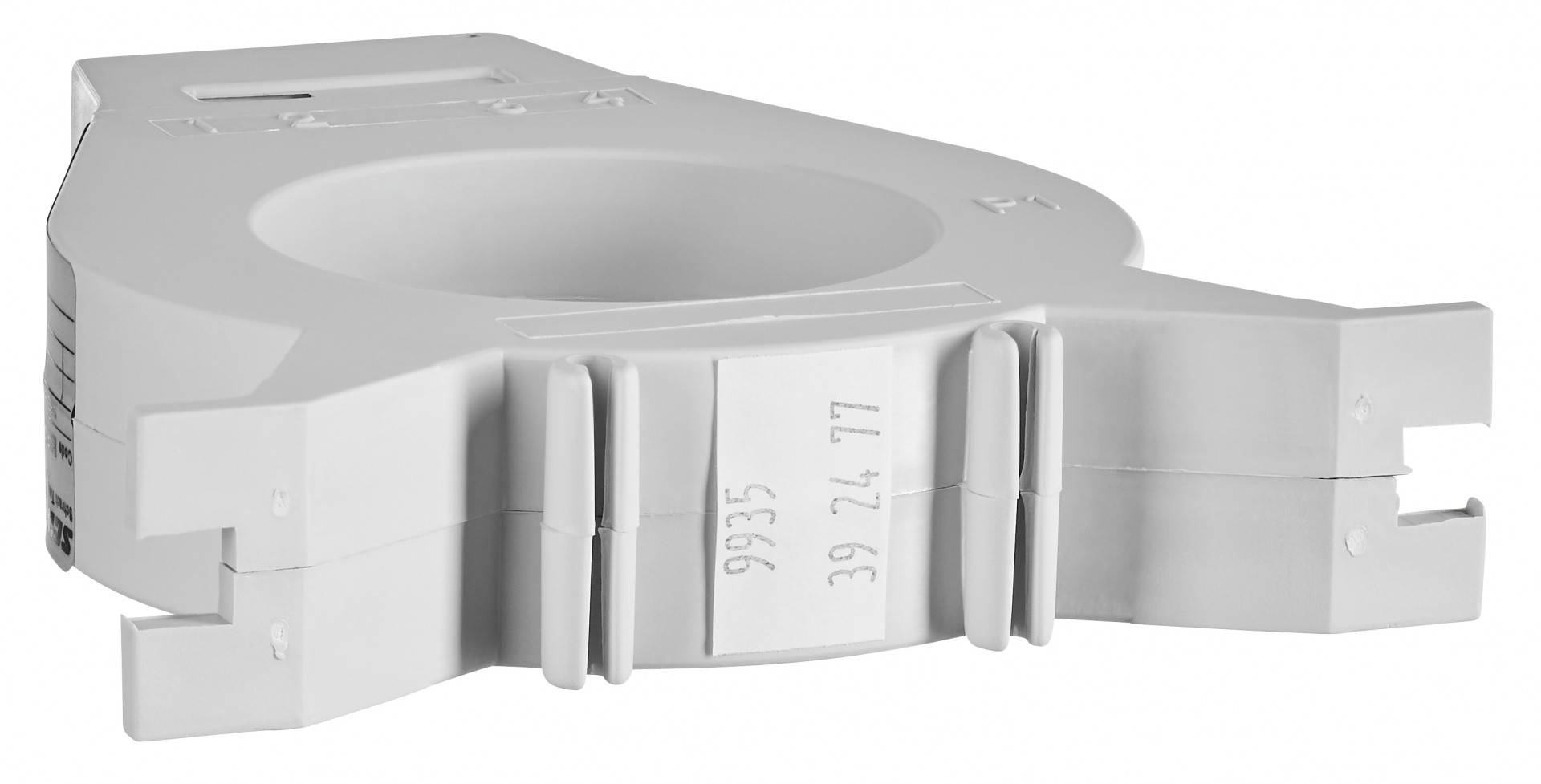

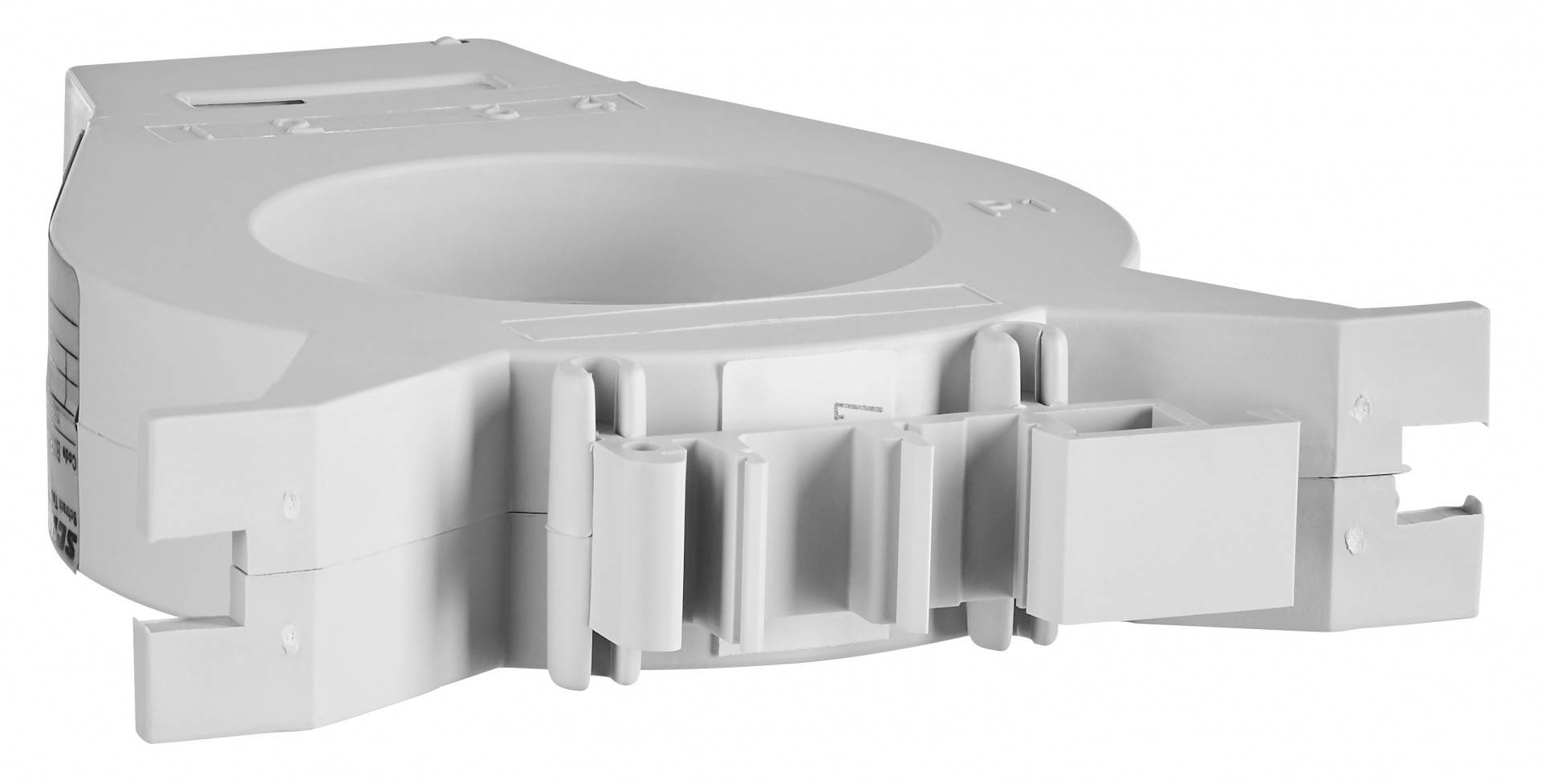

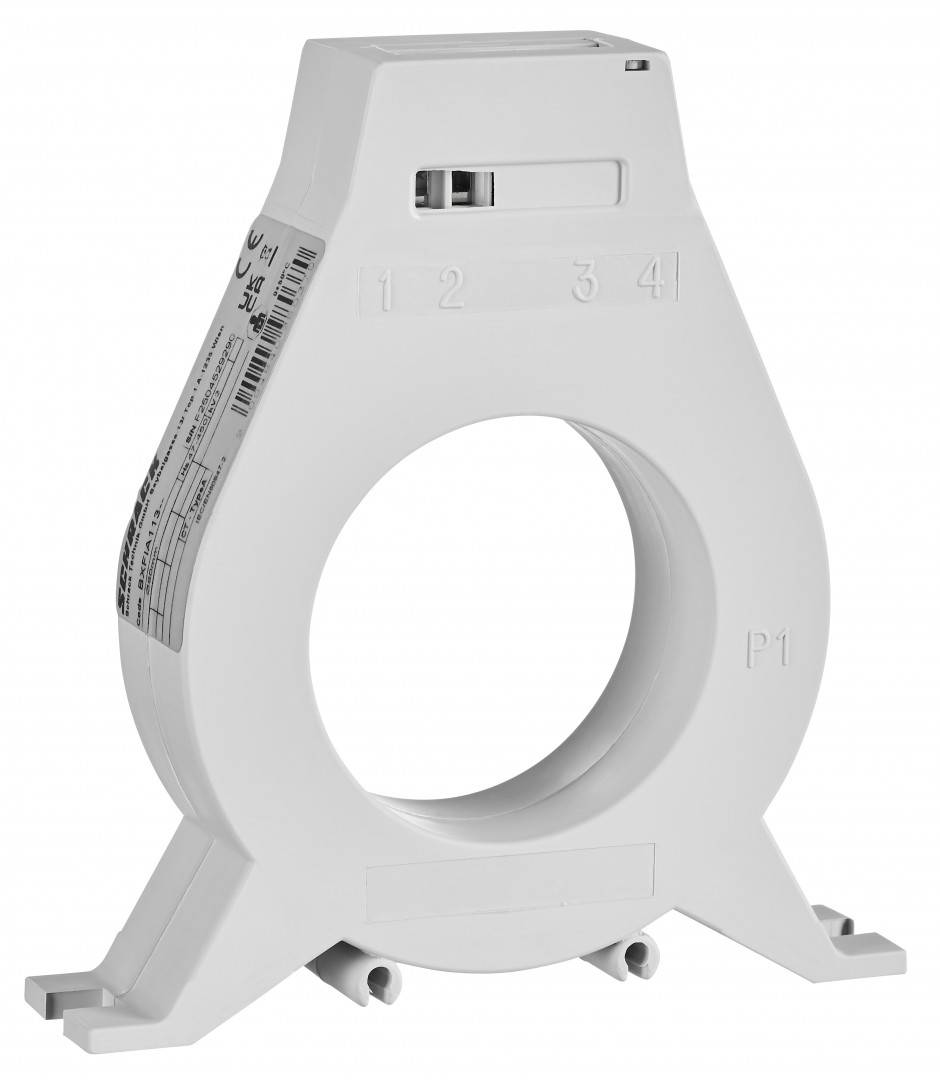

Transformator pentru releu diferential tip A, diametru 60mm
Cod produs: BXFIA113--
Marca: SCHRACK TECHNIK
Pret cu TVA: 325.25 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator pentru releu diferential tip A, diametru 60mm
|
Transformator pentru releu diferential tip A, diametru 60mm
|
|
Specificatii Tehnice PREG 2500 Standard EN 60947-2 Diametru 60 mm Material Self-extinguishing thermoplastic (UL 94-V0) Gama de temperatura - Functionare 0 bis +50 °C grad de protectie IP20 Temperatura maxima a mediului ambiant 50 °C Terminal type Screw terminal Masa neta 0,23 kg/m Technical data Minimum residual current: 0.03A (Value only applies if the cables are positioned exactly in the center of the transformer);Nominal frequency: 47 - 450Hz;Operating frequency: 25Hz - 10kHz, 1 min;Insulation test voltage: 2 kV R.M.S 50 Hz/1min;Installation category: CAT III 600V reinforced;Short-time overcurrent: 6x In (2 sec.) Unitate de ambalare 1 m. Temperatura minima a mediului ambiant -10 °C Accesorii optionale BXFIA101-- Primary currents (A) max. 400 Accesorii necesare BXFIA100-- LxBxH mm 28x125x135 COD COMANDA BXFIA113 Gama de temperatura - Transport/Depozitare -20 la +70 °C disipare 0,05 W | Lungime | 28 mm | | Latime | 125 mm | | Inaltime | 135 mm | | Greutate | 0.23 kg |
|
|
|
|
|
