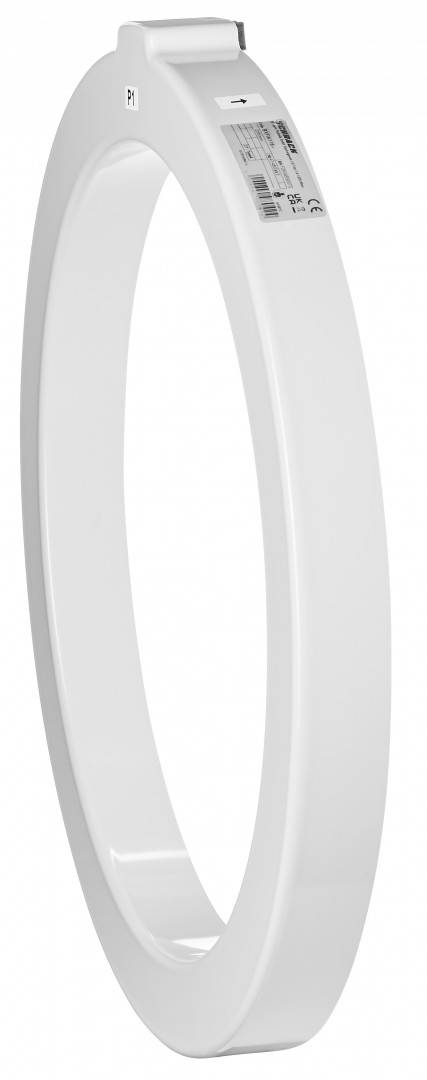

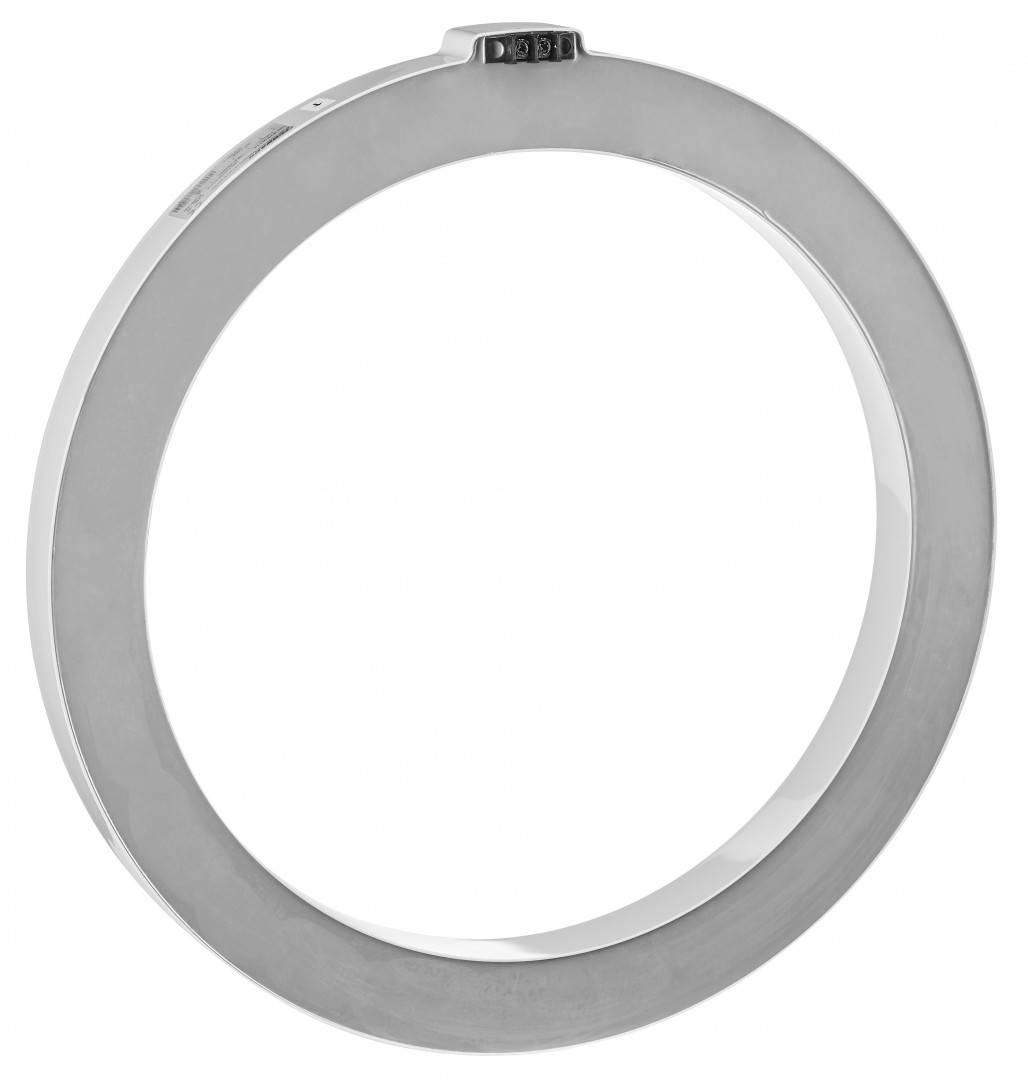

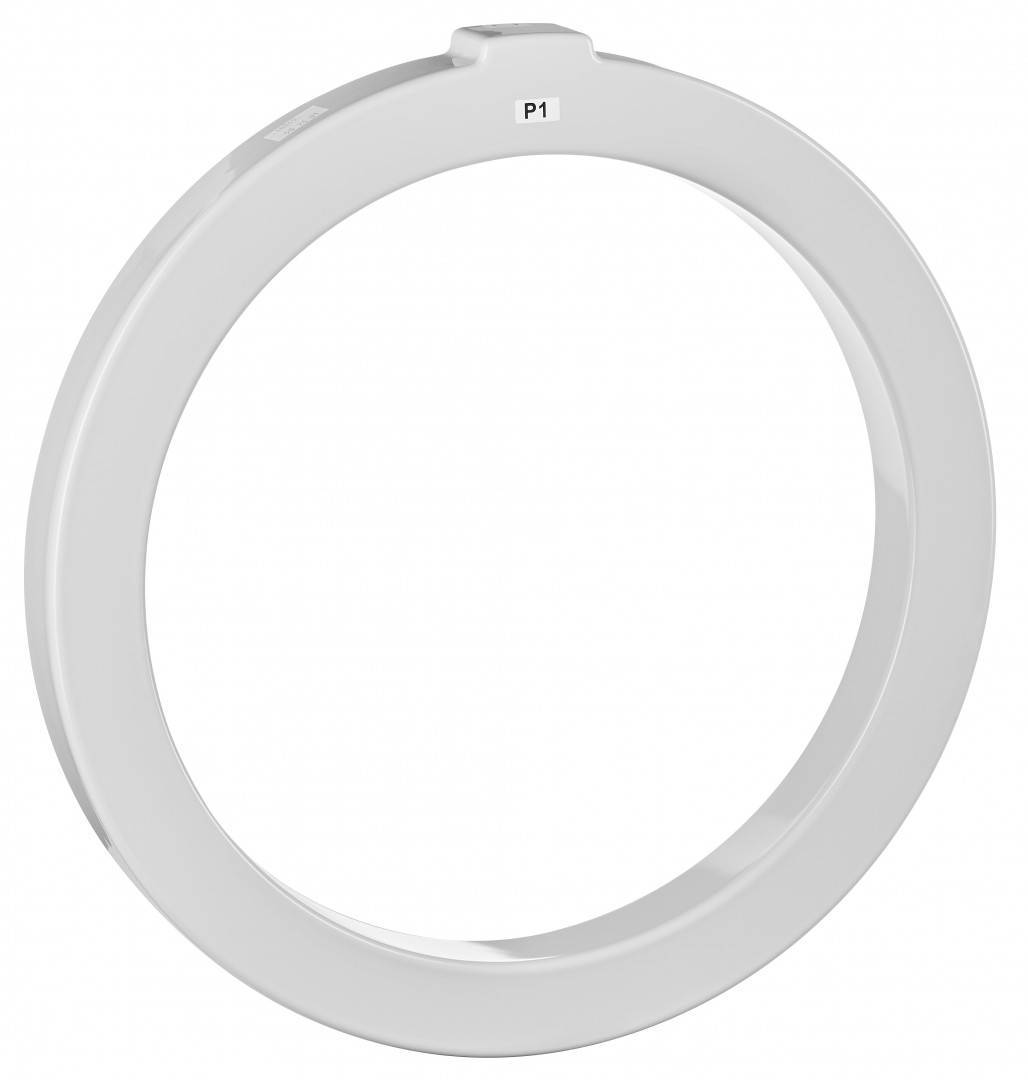

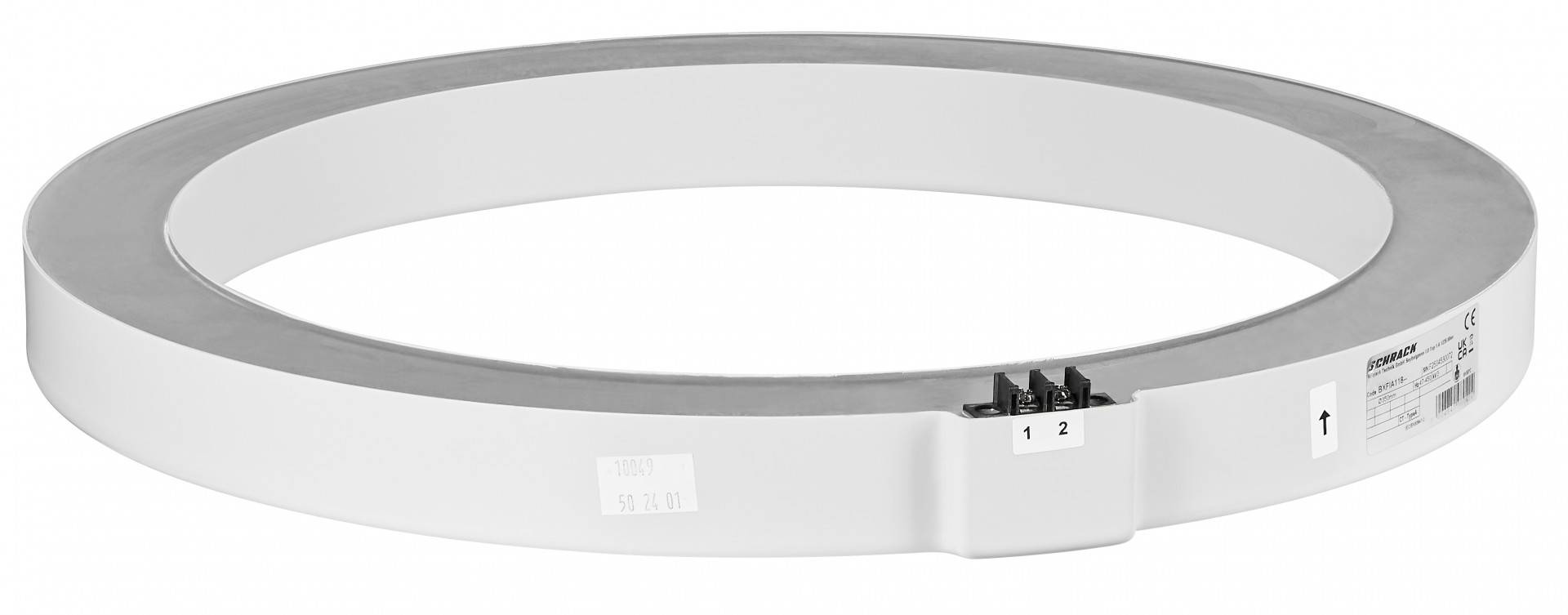

Transformator pentru releu diferential tip A, diametru 350mm
Cod produs: BXFIA118--
Marca: SCHRACK TECHNIK
Pret cu TVA: 6731.68 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator pentru releu diferential tip A, diametru 350mm
|
Transformator pentru releu diferential tip A, diametru 350mm
|
|
Specificatii Tehnice LxBxH mm 52x440x152 PREG 2500 Standard EN 60947-2 Material Self-extinguishing thermoplastic (UL 94-V0) Gama de temperatura - Functionare 0 bis +50 °C grad de protectie IP20 Temperatura maxima a mediului ambiant 50 °C Terminal type Screw terminal COD COMANDA BXFIA118 Primary currents (A) max. 2500 Diametru 350 mm Unitate de ambalare 1 m. Temperatura minima a mediului ambiant -10 °C Technical data Minimum residual current: 0.5A (Value only applies if the cables are positioned exactly in the center of the transformer);Nominal frequency: 47 - 450Hz;Operating frequency: 25Hz - 10kHz, 1 min;Insulation test voltage: 2 kV R.M.S 50 Hz/1min;Installation category: CAT III 600V reinforced;Short-time overcurrent: 6x In (2 sec.) Accesorii optionale BXFIA101-- Masa neta 4,40 kg/m Accesorii necesare BXFIA100-- Gama de temperatura - Transport/Depozitare -20 la +70 °C disipare 0,05 W | Lungime | 52 mm | | Latime | 440 mm | | Inaltime | 152 mm | | Greutate | 4.4 kg |
|
|
|
|
|
