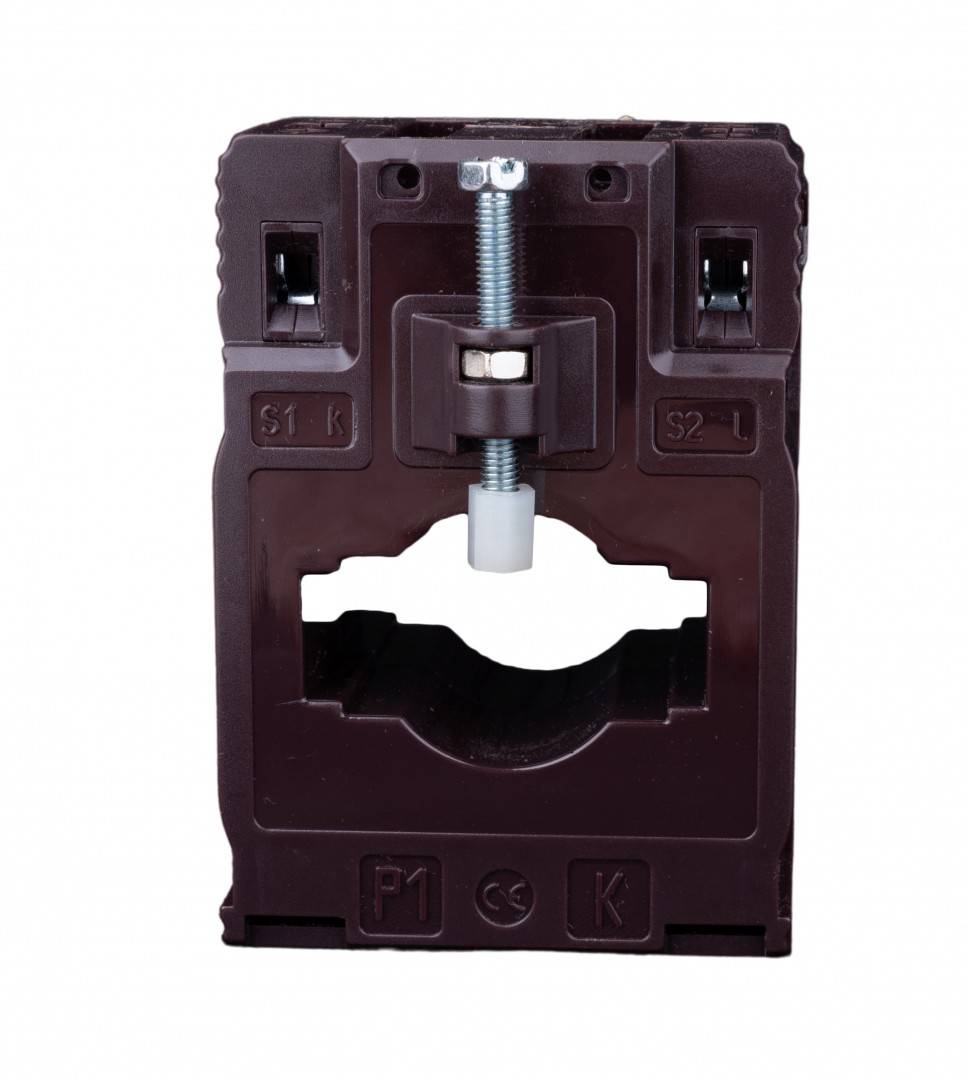

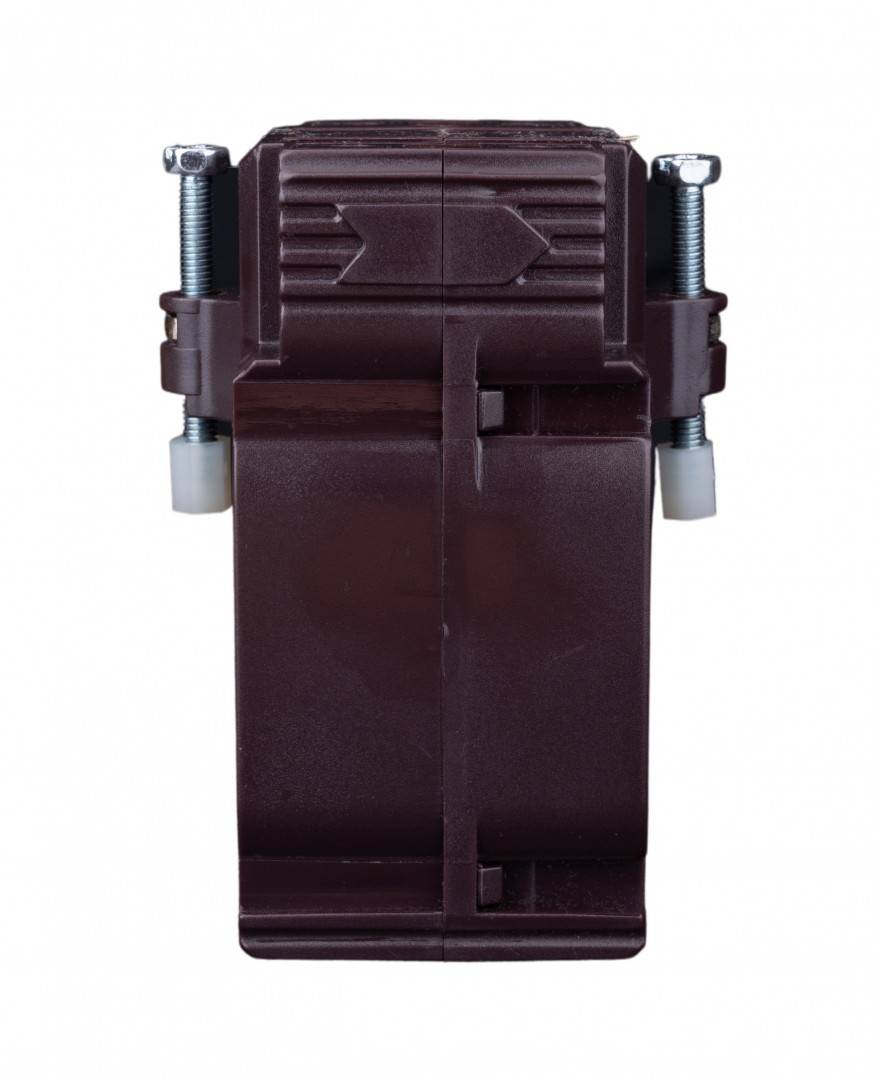

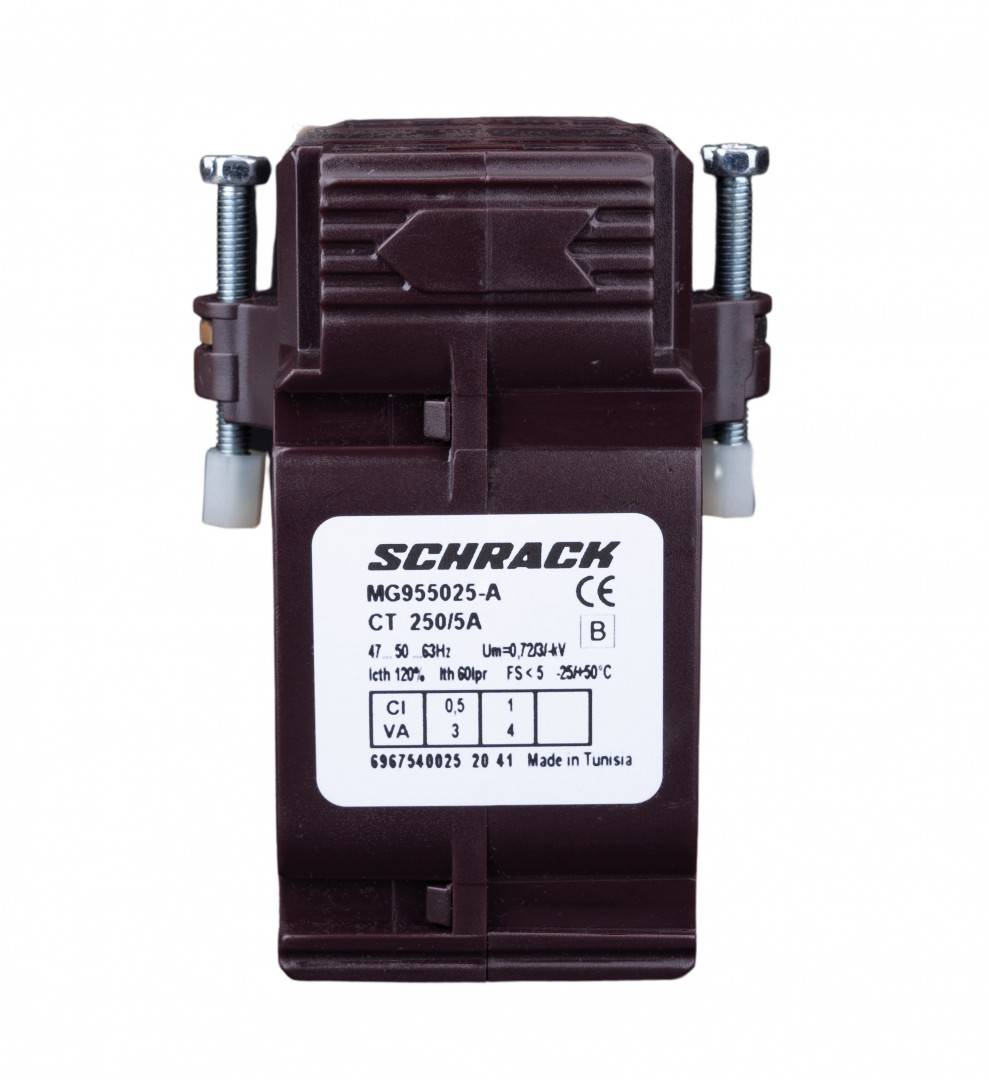

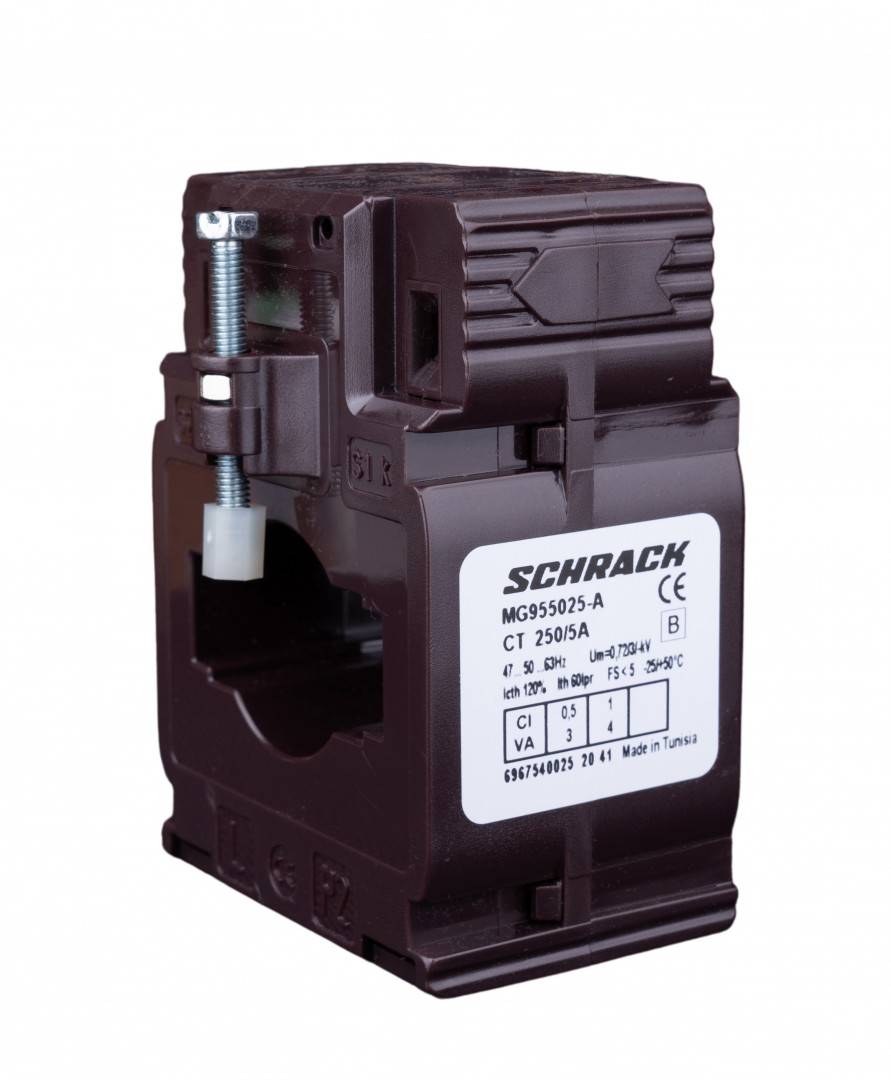

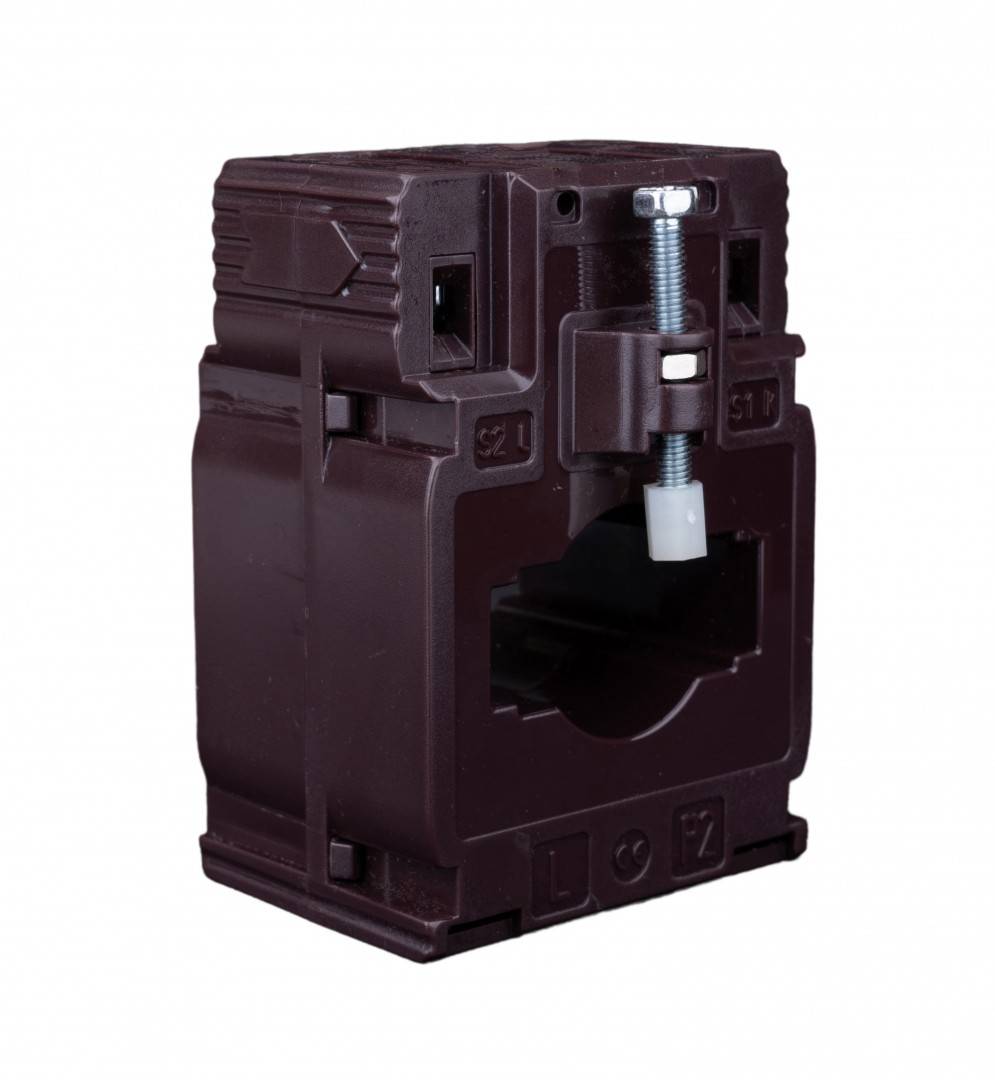

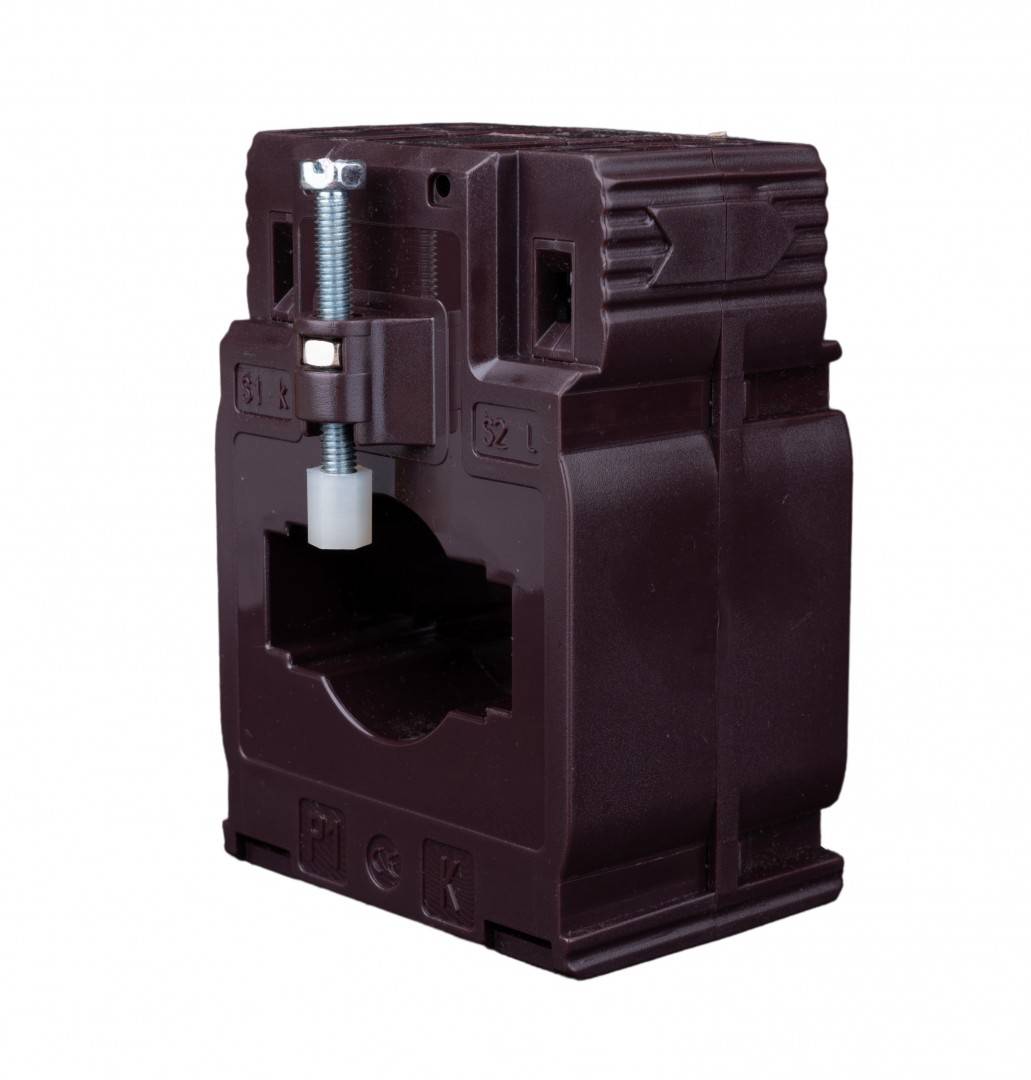

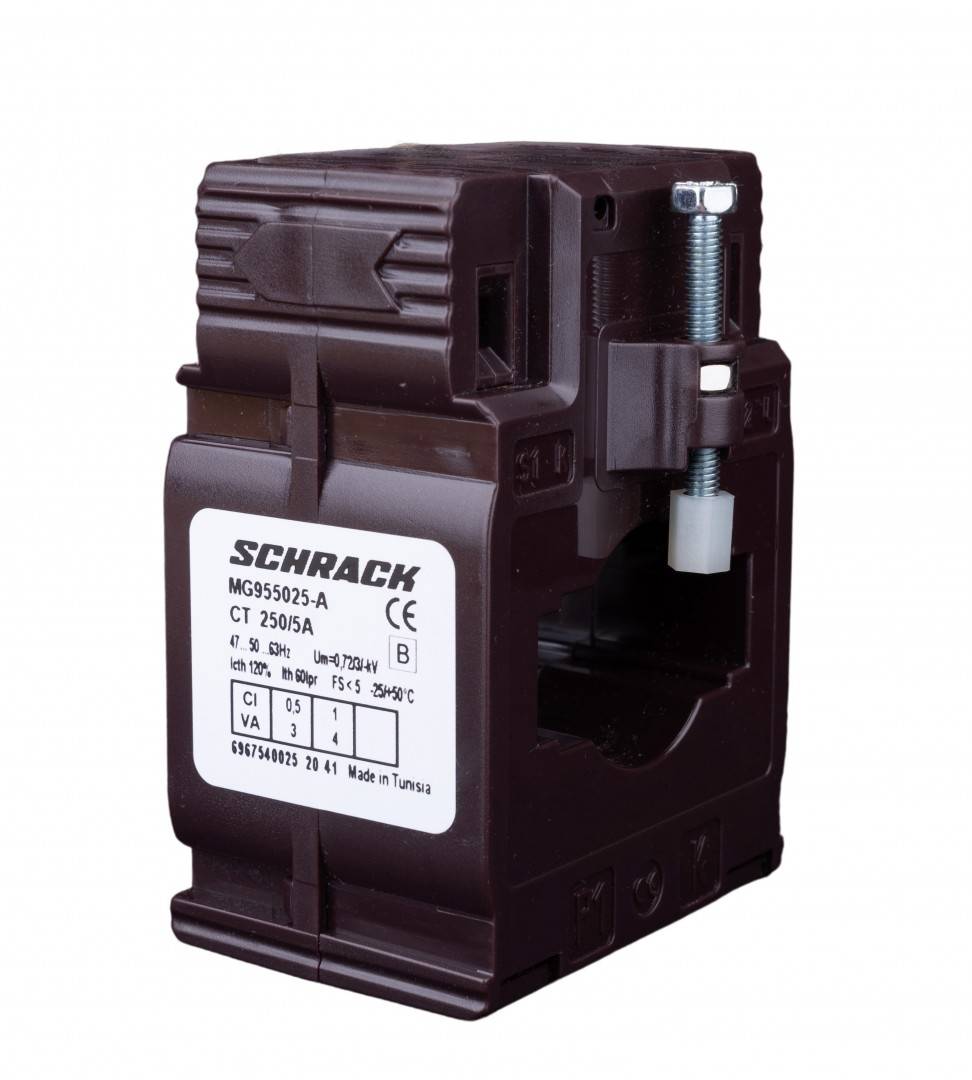

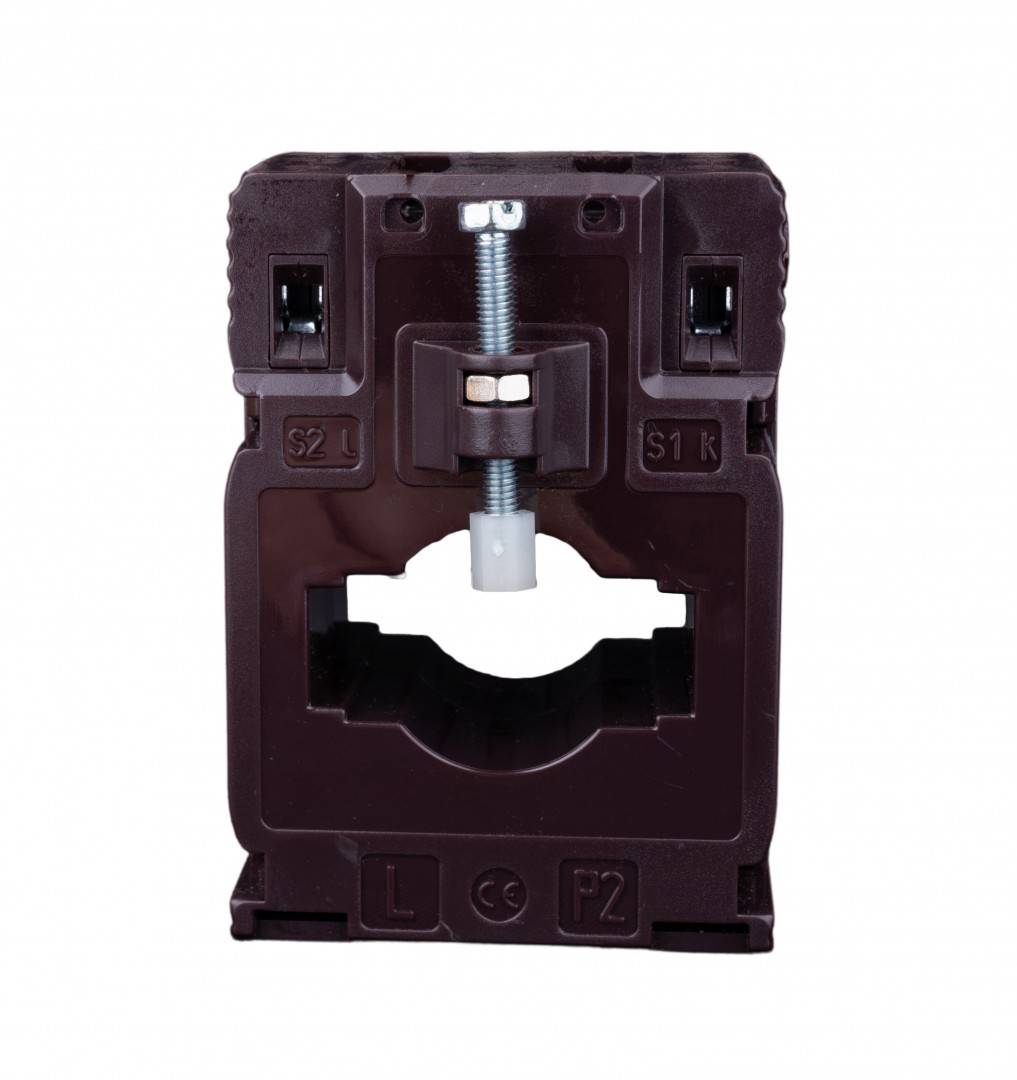

Transformator de curent 250/5A, 40x10, clasa 0,5

50 Hz

EN 61869-2

≤ 85 %

##

40x10;30x15 mm

Prin transformator de curent

40x10

Policarbonat, cu autostingere

##

2,5Ith

5A

Dry type transformer, air insulation

for copper bars up to 40 x 10mm;for copper bars up to 30 x 15mm;for cables up to diameter 26mm

23°C ±1°C °C

2330

##

≤ 30°C

40x10

11,50 W

250 A

60x61x85

250/5A, 40x10mm

Pentru clasa 0.5 si 5% In: ±1.5%;Pentru clasa 0.5 si 20% In: ±0.75%;Pentru clasa 0.5 si 100% In: ±0.5%;Pentru clasa 0.5 si 120% In: ±0.5%;Pentru clasa 1 si 5% In: ±3%;Pentru clasa 1 si 20% In: ±1.5%;Pentru clasa 1 si 100% In: ±1%;Pentru clasa 1 si 120% In: ±1%

47 - 63Hz

1

300

Class B (EN60044-1)

Fixare bare: 0,2Nm

MGX20006--;MGX20306--;MGX20406--

##

≤ 11.5W at Icth;125°C Maximum temperature cable/busbar.

##

250 A

Normal installation (DIN EN 61869-2)

IP20

TH35-15 (EN60715)

< 60Ipr

screw terminals 6mm²;Faston 4,8x0,8mm

##

6955-00010-75

MG955025-A

-40 to +85 °C

0,5

Montare cu inclichetare pentru sina 35 mm;Montaj cu suruburi pe perete

1 m.

0.72kV r.m.s.

Suitable for tropical climate

6955-0012-71

Cable and busbar feedthrough

-25 la +50 °C

Schrack

Class 0.5 (3VA);Class 1 (4VA)

The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.

Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l)

-25 °C

##

61x60x85

85 °C

0,30 kg/m

6955-0021-13

3 kV R.M.S. 50 Hz/1min

P

≤ 5
