Specificatii Tehnice
PREG
2330
Carcasa
##
Daily average temperature
≤ 30°C
Winding secondary side
Screw terminals M4
Rated current primary side Ipr
1000 A
Domeniul de frecventa
47 - 63Hz
COD COMANDA
MG958100-A
COD PROMO
7105-0027-76
Terminale externe CAD
1
Gama de temperatura - Functionare
-25 bis +40 °C
LxIxA mm
96x87x116
Accesorii optionale
MGX20006--;MGX20306--;MGX20406--
Decupaj mm
80x30 mm
Clasa de precizie
##
Masa g
700
Thermal rated continuous current according to EN60044-1
##
Standard produs
EN 61869-2;BS3938;BS7626
Categorie produs
Normal installation (DIN EN 61869-2)
Short-time current Ith
< 60Ipr
Intended use
for copper bars up to 80 x 30mm
PU
3
Conditii de lucru
##
Gama de temperatura - Transport/Depozitare
-40 to +85 °C
Clasa
0,5
Unitate de ambalare
1 m.
Max. Operating voltage Um
0.72kV r.m.s.
Conditii climatice
Suitable for tropical climate
Materialul carcasei
Policarbonat, cu autostingere;Clasa V0 conform cu UL-94
HxBxT mm
87x96x116
Fabricant
Schrack
Descriere electrica CAD

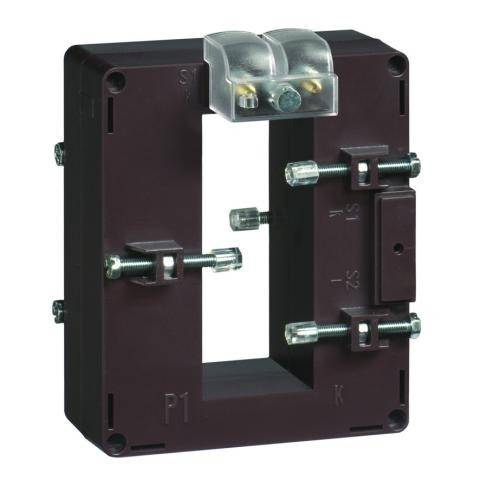

1000/5A, 80x30mm
Isolation
Class B (EN/IEC 61869-1, 61869-2)
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Masa neta
0,70 kg/m
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
DECUPAJ mm
80x30
Temperatura maxima a mediului ambiant
85 °C
grad de protectie
IP00 terminals;IP20 with terminal cover
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
PROMO CODE CH
7105-0046-08
Simbol CAD
P
Safety factor
≤ 5
Thermal power loss
≤ 19W at Icth;125°C Maximum temperature cable/busbar.
Bare colectoare maxim
80x30
disipare
19,00 W
Rated frequency
50 Hz
Umiditate relativa
≤ 85 %
Specifications
##
Ardere
Class 0.5 (10VA);Class 1 (15VA);Class 3 (20VA)
Montaj
by fixing screws on the busbar
Tip
Prin transformator de curent
Conexiune
##
Curent nominal dinamic Idyn
2,5Ith
Curent primar
1000 A
Rated current secondary side Isr
5A
Versiune
Dry type transformer, air insulation
Reference temperature
23°C ±1°C °C
PROMO CODE GER INDUSTRY
7105-00035-14
| Lungime | 116 mm |
| Latime | 96 mm |
| Inaltime | 87 mm |
| Greutate | 0.7 kg |
