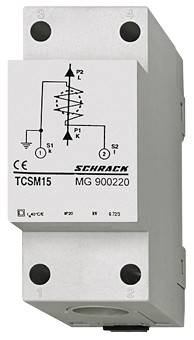

Transformator curent modular 60A/5A, 3VA, cl. 3
Cod produs: MG900222--
Marca: SCHRACK TECHNIK
Pret cu TVA: 129.77 Lei / buc.
|
|
|
|
Comanda instant - Transformator curent modular 60A/5A, 3VA, cl. 3
|
Transformator curent modular 60A/5A, 3VA, cl. 3
|
|
Specificatii Tehnice Masa neta 0,25 kg/m Rated current secondary side Isr 5A LxBxH mm 85x36x58 PREG 2330 PROMO CODE CH 7302-0022-68 Carcasa ## Rated current primary side Ipr 60 A Accesorii optionale MGX20006--;MGX20306--;MGX20006--;MGX20306--;MGX20406--;MGF57000-A;MGF59000-A Temperatura maxima a mediului ambiant 60 °C Terminale externe CAD 1 Ardere Class 3 (3VA) Numar articol Hlief MG900222-- Tensiune nominala 400V Clasa de precizie ## Metoda de montaj Montare cu inclichetare pentru sina 35 mm COD PROMO 7302-0012-45 Unitate de ambalare 1 m. Tip Transformator compact modular Fabricant Schrack Diametru de izolare max. 15mm mm Curent primar 60 A disipare 3,00 W Descriere electrica CAD CT 60/5A Temperatura minima a mediului ambiant -25 °C Intended use for cables up to diameter 15mm COD COMANDA MG900222 Clasa 3 Simbol CAD P Rated frequency 50 Hz Specifications ## PROMO CODE GER INDUSTRY 7302-00010-33 Diametru maxim conductor 15 mm | Lungime | 85 mm | | Latime | 35.5 mm | | Inaltime | 58 mm | | Greutate | 0.25 kg |
|
|
|
|
|
