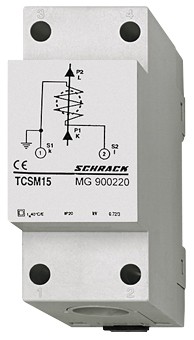

Transformator curent modular 50A/5A, 2VA, cl. 3
Cod produs: MG900221--
Marca: SCHRACK TECHNIK
Pret cu TVA: 129.77 Lei / buc.
|
|
|
|
Comanda instant - Transformator curent modular 50A/5A, 2VA, cl. 3
|
Transformator curent modular 50A/5A, 2VA, cl. 3
|
|
Specificatii Tehnice LxBxH mm 85x36x58 PREG 2330 Carcasa ## Temperatura maxima a mediului ambiant 60 °C Descriere electrica CAD CT 50/5A Terminale externe CAD 1 Tensiune nominala 400V Clasa de precizie ## Metoda de montaj Montare cu inclichetare pentru sina 35 mm Ardere Class 3 (2VA) COD PROMO 7296-0012-45 PROMO CODE CH 7296-0022-68 Unitate de ambalare 1 m. PROMO CODE GER INDUSTRY 7296-00010-33 Rated current primary side Ipr 50 A Tip Transformator compact modular Fabricant Schrack Numar articol Hlief MG900221-- Diametru de izolare max. 15mm mm Temperatura minima a mediului ambiant -25 °C Intended use for cables up to diameter 15mm Clasa 3 Simbol CAD P disipare 2,00 W Accesorii optionale MGF39000--;MGF39001--;MGX20006--;MGX20306--;MGF57000-A;MGF59000-A;MGF54000-A Rated frequency 50 Hz Specifications ## COD COMANDA MG900221 Diametru maxim conductor 15 mm Curent primar 50 A Masa neta 0,25 kg/m Rated current secondary side Isr 5A | Lungime | 85 mm | | Latime | 35.5 mm | | Inaltime | 58 mm | | Greutate | 0.25 kg |
|
|
|
|
|
