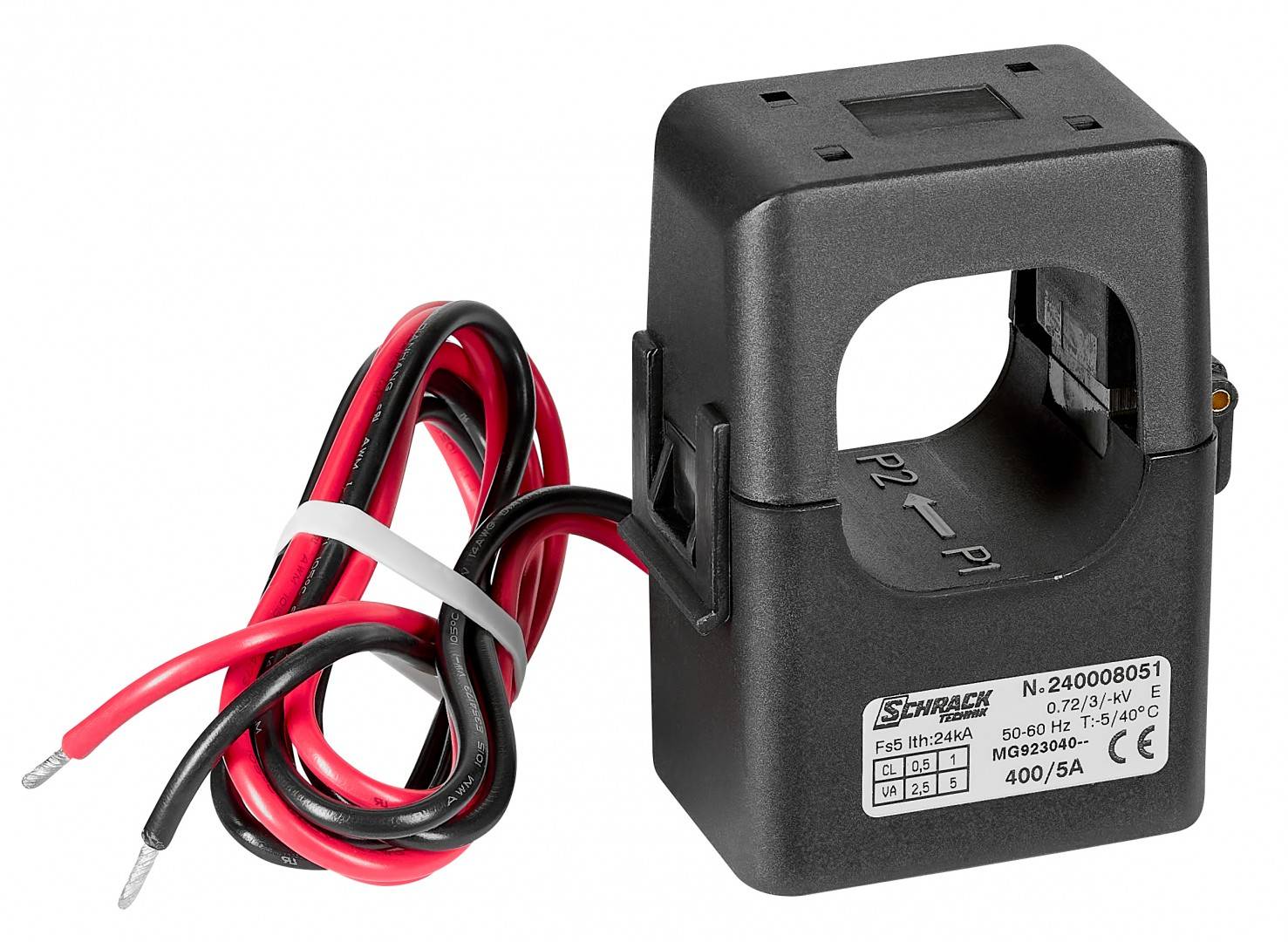

Transformator crt cu miez demontabil, 400/5A, clasa 0,5

23°C ±1°C °C

2330

260

##

41x58x85

36x36

Pentru clasa 0.5 si 5% In: ±1.5%;Pentru clasa 0.5 si 20% In: ±0.75%;Pentru clasa 0.5 si 100% In: ±0.5%;Pentru clasa 0.5 si 120% In: ±0.5%;Pentru clasa 0.5 si 150% In: ±0.5%

400 A

MG923040

##

0,26 kg/m

##

Prin pini

Normal installation (DIN EN 61869-2)

IP20

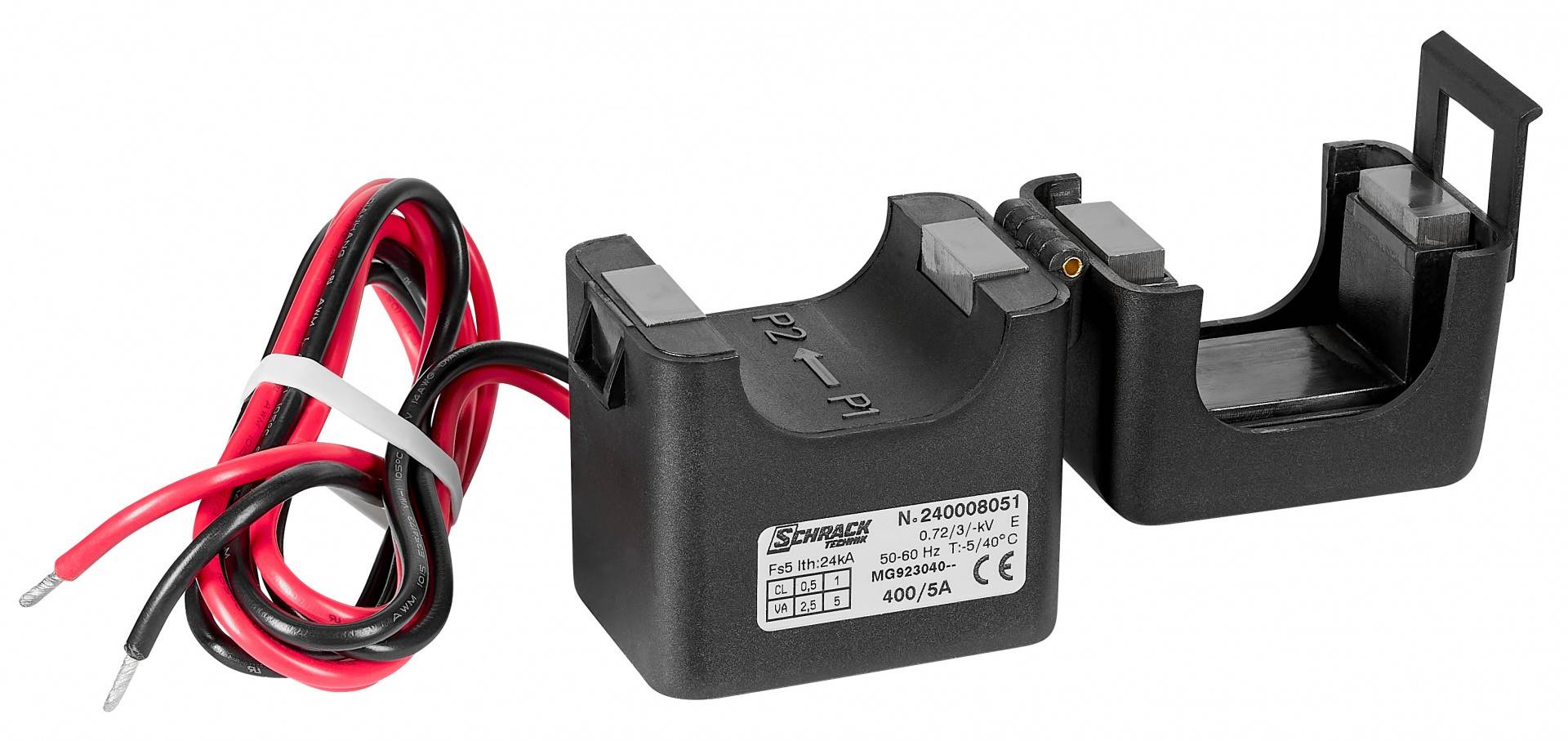

Transformator cu miez demontabil pentru cabluri

< 60Ipr

-25 to +75 °C

for copper bars up to 30 x 15mm

##

0,5

5,00 W

1 m.

0.72kV r.m.s.

36 mm

75 °C

lungime 100cm;sectiune 14AWG / 2.08mm²

Cable and busbar feedthrough

MGF39000--;MGF37900--;MGX20006--;MGX20406--

36x36 mm

-25 °C

##

3 kV R.M.S. 50 Hz/1min

50-60Hz Hz

400 A

30x10

Class 0.5 (2.5VA);Class 1 (5VA)

-15 to +50 °C

EN 61869-2

Due to dangerous overvoltage and overheating, the Current Transformator is not allowed to be operated with open secondary Side. (EN 60044-1 /A2) As soon as the Measurement Device, the Energy Counter or the Net Analyzer is disconnected, the secondary Side has to be shortcutted!

##

Class B (EN60044-1);Class E (EN60044-1)

Policarbonat, cu autostingere

##

2,5Ith

5A

Dry type transformer, air insulation
