Specificatii Tehnice
COD COMANDA
MGC54030
LxBxH mm
65x47x78
Decupaj mm
30x10 mm
Bare colectoare maxim
30x10mm
Temperatura maxima a mediului ambiant
60 °C
Gama de temperatura - Functionare
-5 la +40 °C
Ardere
Class 0.5 (5VA)
Clasa de precizie
##
Thermal rated continuous current according to EN60044-1
##
grad de protectie
IP20
Short-time current Ith
< 60Ipr
Eroare curent de sarcina
Pentru clasa 0.5 si 5% In: ±1.5%;Pentru clasa 0.5 si 20% In: ±0.75%;Pentru clasa 0.5 si 100% In: ±0.5%;Pentru clasa 0.5 si 120% In: ±0.5%
Masa neta
0,23 kg/m
Conditii de lucru
##
Clasa
0,5
Unitate de ambalare
1 m.
Max. Operating voltage Um
0.72kV r.m.s.
PU
24
Intended use
for copper bars up to 30 x 10mm
disipare
10,00 W
Cuplu de strangere
2 Nm
Isolation
Class B (EN/IEC 61869-1, 61869-2)
Rated current primary side Ipr
300 A
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
Rated frequency
50-60Hz Hz
Standard produs
EN 61869-2
Nota
Due to dangerous overvoltage and overheating, the Current Transformator is not allowed to be operated with open secondary Side. (EN 60044-1 /A2) As soon as the Measurement Device, the Energy Counter or the Net Analyzer is disconnected, the secondary Side has to be shortcutted!
Specifications
##
Tip

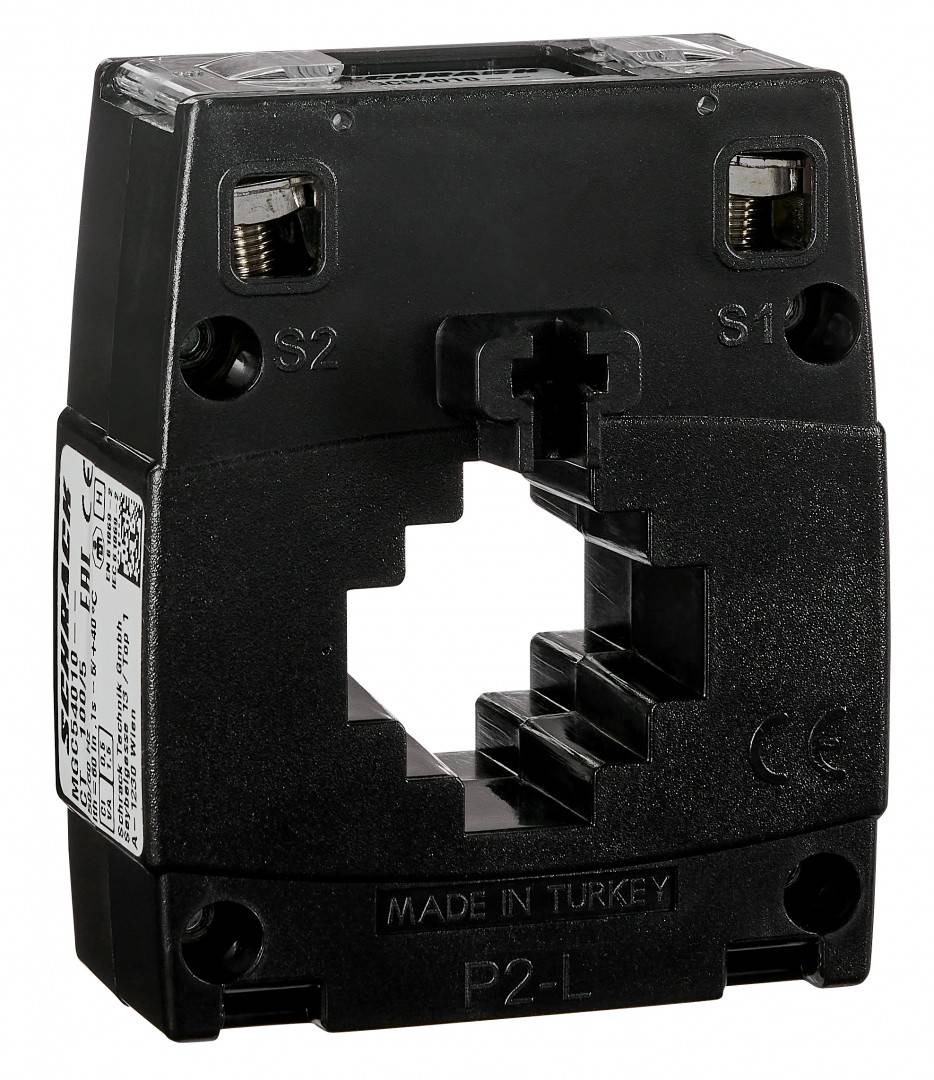

Prin transformator de curent
Materialul carcasei
Policarbonat, cu autostingere
Curent primar
300 A
Curent nominal dinamic Idyn
2,5Ith
Gama de temperatura - Transport/Depozitare
-25 to +60 °C
Rated current secondary side Isr
5A
DECUPAJ mm
30x10
Reference temperature
23°C ±1°C °C
PREG
2330
| Lungime | 65.4 mm |
| Latime | 46.9 mm |
| Inaltime | 78.2 mm |
| Greutate | 0.23 kg |
