Specificatii Tehnice
Ardere
Class 1 (5VA)
Temperatura maxima a mediului ambiant
60 °C
COD COMANDA
MGC52015
Gama de temperatura - Functionare
-5 la +40 °C
Diametru maxim conductor
21 mm
Clasa de precizie
##
Masa neta
0,18 kg/m
Thermal rated continuous current according to EN60044-1
##
grad de protectie
IP20
Short-time current Ith
< 60Ipr
Decupaj mm
21 mm
Conditii de lucru
##
Unitate de ambalare
1 m.
Max. Operating voltage Um
0.72kV r.m.s.
Rated current primary side Ipr
150 A
LxBxH mm
47x56x65
Intended use
for cables up to diameter 21mm
PU
24
disipare
10,00 W
Cuplu de strangere
2 Nm
Isolation
Class B (EN/IEC 61869-1, 61869-2)
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
Rated frequency
50-60Hz Hz
Tip

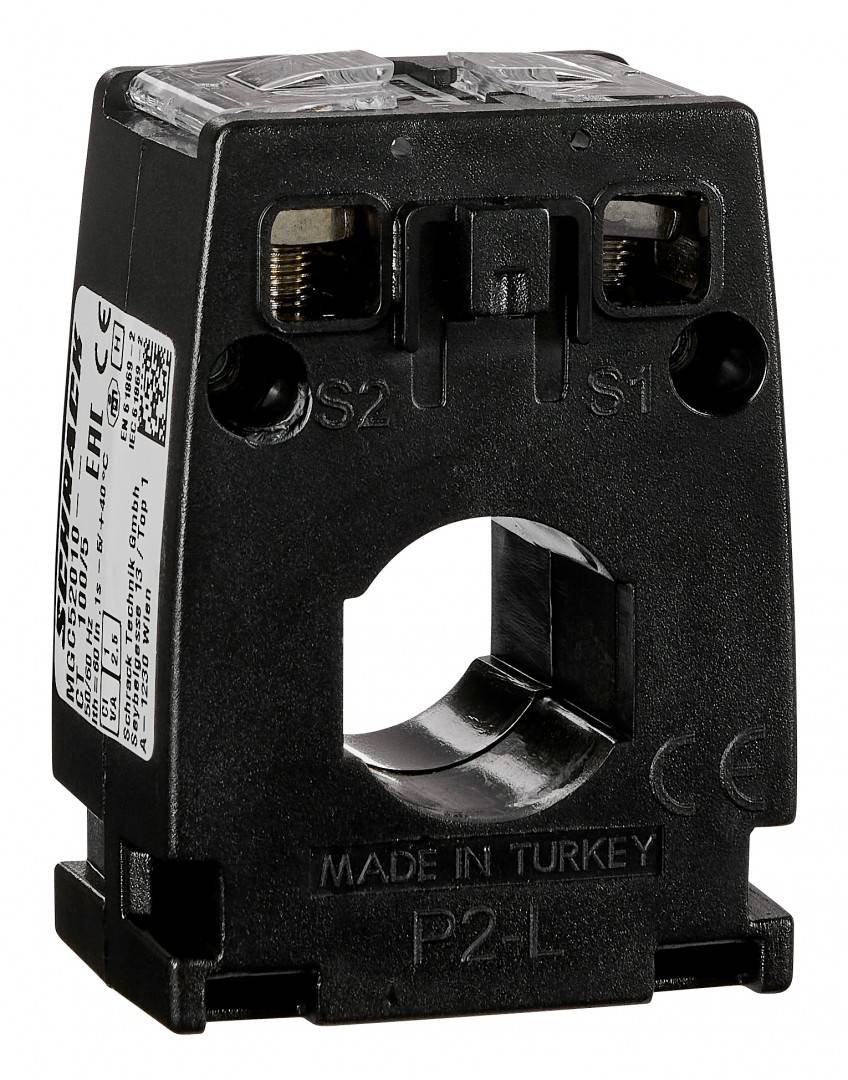

Transformator de curent pentru cabluri
Eroare curent de sarcina
Pentru clasa 1 si 5% In: ±3%;Pentru clasa 1 si 20% In: ±1.5%;Pentru clasa 1 si 100% In: ±1%;Pentru clasa 1 si 120% In: ±1%
Standard produs
EN 61869-2
Nota
Due to dangerous overvoltage and overheating, the Current Transformator is not allowed to be operated with open secondary Side. (EN 60044-1 /A2) As soon as the Measurement Device, the Energy Counter or the Net Analyzer is disconnected, the secondary Side has to be shortcutted!
Specifications
##
Curent primar
150 A
Materialul carcasei
Policarbonat, cu autostingere
DECUPAJ mm
21
Curent nominal dinamic Idyn
2,5Ith
Gama de temperatura - Transport/Depozitare
-25 to +60 °C
Rated current secondary side Isr
5A
Clasa
1
Reference temperature
23°C ±1°C °C
PREG
2330
| Lungime | 47.2 mm |
| Latime | 56.1 mm |
| Inaltime | 64.7 mm |
| Greutate | 0.18 kg |
