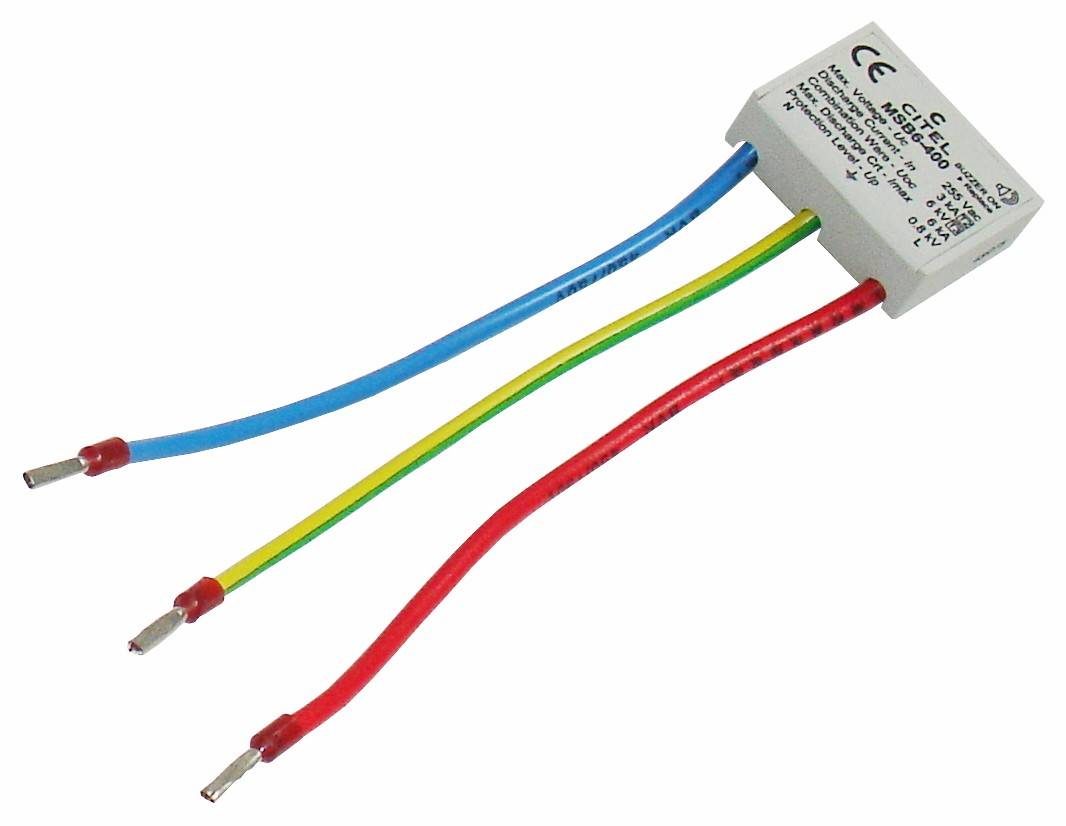

Surge Arrester Class D, for plug socket
Cod produs: IS010003-A
Marca: SCHRACK TECHNIK
Pret cu TVA: 180.18 Lei / buc.
|
|
|
|
Comanda instant - Surge Arrester Class D, for plug socket
|
Surge Arrester Class D, for plug socket
|
|
Specificatii Tehnice disipare 1,15 W PREG 1400 Timp de raspuns <100 ns Short Circuit Current of Combination Wave Generator (8/20μs) 3 kA Open Circuit Voltage of Combination Wave Generator (1,2/50μs) 6/10 kV Rezistenta la scurtcircuit 1 Simbol CAD F Unitate de ambalare 1 m. COD COMANDA IS010003-A Tensiune nominala 230V Masa neta 0,01 kg/m PU 12 Temperatura maxima a mediului ambiant 85 °C Nivel de protectie 1500/1700 kV TOV Withstand 5s (L-N) 337 V Temperatura minima a mediului ambiant -40 °C LxBxH mm 109x76x24 Tensiune nominala maxima AC 275 VAC | Lungime | 109 mm | | Latime | 76 mm | | Inaltime | 24 mm | | Greutate | 0.01 kg |
|
|
|
|
|
