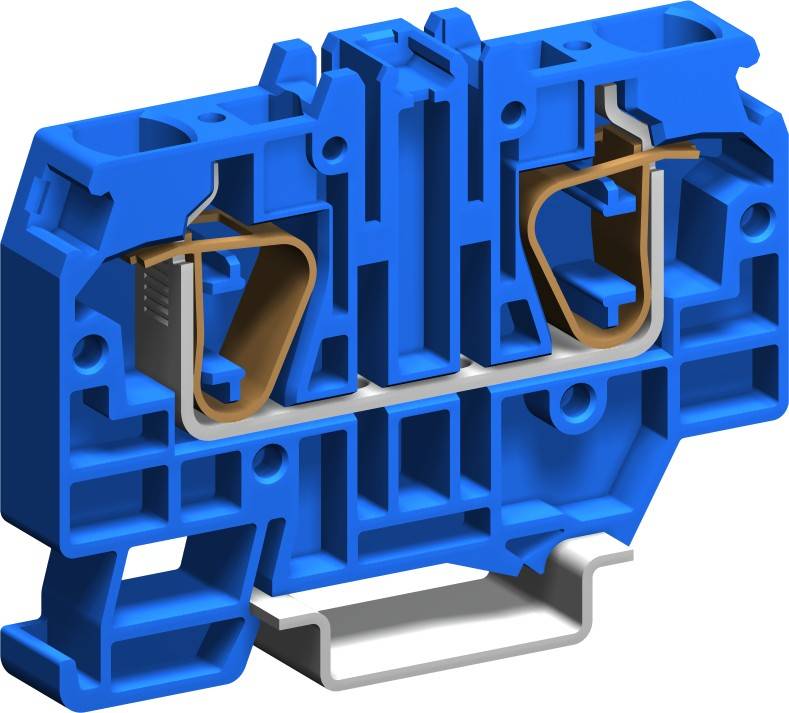

Spring clamp terminal HMM.10 blue, 10 mm²
Cod produs: IK201010--
Marca: SCHRACK TECHNIK
Pret cu TVA: 8.41 Lei / buc.
|
|
|
|
Comanda instant - Spring clamp terminal HMM.10 blue, 10 mm²
|
Spring clamp terminal HMM.10 blue, 10 mm²
|
|
Specificatii Tehnice Sectiune minima, conductor solid 1,50 mm² Sectiune maxima, conductor flexibil 16 mm² Masa neta 0,03 kg/m Conductor masiv pana la 16mm² mm² PREG 1660 Conductor multifilar pana la 10mm² mm² Max. cross section, flexible wire with ferrule 10 mm² Sectiune 10 mm² LxBxH mm 53x10x71 Conductor multifilar sertizat cu bucsa pana la 6mm² mm² Sectiune minima, conductor flexibil 1,50 mm² Descriere electrica CAD 10mm² Sectiune maxima, conductor solid 10 mm² Unitate de ambalare 1 m. Descriere de baza Clema Versiune clema trecere PU 30 Simbol CAD X COD COMANDA IK201010 Culoare Albastru | Lungime | 53 mm | | Latime | 10 mm | | Inaltime | 71 mm | | Greutate | 0.03 kg |
|
|
|
|
|
