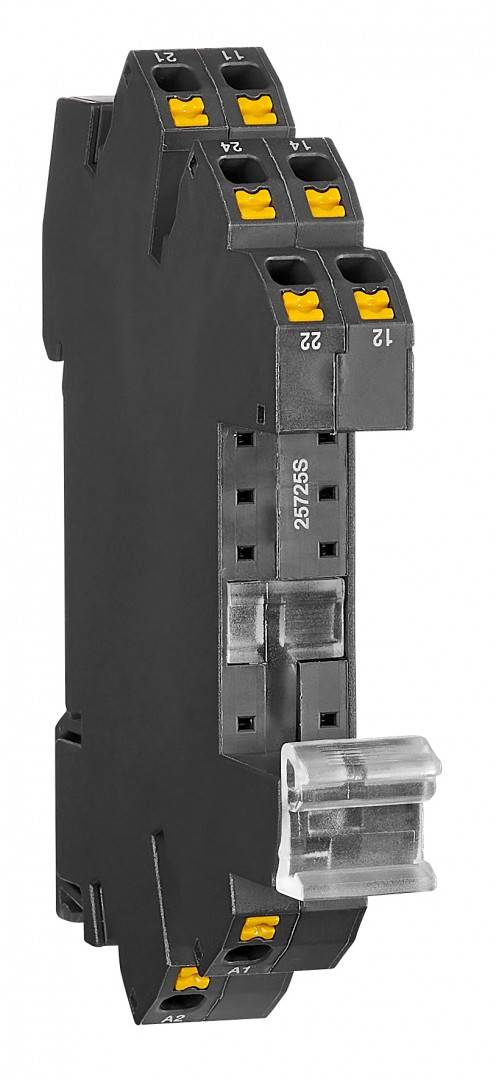

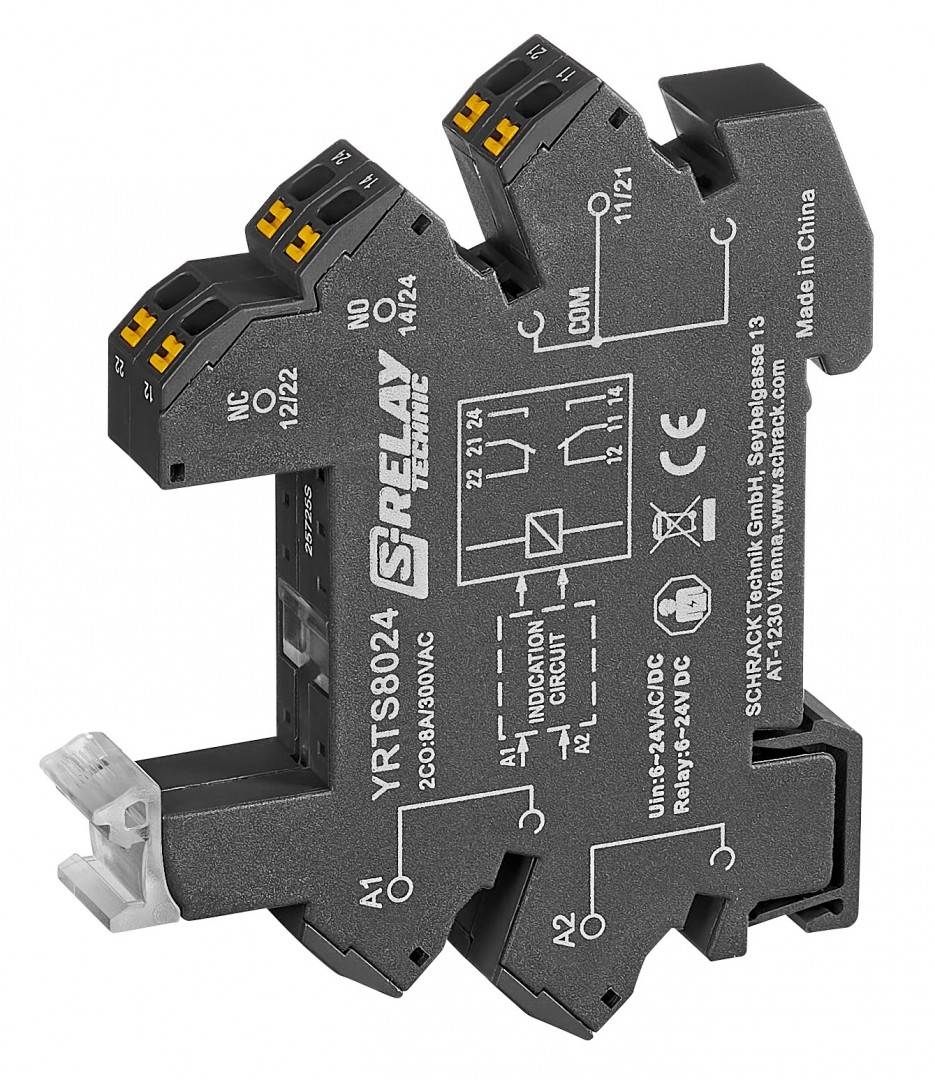

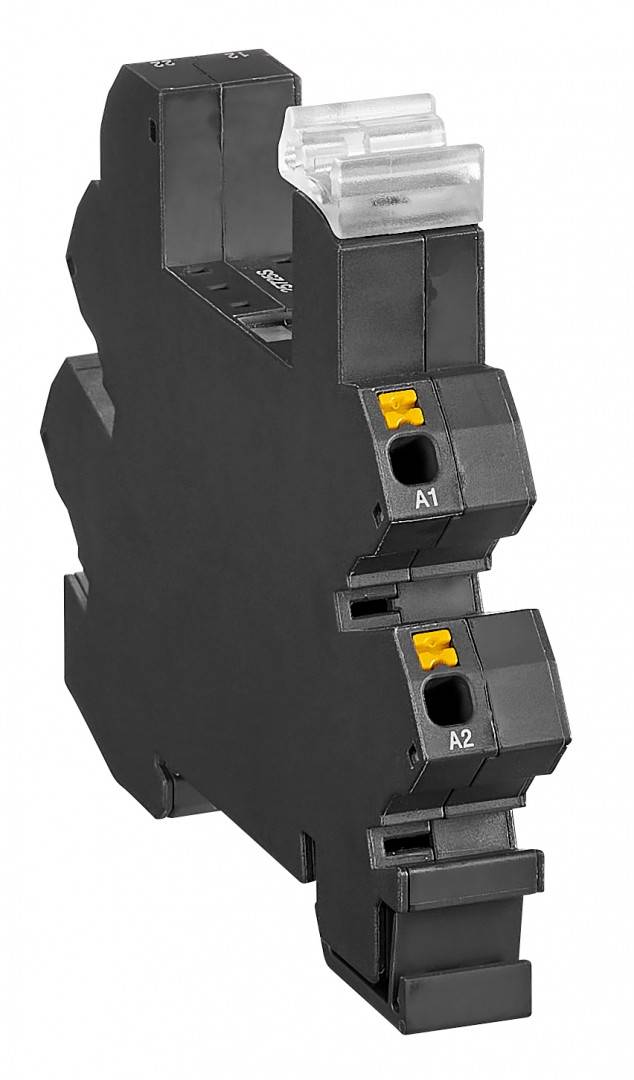

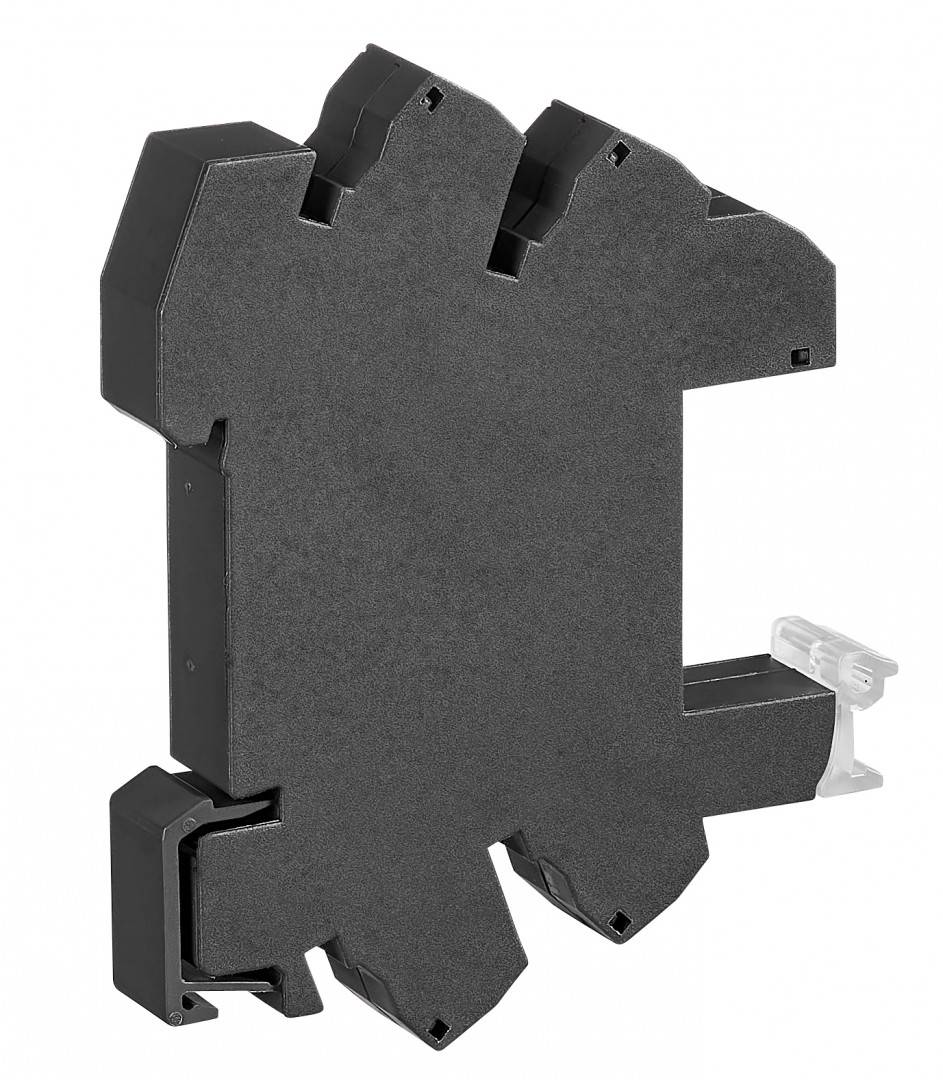

Soclu cu conex.elastice, ex.logica, 5mm, pt. relee RT 24VDC
Cod produs: YRTS8024--
Marca: SCHRACK TECHNIK
Pret cu TVA: 39.43 Lei / buc.
|
|
|
|
|
|
Comanda instant - Soclu cu conex.elastice, ex.logica, 5mm, pt. relee RT 24VDC
|
Soclu cu conex.elastice, ex.logica, 5mm, pt. relee RT 24VDC
|
|
Specificatii Tehnice Masa neta 0,03 kg/m Standard produs EN 61984 LxIxA mm 13x89x72 PREG 2300 Conductor masiv 0.5 - 2.5 mm² COD COMANDA YRTS8024 Conductor multifilar sertizat cu bucsa 0.5 - 2.5 mm² Tensiune nominala 300VAC Conductor multifilar 0.5 - 2.5 mm² Rezistenta dielectrica initiala ## Unitate de ambalare 1 m. PU 10 Between contact and coil 4000 V/min Accesorii optionale YRTS8000-- Curent nominal 8 A HxBxT mm 89x13x72 Temperatura maxima a mediului ambiant 85 °C Tip conexiune Cleme elastice Tensiune de comanda DC 6-24 V Temperatura minima a mediului ambiant -40 °C Intre poli 2000 V/min | Lungime | 72 mm | | Latime | 12.95 mm | | Inaltime | 88.5 mm | | Greutate | 0.03 kg |
|
|
|
|
|
