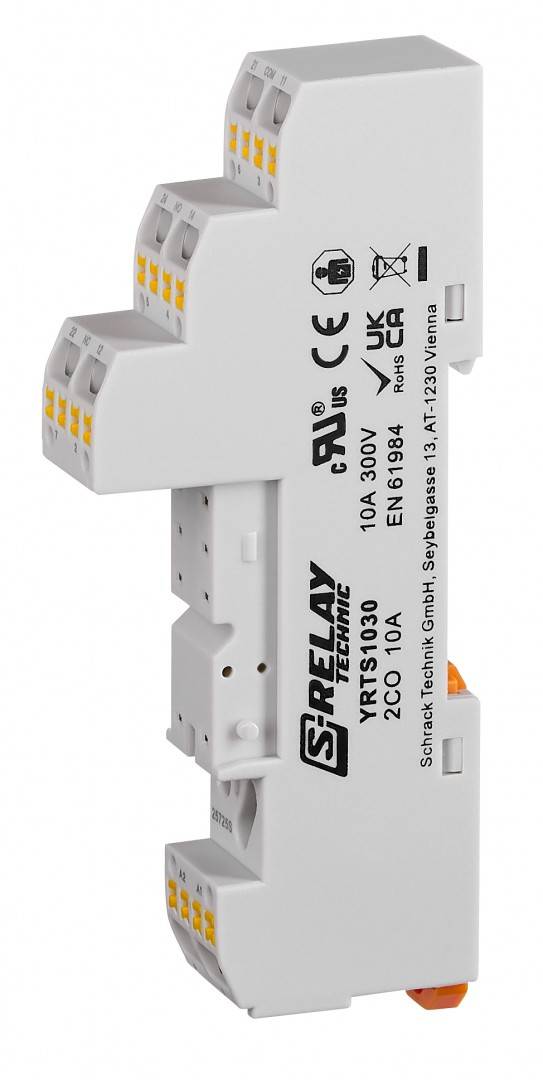

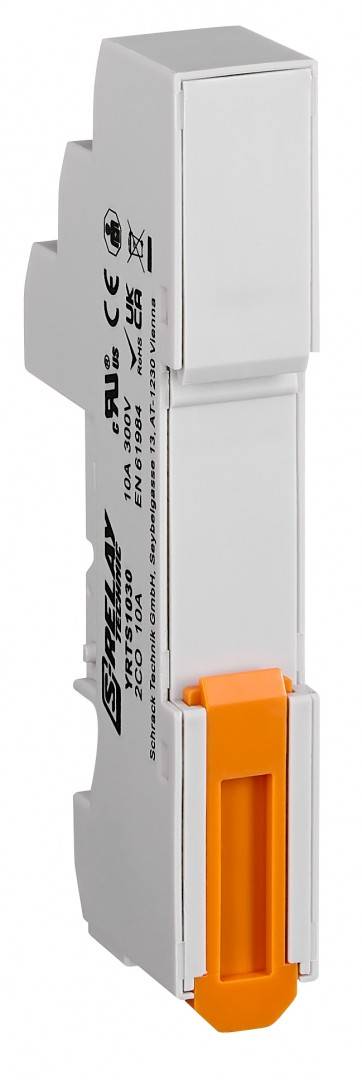

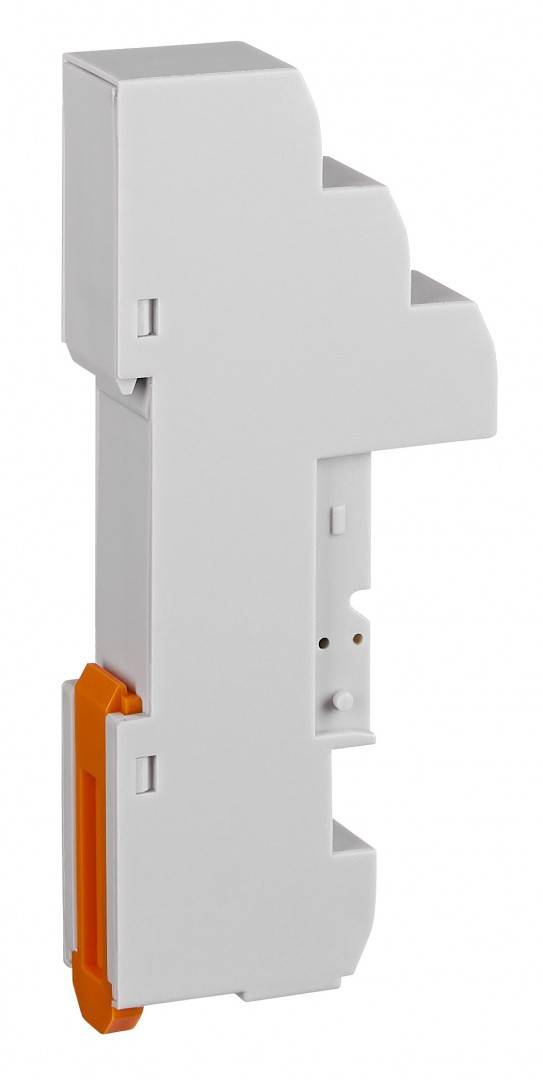

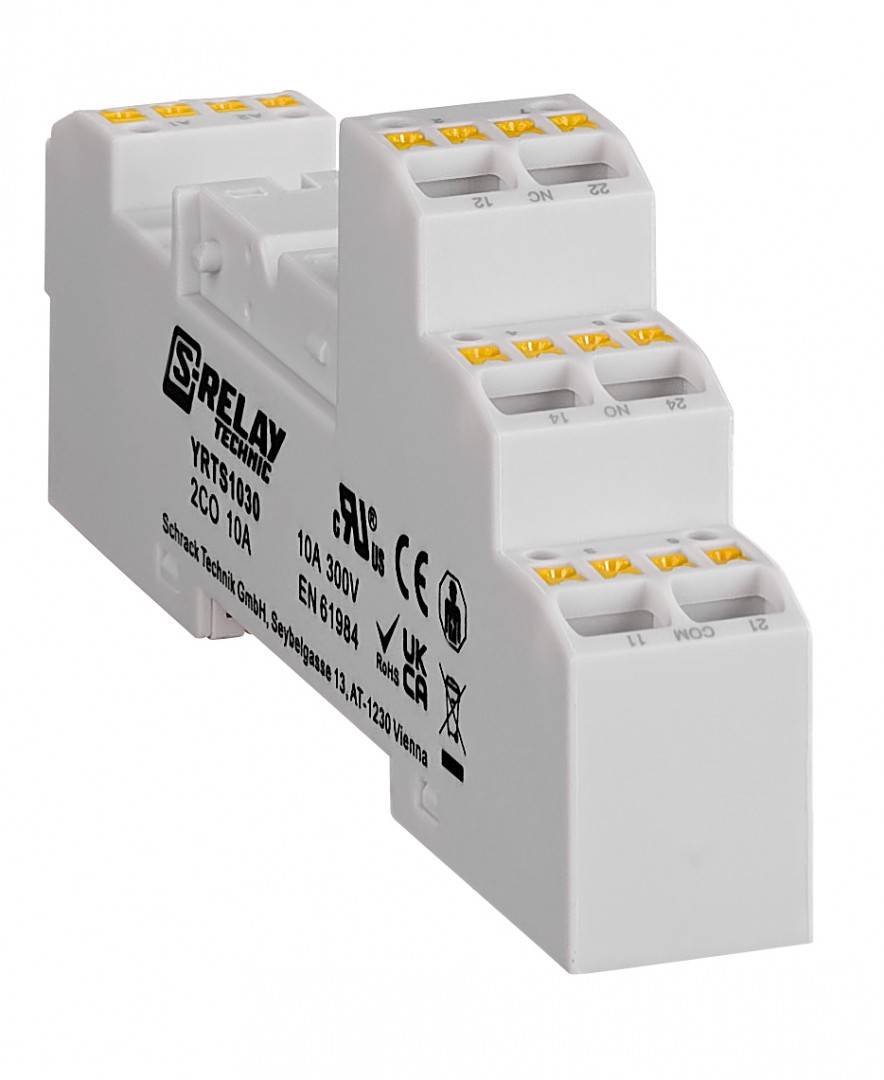

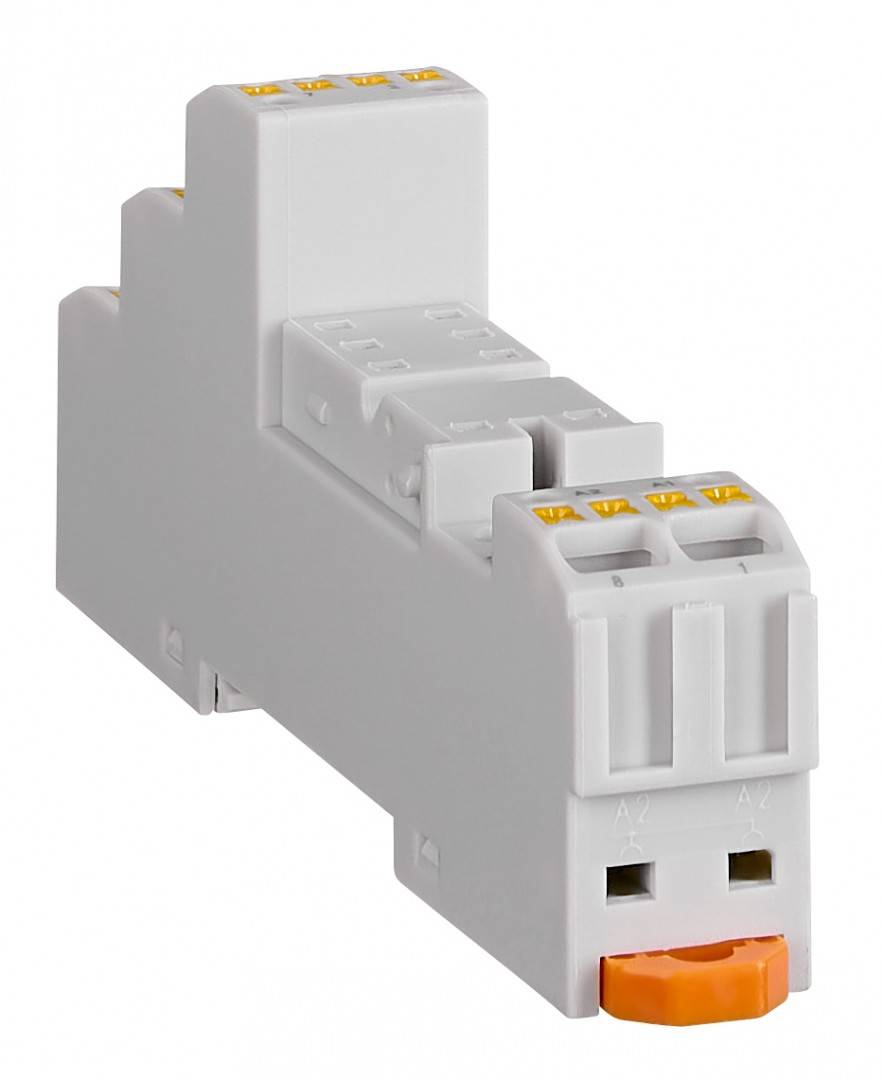

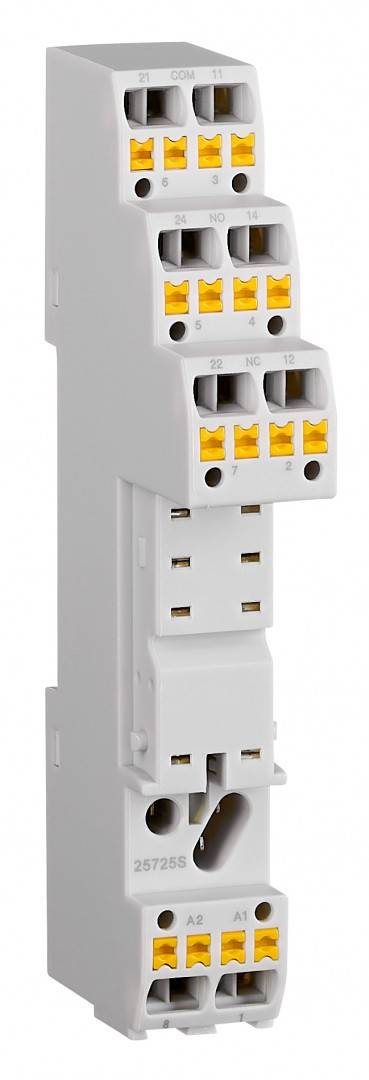

Socket with spring terminals, 5mm, logical arrangement
Cod produs: YRTS1030--
Marca: SCHRACK TECHNIK
Pret cu TVA: 19.21 Lei / buc.
|
|
|
|
|
|
Comanda instant - Socket with spring terminals, 5mm, logical arrangement
|
Socket with spring terminals, 5mm, logical arrangement
|
|
Specificatii Tehnice Standard produs EN 61984 PREG 2300 Conductor masiv 0.5 - 2.5 mm² Intre poli 2500 V/min Curent nominal 10 A PU 20 grad de protectie IP20 Conductor multifilar sertizat cu bucsa 0.5 - 2.5 mm² Tensiune nominala 300VAC LxIxA mm 16x102x43 Conductor multifilar 0.5 - 2.5 mm² Rezistenta dielectrica initiala ## Unitate de ambalare 1 m. Masa neta 0,04 kg/m Between contact and coil 4000 V/min COD COMANDA YRTS1030 Grad de poluare 3 Accesorii optionale YRS12024--;YRS13250--;YRS11730--;YRS16024--;YRS14730--;YRS11524--;YRS15730--;YRS14524--;YRS14524--;YRTS4000--;YRXT2000--;YRS60000-- Temperatura maxima a mediului ambiant 85 °C Tip conexiune Cleme elastice Temperatura minima a mediului ambiant -40 °C HxBxT mm 102x16x43 | Lungime | 43 mm | | Latime | 16 mm | | Inaltime | 102 mm | | Greutate | 0.04 kg |
|
|
|
|
|
