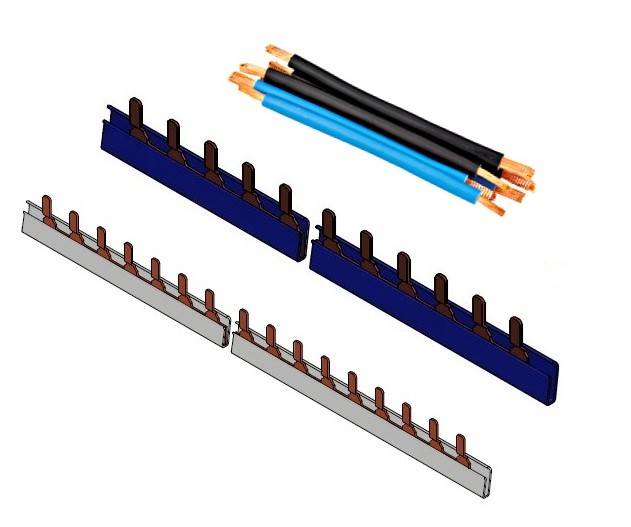

Set bareta alimentare lamela, 1P+N/1UH 10mm², 1m
Cod produs: BSA00170--
Marca: SCHRACK TECHNIK
Pret cu TVA: 176.77 Lei / buc.
|
|
|
|
Comanda instant - Set bareta alimentare lamela, 1P+N/1UH 10mm², 1m
|
Set bareta alimentare lamela, 1P+N/1UH 10mm², 1m
|
|
Specificatii Tehnice Min. air disdance ≥3,0mm PREG 1300 Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 Aplicatie siguranta automata, siguranta diferentiala, siguranta protecte linii (pas polar 17.8mm) Masa cupru 530,0000 gr. Versiune versiune cu pin Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 grad de protectie IP20 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Sectiune 10 mm² Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP COD COMANDA BSA00170 Unitate de ambalare 1 m. Max. current beginning 65A Accesorii optionale BSB00303--;BSA90108--;BSA90107--;BS990173-A;BS990172-A Standard produs EN 61439-1 Fabricant Schrack Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 Min. creepage distance ≥5,0mm Masa neta 0,53 kg/m Curent nominal de scurtcircuit conditionat ≤50kA Max. current middle 100A Accesorii bara furca pt.sigurante automate LxTxH mm 1012x6x21 | Lungime | 5.7 mm | | Inaltime | 21.2 mm | | Greutate | 0.53 kg |
|
|
|
|
|
