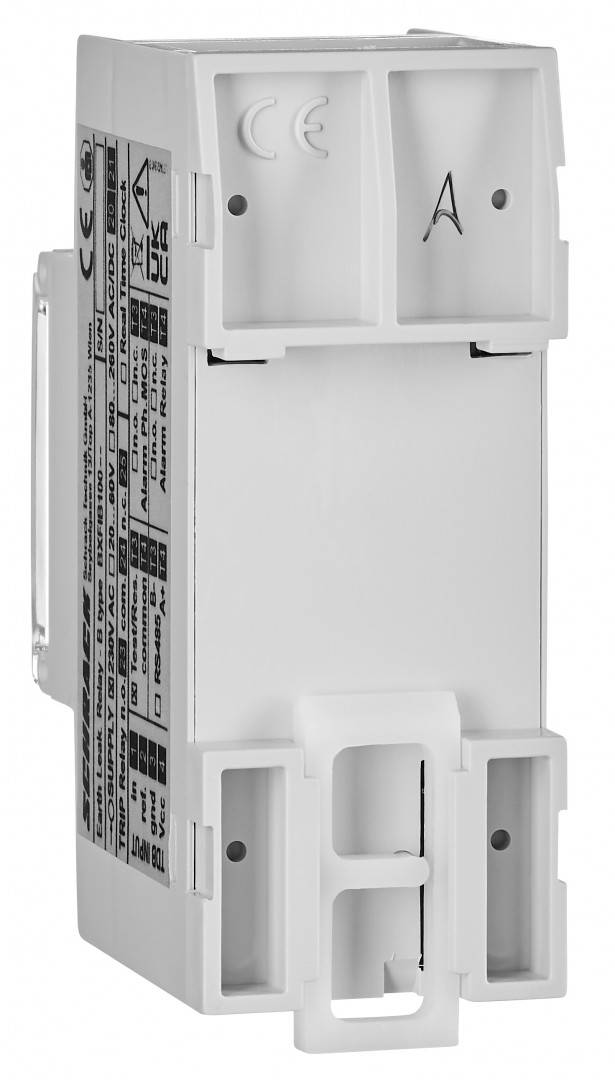

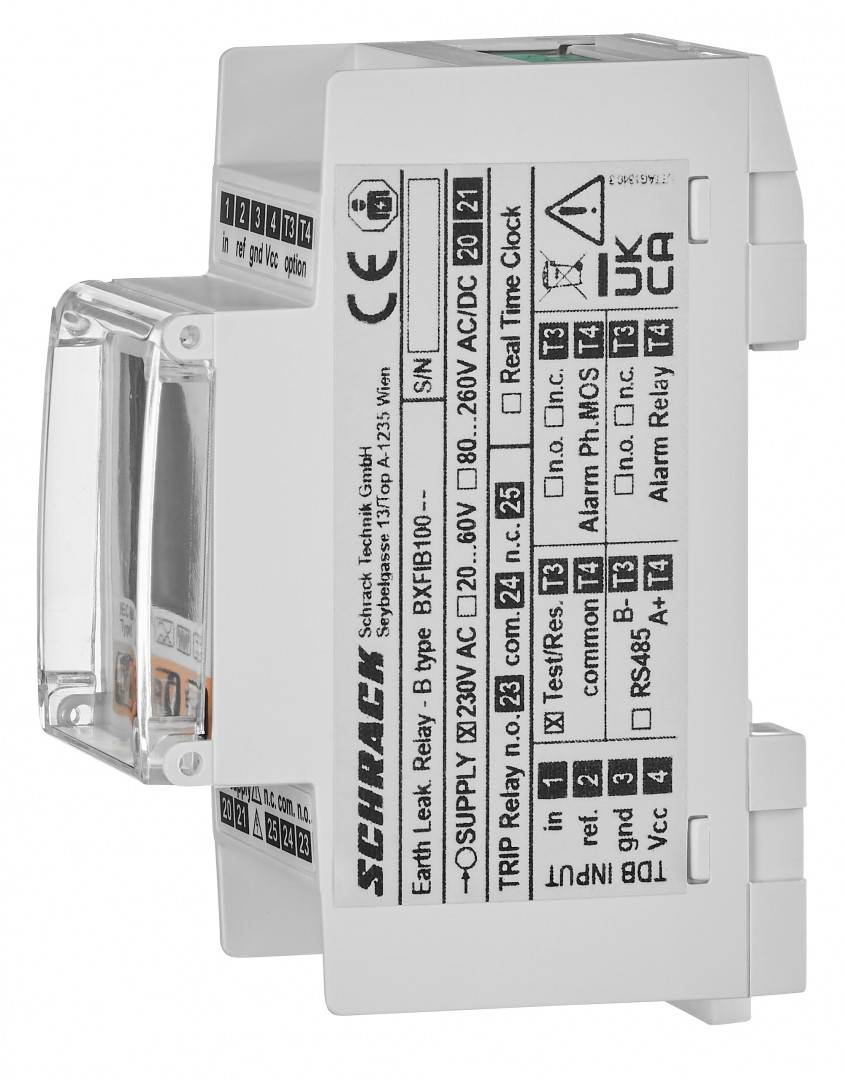

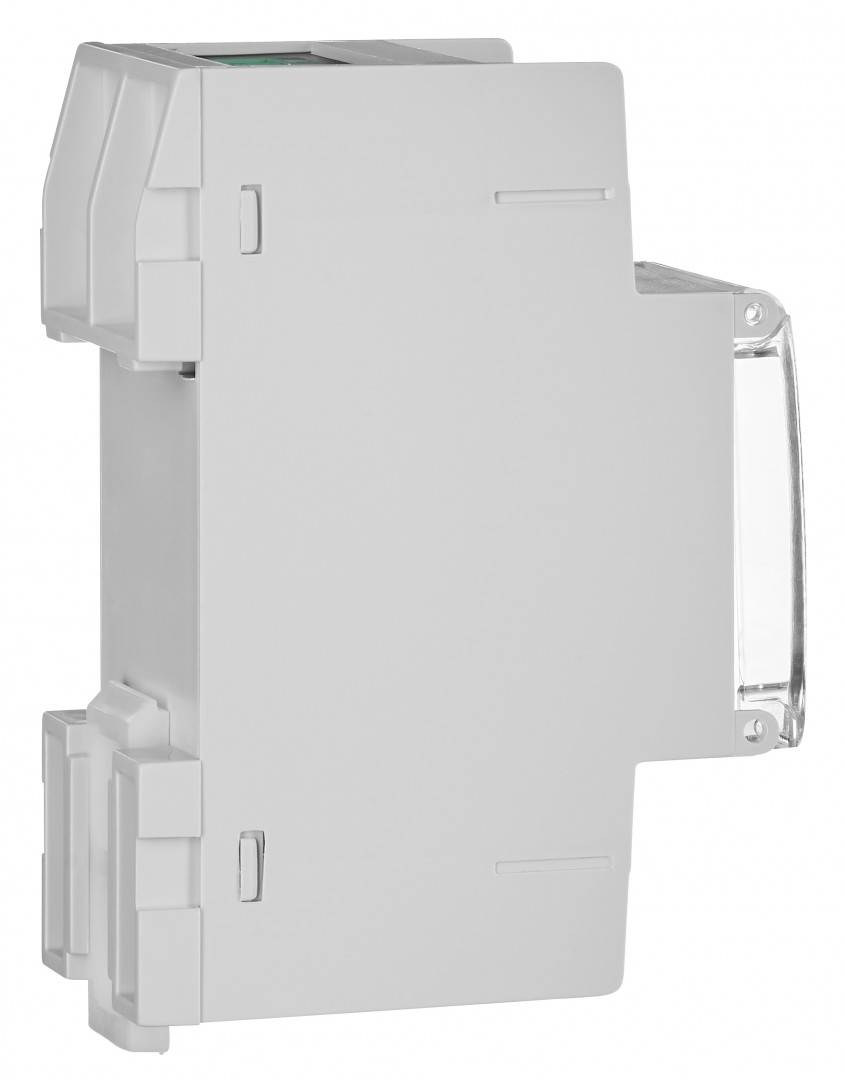

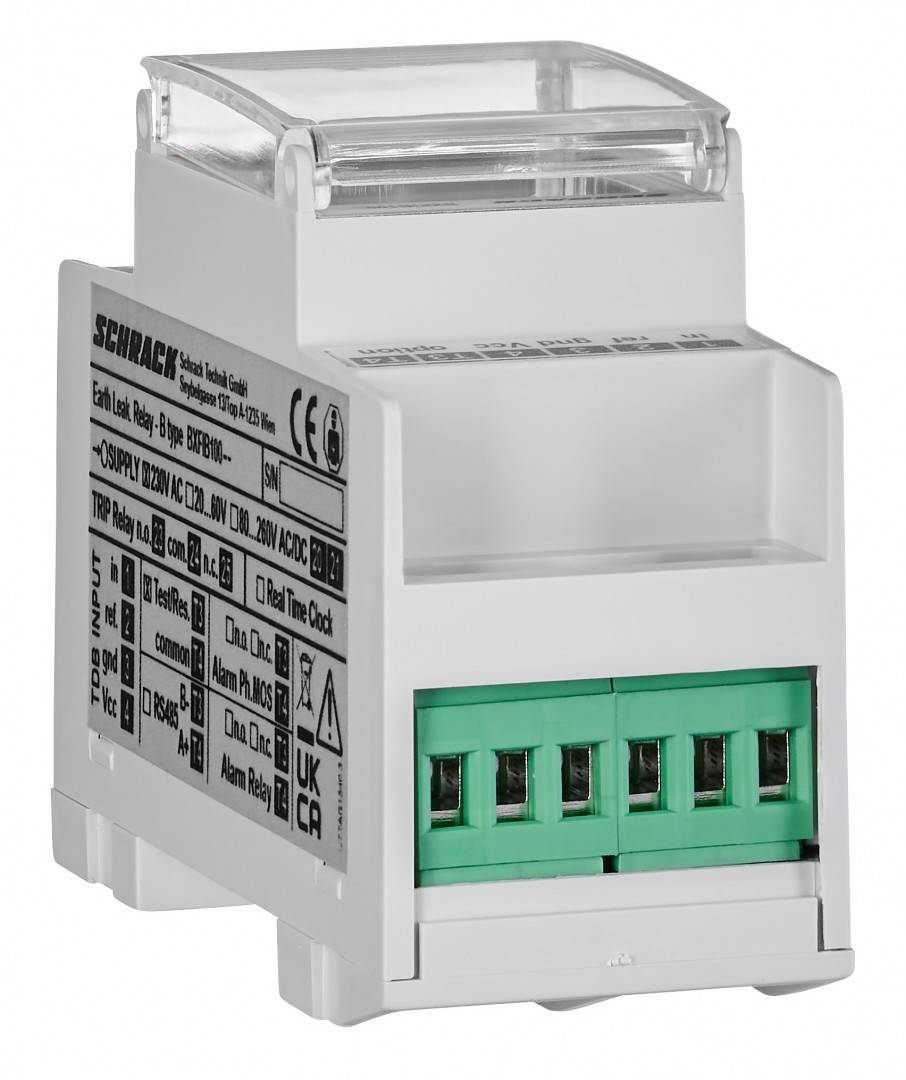

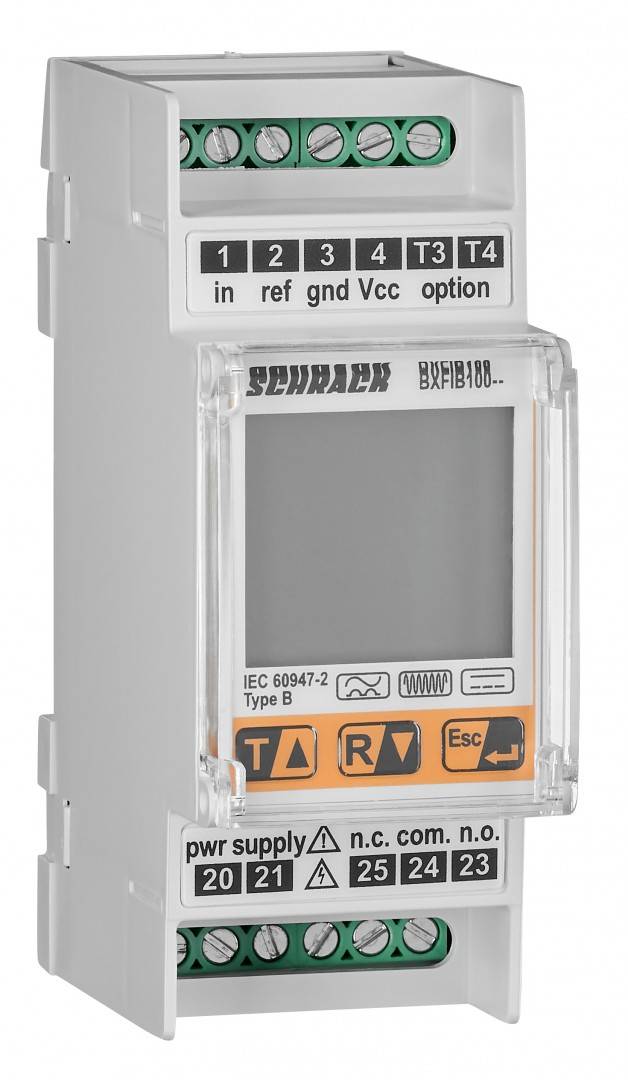

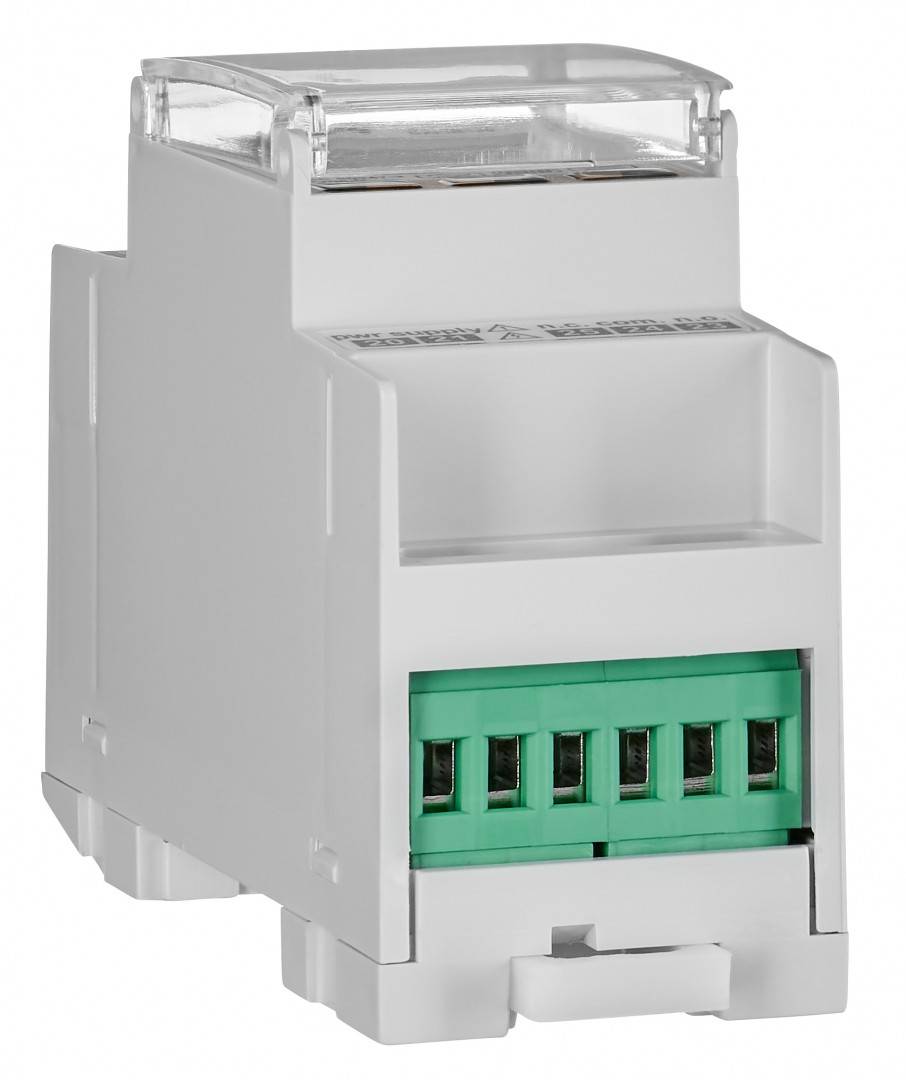

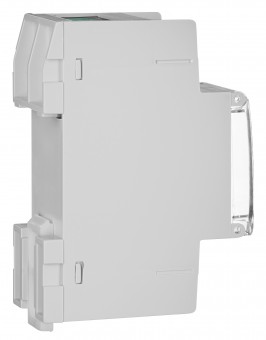

Releu deferential tip B, cu display LCD, de la 30mA la 30A

Automatic;10 Steps

2500

66x36x90

0,20 kg/m

BS017502--;BXFIB110--;BXFIB111--;BXFIB112--;BXFIB120--;BXFIB121--;BXFIB122--;BXFIB123--;BXFIB124--

0-100% IΔn

Self-extinguishing thermoplastic (UL 94-V0)

0 bis +50 °C

Montare cu inclichetare pentru sina 35 mm

tip B - TRMS

-30 la +70 °C

50 °C

230V c.a.;Backup fuse: Use a suitable circuit breaker rated at a maximum of 2 A (e.g., C2, 1+N 1TE / BS017502--)

EN 60947-2;EN 62423

1 m.

BXFIB100

3 digiti

IP20 (housing), IP20 (connections)

-10 °C

Bandwidth 2.5Hz - 10kHz;Direct Current - DC

Ecran LCD cu iluminare de fundal color;Rata de refresh 500ms

1,00 W

Harmonic filter at 3rd harmonic - 80% attenuation @ 150Hz;Harmonic filter according to IEC 62423, VDE 0664-T-100;Oberwellen Filter für Feuerschutz 300mA;Rated residual current I∆n: 30mA-30A;Non-tripping fault current I∆no: ≤80-98%;Inverted time-current characteristic: instantaneous: I∆n = 30mA (IEC60947-2 Tab.B.1);Inverted time-current characteristic: Selective 60ms: I∆n < 30mA (IEC60947-2 Tab.B.2);Inverted time-current characteristic: Delayed 20ms - 30s: I∆n < 30mA;Constant time-current characteristic: instantaneous 20ms: I∆n = 30mA ;Constant time-current characteristic: delayed 20ms-30s: I∆n > 30mA ;Quiescent current setting I∆NDC (DC component): 5-100% I∆NDC (min.6Adc);Automatic trip retry: 0-10x;Trip contact: Trip contact SPDT, 5A 250Vac;Rated load at 250VAC, AC1: 6A;Rated load at 250VAC, AC15: 3A;Rated load at 24VDC, DC1: 6A;Rated load at 24VDC, DC13: 2A

Precizie de baza +/-0.5%

Insulation and safety according to ICE 61010-1, IEC60947-1;Standard (ND) or positive (NE)

Screw terminal max 2.5mm²
