Specificatii Tehnice
metoda de masurare
tip A
PREG
2500
Standard
EN 60947-2
grad de protectie
IP40 (carcasa), IP20 (conexiuni)
Isolation test voltage
2 kV R.M.S 50 Hz/1min
Material
Self-extinguishing thermoplastic (UL 94-V0)
Gama de temperatura - Functionare
0 bis +50 °C
Metoda de montaj
Montare cu inclichetare pentru sina 35 mm
Gama de temperatura - Transport/Depozitare
-30 la +70 °C
Temperatura maxima a mediului ambiant
50 °C
Masa neta
0,23 kg/m
COD COMANDA
BXFIA100
Technical data

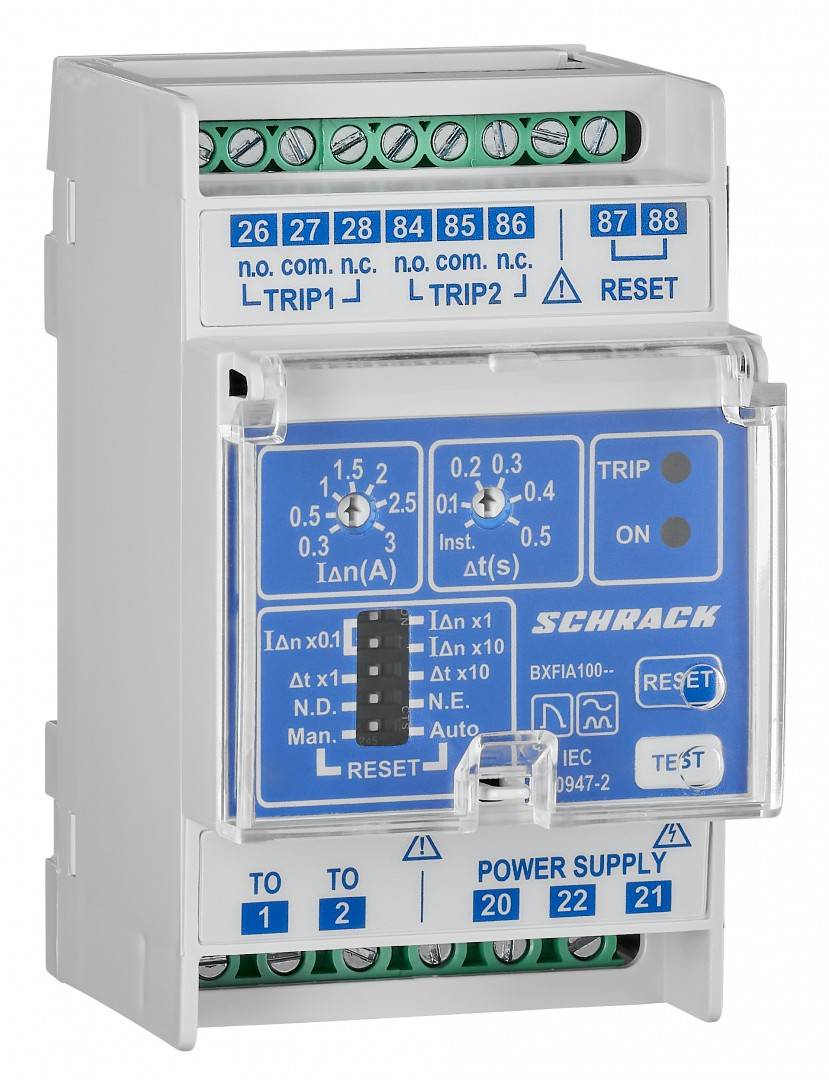

Current setting range: 30mA - 30A;Delay time: 0.1 - 5 sec.;Delay accuracy: +/-10% of the set value;Frequency response range: 47 - 63Hz;Harmonic filter at 3rd harmonic - 88% attenuation @ 150Hz;Trip contact: Trip contact SPDT, 5A 250Vac;Alarm contact: Trip contact SPDT, 5A 250Vac;Action type: N.E - N.D. selectable;Connection test transformer: continuous
alimentare
230V c.a.;Backup fuse: Use a suitable circuit breaker rated at a maximum of 2 A (e.g., C2, 1+N 1TE / BS017502--)
Unitate de ambalare
1 m.
LxBxH mm
66x54x90
Temperatura minima a mediului ambiant
-10 °C

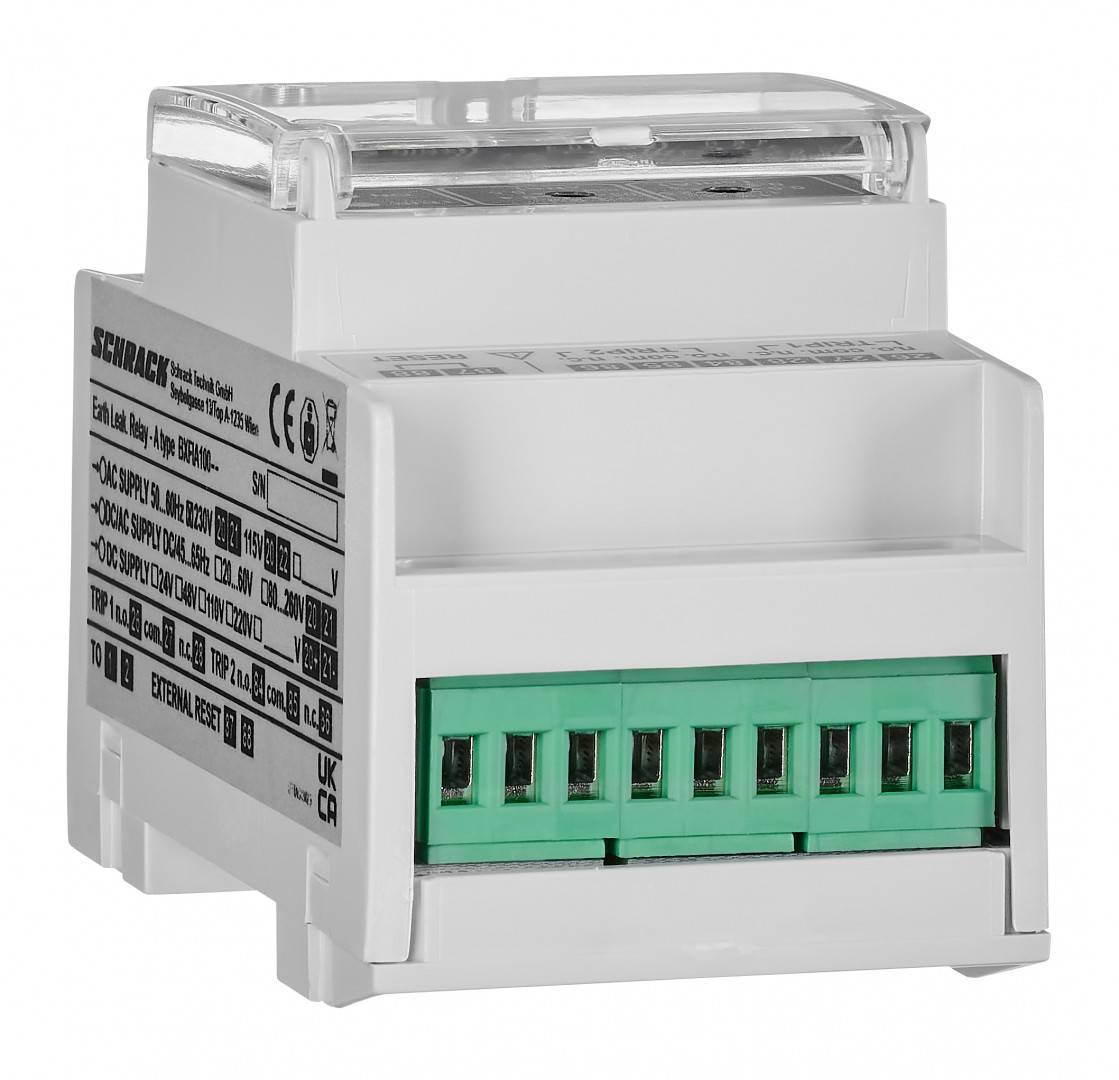

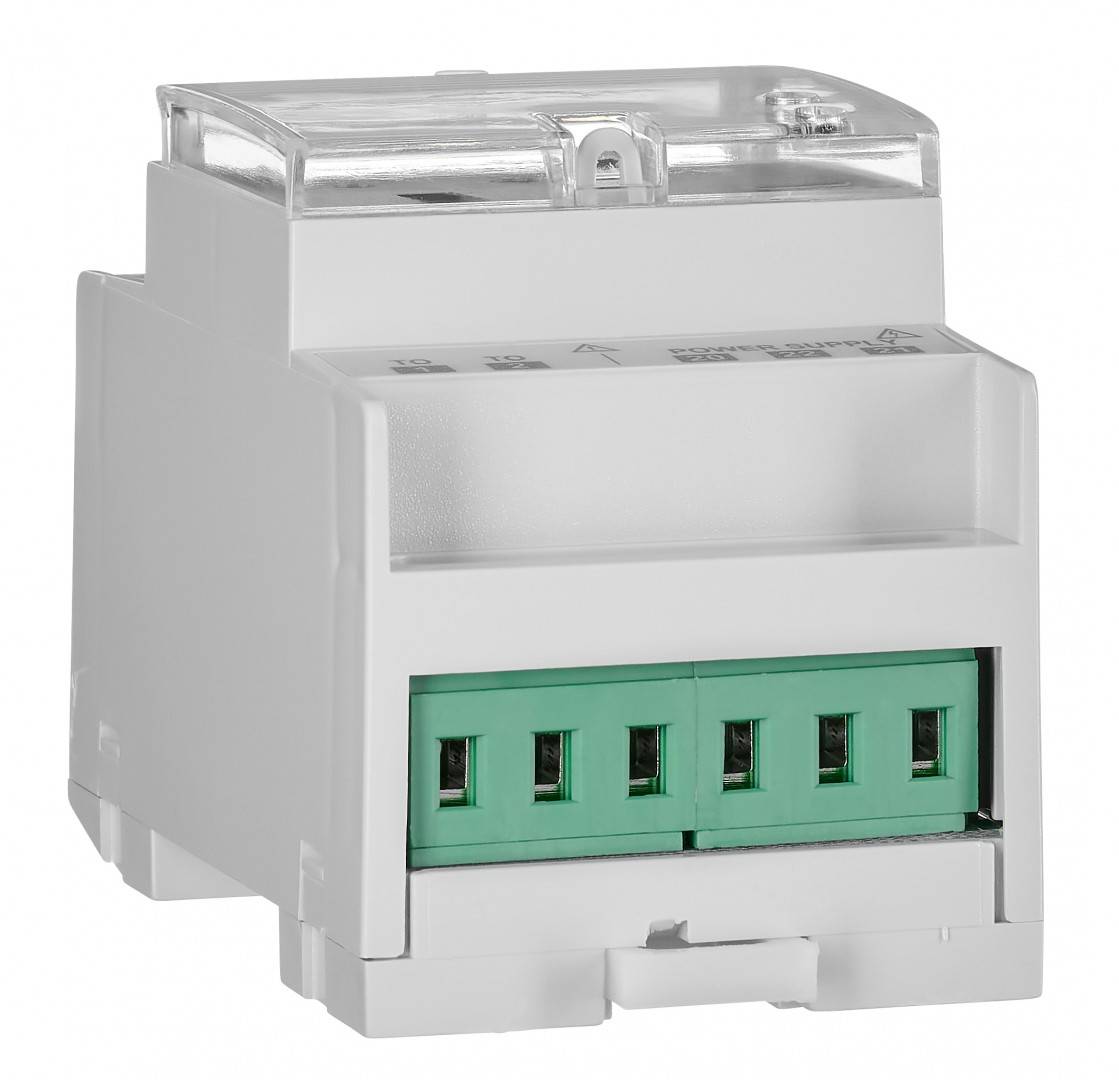

Terminal type
Screw terminal max 2.5mm²
Precizie
+0 - 20% (de la 20%-100%)
Accesorii optionale
BS017502--;BXFIA110--;BXFIA111--;BXFIA112--;BXFIA113--;BXFIA114--;BXFIA115--;BXFIA116--;BXFIA117--;BXFIA118--;BXFIA130--;BXFIA131--;BXFIA132--
disipare
1,50 W
| Lungime | 66 mm |
| Latime | 54 mm |
| Inaltime | 90 mm |
| Greutate | 0.23 kg |
