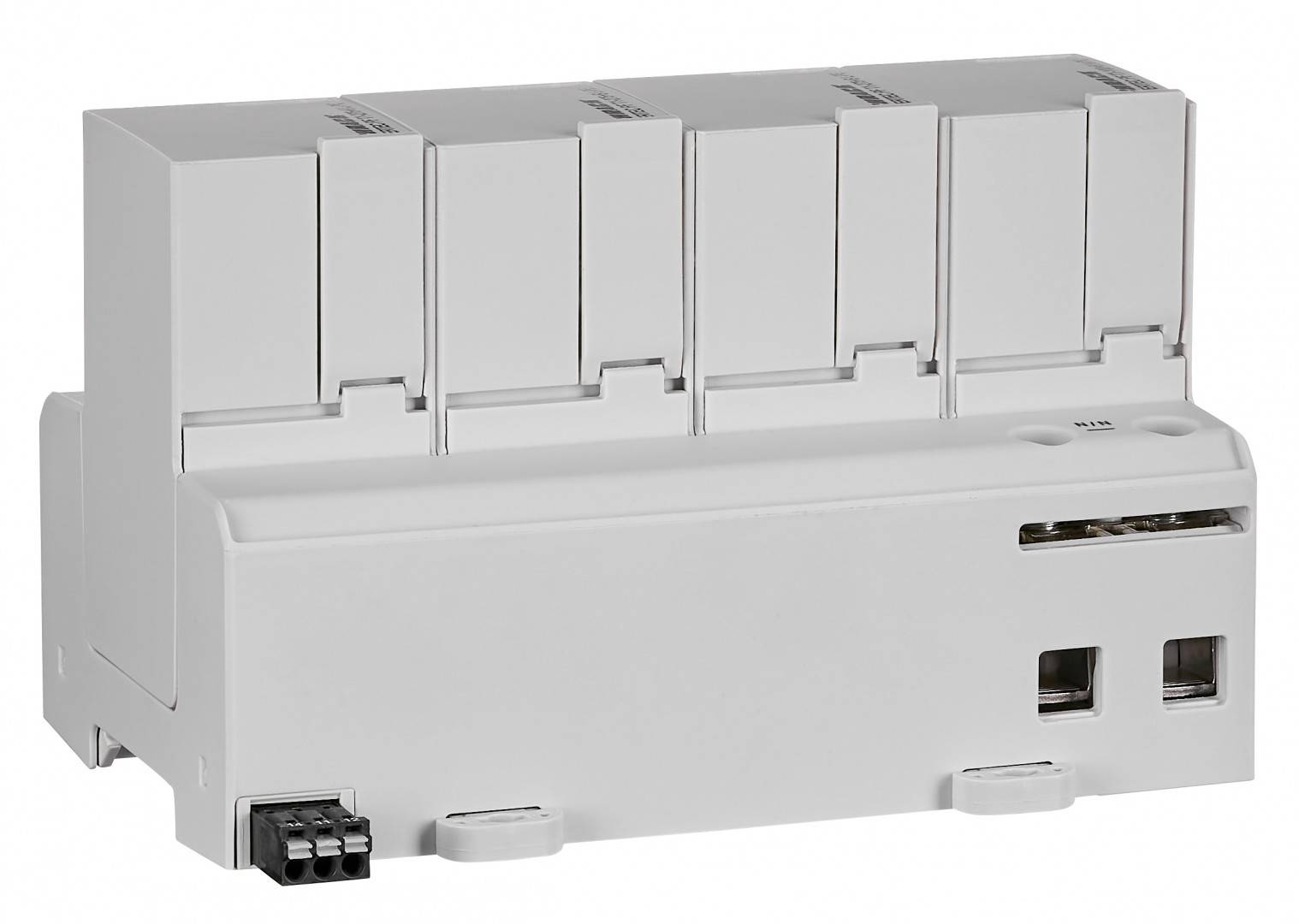

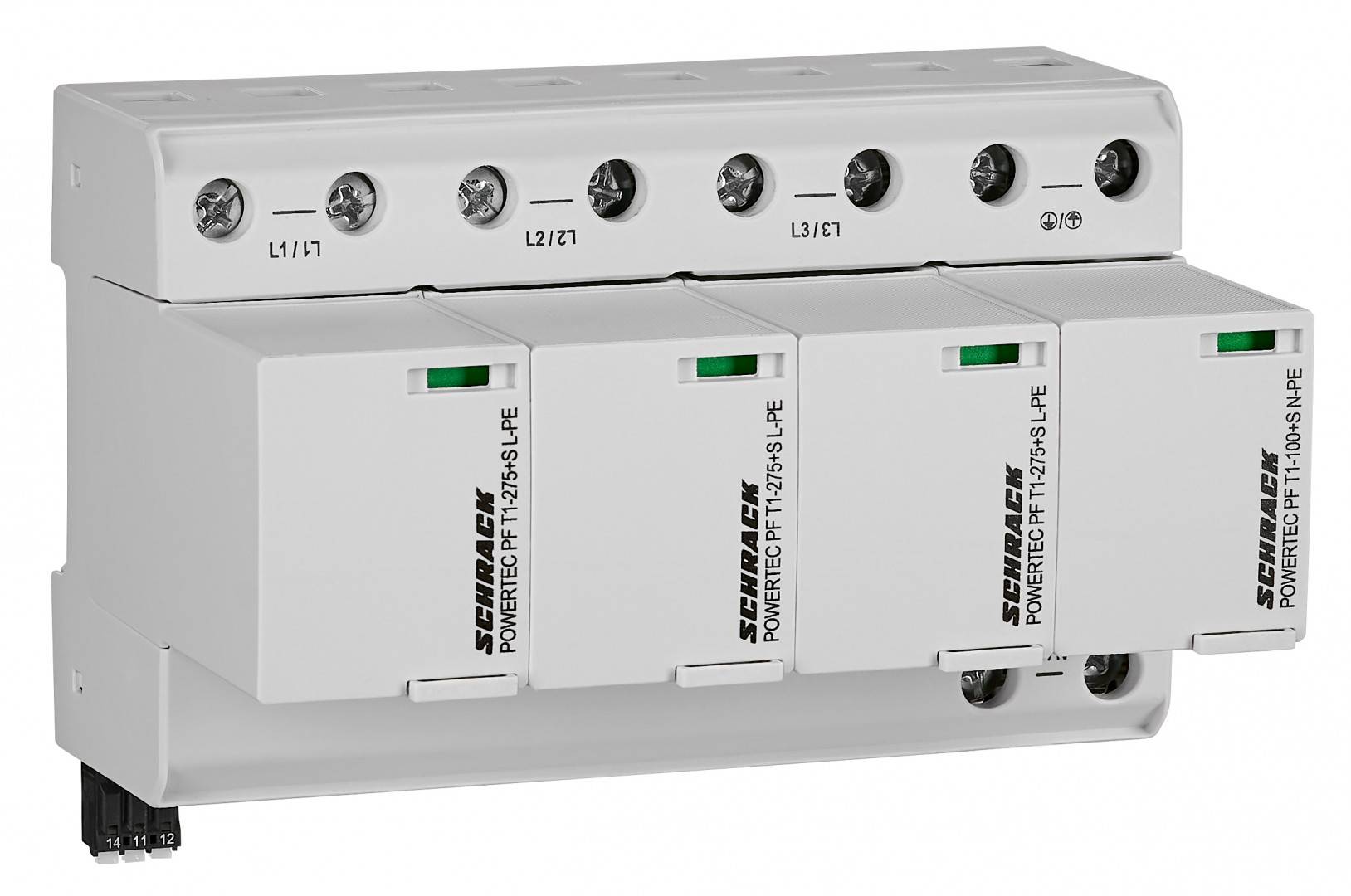

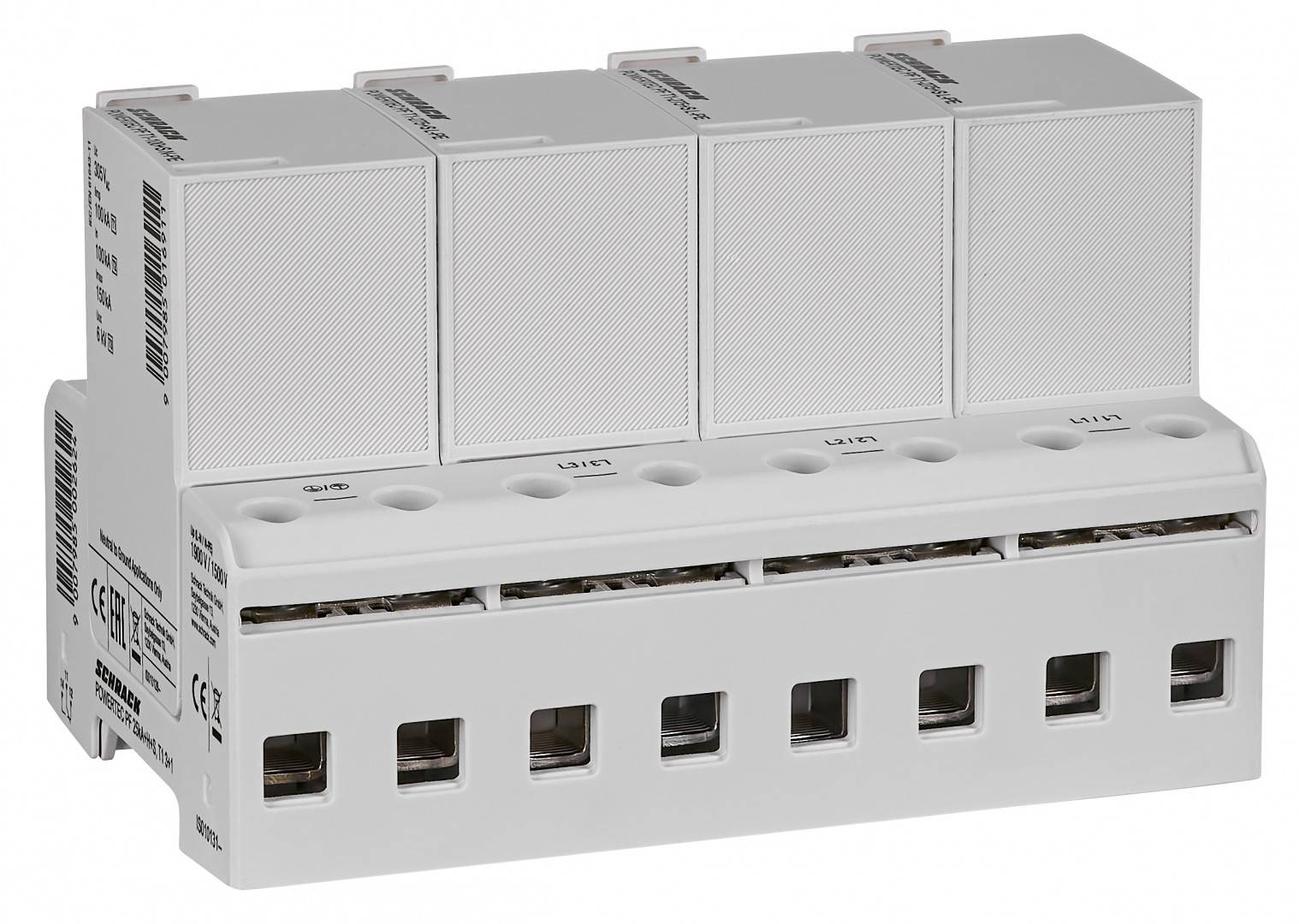

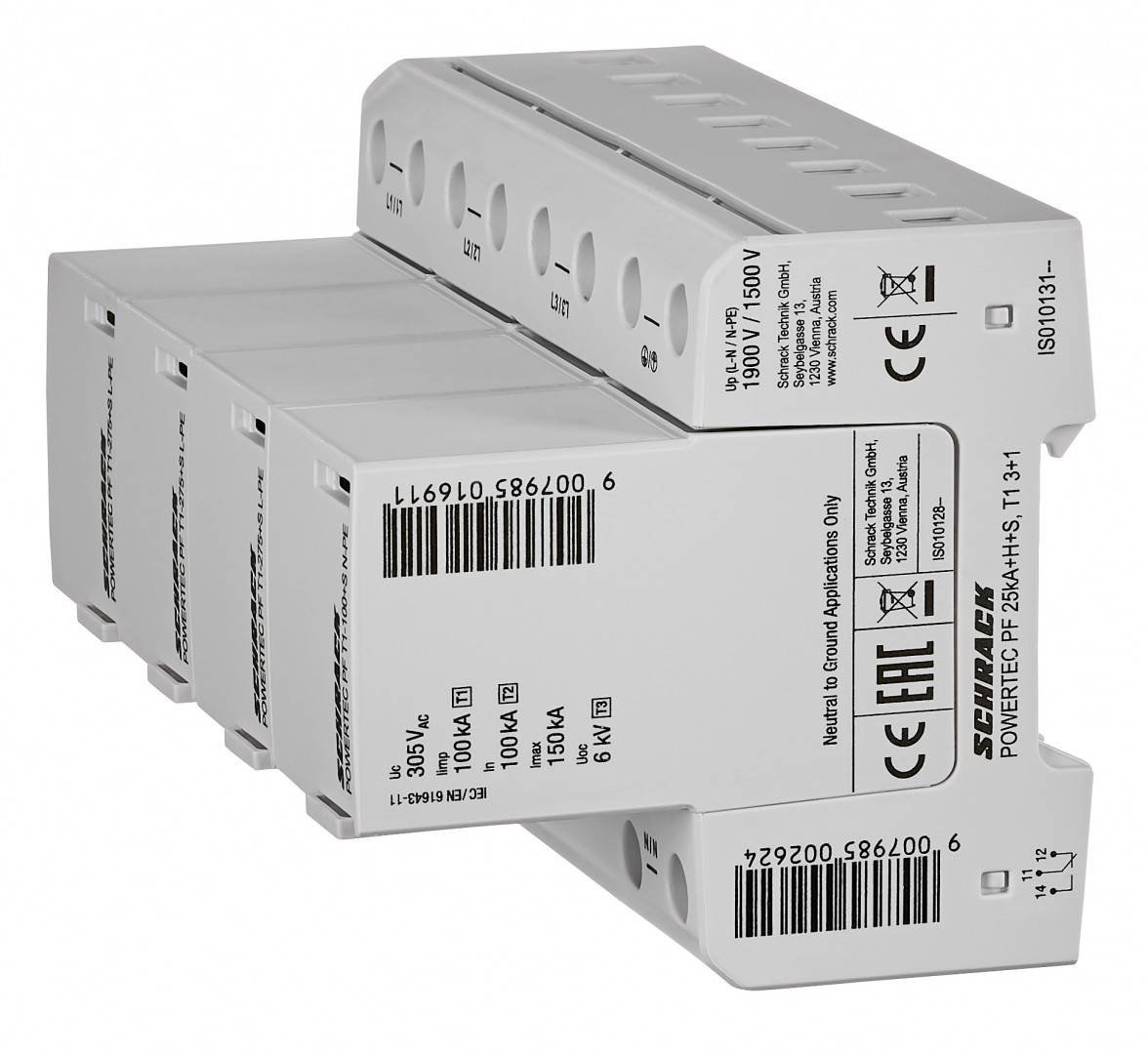

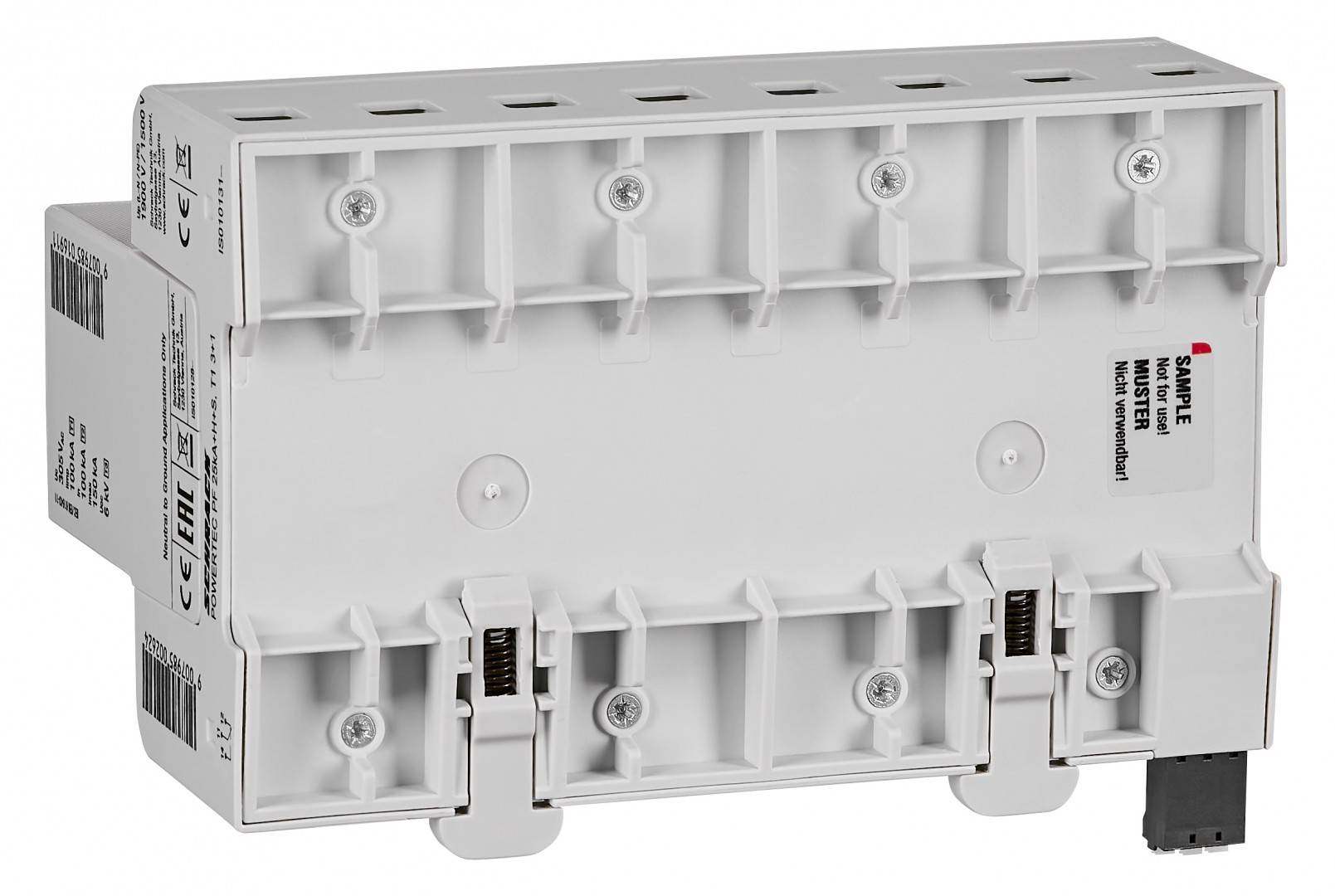

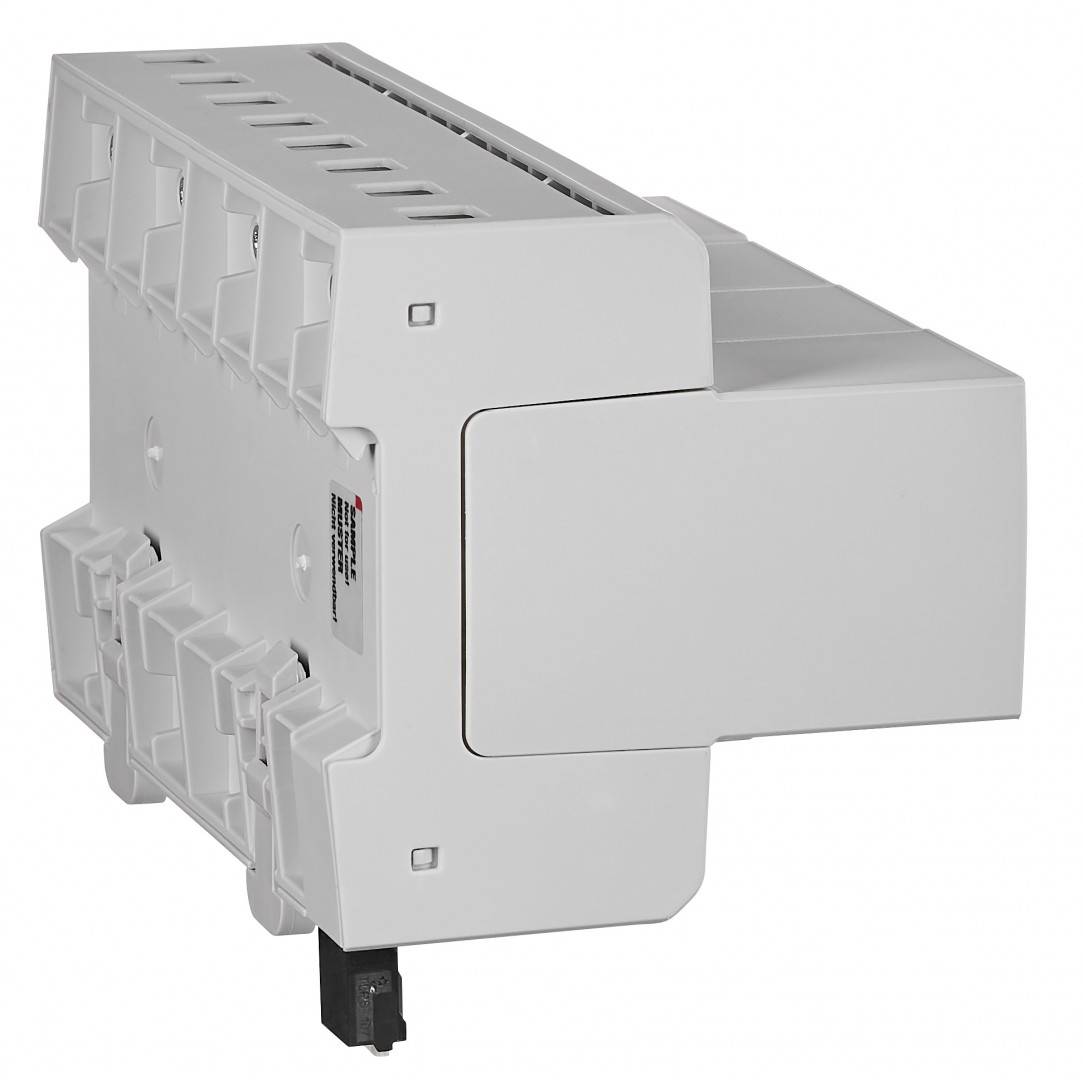

POWERTEC PF 25kA +H, T1 275, 3+1, pluggable, integr. fuse
Cod produs: IS010131--
Marca: SCHRACK TECHNIK
Pret cu TVA: 5020.46 Lei / buc.
|
|
|
|
|
|
Comanda instant - POWERTEC PF 25kA +H, T1 275, 3+1, pluggable, integr. fuse
|
POWERTEC PF 25kA +H, T1 275, 3+1, pluggable, integr. fuse
|
|
Specificatii Tehnice PREG 1400 Tensiune nominala maxima AC 275(L-PE)/305(N-PE) VAC PU 2 COD COMANDA IS010131 TOV SafeFail 120min (L-N) 442 V Timp de raspuns <100 ns Charge 12,5(L-N)/50(N-PE) As Nivel de protectie 1900(L-PE)/1500(N-PE) kV Curent descarcare nominal 25(L-N)/100(N-PE) kA Open Circuit Voltage of Combination Wave Generator (1,2/50μs) 6 kV LxBxH mm 144x86x90 disipare 7,20 W Tensiune nominala 240VAC Short Circuit Current of Combination Wave Generator (8/20μs) 3 kA Simbol CAD F Unitate de ambalare 1 m. TOV Withstand 200ms (N-PE) 1200 V Impuls de curent 25(L-N)/100(N-PE) kA Capacitate de comutare a curentului de urmarire 100 A Module 8 Masa neta 1,29 kg/m Temperatura maxima a mediului ambiant 85 °C Temperatura minima a mediului ambiant -40 °C Rezistenta la scurtcircuit 100 Curent descarcat maxim 65(L-N)/150(N-PE) kA Circuit 3+1 Contact semnalizare da Overcurrent Protection (max) nicht notwendig A gG Specific Energy 156,20 kJ/Ω | Lungime | 144 mm | | Latime | 86 mm | | Inaltime | 90 mm | | Greutate | 1.29 kg |
|
|
|
|
|
