Specificatii Tehnice
Impedanta de transfer
@ 1 MHz = ≤ 100mΩ
@ 10 MHz = ≤ 200mΩ
@ 80 MHz = ≤ 1600mΩ
Suprafata de contact
30µm Au
Masa neta
0,03 kg/m
PROMO CODE CH
5921-0004-18
Clasa
EA acc. to ISO/IEC 11801 Amendment 1/2 Link length typ 2m, in combination with a CP cable: CP-Linkt typ. ≥10m 10GbE is supported
Temperatura maxima a mediului ambiant
70 °C
Porturi
1
Impachetare
Biodegradabil
Material de contact
Otel elastic
Serie
S-JACK
Placa suport contact
PC galben (RAL1021)
Protectie la patrunderea apei
IPX0
COD COMANDA
HSEMRJ6GS2
RoHS
Conform cu directiva EU 2002/95/EC
Accesorii optionale
HSPTOOL1--;HTOOL00012;HTOOL00002;HTOOL00005;HSEKB0020-;HSEKB1800-;HSEKP422BB;HSEKP422HP;HSEKP423CB;HSKP423PP5;HSER0240GZ;HSER0240GS;HSERH010GS;HSED02UW2S;HSED02UWBS;HSED02UMBV;EV104314--;EV104312;EV105301--;H6GTG01K0G;H6GTG02K0G;H6GTG03K0G;H6GTG05K0G;HSEMRJZS01
Reducerea tensiunii
Stainless steel
Masca de protectie la praf
Policarbonat transparent
Forta de insertie
≤ 30 N
PCB
FR4
Diametru de izolare
5-9 mm
Categorie
Cat.6a/10GB
Carcasa de izolare
Blue (RAL5005)

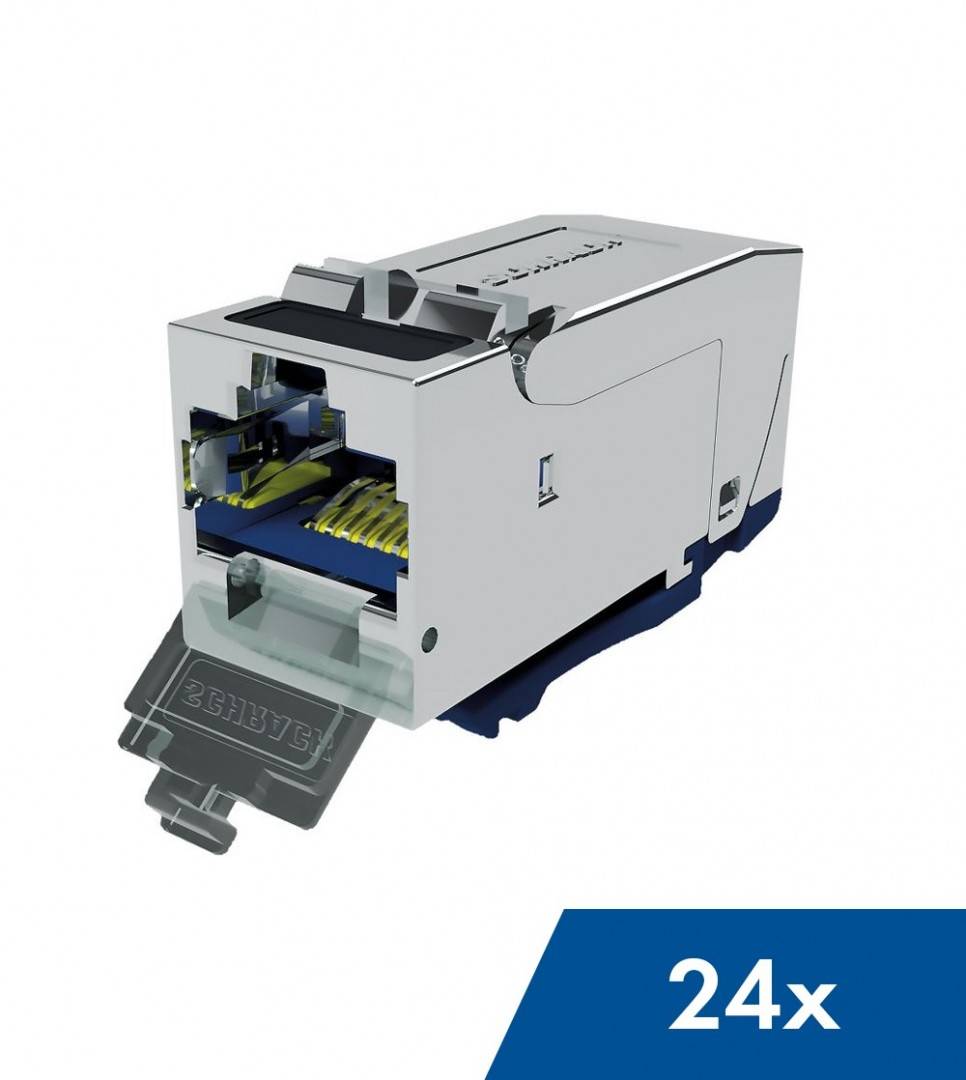

PU
24
Fabricant
Schrack
Protectie la patrunderea corpurilor straine
IP2X
Conector standard
IEC 60603-7-51
Stabilitate dielectrica contact-contact
≥ 1000 (DC) V
Ecranaj
ecranat
Diametru conductor
solid 0,51-0,65mm
AWG24/1 - AWG 22/1
COD PROMO
5921-0002-74
Produs

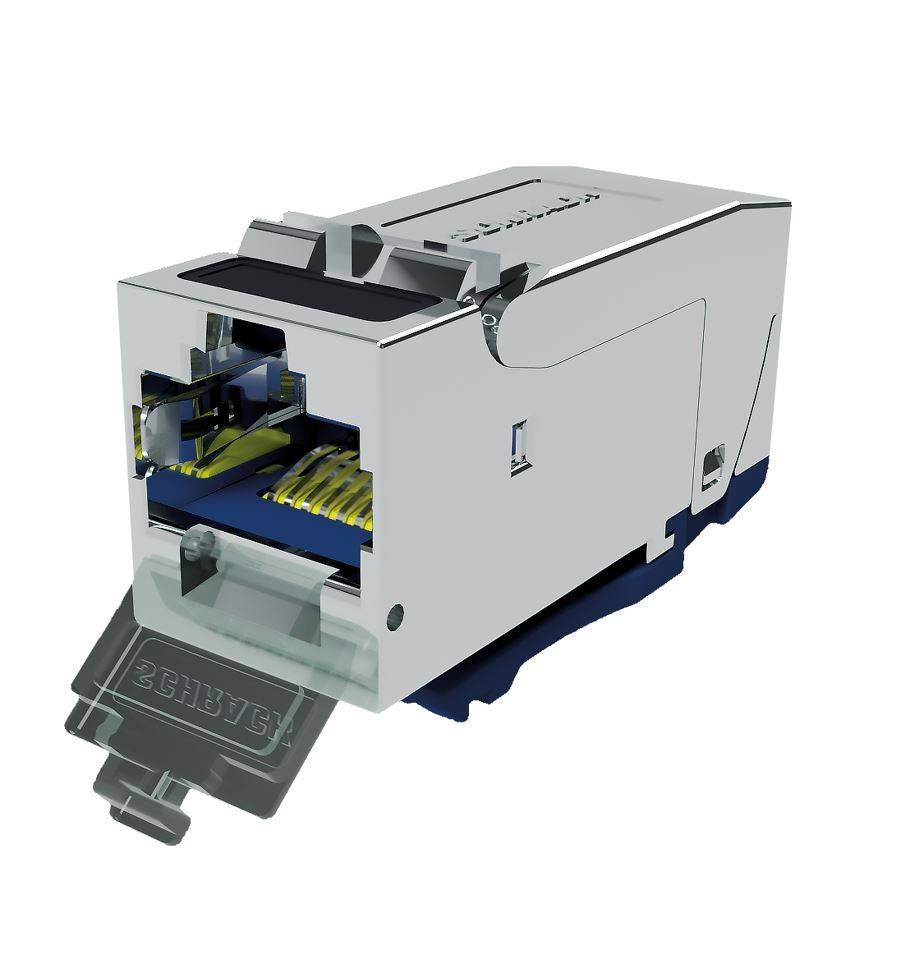

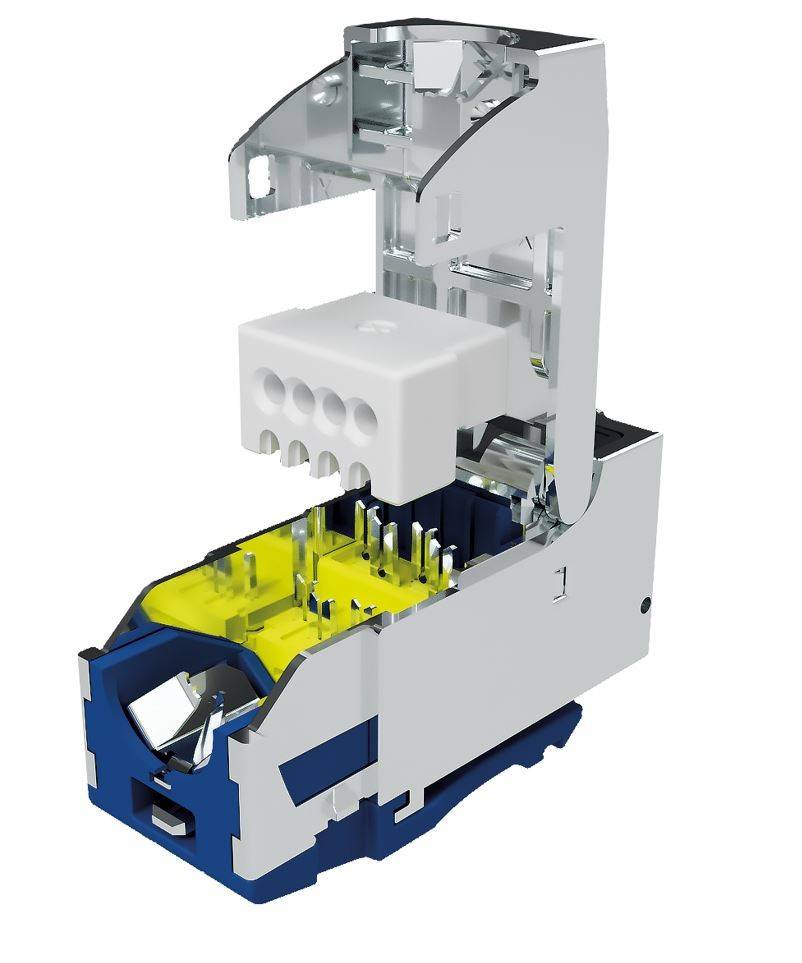

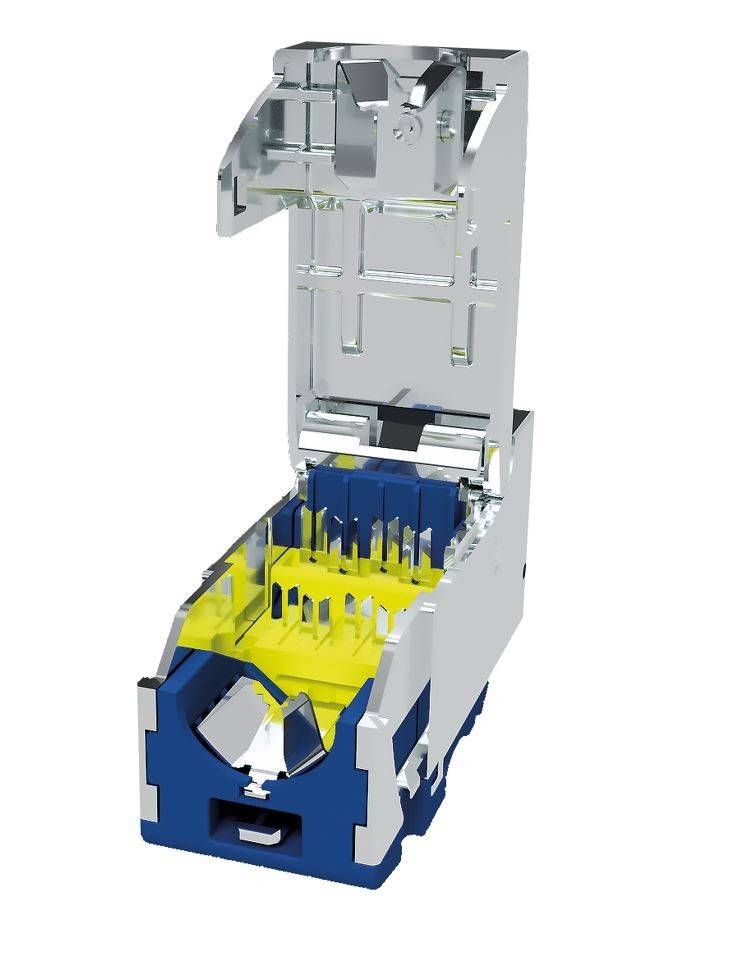

Modul conector
Reutilizabil (Modul)
≤ 5 cicluri cu acelasi diametru
4PPoE
Da
Rezistenta izolatie
≥ 500MΩ MΩ*km
Cicluri de conectare
≥ 2500
Temperatura minima a mediului ambiant
-40 °C
Rezistenta de contact
≤ 20 mΩ
IDC
CuNi2Si
Finisaj PCB
Chem. Ni/Au
LxBxH mm
37x14x22
PREG
5100
Suprafata
nichel placat
Ecranaj
Otel inoxidabil
Voltage proof - contact-shield
≥ 1500 (DC) V
Format SCHRACK
SFB
Carcasa
Zinc turnat

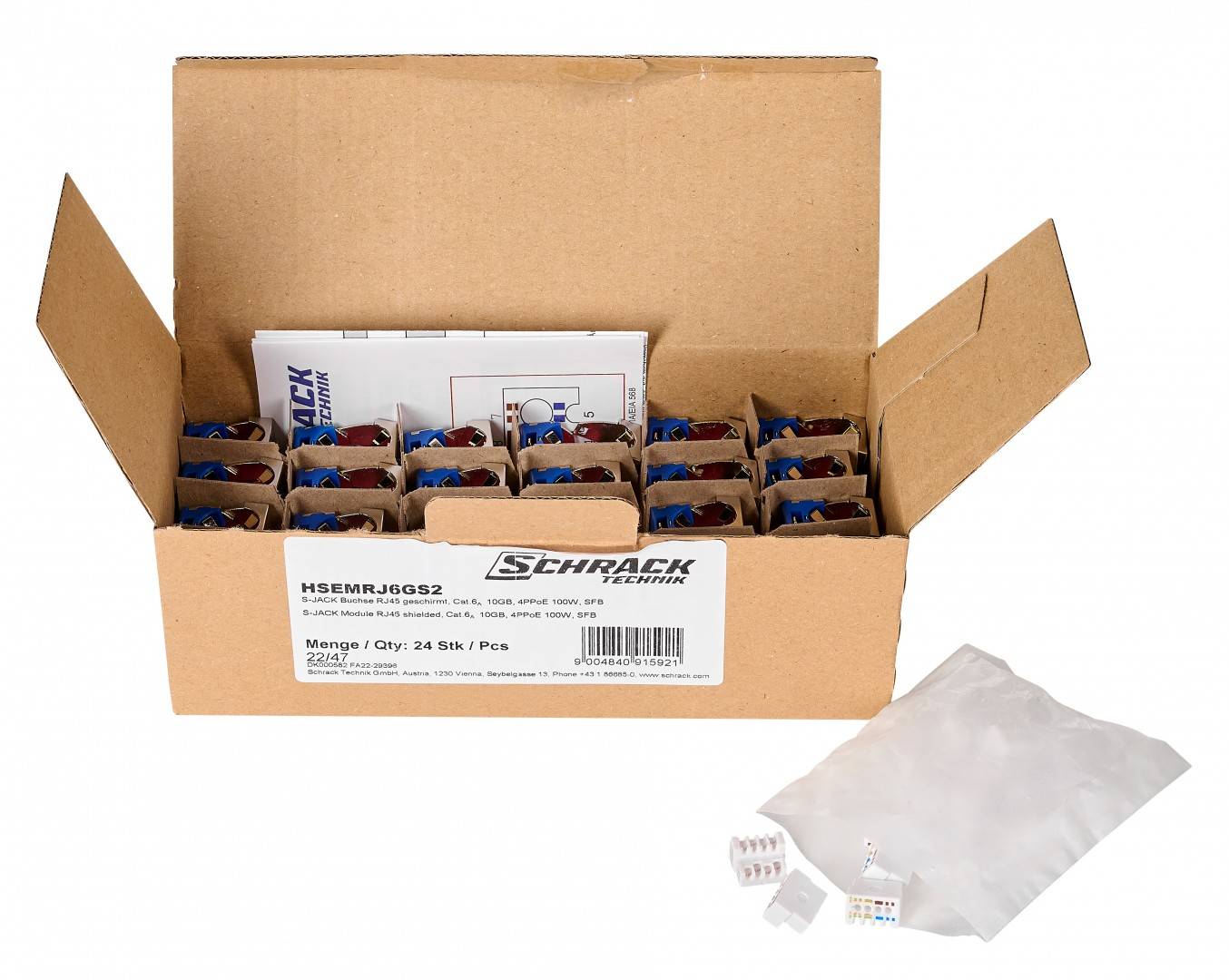

Unitate de ambalare
24 m.
Finisare IDC
min. 3-6 µm (120-240µin) Sn
| Lungime | 36.6 mm |
| Latime | 14.4 mm |
| Inaltime | 21.6 mm |
| Greutate | 0.03 kg |
