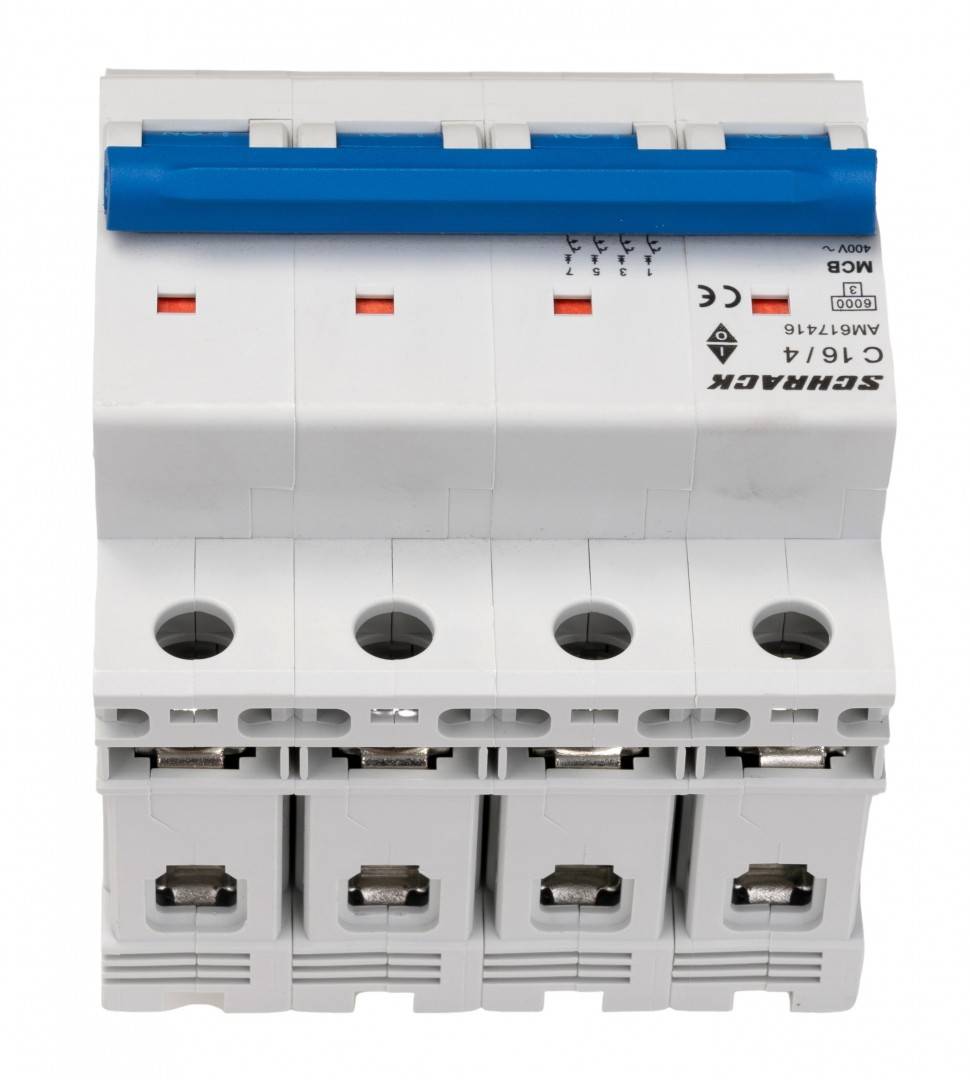

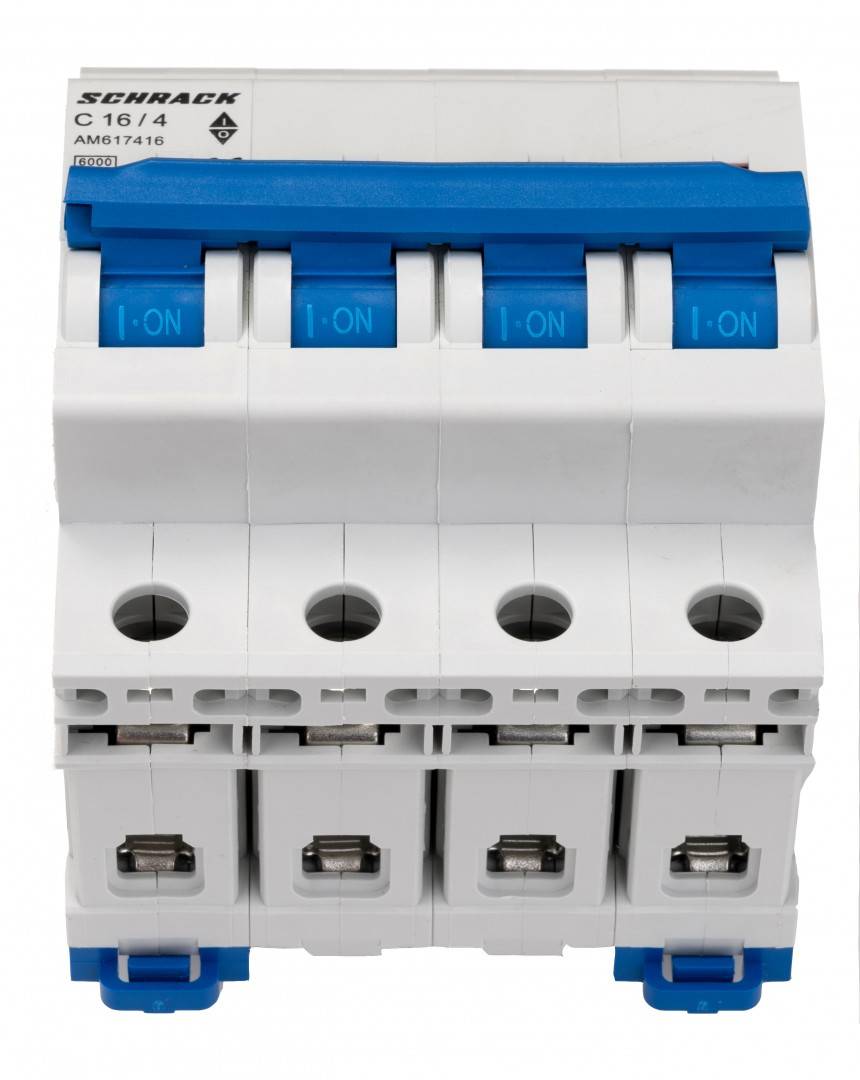

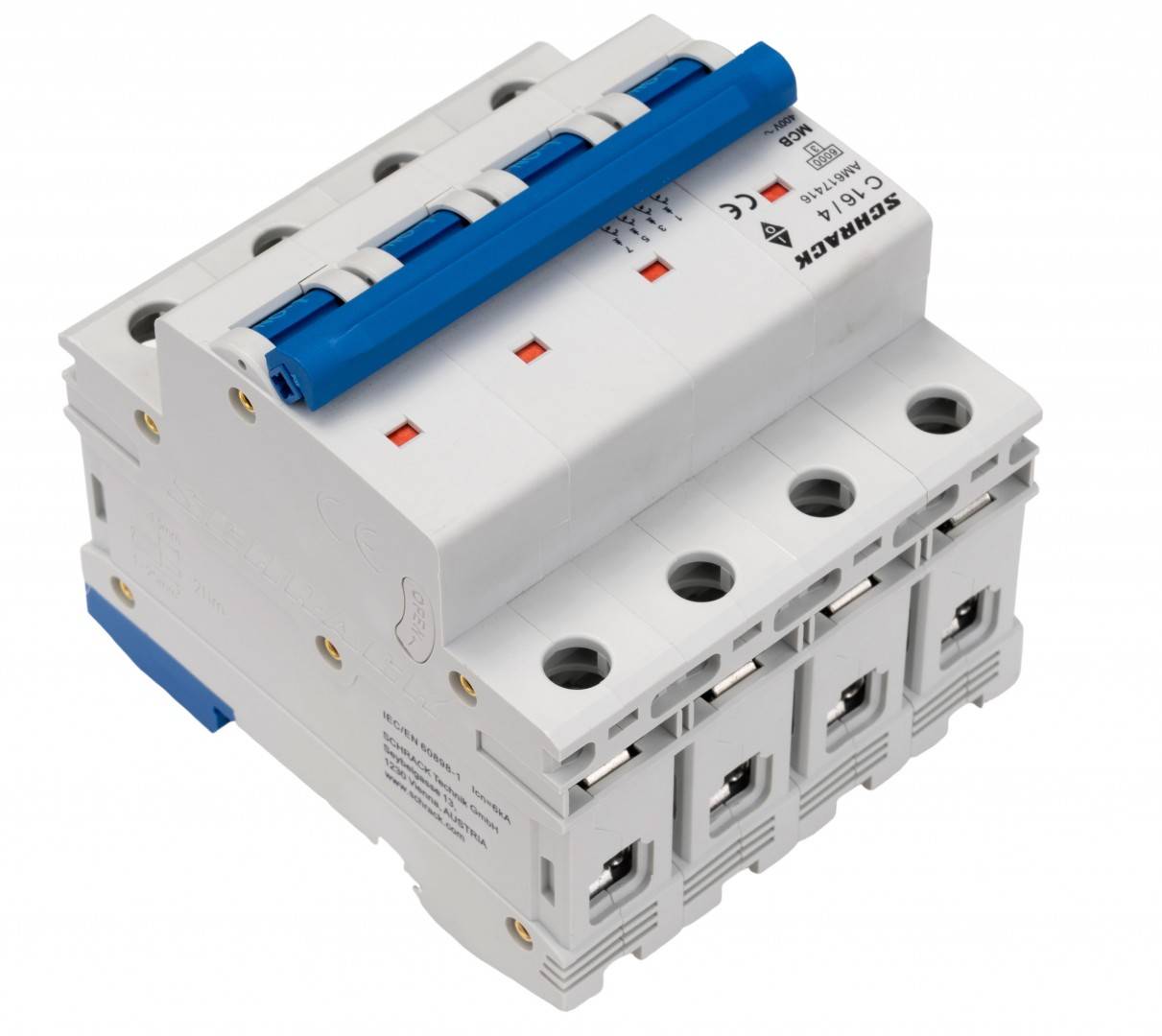

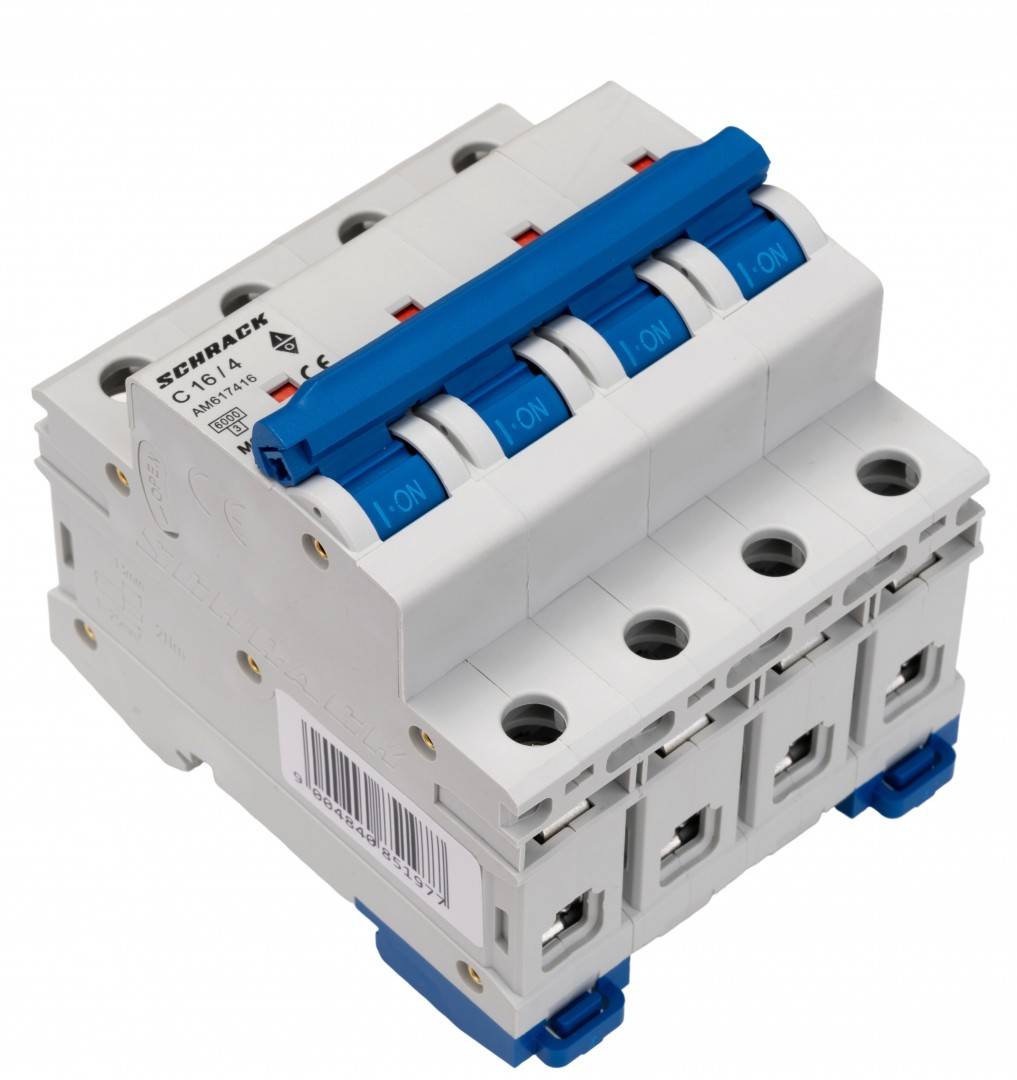

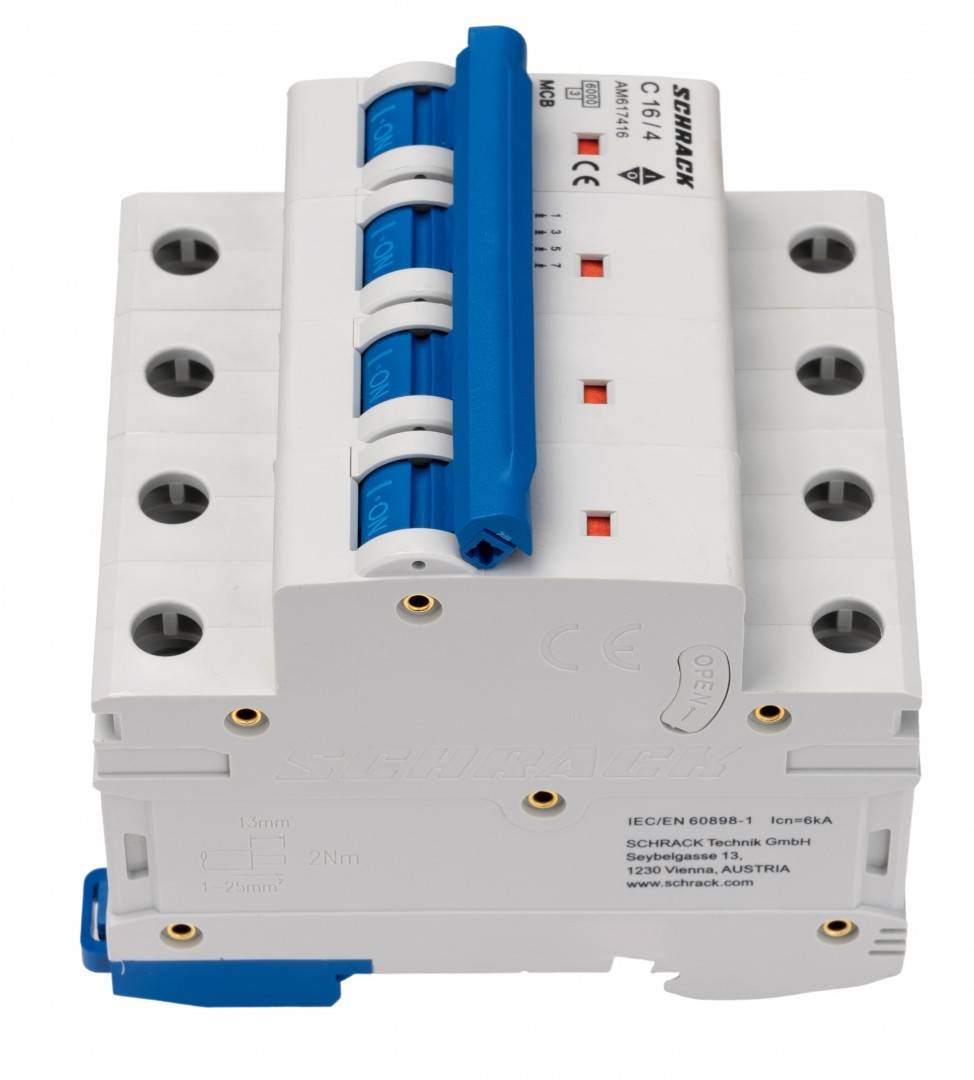

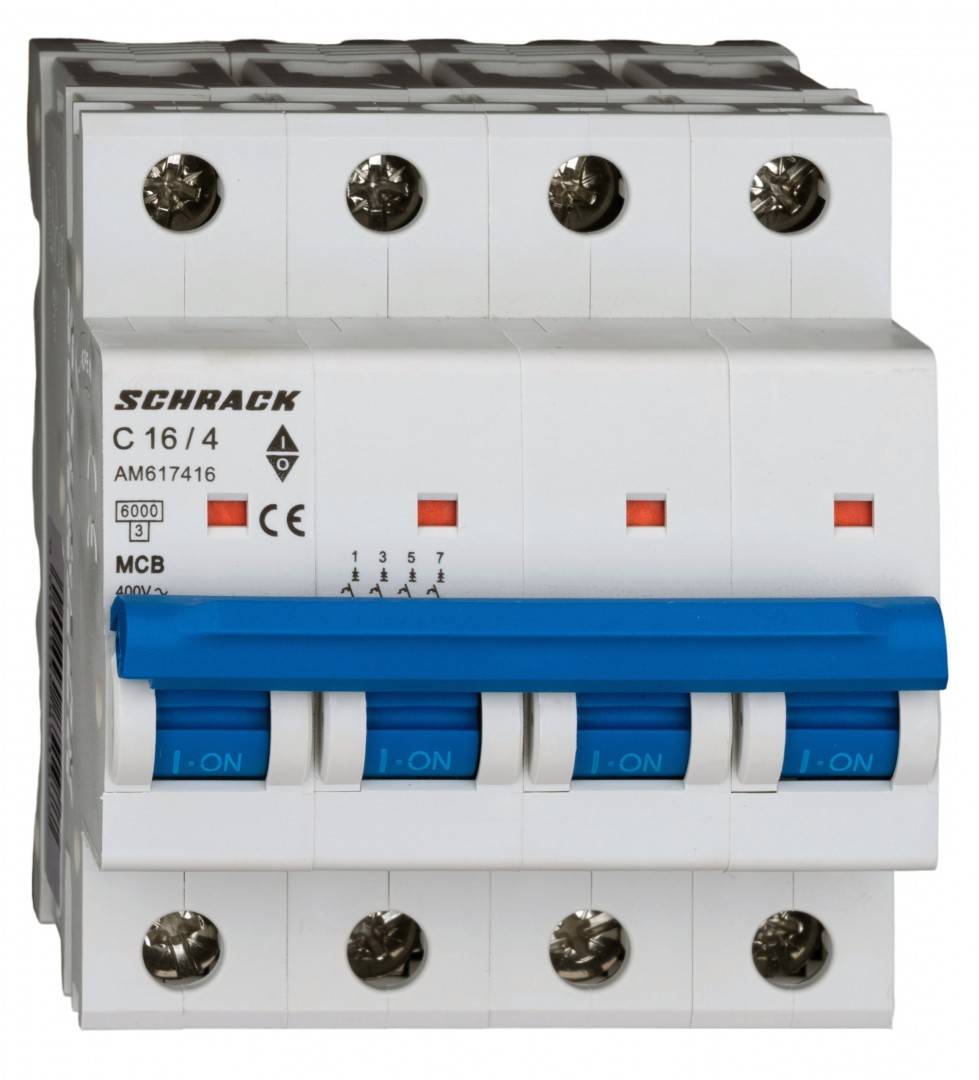

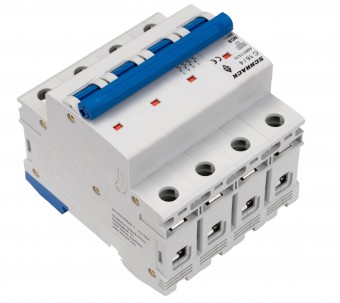

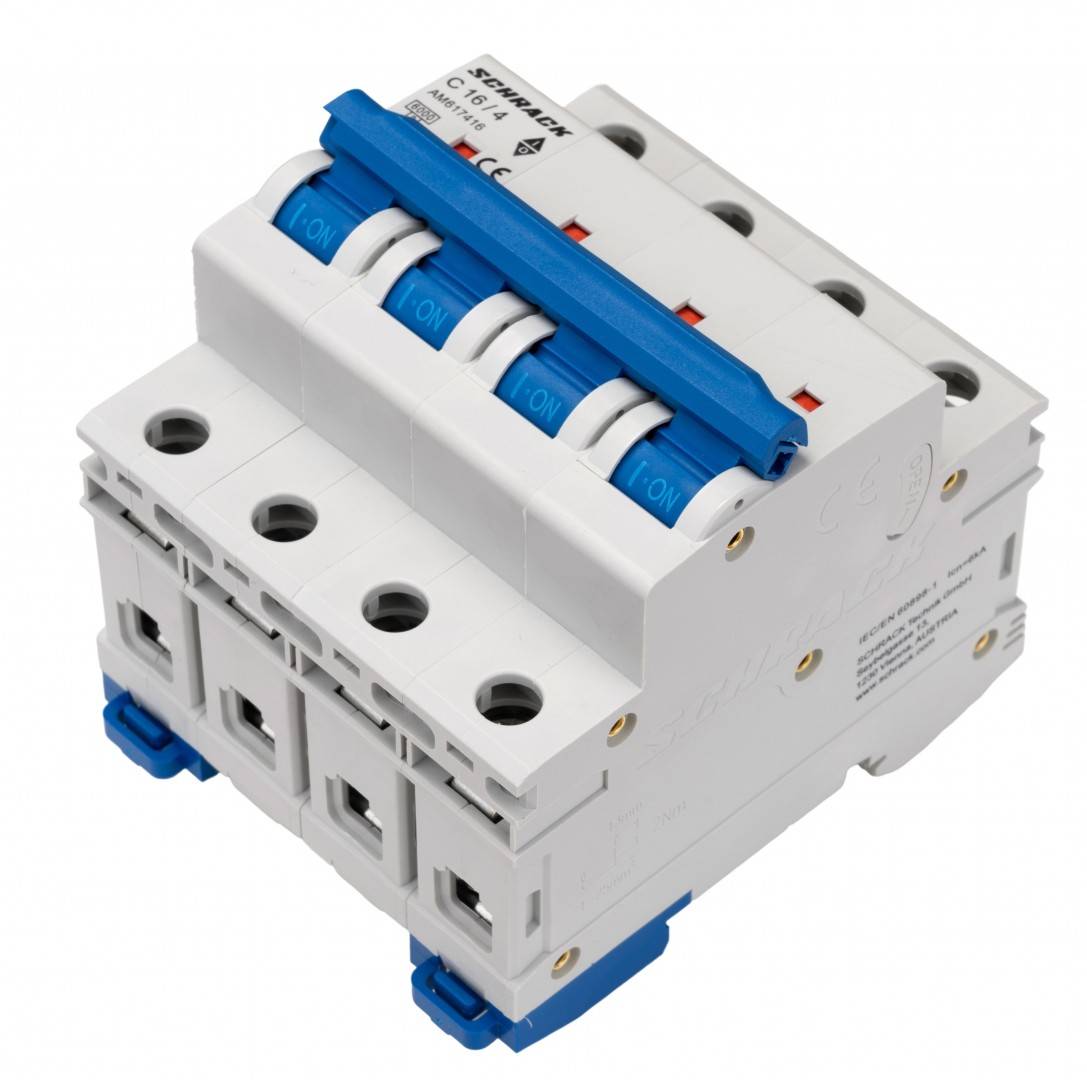

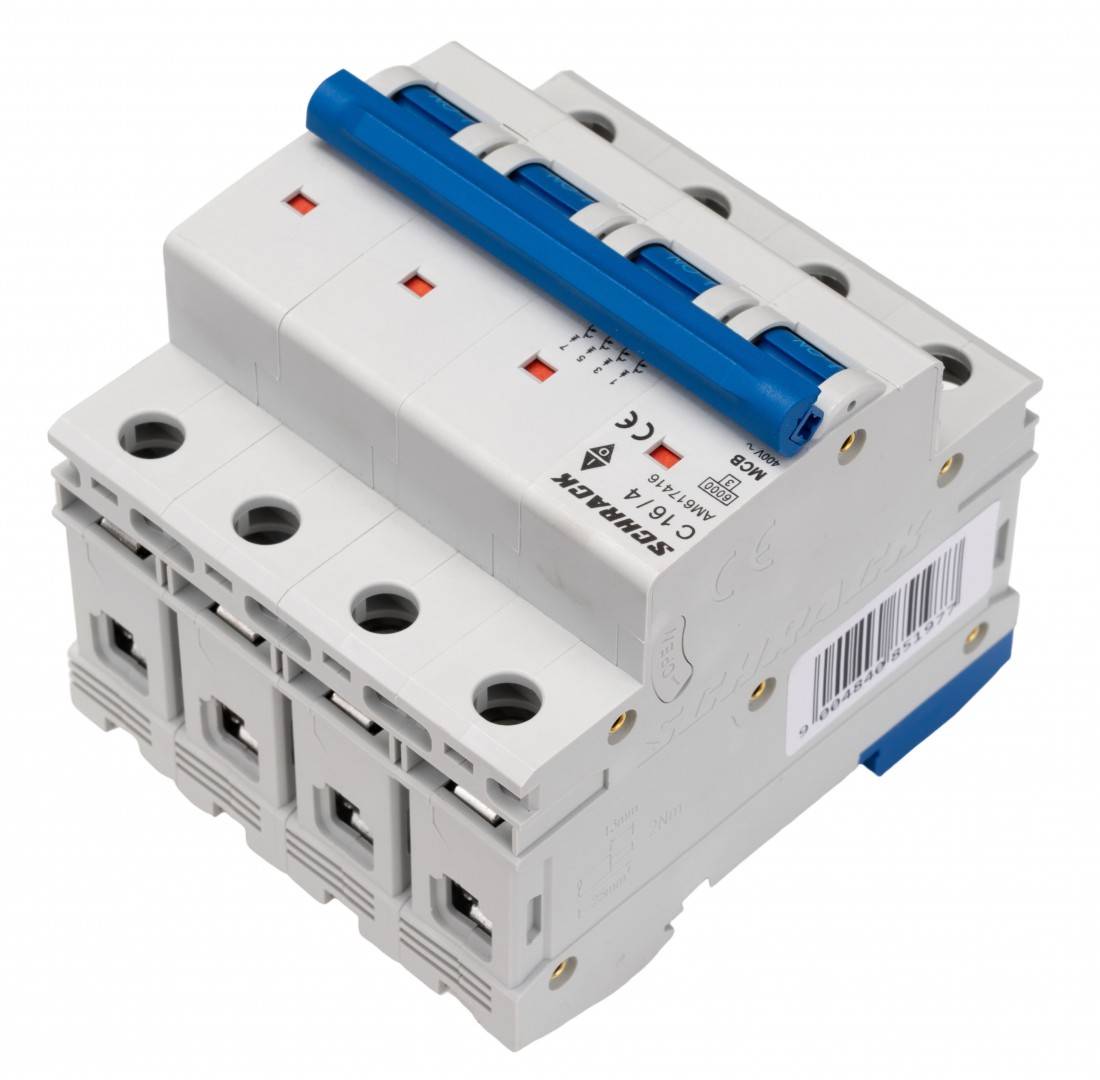

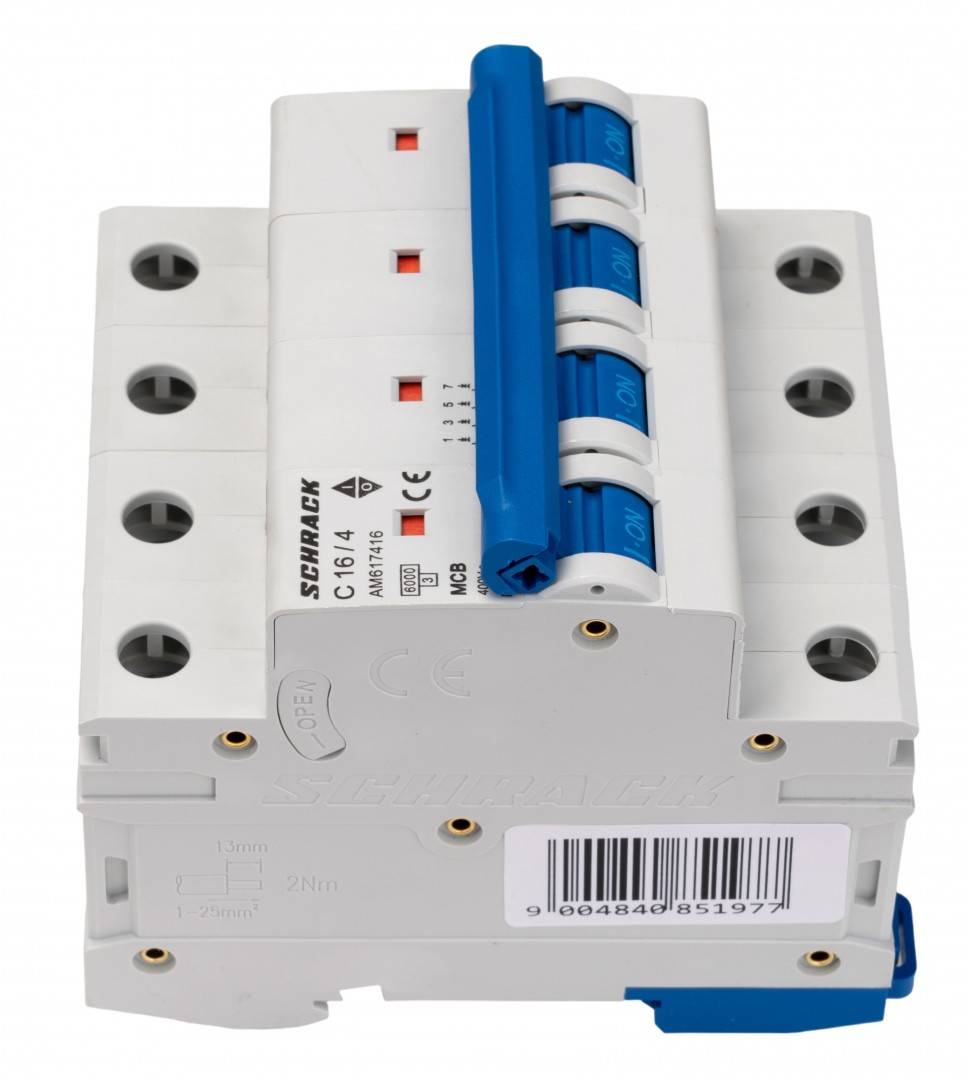

Miniature Circuit Breaker (MCB) AMPARO 6kA, C 16A, 4-pole

1977-0017-71

EN 60898-1:2019;IEC 60898-1

Copper

${kennlinie}/${nennstrom}/${pole}

20000 Operations

4kV

1977-0008-70

1-25 mm²

Double Mouth Lift Clamp with Back clamps Protection

16A: 6.310mΩ

IS503045--; IS503335--; IS503535--; IS503735--; IS503835--; IS504037--; IS504717-A; IS5047PL35; M142200---; IS503046--; IS503750--; IS503850--; IS504038--; IS504718-A; IS5047PL50; M142201---; IS503041--; IS503042--; IS503563--; IS503705--; IS503763--; IS503863--; IS504039--; IS504719-A; IS5047PL63; IS504700-A; IS504703-A; IS504704-A; IS504705--; IS504706--; IS504707--; IS504708--; IS504709--; M142202---

30 °C

AM900099--;BSB90125-A;AM900008--;AM900006--;AM900005--

50/ 60 Hz

1

230/400 - 240/415V

4

70 °C

-5°C bis +40 °C

0,41 kg/m

16 A

IP20

2

AM617416

16,10 W

16 A

Intreruptor automat AC

3

1-25 mm²

2,50 Nm

1380

F

10 mm²

AM6

86x72x77

1 m.

AMPARO

2.5 Nm

6 kA

6 kA (IEC/EN 60898)

Schrack

-35 °C

C

2000 V

Oricare

EN 60898-1;IEC 60898-1

ambele parti

On DIN rail according to EN 60715 (35mm) via quick mounting clip

Intreruptor automat modular

3

4000 Operations

-35 to +70 °C
