Specificatii Tehnice
Terminal type
Double Mouth Lift Clamp with Back clamps Protection
Tensiune nominala
230/400V AC 4-polig
Max. allowed back-up fuse against thermal overload
63A: 40A gG
Simbol CAD
Q
Categorie produs
F (sensibil la frecvente mixte)
COD COMANDA
AR046130
Insulation voltage
500 V
Rated frequency
50/ 60 Hz
Standard produs
EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017;EN 61008-2-1:1994 + A11:1998;EN 62423:2012
Temperatura maxima a mediului ambiant
60 °C
Curent nominal
63 A
Accesorii optionale
AM900003--
Masa neta
0,37 kg/m
Max. permissible back-up fuse against short circuit
63 A gG
Terminal cross section
2,5 - 35 mm²
LxBxH mm
50x72x84
Capacitate de rupere nominala
10 kA
grad de protectie
IP20
Grad de poluare
2
Afisaj
rosu daca e declansat
Cuplu maxim
2,50 Nm
PREG
1380
Unitate de ambalare
1 m.
Descriere electrica CAD
63A/4/300mA
PU
45
Tensiune dielectrica de test la frecventa industriala
2500 V
Cuplu
2.5 Nm
Temperatura ambianta pentru montaj deschis
-25°C bis +40°C °C
Standard
EN 61008-1;IEC 61008-1;EN 62423;IEC 62423
Non-tripping residual current
≤0,5 IΔn
Fabricant
Schrack
Rated sensitivity IΔn
300 mA
Rezistenta la scurtcircuit
10 kA
Certificates
VDE for type A in 2 pole version
PROMO CODE GER
8295-0117-63
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Curent nominal
63 A
Capacitate nominala de rupere Im
630 A
Alimentare
prin 2 parti
Tip
fara temporizare
Valoare curent de defect
300 mA
disipare
22,50 W
Poli
N+3
Descriere de baza

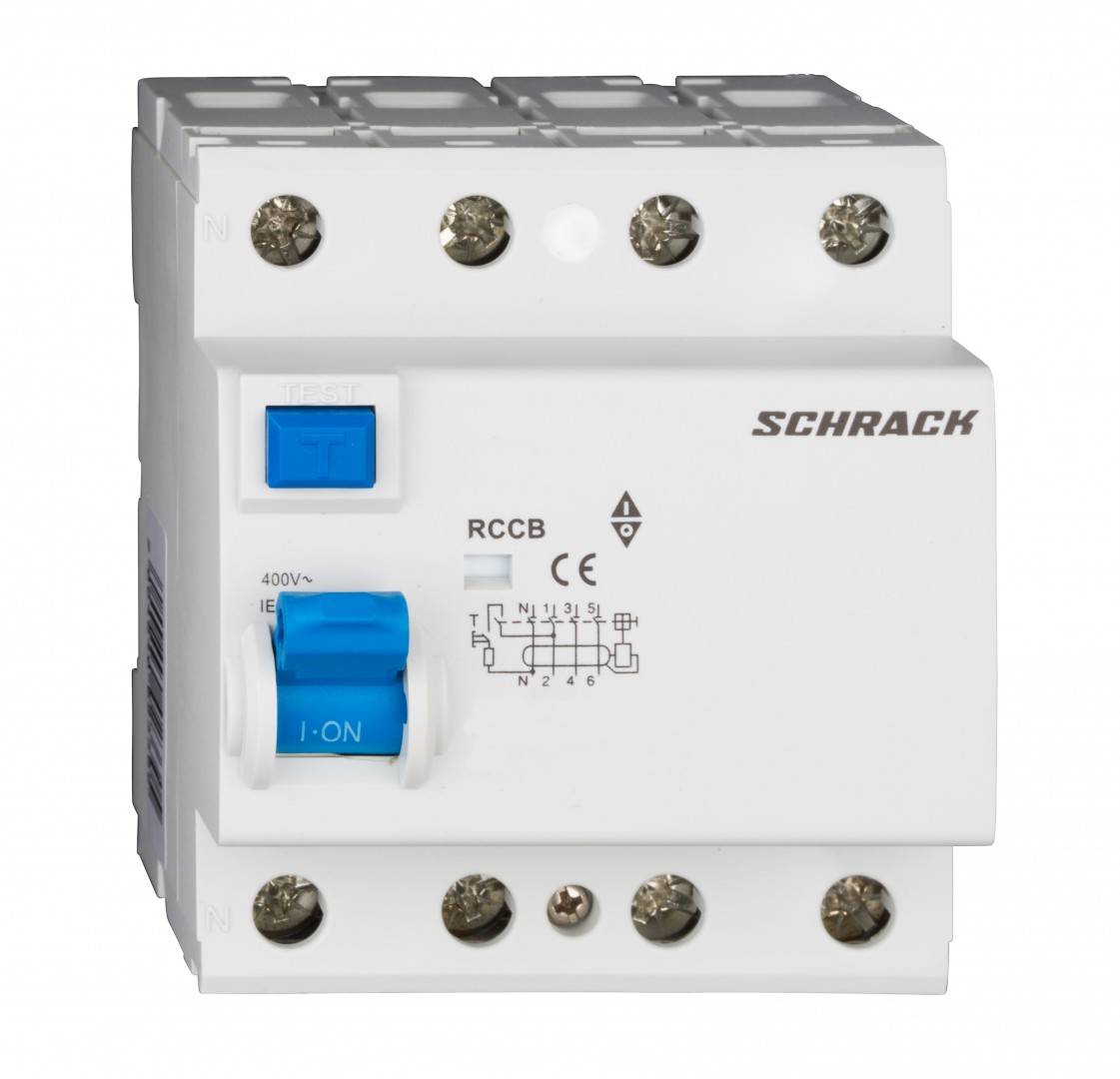

Intreruptor diferential
Conductor masiv
2.5 - 35 mm²
Material conductor
Copper
Timp de declansare instantaneu
IΔn: ≤300ms;2 x IΔn: ≤150ms;≥5 x IΔn: ≤40ms
Durata de viata mecanica
10000 Operations
Stabilitate la impuls de tensiune Uimp
4kV
| Lungime | 49.5 mm |
| Latime | 72 mm |
| Inaltime | 84 mm |
| Greutate | 0.37 kg |
