Specificatii Tehnice
Terminal type
Double Mouth Lift Clamp with Back clamps Protection
Standard
EN 61008-1;IEC 61008-1
Simbol CAD
Q
Masa neta
0,21 kg/m
Insulation voltage
500 V
Rated frequency
50/ 60 Hz
Temperatura maxima a mediului ambiant
60 °C
Terminale externe CAD
1
Accesorii optionale
BSB00111-A;BSB00112--;BSA90161--;BSA90154--;BSA90162--
Valoare curent de defect
30 mA
Max. permissible back-up fuse against short circuit
63 A gG
Descriere electrica CAD
40A/2P/30mA
disipare
9,20 W
Stabilitate la impuls de tensiune Uimp
6kV
Capacitate de rupere nominala
10 kA
Categorie produs
AC (sensibil la curent alternativ)
grad de protectie
IP20
Grad de poluare
2
Afisaj
rosu daca e declansat
Cuplu maxim
2,50 Nm
Terminal cross section
1,5 - 35 mm²
PREG
1380
LxBxH mm
50x36x84
Conductor masiv
1,5 - 35 mm²
Unitate de ambalare
1 m.
Serie
AMPARO
Temperatura ambianta pentru montaj deschis
-25°C bis +40 °C
Tensiune dielectrica de test la frecventa industriala
2500 V
Cuplu
2.5 Nm
Non-tripping residual current
≤0,5 IΔn
Rated sensitivity IΔn
30 mA
PU
90
Fabricant
Schrack
Rezistenta la scurtcircuit
10 kA
Certificates
VDE for type A in 2 pole version
COD COMANDA
AR004203
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Alimentare
prin 2 parti
Curent nominal
40 A
Capacitate nominala de rupere Im
500 A
Tip
fara temporizare
Poli
N+1
Standard produs
EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017;EN 61008-2-1:1994 + A11:1998;IEC 61008-1;IEC 61008-2-1;AS/NZS 61008.1

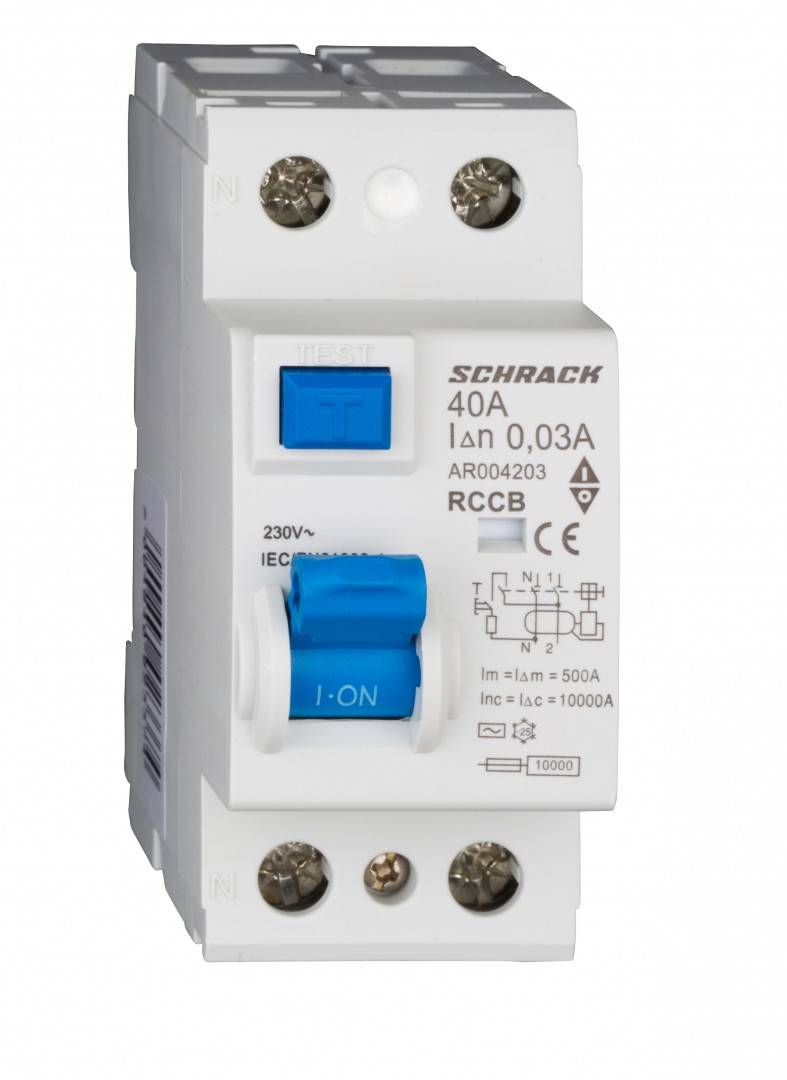

Descriere de baza
Intreruptor diferential
Max. allowed back-up fuse against thermal overload
40A: 25A gG
Durata de viata mecanica
2000 Operations
Material conductor
Copper
Tensiune nominala
230V-AC
Timp de declansare instantaneu
IΔn: ≤300ms;2 x IΔn: ≤150ms;≥5 x IΔn: ≤40ms
Curent nominal
40 A
| Lungime | 49.5 mm |
| Latime | 36 mm |
| Inaltime | 84 mm |
| Greutate | 0.21 kg |
