Specificatii Tehnice
Terminal type
Double Mouth Lift Clamp with Back clamps Protection
Calibration-Temperature
30 °C
Rated frequency
50/ 60 Hz
Terminale externe CAD
1
Curent nominal
32 A
LxBxH mm
86x54x77
Tensiune nominala
230/400 - 240/415V
disipare
12,08 W
Temperatura maxima a mediului ambiant
70 °C
Temperatura ambianta pentru montaj deschis
-5°C bis +40 °C
grad de protectie
IP20
Grad de poluare
2
Curent nominal
32 A
Versiune
Intreruptor automat AC
Terminal cross section
1-25 mm²
Cuplu maxim
2,50 Nm
PREG
1380
Simbol CAD
F
PROMO CODE CH
3214-0014-12
Clamp size for busbar
10 mm²
Categorie produs
AM6
Unitate de ambalare
1 m.
Serie
AMPARO
Cuplu
2.5 Nm
COD PROMO
3214-0006-93
Capacitate de rupere nominala
6 kA
Rezistenta la scurtcircuit
6 kA (IEC/EN 60898)
Poli
3
Fabricant
Schrack
Temperatura minima a mediului ambiant
-35 °C
Caracteristica declansare
C
Tensiunea de test
2000 V
Poztie de montaj
Oricare
Standard
EN 60898-1;IEC 60898-1
PROMO CODE GER INDUSTRY
3214-00006-62
Conexiune
ambele parti
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
PROMO CODE GER
3214-0006-33
Descriere de baza

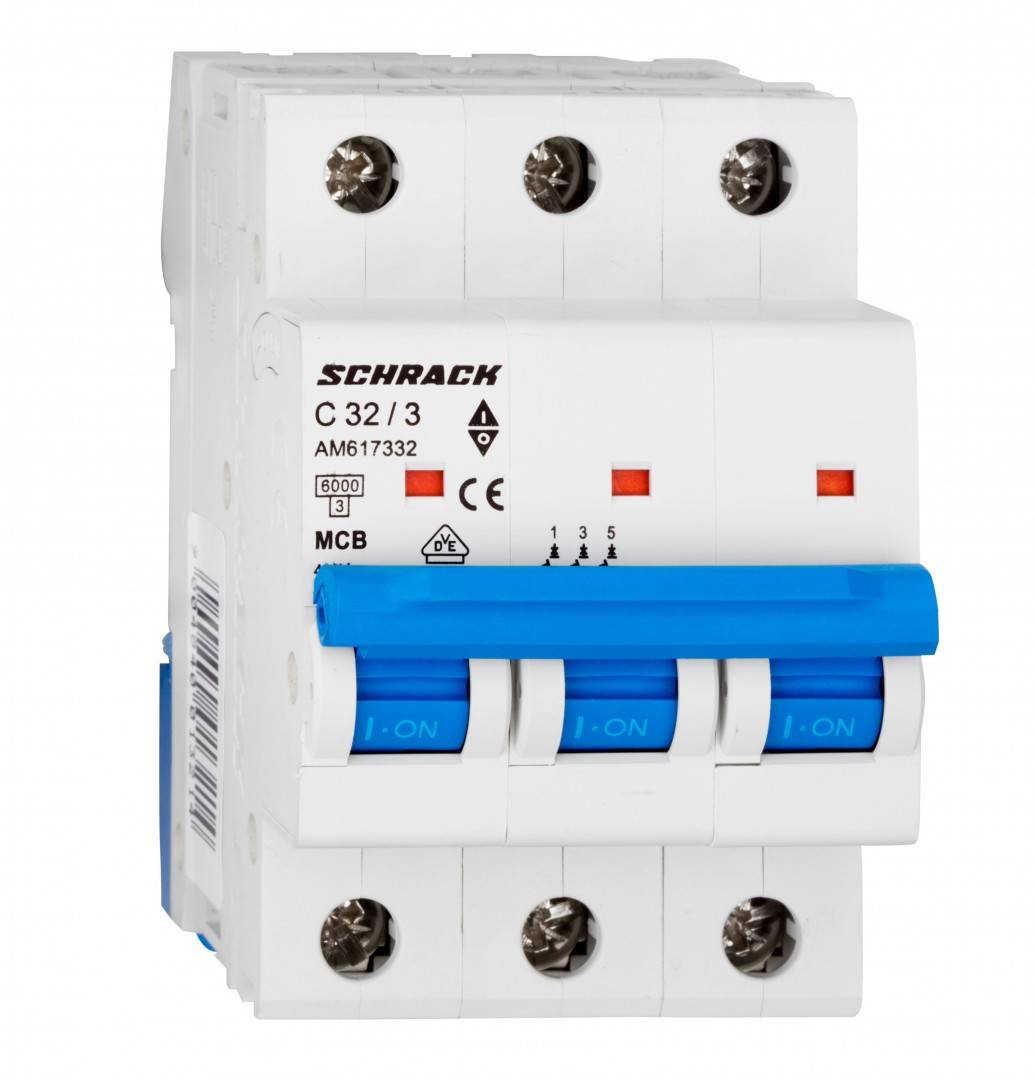

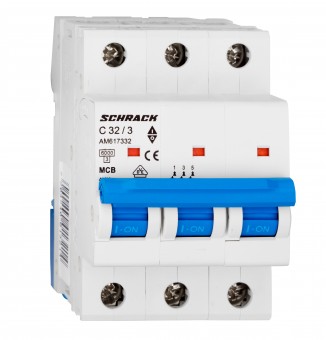

Intreruptor automat modular
PU
4
Masa neta
0,34 kg/m
Energy limiting class
3
Accesorii optionale
AM900099--;BSB90113-A;BSB90114-A;BSB90155-A;AM900008--;AM900006--;AM900005--
Durata de viata electrica
4000 Operations
Gama de temperatura - Functionare
-35 to +70 °C
Selectivitate
IS503041--; IS503042--; IS503563--; IS503705--; IS503763--; IS503863--; IS504039--; IS504719-A; IS5047PL63; IS504700-A; IS504703-A; IS504704-A; IS504705--; IS504706--; IS504707--; IS504708--; IS504709--; M142202---
COD COMANDA
AM617332
Standard produs
EN 60898-1:2019;IEC 60898-1
Material conductor
Copper
Descriere electrica CAD
${kennlinie}/${nennstrom}/${pole}
Durata de viata mecanica
20000 Operations
Internal resistance
32A: 2.009mΩ
Stabilitate la impuls de tensiune Uimp
4kV
Conductor masiv
1-25 mm²
| Lungime | 86 mm |
| Latime | 54 mm |
| Inaltime | 77 mm |
| Greutate | 0.34 kg |
