Specificatii Tehnice
Terminal type
Double Mouth Lift Clamp with Back clamps Protection
Accesorii optionale
BSA90121--;BSA90120--;BSA90122--;BSA90169--;BSA90164--;BSA90167--;BSA90170--;BSA90172--;AM900099--;AM900008--;AM900006--;AM900005--
Calibration-Temperature
30 °C
Rated frequency
50/ 60 Hz
Terminale externe CAD
1
Curent nominal
32 A
Tensiune nominala
230/400 - 240/415V
PROMO CODE CH
4518-0008-05
Versiune
intreruptor modular, 1+N, 1 modul
Temperatura maxima a mediului ambiant
70 °C
Temperatura ambianta pentru montaj deschis
-5°C bis +40 °C
grad de protectie
IP20
Grad de poluare
2
PU
15
Curent nominal
32 A
Terminal cross section
1-25 mm²
Cuplu maxim
2,50 Nm
COD COMANDA
AM617532
Masa neta
0,11 kg/m
PREG
1380
Simbol CAD
F
Categorie produs
1+N la 1UH
Unitate de ambalare
1 m.
Serie
AMPARO
Cuplu
2.5 Nm
Capacitate de rupere nominala
6 kA
Rezistenta la scurtcircuit
6 kA (IEC/EN 60898)
Fabricant
Schrack
COD PROMO
4518-0003-96
Caracteristica declansare
C
Tensiunea de test
2000 V
Poztie de montaj
Oricare
Standard
EN 60898-1;IEC 60898-1
Conexiune
ambele parti
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Descriere de baza

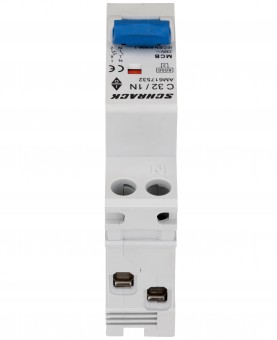

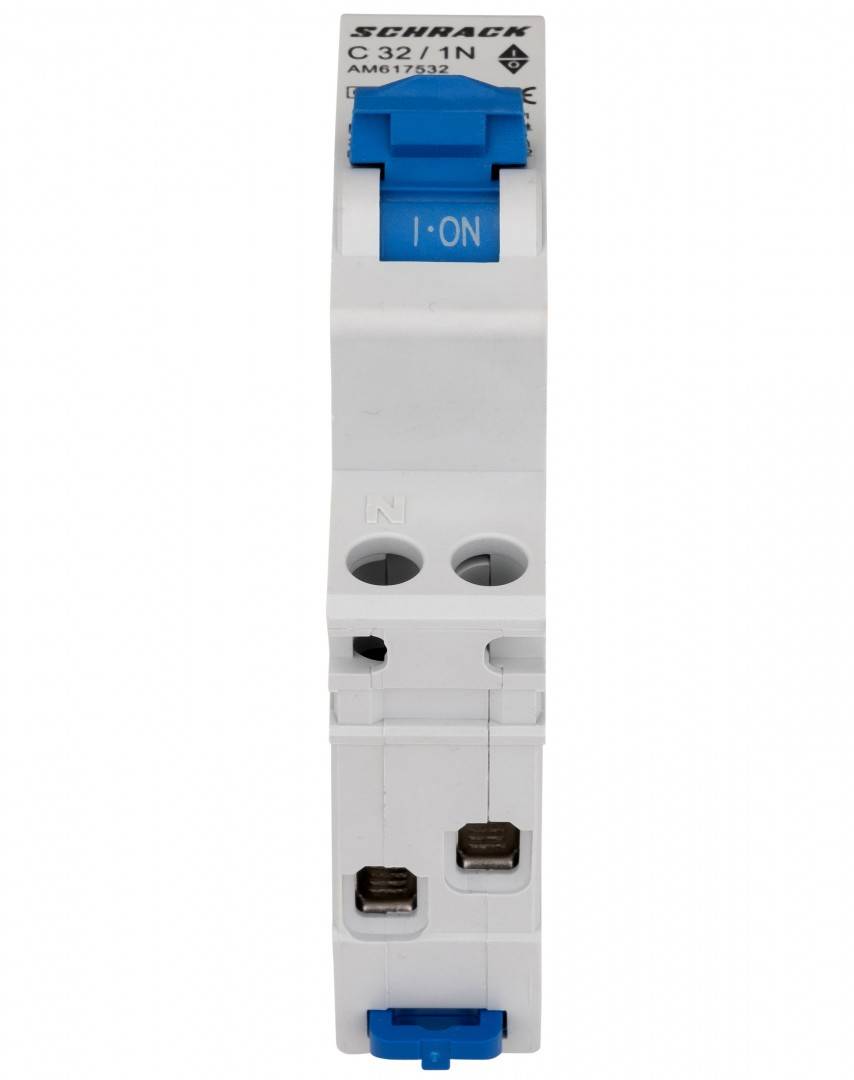

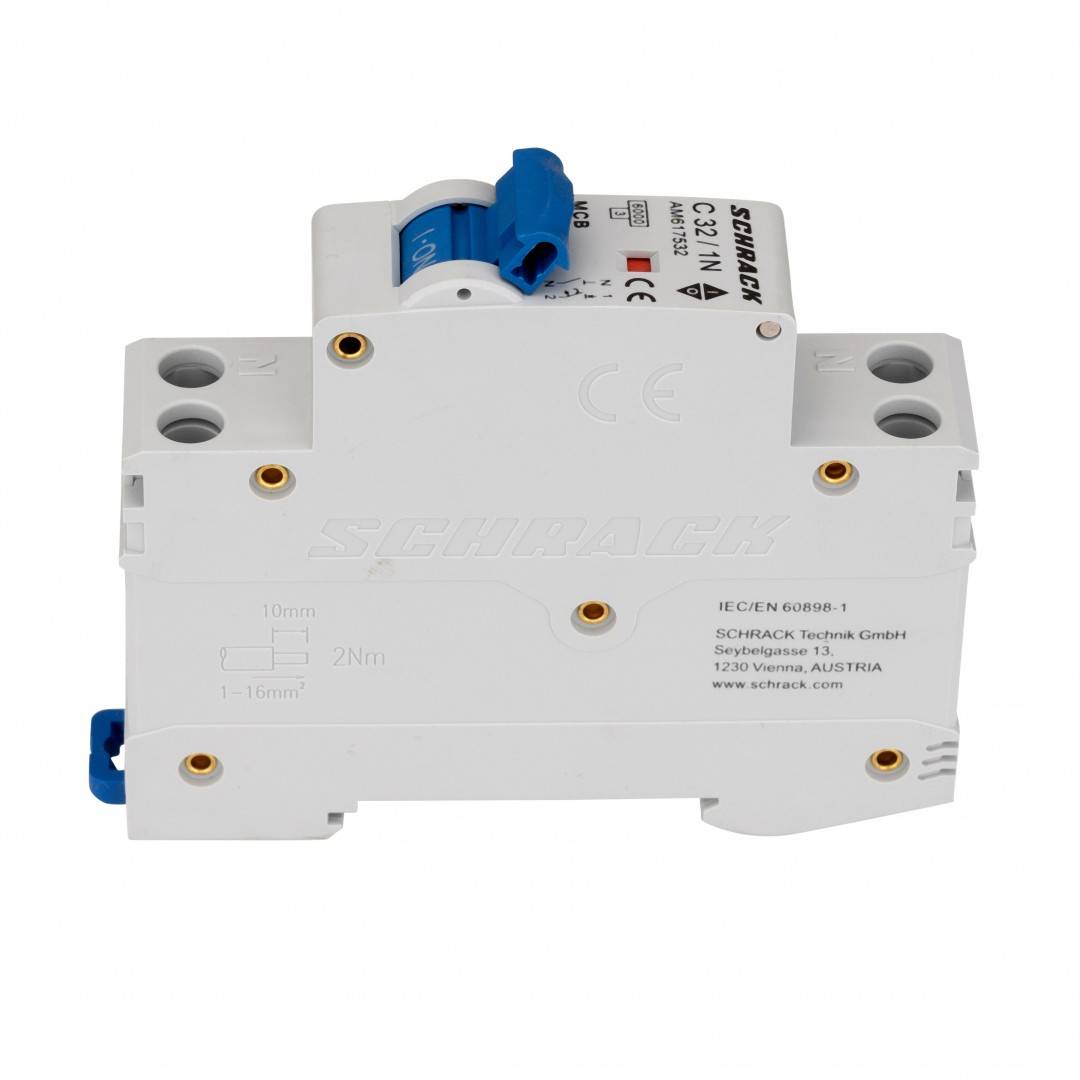

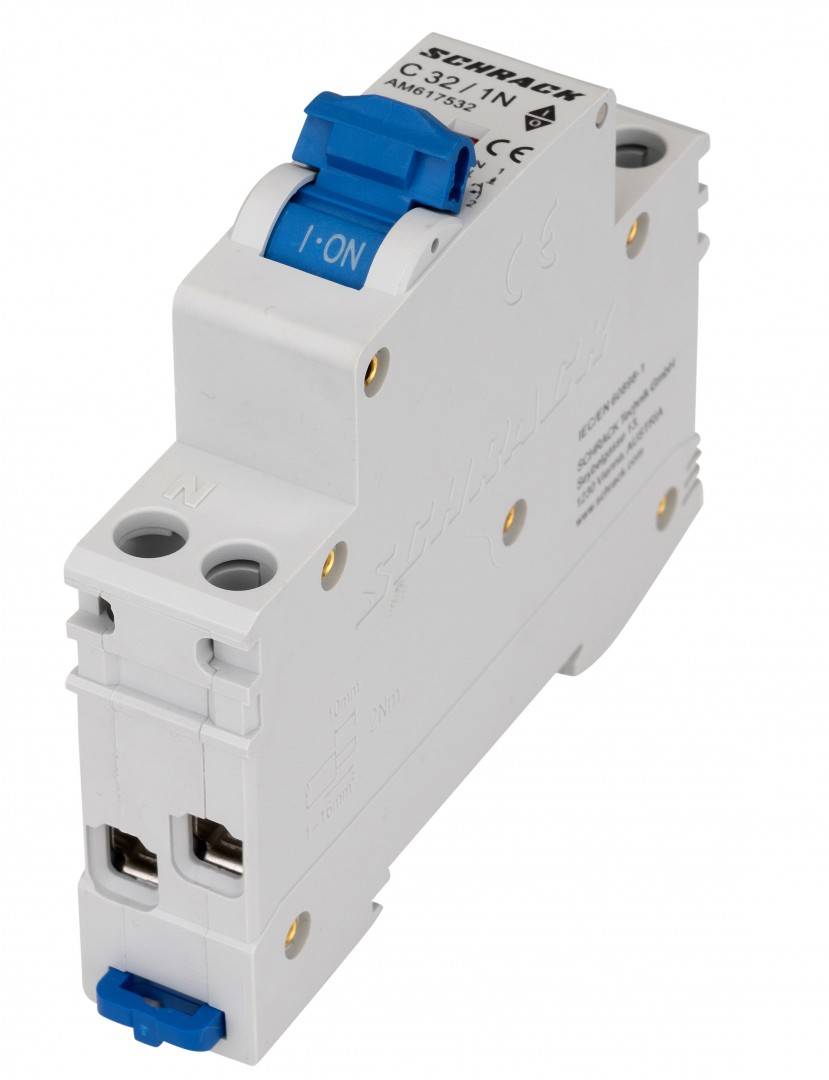

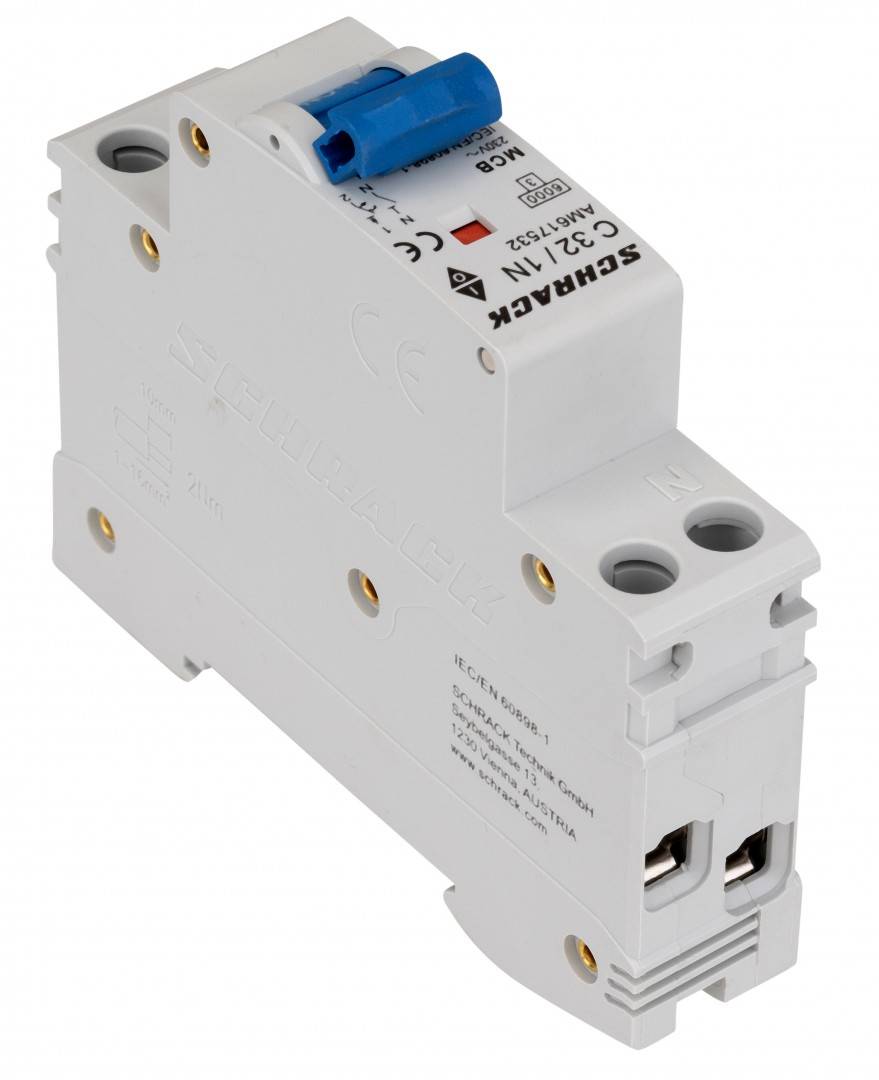

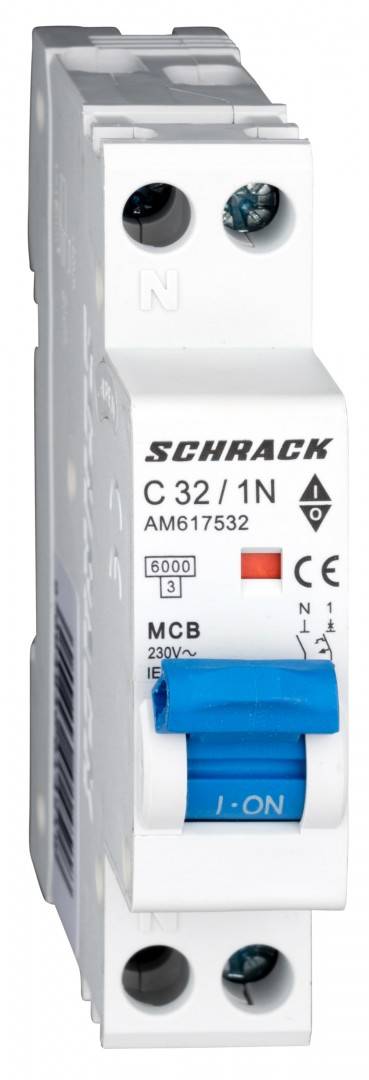

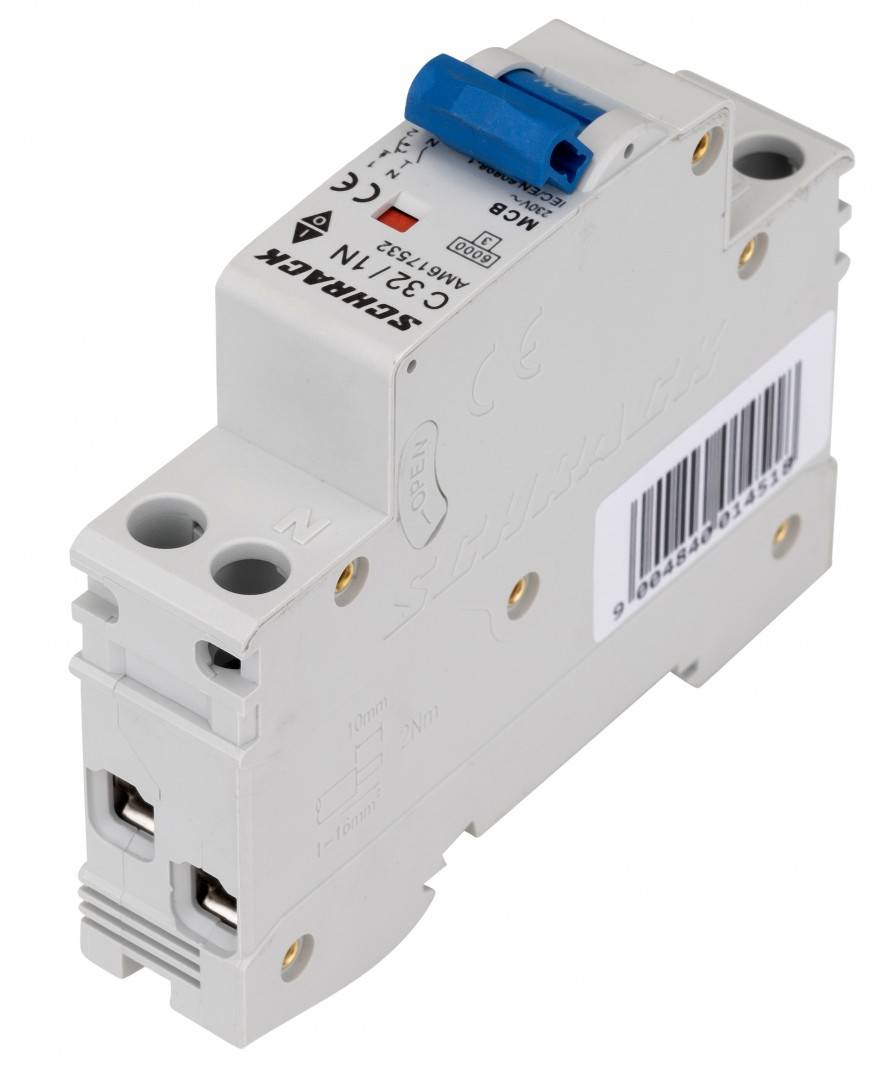

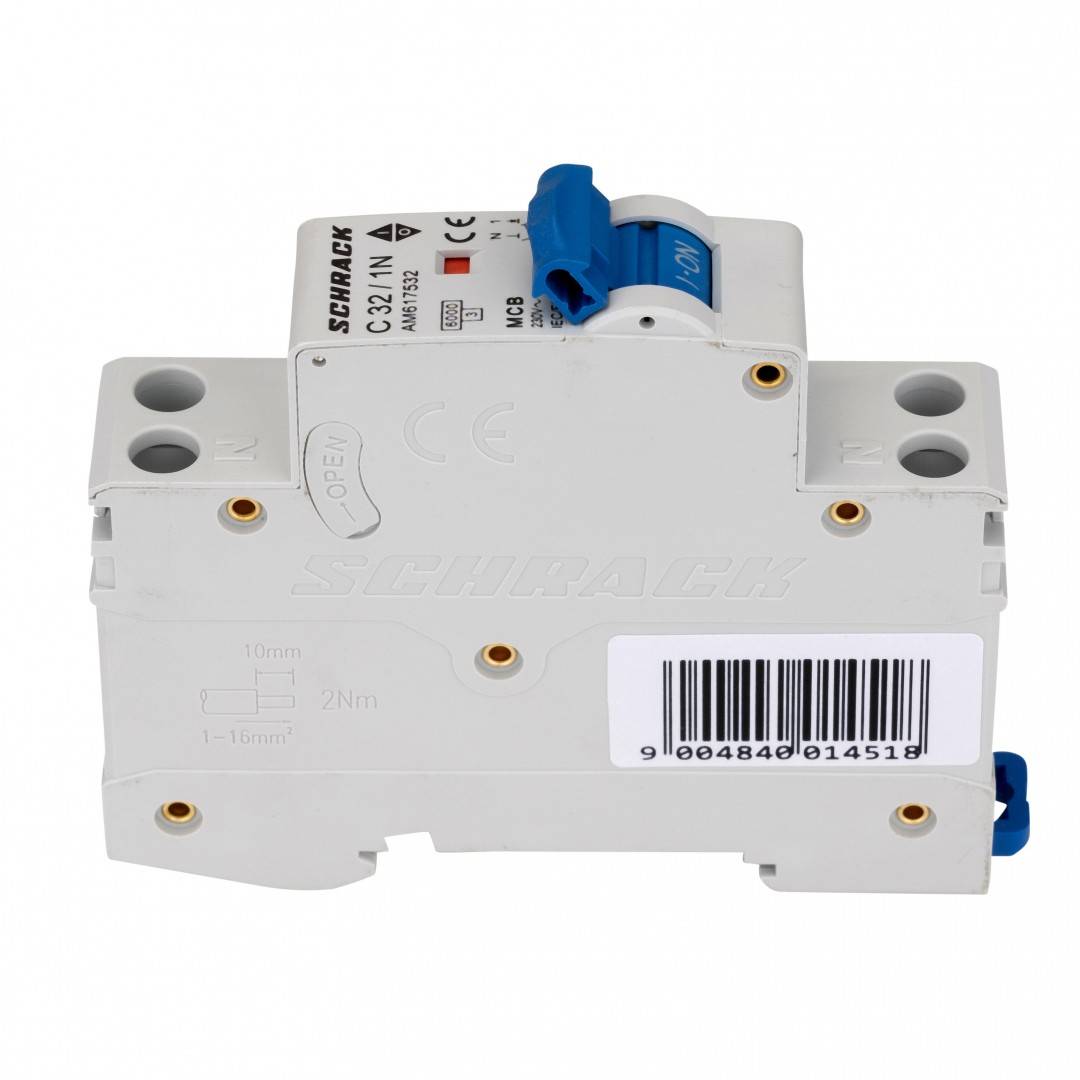

Intreruptor automat modular
LxBxH mm
86x18x77
Energy limiting class
3
Gama de temperatura - Functionare
-25 la +70 °C
disipare
7,00 W
Durata de viata electrica
4000 Operations
Poli
N+1
Selectivitate
IS503041--; IS503042--; IS503563--; IS503705--; IS503763--; IS503863--; IS504039--; IS504719-A; IS5047PL63; IS504700-A; IS504703-A; IS504704-A; IS504705--; IS504706--; IS504707--; IS504708--; IS504709--; M142202---
Standard produs
EN 60898-1:2019;IEC 60898-1
Material conductor
Copper
Descriere electrica CAD
${kennlinie}/${nennstrom}/${pole}
Durata de viata mecanica
20000 Operations
Internal resistance
32A: 2.009mΩ
Stabilitate la impuls de tensiune Uimp
4kV
Conductor masiv
1-25 mm²
| Lungime | 86 mm |
| Latime | 18 mm |
| Inaltime | 77 mm |
| Greutate | 0.11 kg |
