Specificatii Tehnice
Standard produs
EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016;EN 61009-2-1:1994 + A11:1998;IEC 61009-1;IEC 61009-2-1
Masa neta
0,21 kg/m
Insulation voltage
500 V
Rated frequency
50/ 60 Hz
Temperatura maxima a mediului ambiant
60 °C
Tensiune dielectrica de test la frecventa industriala
2000 V
Categorie produs
A (sensibil la curent alternativ si pulsatoriu)
Max. permissible back-up fuse against short circuit
63 A gG

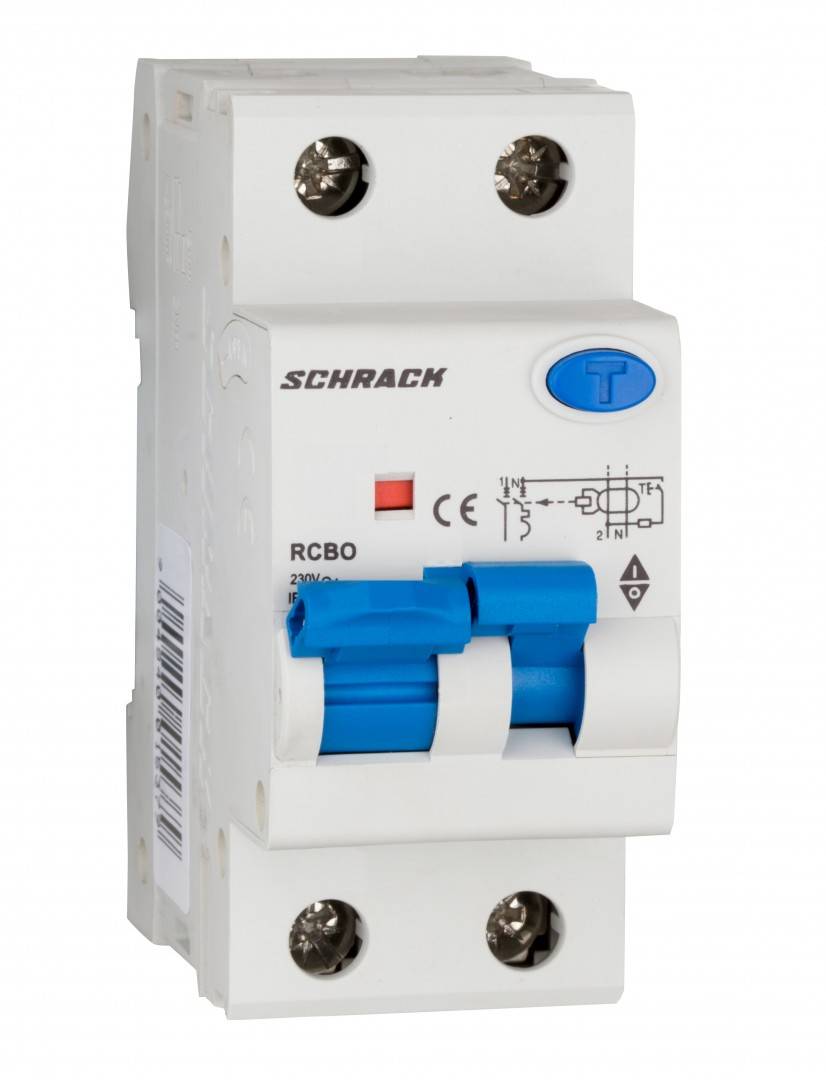

Descriere de baza
Intreruptor automat modular combinat
Descriere electrica CAD
C/20A/1+N/100mA/A (pulsstromsensitiv)
Terminal type
Lift clamp cable / pin busbar (top);Double funtion clamp / pin and fork busbar (bottom)
Stabilitate la impuls de tensiune Uimp
6kV
Capacitate de rupere nominala
10 kA
grad de protectie
IP20
Grad de poluare
2
Non-tripping residual current
≤0,5 IΔn
disipare
5,45 W
Curent nominal
20 A
Terminal cross section
1-25 mm²
Tensiune nominala
230/400 V AC
PREG
1380
Simbol CAD
F
Temperatura ambianta pentru montaj deschis
-25°C bis +70 °C
Clamp size for busbar
10 mm²
Unitate de ambalare
1 m.
Serie
AMPARO
Poli
1+N
Cuplu
2 Nm
Reference temperature
30 °C
PU
90
Fabricant
Schrack
Caracteristica declansare
C
Rezistenta la scurtcircuit
10 kA
Standard
EN 61009-1;IEC 61009-1
Conexiune
ambele parti
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Energy limiting class
3
Capacitate nominala de rupere Im
500 A
Tip
fara temporizare
LxBxH mm
77x36x85
Accesorii optionale
AM900099--;BS990112-A
Rated sensitivity IΔn
100 mA
Contact setting display
Yes
Durata de viata mecanica
2000 Operations
Material conductor
Copper
Timp de declansare instantaneu
IΔn: ≤300ms;2 x IΔn: ≤150ms;≥5 x IΔn: ≤40ms
Curent nominal
20 A
COD COMANDA
AK717620
| Lungime | 77 mm |
| Latime | 36 mm |
| Inaltime | 85 mm |
| Greutate | 0.21 kg |
