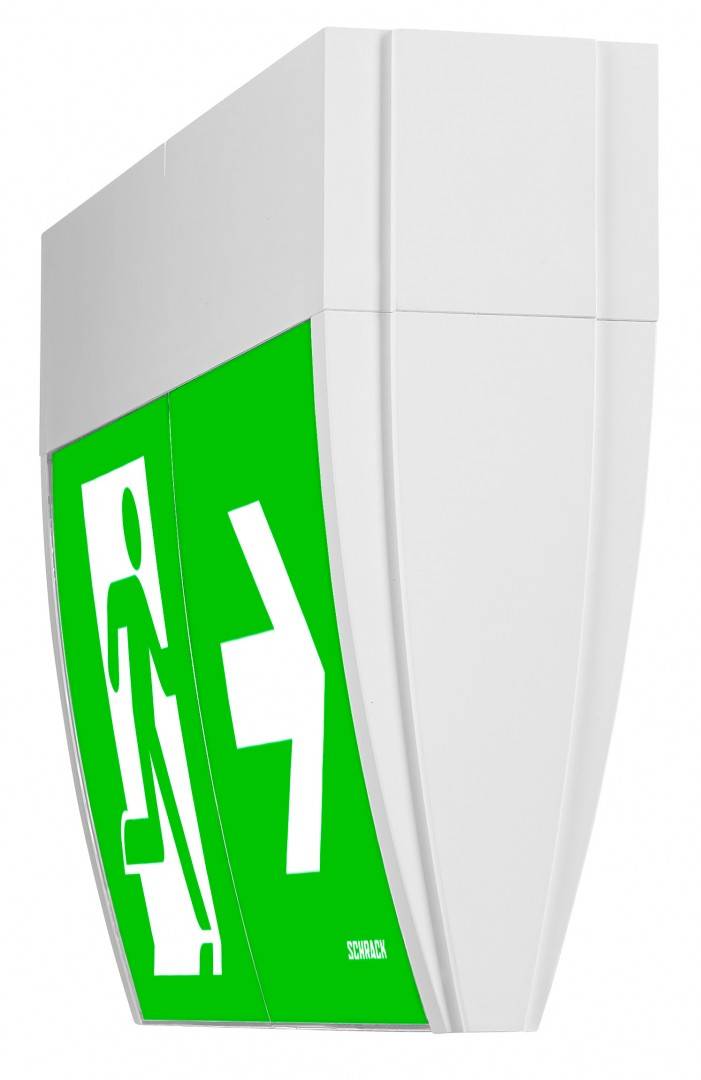

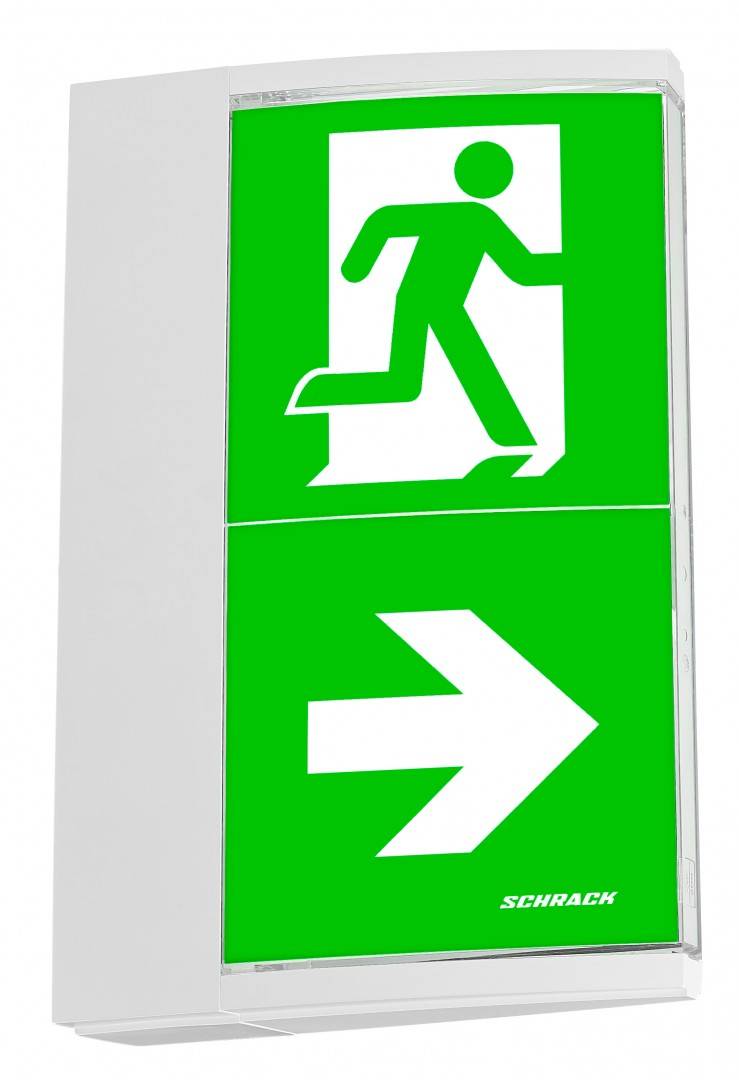

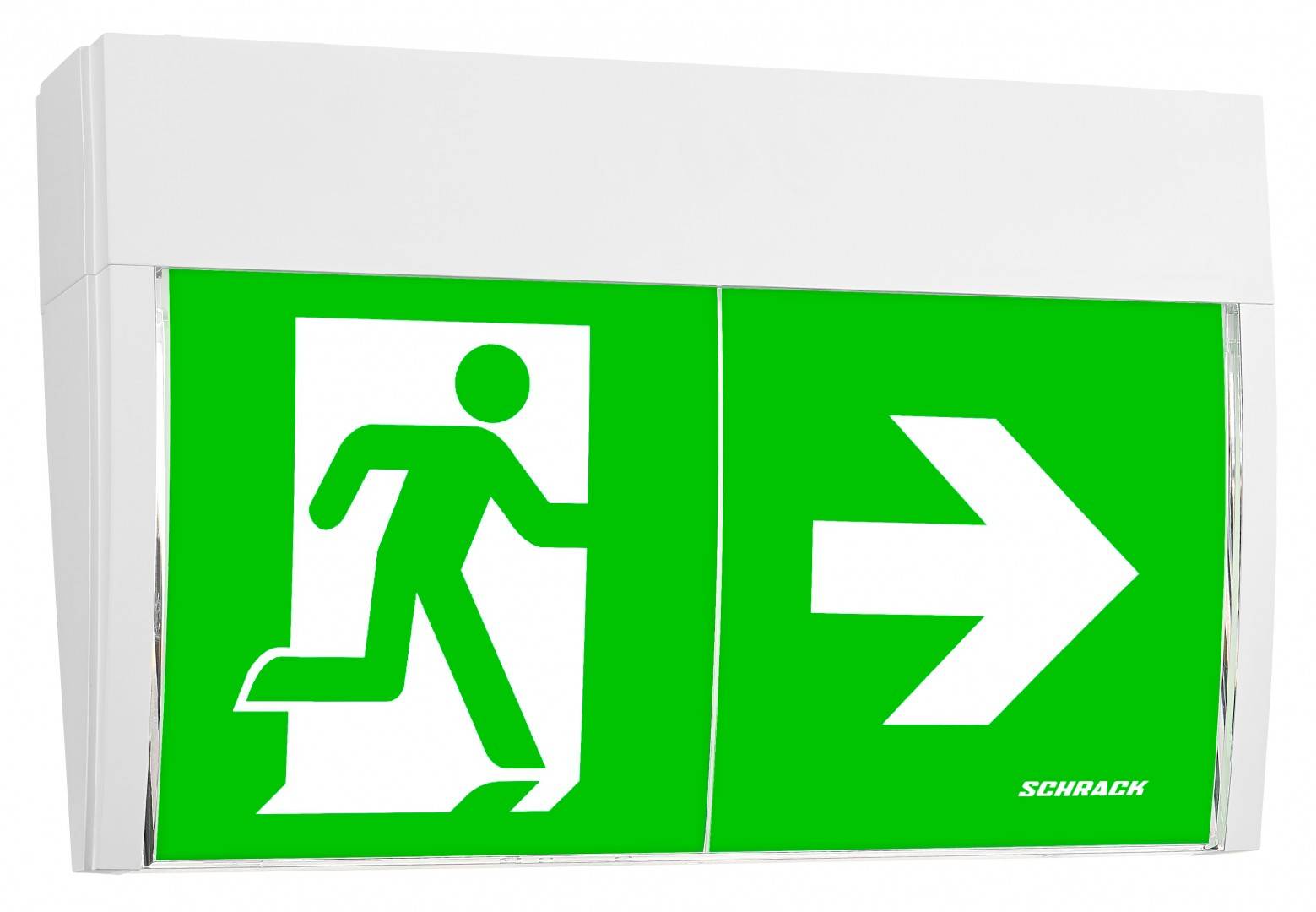

Emergency luminaire PX EL HP-LED 230V, ceiling mounting
Cod produs: NLPXD009EL
Marca: SCHRACK TECHNIK
Pret cu TVA: 1032.20 Lei / buc.
|
|
|
|
|
|
Comanda instant - Emergency luminaire PX EL HP-LED 230V, ceiling mounting
|
Emergency luminaire PX EL HP-LED 230V, ceiling mounting
|
|
Specificatii Tehnice COD COMANDA NLPXD009EL EB-ZB Central power supply luminaire Functie Cu monitorizare - comutatie centralizata Power max. 5,20 W Clasa de protectie II Pictogram Slide-in pictogram set (2x man in the door and two arrows that can each be rotated by 90°) included in accordance with ISO 7010 PREG 4000 Domeniu recunoastere 30 m. Versiune corp iluminat din plastic Tip iluminare semn (corp) iluminat siguranta Power maintained mode 5,20 W Lumen 335 Temperatura maxima a mediului ambiant 40 °C Unitate de ambalare 1 m. Sursa iluminare LED Fara halogen Housing made of halogen-free plastic Temperatura minima a mediului ambiant -20 °C Fabricant Schrack Montaj Montaj incastrat in plafon disipare 1,00 W Tip PX AA Clasa E 8101 AA4 Tensiunea de alimentare 230V AC 50Hz ±20%; 230V DC ±20% V Rezistenta la impact IK06 Power non-maintained mode 1,10 W Culoare RAL 9003 (alb) Masa neta 1,37 kg/m LxBxH mm 339x73x211 grad de protectie IP65 Sursa de lumina LED (3W) | Lungime | 339 mm | | Latime | 73 mm | | Inaltime | 211 mm | | Greutate | 1.37 kg |
|
|
|
|
|
