Specificatii Tehnice
EB-ZB

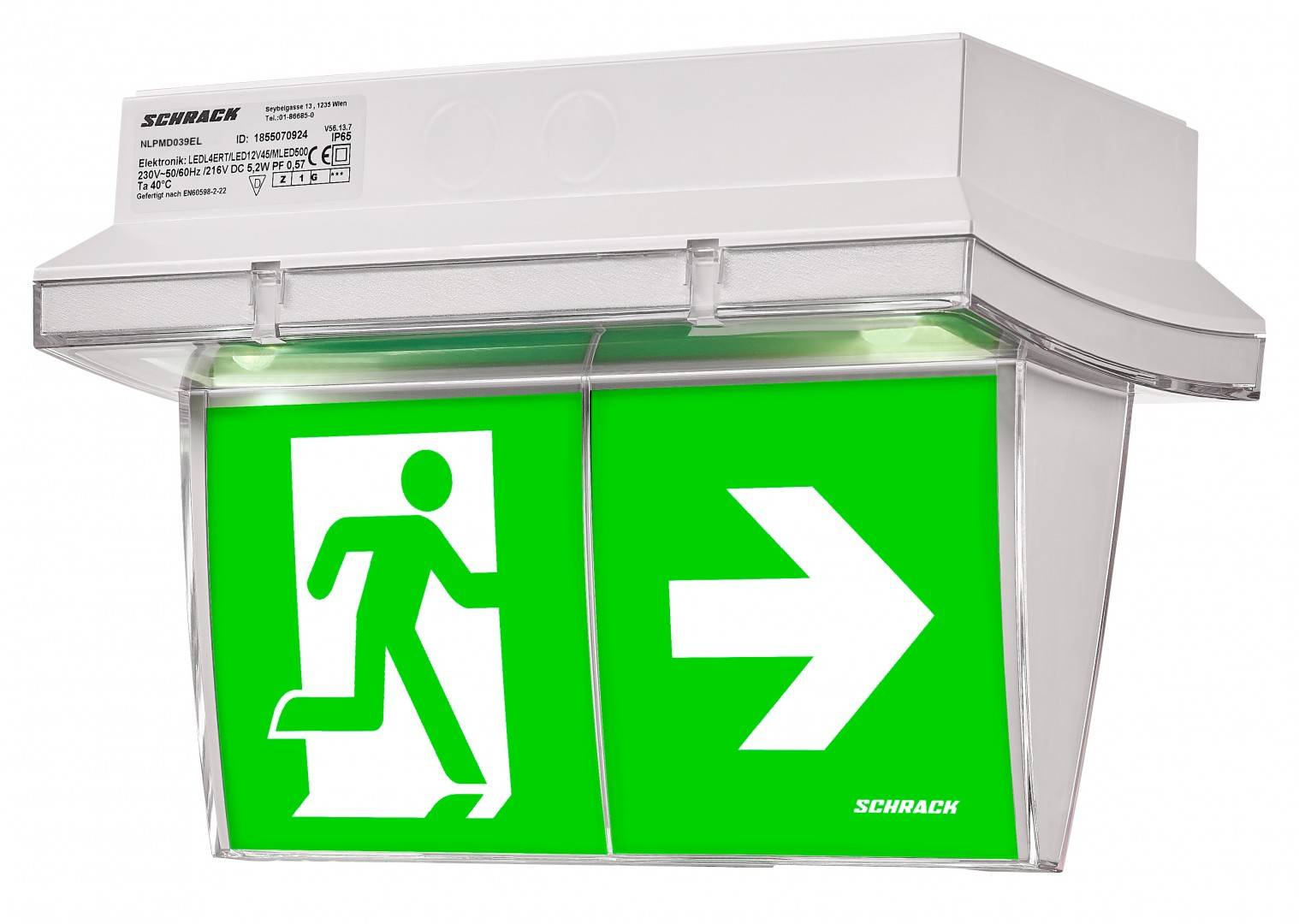

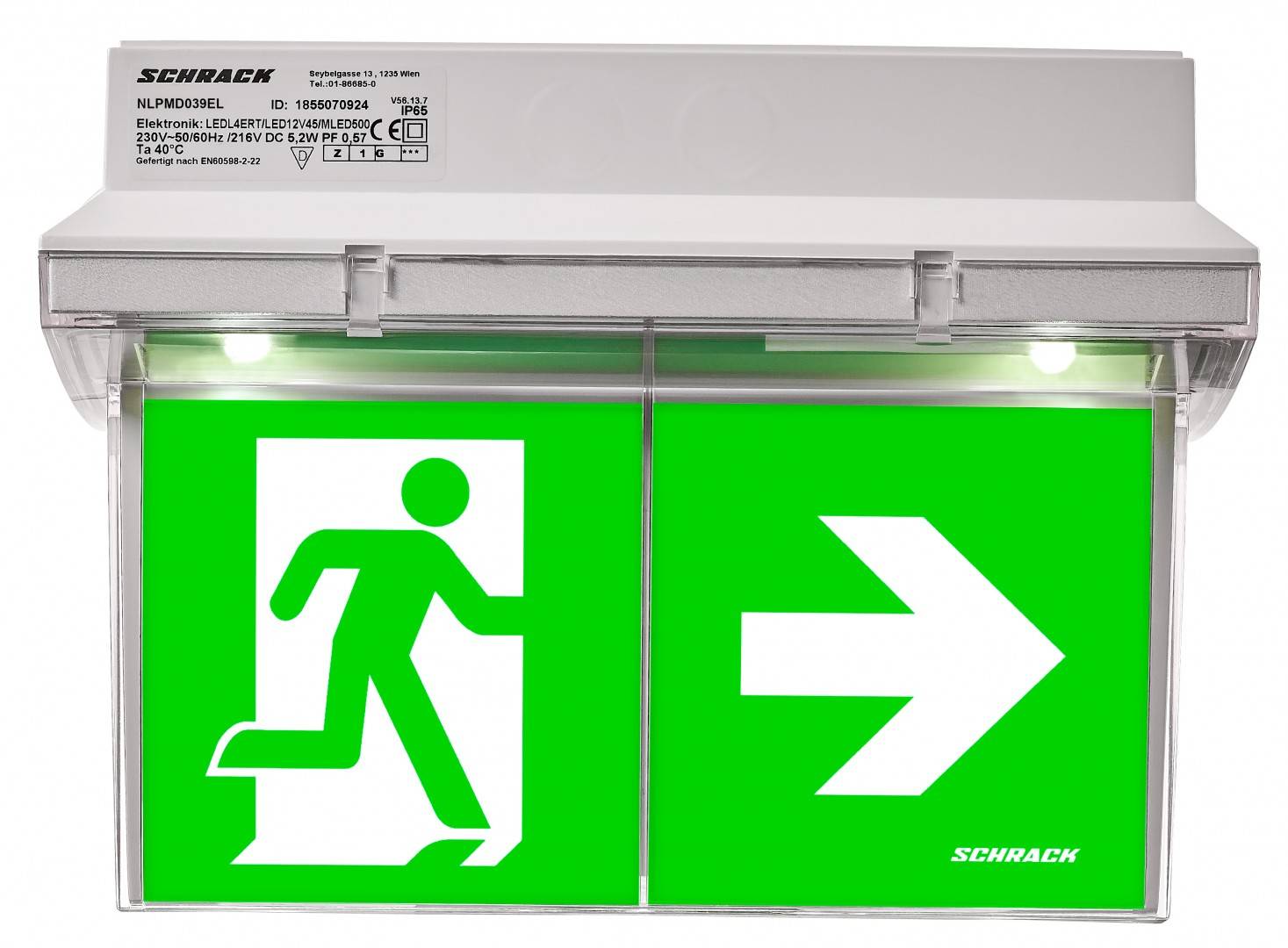

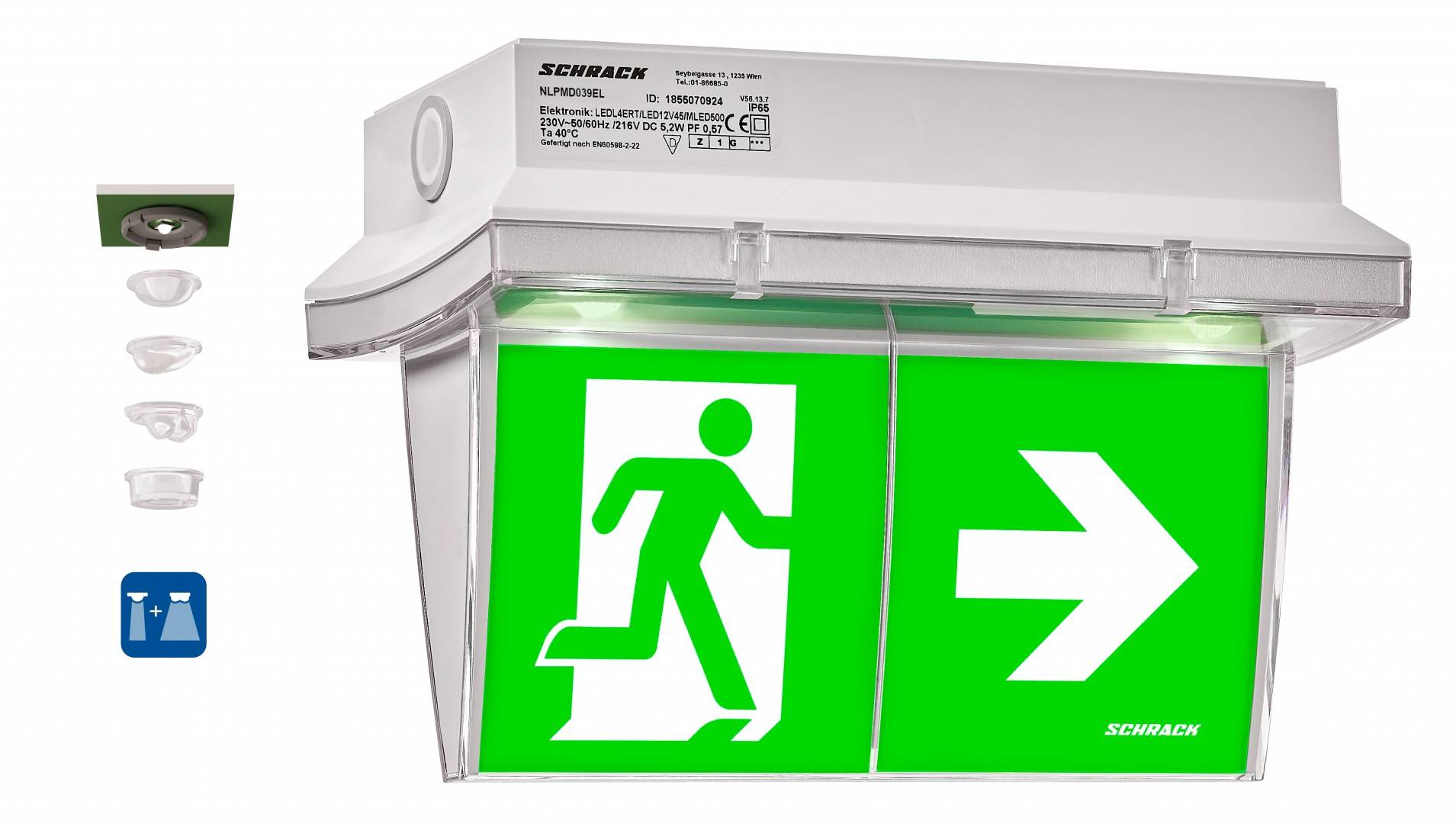

Central power supply luminaire
AA Clasa E 8101
AA3;AA4;AA5
Functie
Cu monitorizare - comutatie centralizata
Power max.
5,20 W
-
Deactivate
Clasa de protectie
II
Pictogram
Slide-in pictogram set (2x man in the door and two arrows that can each be rotated by 90°) included in accordance with ISO 7010
Versiune
corp iluminat din plastic
Power maintained mode
5,20 W
Lumen
335
COD COMANDA
NLPMD433WL
Sursa de lumina
ERT-LED (4W)
Accesorii optionale
NLPME-----
Domeniu recunoastere
20 m.
Update-Link
https://www.schrack.at/schrack-technik/produktrisiko-melden
Temperatura maxima a mediului ambiant
40 °C
Unitate de ambalare
1 m.
Fara halogen
Housing made of halogen-free plastic
Temperatura minima a mediului ambiant
-5 °C
Sursa iluminare
ERT-LED
Fabricant
Schrack
disipare
1,00 W
Masa neta
0,89 kg/m
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
Rezistenta la impact
IK06
Power non-maintained mode
1,10 W
Culoare
RAL 9003 (alb)
Tip
PM
grad de protectie
IP65
Tip iluminare
Combined rescue path and rescue sign luminaire;semn (corp) iluminat siguranta;lampa de siguranta
LxBxH mm
236x136x168
Montaj
Montaj incastrat in plafon;recessed mounting ceiling optional
PREG
4060
| Lungime | 236 mm |
| Latime | 136 mm |
| Inaltime | 168 mm |
| Greutate | 0.89 kg |
